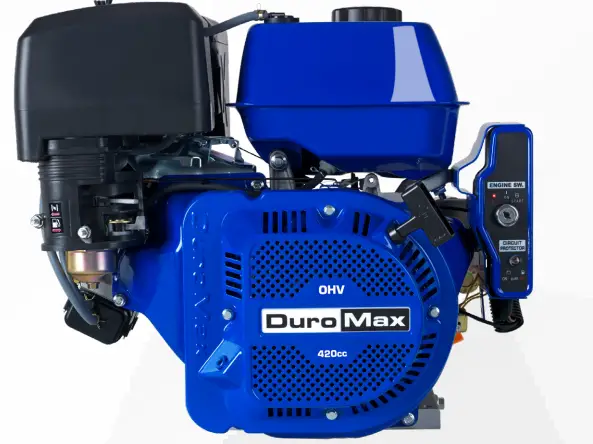

DuroMax XP16HPE 420CC OHV Electric Start Engine
XP16HPE 420CC OHV ELECTRIC START ENGINE

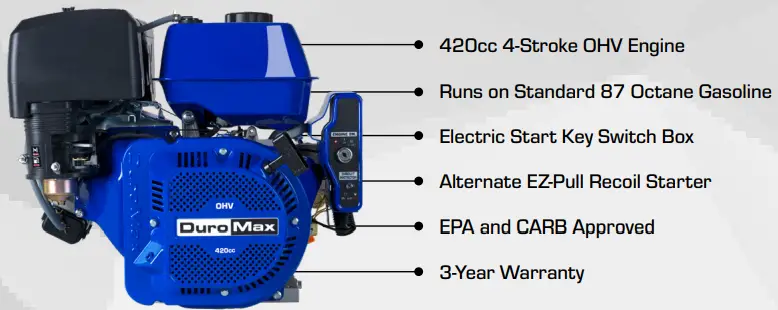

FEATURES

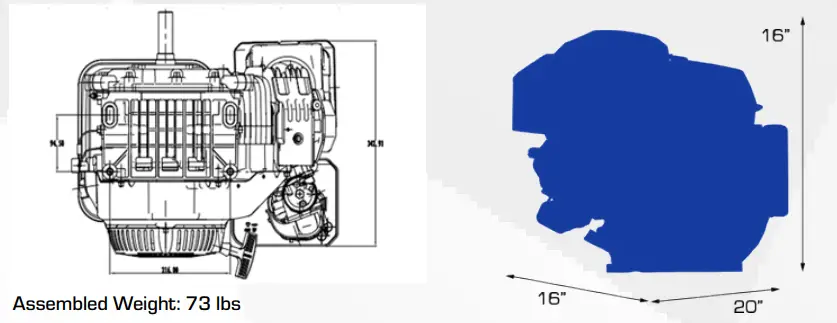

DIMENSIONS
SPECS
| Displacement | 420cc |
| Maximum Torque | 28.5 Nm / 23.34 ft/lb |
| Maximum RPM | 3600 RPM |
| Shaft Orientation | Horizontal |
| Shaft Size | 1” Diameter, 2-3/4” Long, 1/4” Keyway |
| Shaft End | 3/8” Size 24 UNF – Drilled & Tapped |
| Center of Shaft to Base | 5” |
| Fuel Tank Capacity | 1.75 gal |
| Average Runtime | 1/2 gal/hr (at 1/2 load) |
