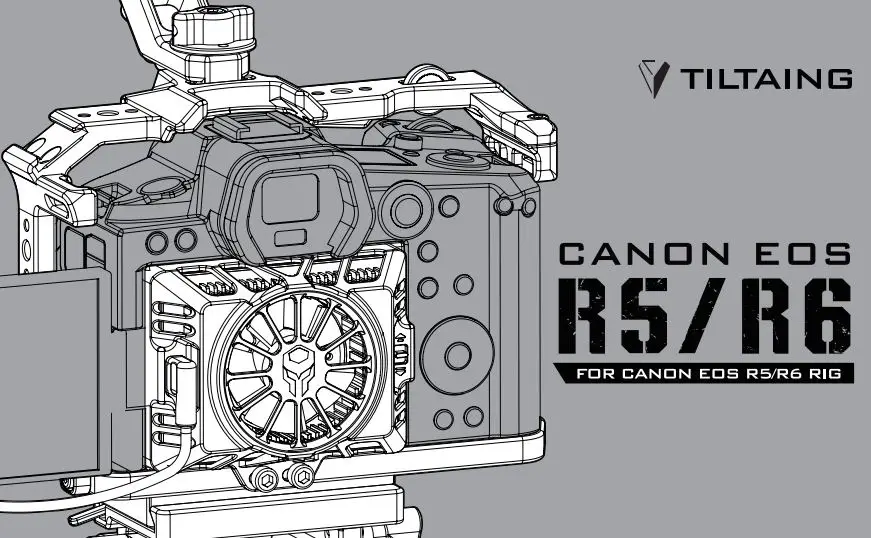

TILTA TA-T22-A-G Camera Cage Kit B for Canon User Manual
CAMERA FUNCTIONS

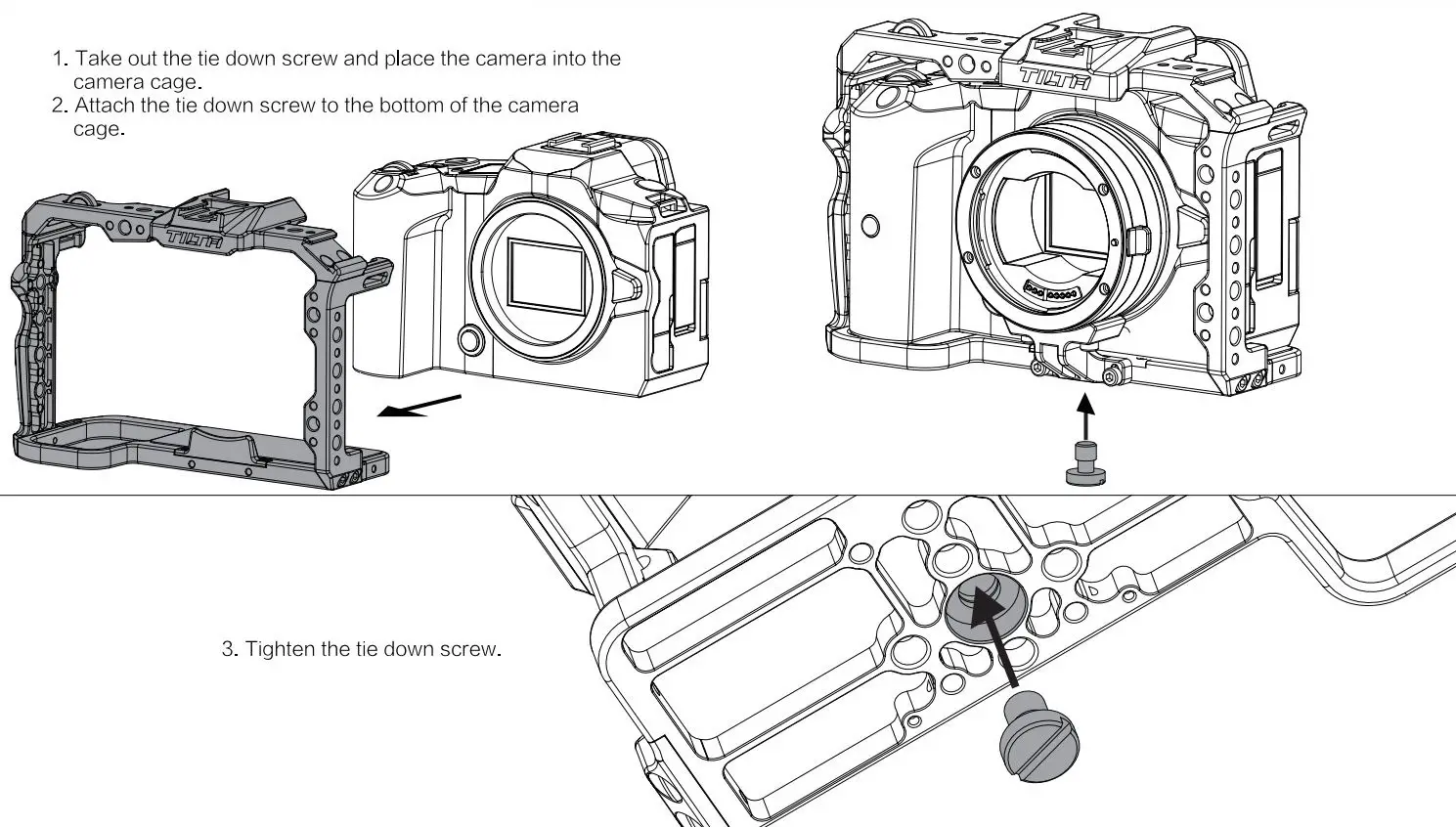

INSTALLING CAMERA CAGE
INSTALLING TOP HANDLE

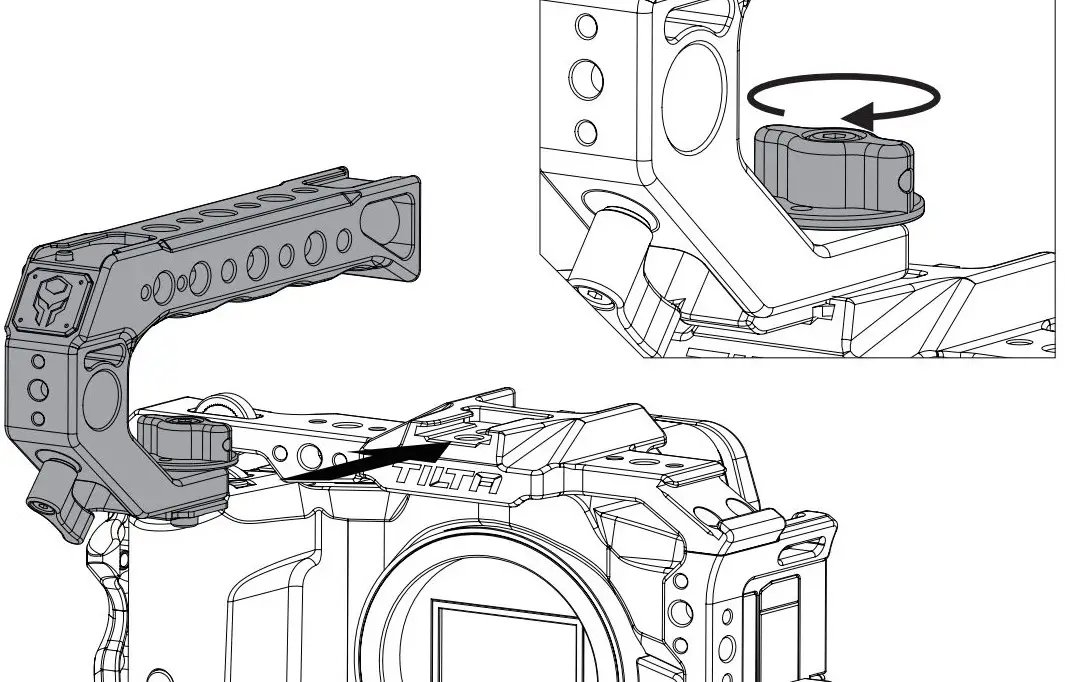

- Slide the top handle into the cold shoe mount on top of the camera cage.
- Tighten with the tie down.

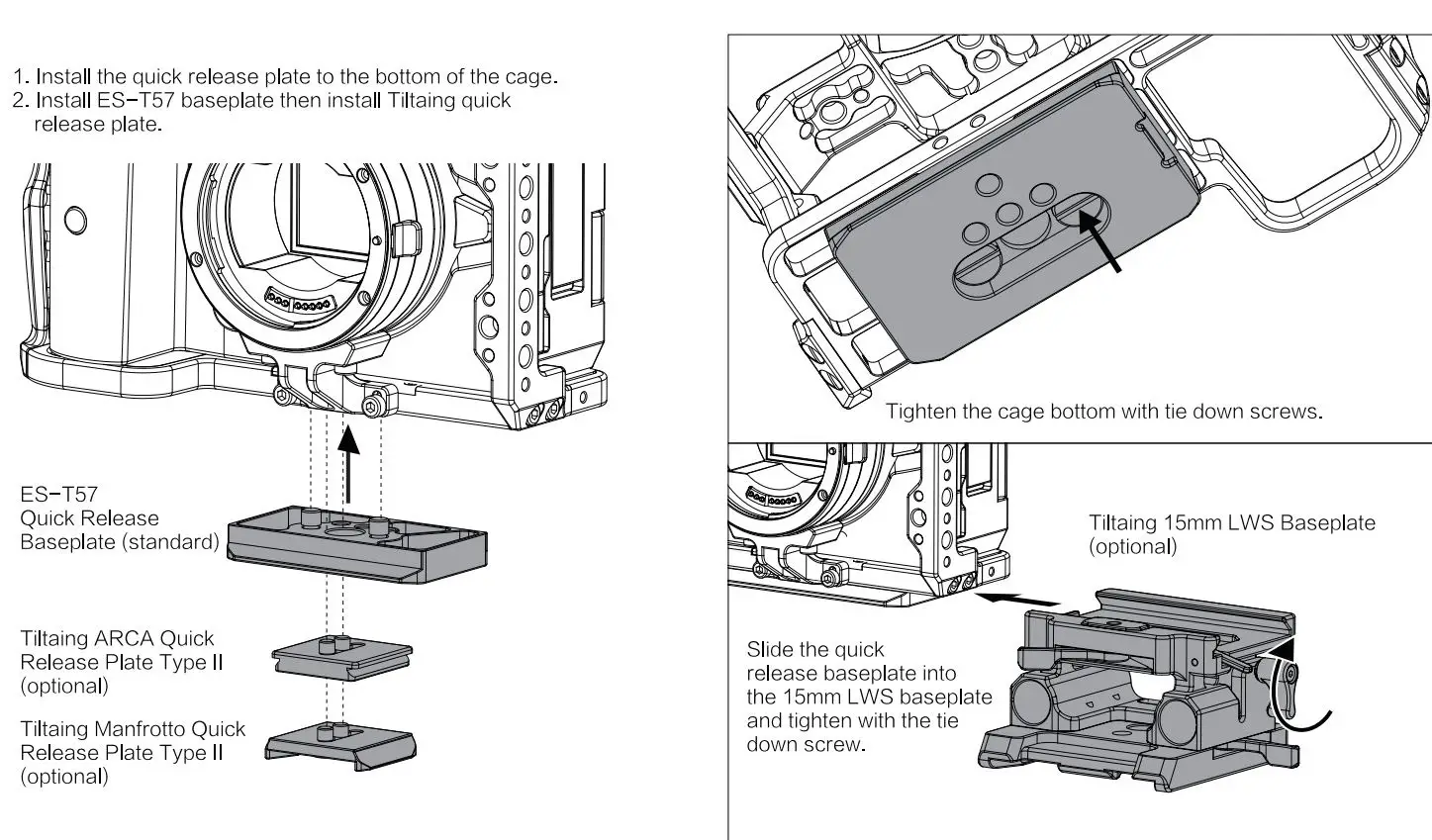

INSTALLING QUICK RELEASE PLATE

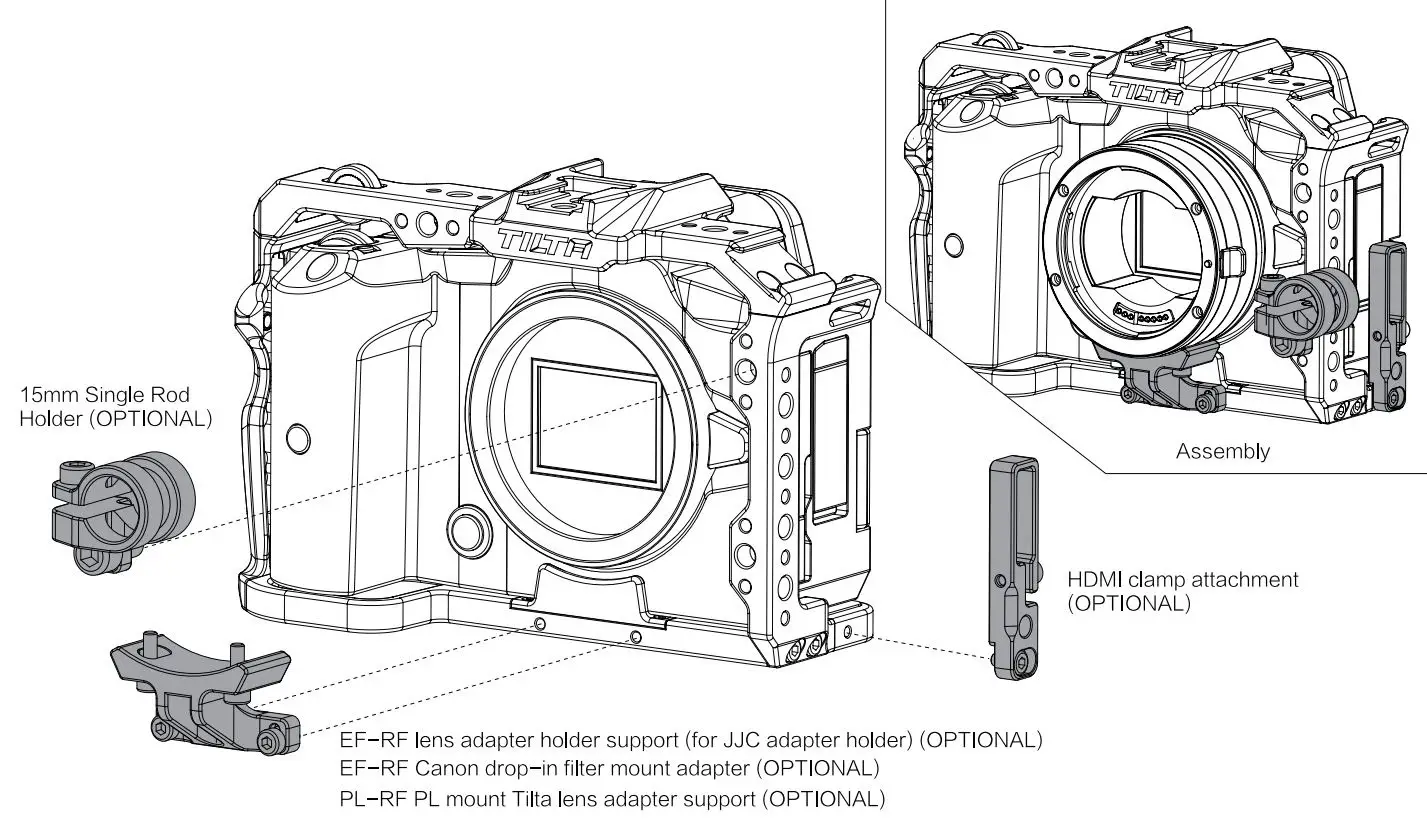

INSTALLING ACCESSORIES

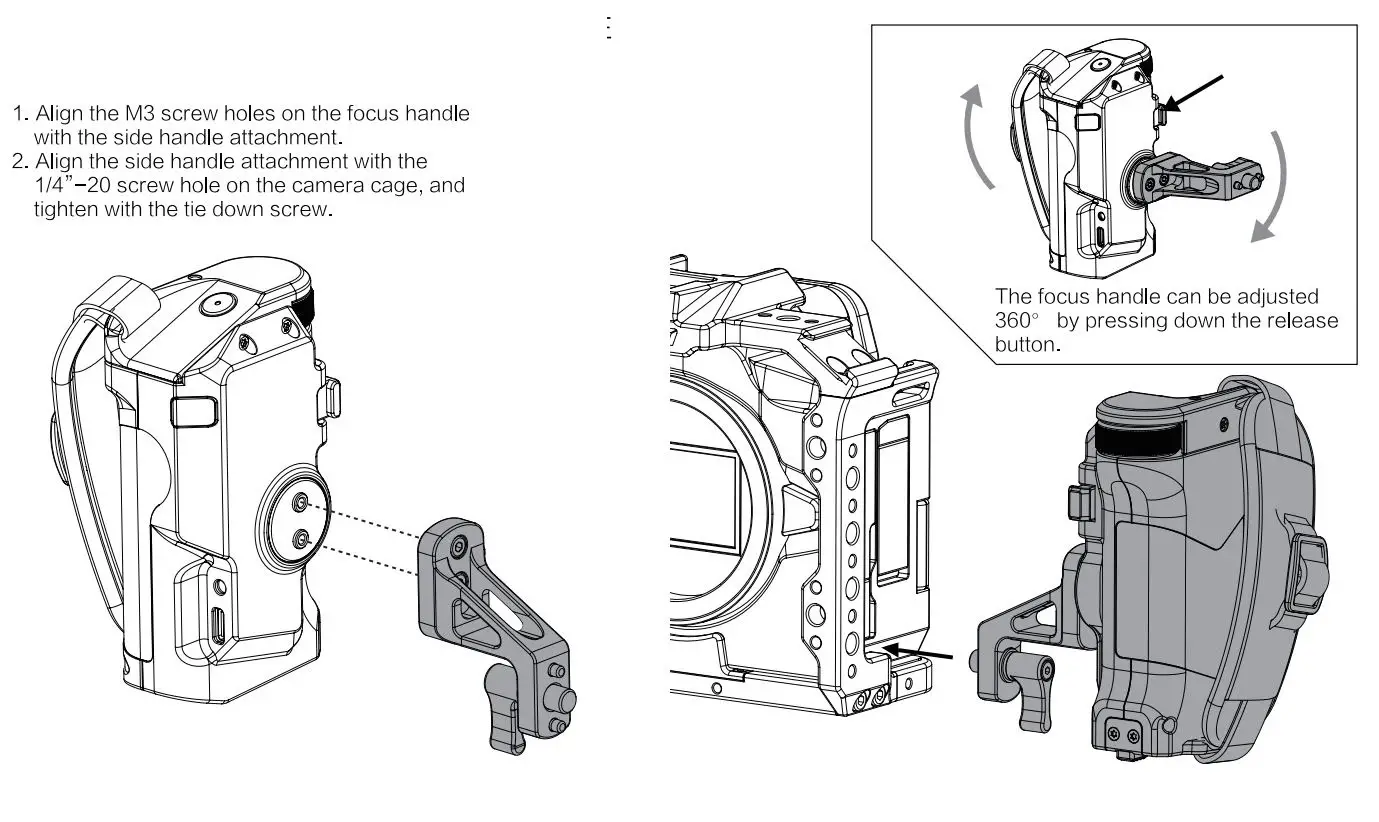

INSTALLING TIL TAI NG FOCUS HANDLE AND SIDE HANDLE ATTACHMENT
INSTALLING Cooling System for Canon R5/R6

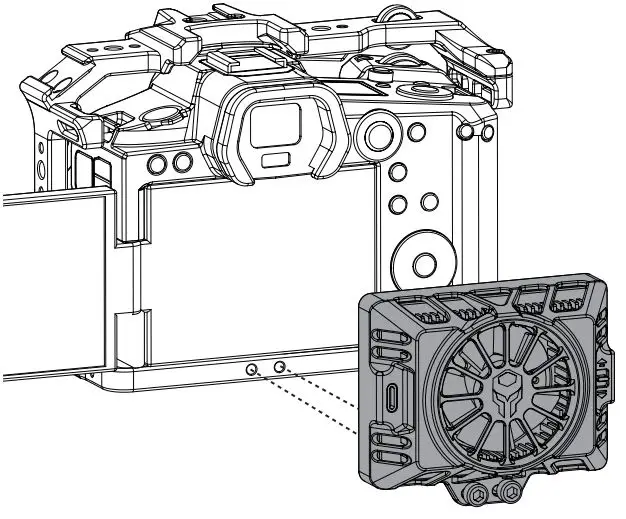

Align the cooling system with the M4 screw holes located on the bottom of the camera cage, and tighten with the screws.

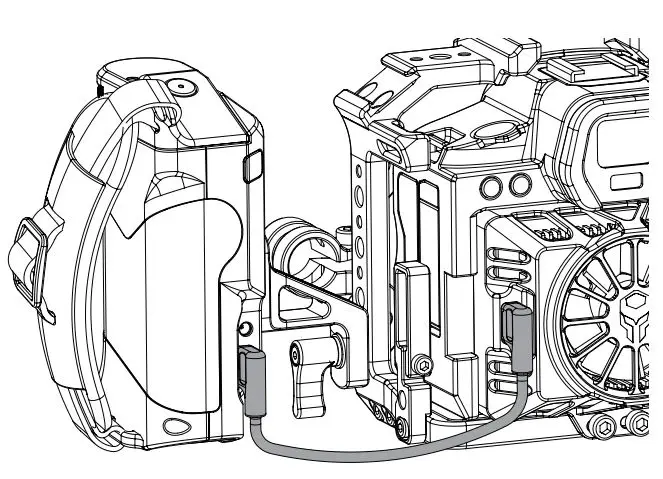

To power the cooling system, connect the module to the focus handle with the dual USB-C ports power cable.
