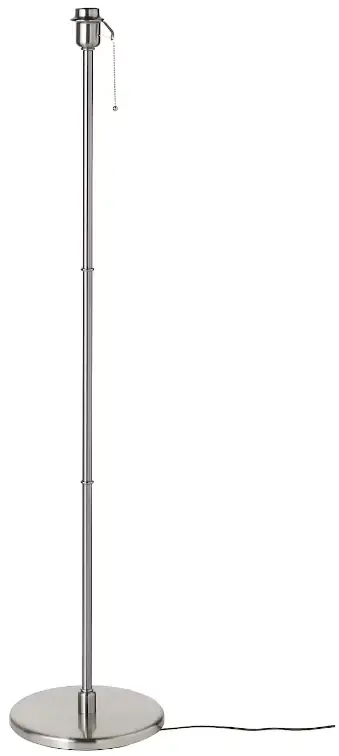

IKEA KRYSSMAST Floor Lamp Base

IKEA-KRYSSMAST-Floor-Lamp-Base-product

Product Information

The KRYSSMAST is an electric lamp that comes with a polarized plug, which has one blade wider than the other to reduce the risk of electric shock. The lamp is designed to be used only with an open top open bottom lamp shade that must be in accordance with the minimum dimensions of 51mm (2) to ensure safety. The lamp is suitable for use with a low-energy light bulb with a maximum wattage of 13W.

Product Usage Instructions

  1. Make sure that the polarized plug fits fully into a polarized outlet. The wide blade of the plug should be matched to the wide slot of the outlet and be fully inserted. If it does not fit, reverse the plug. If it still does not fit, contact a qualified electrician.
  2. Do not use an extension cord unless the plug can be fully inserted.
  3. Do not alter the plug or defeat the safety purpose of the polarized attachment plug.
  4. Use only an open top open bottom lamp shade that meets the minimum dimensions of 51mm (2).
  5. Use only a low-energy light bulb with a maximum wattage of 13W.
  6. Ensure that the lamp shade is used only in the vertical position to avoid any fire hazard.

IMPORTANT SAFETY INSTRUCTIONS

This product has a polarized plug (one blade is wider than the other) as a feature to reduce the risk of electric shock. This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Never use with an extension cord unless plug can be fully inserted. Do not attempt to defeat the safety purpose of the polarized attachment plug. Do not alter the plug.

  • CAUTION: TO PREVENT ELECTRICAL SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
  • WARNING: Deviation from the assembly instructions may result in a risk of fire or electric shock.

InfoIKEA-KRYSSMAST-Floor-Lamp-Base-fig 1

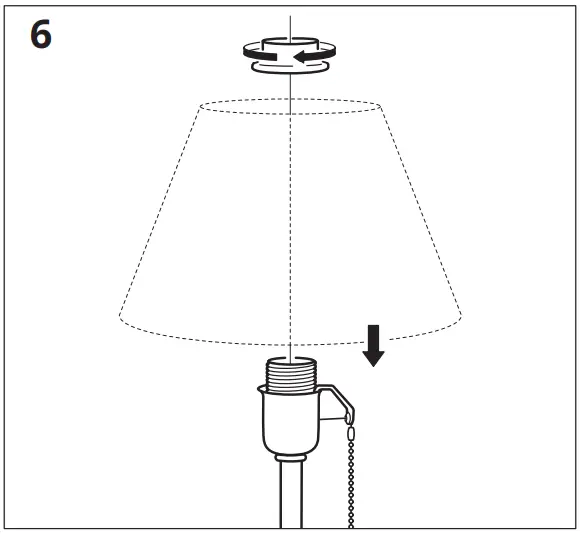

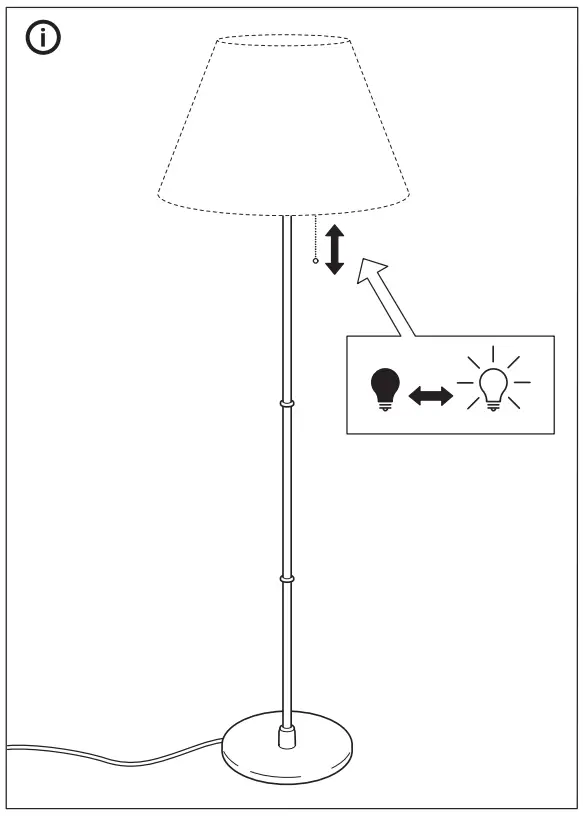

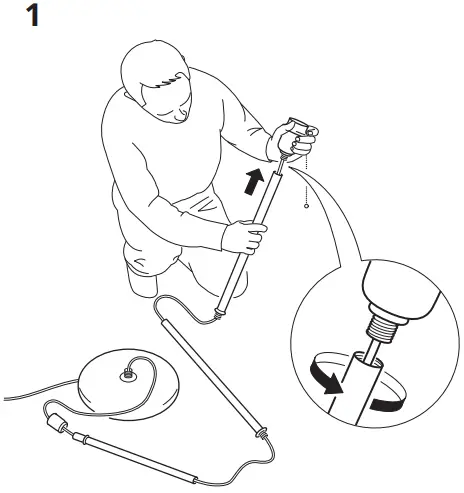

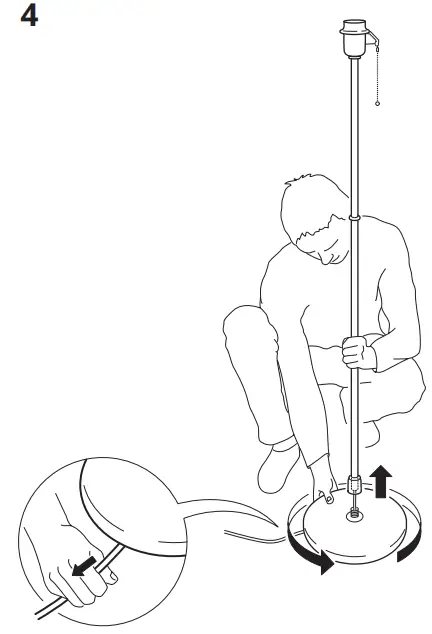

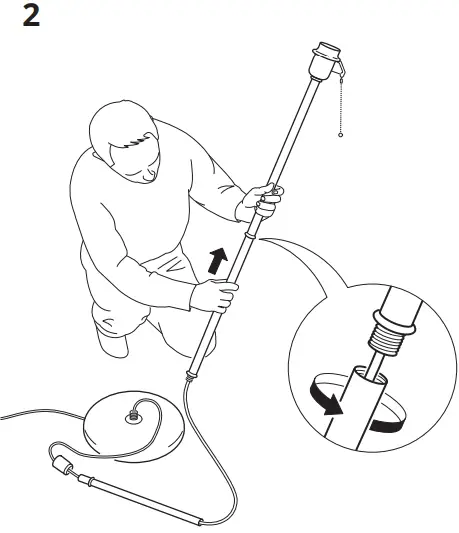

InstallationIKEA-KRYSSMAST-Floor-Lamp-Base-fig 2IKEA-KRYSSMAST-Floor-Lamp-Base-fig 3IKEA-KRYSSMAST-Floor-Lamp-Base-fig 4IKEA-KRYSSMAST-Floor-Lamp-Base-fig 5

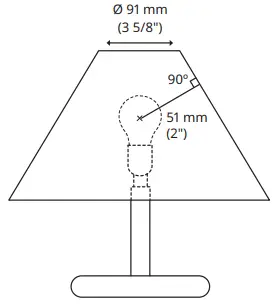

Use only an open top open bottom lamp shade. For your safety, the dimensions of the shade must be in accordance with the minimum dimensions listed below. Use only lowenergy light bulb, max 13W.
USE SHADES ONLY IN THE VERTICAL POSITION. ANY DEVIATION FROM THESE INSTRUCTIONS MAY CONSTITUTE A FIRE HAZARD.IKEA-KRYSSMAST-Floor-Lamp-Base-fig 6IKEA-KRYSSMAST-Floor-Lamp-Base-fig 7IKEA-KRYSSMAST-Floor-Lamp-Base-fig 8IKEA-KRYSSMAST-Floor-Lamp-Base-fig 9IKEA-KRYSSMAST-Floor-Lamp-Base-fig 10IKEA-KRYSSMAST-Floor-Lamp-Base-fig 11

© Inter IKEA Systems B.V. 2019
