BUILD YOUR OWN

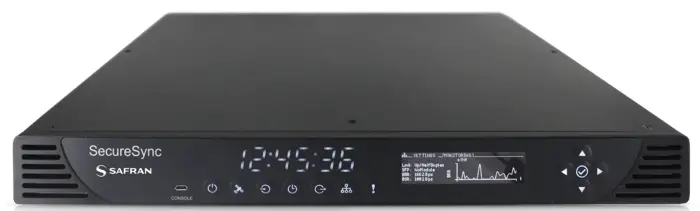

SECURESYNC 2400 MASTER CLOCK
GUIDE

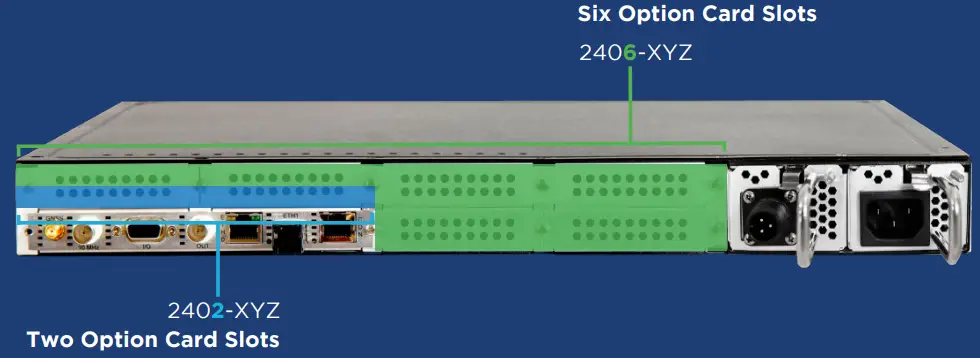

Choose the Form Factor
Select the Backup Oscillator
| 240W-XYZ | 0 = TCXO | 1 = OCXO | 2 = OCXO LPN | 3 = Rubidium | 3 = Rub LPN |
| Accuracy to UTC (locked to GPS, @ 1 sigma) | ±50 ns | ±25 ns | ±15 ns | ±15 ns | ±15 ns |
| Holdover (constant temp after 2 weeks of GPS lock) | |||||
| After 4 hours | 12 µs | 1 µs | 0.5 µs | 0.2 µs | 0.2 µs |
| After 24 hours | 450 µs | 25 µs | 10 µs | 1 µs | 1 µs |
| Signal Waveform & Levels: TTL (5 VP-P), into 50 ohm, BNC | |||||
Build the Power
Single Fixed Power
240W-XYZ
Populate the X with the a power option below:
0 = 100-240 VAC
3 = 12 VDC
4 = 24/48 VDC
Integral power supply, ships with line cord or mating connector
Hot Swap Power
240W-6YZ

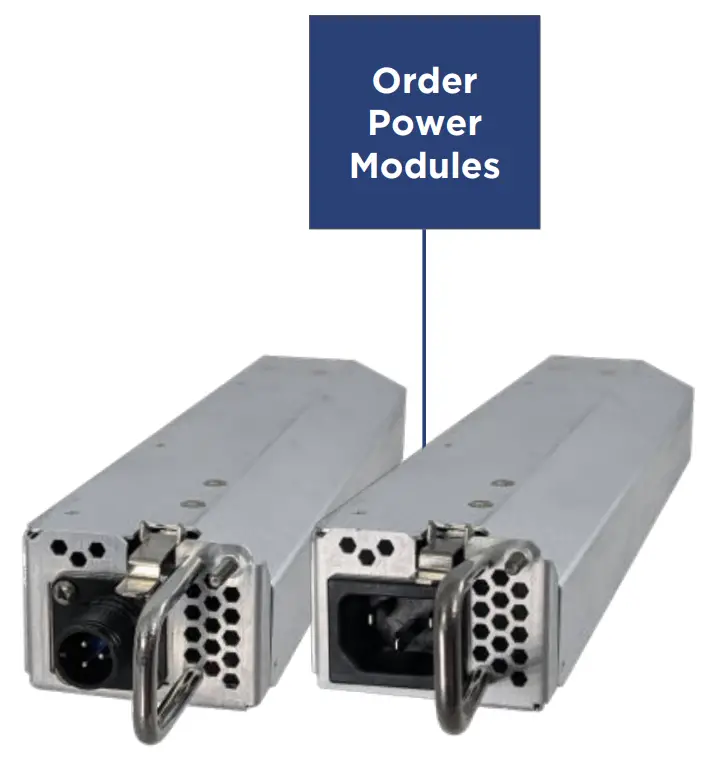

Dual Hot-Swap requires ordering at least one power module, on top of power option 6 for the base unit. Order (1) or (2) of the these power supply line items with the base unit, in any combination:
2400-HS-A1 = 100-240VAC
2400-HS-D1 = 12 VDC
2400-HS-D2 = 24/48 VDC
Pick the I/O

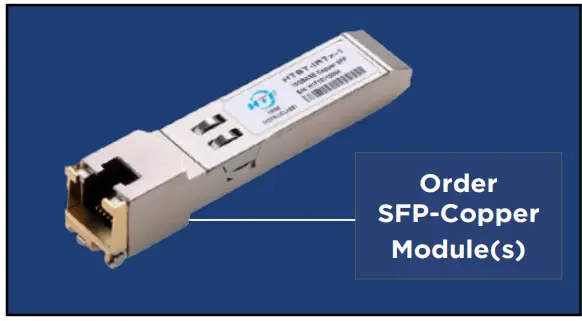

- 2400 includes two Gbe Network ports on chassis (1) RJ-45, (1) SFP.

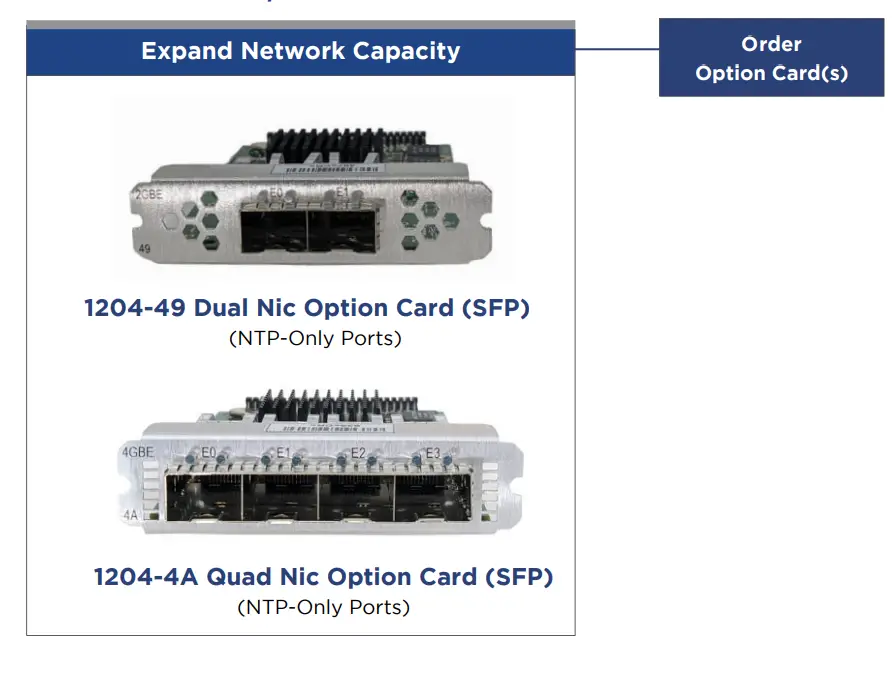

- Add additional network cards to increase processing capacity and the number of ports from 2 (Base) to 4, 6, 8, or 10 network ports in a single 1RU chassis.
- The ethernet ports of the base chassis unit provide NTP, PTP, and Management capabilities.
- Field upgradeable.
Add NENA Compliance

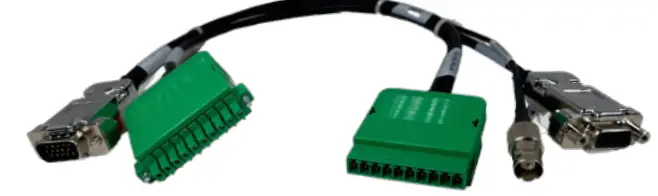

CA08R-0000-0010 NENA Breakout Cable
- IRIG Out (BNC)
- ASCII RS-232 OUT (DB9F)
- ASCII RS-485 OUT AND
Relay/Alarm* OUT (Terminal Block)

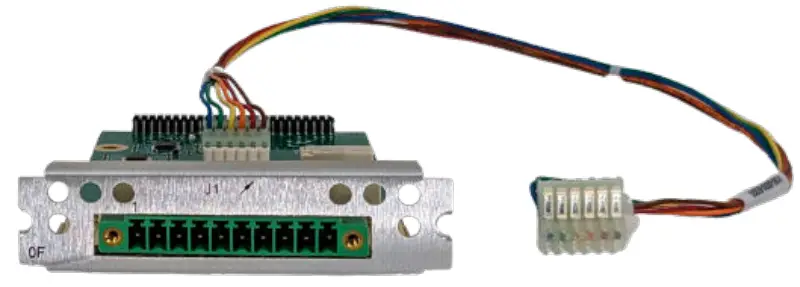

1204-0F Alarm Relay Option Card
* Requires 1204-0F installed
With these options installed, SecureSync meets NENA Master Clock spec: NENA-STA-026.5-2016 and offers compatibility to synchronize legacy Spectracom TimeView Display Clocks over RS-485 Terminal Block. For more information on set up of these options, see SecureSync2400_NetClock_Option_Guide_rev1
Example Configuration

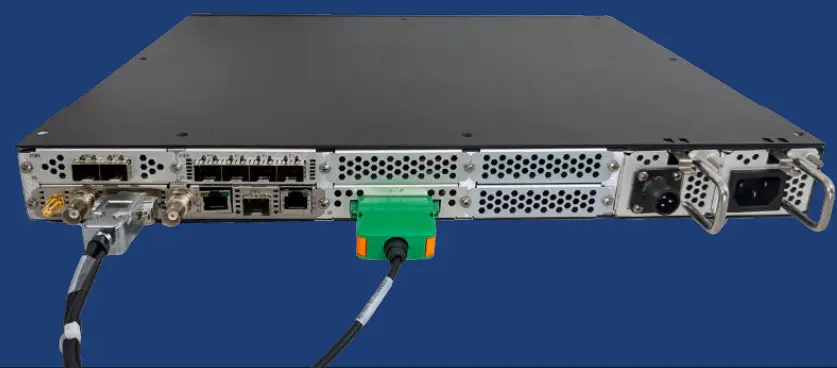

(1) SecureSync 2406-613
(1) 2400-HS-A1
(1) 2400-HS-D2
(1) 1204-4A
(1) 1204-49
(1) CA08R-0000-0010
(1) 1204-0F

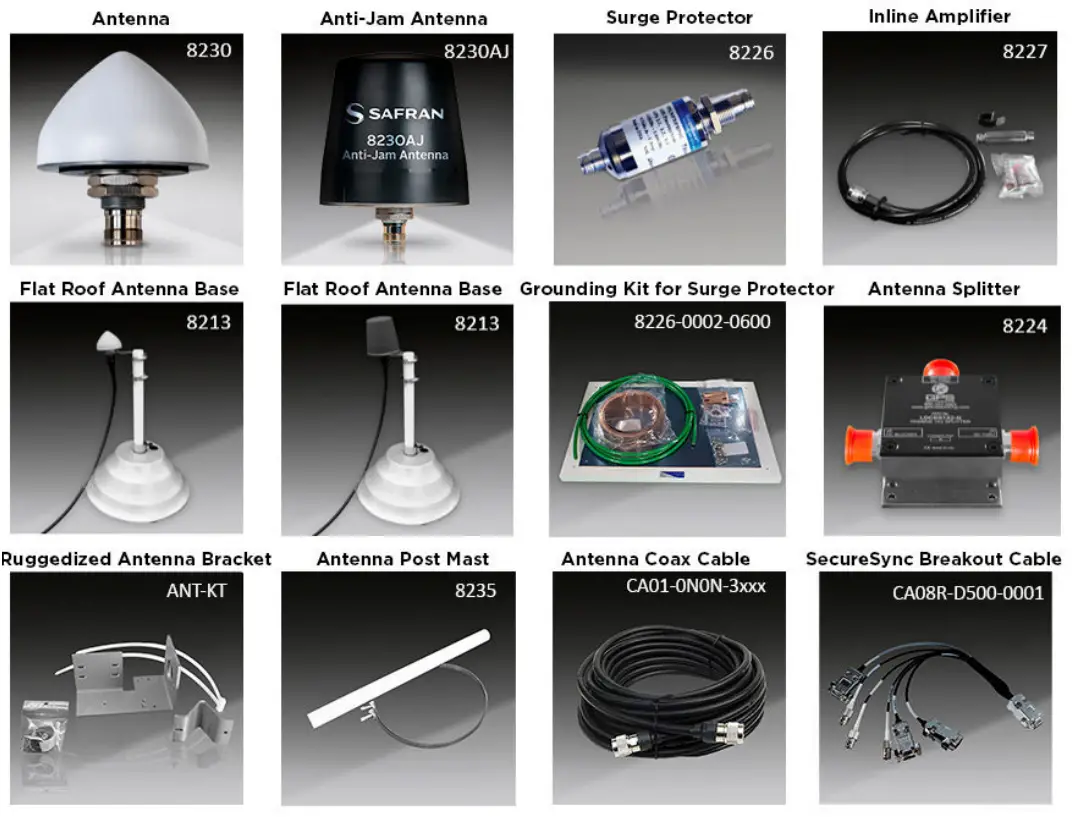

Add on the Accessories
