Proscenic T21 Air Fryer User Guide

Proscenic T21 Air Fryer

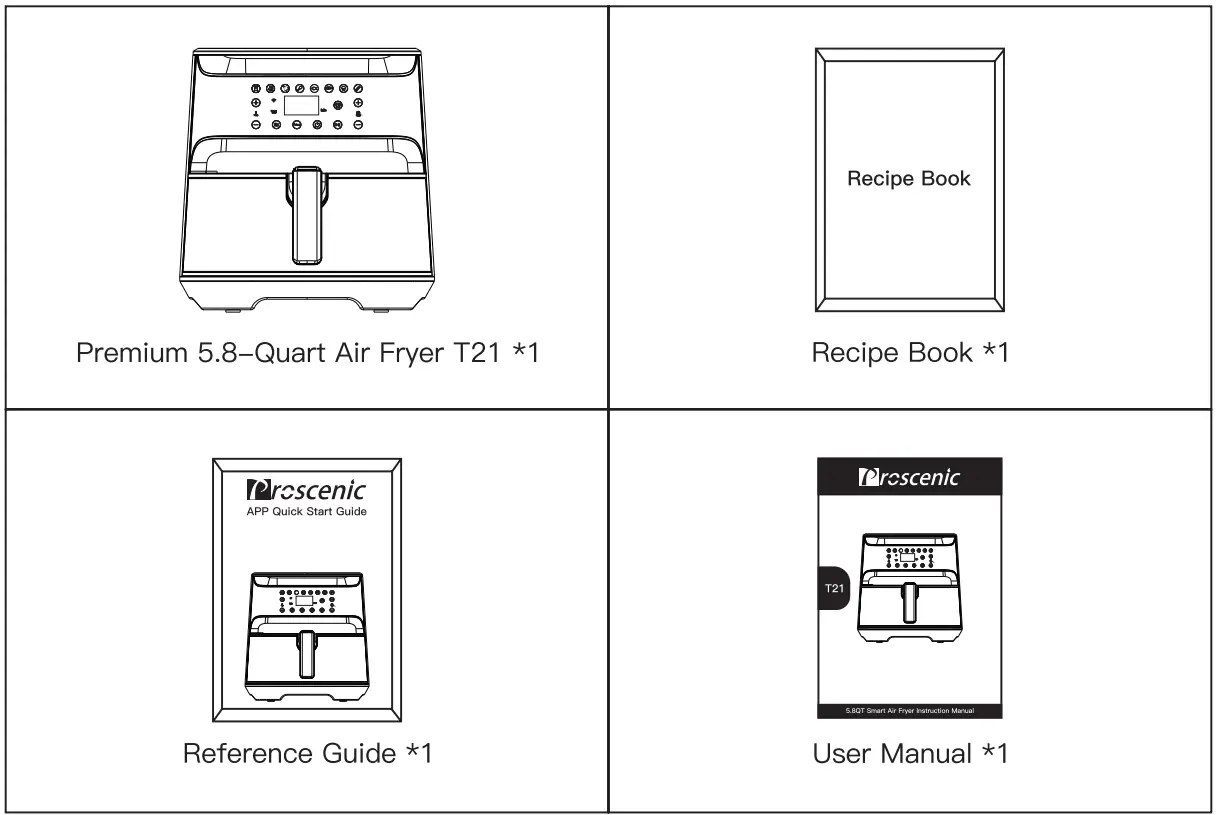

Package Contents

Specifications

Important Safeguards

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. READ ALL INSTRUCTIONS BEFORE USE!
2. Check that the voltage in your home corresponds to that stated on the appliance.
3. Do not touch hot surfaces. Use handles or knobs.
4. To protect against electrical shock, fire or personal injury, do not immerse cord, plugs, or the appliance in water or other liquid.
5. Close supervision is necessary when any appliance is used by or near children. As a rule, this appliance is not intended to be used by children.
6. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
7. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair, or adjustment.
8. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
9. Do not use outdoors.
10. Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
11. Do not place on or near a hot gas or electric burner, or in a heated oven.
12. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
13. To disconnect, turn any control to “off” (or 0), then remove the plug from wall outlet.
14. Do not use the appliance for anything other than intended use.
15. Oversized foods or metal utensils must not be inserted in the Smart air fryer as they may create a fire or risk of electric shock.
16. A fire may occur if the appliance is covered or touching flammable material, including curtains, draperies, walls, and the like, when in operation. Do not store any item on top of the appliance when in operation.
17. Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts involving a risk of electric shock.
18. Extreme caution should be exercised when using containers constructed of other than metal or glass.
19. Do not store any materials, other than manufacturers recommended accessories, in this appliance when not in use.
20. Do not place any of the following materials in the appliance: paper, cardboard, plastic, and the like.
21. Do not cover the cooking basket or any part of the Smart air fryer with metal foil. This causes overheating of the Smart air fryer.
22. Do not leave unit unattended when in use.
23. Use extreme caution when removing the basket or basket holder and disposing of hot grease.
24. The Smart air fryer can be turned off while using any of the functions by pressing the on/off button.
25. During hot air frying, hot steam is released through the air outlet openings. Keep your hands and face at a safe distance from the steam and from the air outlet openings. Also be careful of hot steam and air when you remove the pan from the appliance.
26. Immediately unplug the appliance if you see dark smoke coming out of the appliance. Wait for the smoke emission to stop before you remove the pan from the appliance.
27. Do not place the appliance against a wall or against other appliances.
28. Leave at least 6 inches (15 cm) of free space on the back, sides and above the appliance.

Caution!!

1. This appliance is intended for normal household use only.
2. Always unplug the appliance after use.
3. Let the appliance cool down for at least 30 minutes before handling or cleaning it.
4. The appliance is equipped with a safety micro switch inside that will shut the appliance off automatically if the basket is removed during cooking.
5. Never press the release button unless the basket holder is resting on a flat, level, and heat resistant surface!

Caution!!

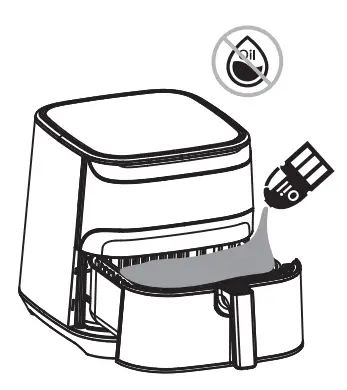

1. Do not fill the food basket or basket holder with oil or any other liquid, as this may cause a fire hazard.
2. Keep all ingredients in the basket to prevent any contact with the appliance’s heating elements. Do not overfill the food basket.
3. Do not cover the air inlet on the top or the air outlet on the back of the unit while the appliance is in use.
4. Do not touch the inside of the appliance while it is operating.
5. Never immerse the unit’s housing in water or rinse it under the tap.

Using The Appliance

The Smart air fryer can be used to prepare a large variety of foods. Please refer to the table in the “Settings” section for basic cooking times, or refer to the included recipe book.

1. Pull the handle to carefully remove the food basket holder from the Smart air fryer.
2. Put the ingredients that you will be air-frying into the food basket and place the basket into the basket holder.
3. Slide the basket back into the Smart air fryer.

Note:
Never fill the basket to capacity or exceed the recommended amounts (see section ‘Settings’ in this chapter), as this could affect the quality of cooking.
Caution!!

• Never use the Smart air fryer without the food basket and the food basket holder in it!
• Do not touch the food basket, basket holder, or the inside of the Smart air fryer during and immediately after use, as they get very hot. Only hold the food basket by its handle. Always use oven mitts. The unit is hot!

Read Caution on Back

• HOT to the touch.
• DO NOT try to open the top. This is not a lid.
• DO NOT fill with oil. This is not a deep fryer.

DANGER: DO NOT press the button while moving or shaking basket. See manual.

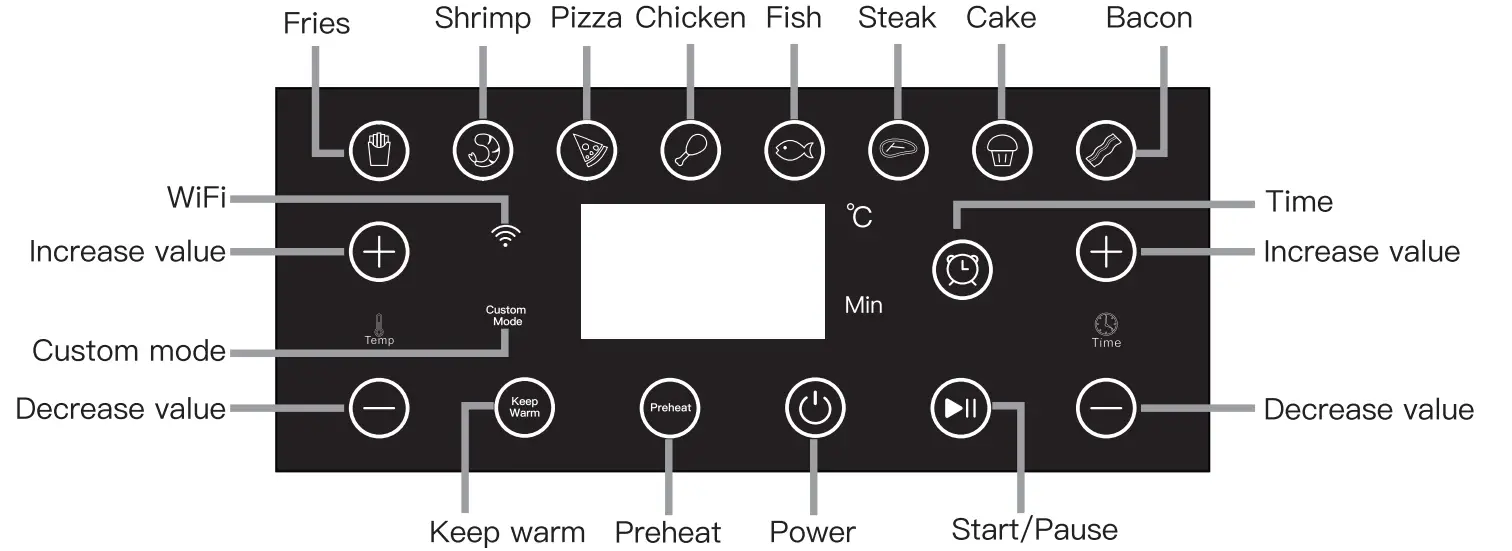

Getting To Know Your Air Fryer

POLARIZED PLUG INSTRUCTIONS
This appliance is equipped with a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will flt into the polarized outlet only one way. If the plug does not properly fit into the outlet at first, reverse it. If it still does not flt, contact a competent qualified electrician. Do not attempt to modify the plug in any way.
SHORT CORD INSTRUCTIONS
A short power supply cord is provided to reduce the hazards resulting from becoming entangled in, or tripping over a longer cord. Extension cords may be used if care is exercised in their use.

1. The electrical rating of the extension cord should be at least that of the appliance. If the electrical rating of the extension cord is too low, it could overheat and burn.
2. The resulting extended cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over.

Display Messages

Status Description

1. Shutdown mode: No power or the power button is switched off.
2. Standby mode: All icons are lit up after pressing the power button.
3. Working mode: Select this mode, press the start key and the machine enters the working mode.
4. Pause state: Press the pause button when the machine is working, it will pause the operation but does not shut the machine down.

POWER
Plug in and turn on the machine, on/off switch key shows blue light, after powering on, shows white light.

1. When the power is switched on, all the icons light up, after a beep, the other icon lights go out, leaving only the power button lit up.
2. Press the power button to turn on, all the icons light up, and the display screen defaults to 180’C and 1 5 minutes. The temperature and time are displayed alternately every 5 seconds.

“► “Start/Pause White light on standby, start working shows a blue light, pause working blue light is flashing.

1. Single function: Select menu, press the start key, the selected menu flashes with a white light, other non-relevant menu icons will be hidden.
2. Combination function: After selecting the menu, the white light on the menu flashes. After selecting other icons for the combination cooking, as long as the selected menu is always fully lit, after the frying pot starts working, the other non-relevant icons are hidden.

Operating mode:

Preheat:
stand by mode, press preheats button 8 ,thedefaultsettingsare188°Cand 5 minutes.
Keep warm:
The default keep warmtemperatureis170°F(77°C)and default time is 5 minute, the temperature is not changeable, but the time can be changed, short press to increase 1 minute per time, long presstoin crease 5 minutes pertime.

Timing:
The machine will enter the default working mode after the timer ends.
Combination Function:

1. Menu + Keep warm
2. Timing + Menu
3. Timing + Keep warm
4. Timing +Menu +Keep warm

Tips:
After the work is completed, it will enter the keep warm mode by default. The default keep
Warm time and temperature are 5 minutes and 77 degrees Celsius respectively. Keep warm is always the last procedure in combination function settings.
Note:
In any modes, after the selection of mode, the corresponding function light flashes blue. After confirming, the light will change to be solid blue. After starting work, the function light flashes indicates that the corresponding mode is working; if you want to cancel the mode after con-firming, return to press again until the light turns into white, it indicates that the feature has been canceled;

Opening and closing of frying basket
When working:

1. Pull out the basket and there will be a beep noise, the heating element and the fan stop working, the countdown on the screen stops, and key display is not affected.
2. Return the basket, there is a beep noise, the machine continues cooking in the previous mode.

In other modes (including pause and standby):

1. Pulling out or putting back the basket will not affect the machine.

Automatic shutdown
Standby mode: automatic shutdown after 6 minutes without any operation. Pause mode: automatic shutdown after 30 minutes without any operation.

Remarks:

1. When working, except for when a mode is selected, (temperature (±), time (±) other key lights do not turn on and do not respond when pressed.
   During the keep warm mode, you can only choose to adjust the time (±).
   The temperature ± is at the default temperature and cannot be changed.
   During the preheating mode, you can only choose temperature ±, the mode has a set default time, therefore you are unable to increase the time±.
2. In combination modes, the light that is flashing indicates the particular process that is working.

WiFi light:
It is turned off by default when the machine is switched on. Press the power button for 5 seconds, and the WiFi light flickers slowly (once a second), when it is connected to WiFi, the WiFi light stays on; if it is not connected to WiFi for more than 10 minutes, the WiFi lights automatically turn off. 5 seconds after a long press on the WiFi light, if a WiFi hardware failure is detected, the WiFi light flickers (three times a second, maintains for one minute and then shuts down).

Preset Settings

Control panel recipes settings:

Using Your Air Fryer

About Preheat function:

1. When under default stand-by mode, press Preheat button, then start to preheat under 188°C, for 5mins.
2. After chose the recipe, then press the Preheat mode, which will start the preheating according to recipe’s default temperature.
3. Under standby mode, pressed Preheat button, then adjust the temperature, the appliance will preheat according to the adjusted temperature.

Preheat function can only adjust the temperature, can’t adjust the timer (related time pis see below chart). 5 mins is the most, after reaching set temperature, 3 beeps alarm for standby mode and ready to put in food for cooking.

BEFORE THE FIRST USE

1. Unpack the appliance and its accessories (food basket, food basket holder). Wash the accessories in hot, soapy water and then wipe them dry. Wipe the interior of the frying cavity with a damp cloth or sponge, and then dry with a paper towel. Make sure the cavity is dry before operating the unit.
2. Ventilate the room during this period. When your Smart air fryer is heated for the first time, it may emit slight smoke or odor. This is normal with many heating appliances. This does not affect the safety of your appliance.

Vorsicht:
Achten Sie beim Bewegen der intelligente Fritteuse darauf, dass Sie sie sicher halten und den Boden stOtzen – verlassen Sie sich beim Bewegen der Fritteuse nicht auf den Griff des Speisenkorbes!

Operating Instructions

More Functions

1. Determine the required preparation time and cooking temperature for the ingredients (see section ‘Settings’ after this chapter).
2. Press the red on/off key to start the unit and adjust the time and temperature settings as desired.
3. Press the+/- time adjustment keys to increase or decrease the cooking time. A short press will increase or decrease the cooking time by 1 minute; a long press will increase or decrease the cooking time rapidly by increments of 1 minute.
4. Press the+/- temperature adjustment keys to increase or decrease the cooking temperature. A short press will increase or decrease the cooking temperature by 5 degrees (Fahrenheit); a long press will increase or decrease the temperature rapidly by increments of 5 degrees.
5. Press the Start/Pause key again to start air frying. Alternatively, selecting a time, temperature or preset will start the unit automatically after 5 seconds if no key is pressed afterwards.
6. after the fryer is working, the timer will start counting down the set time.
7. During the air frying process, a noticeable click sound indicates when the set temperature has been reached and the heating element goes off. The click sound will be heard multiple times during operation indicating that the air fryer is maintaining the set temperature.
8. During cooking, excess oil and cooking juices from the ingredients will collect in the basket holder. This is to be expected.
9. Some recipes require shaking the food in the basket halfway through the set time (see section ‘Settings’ in this chapter). To shake the ingredients, pull the basket out of the basket holder using the handle. Then gently, but firmly, shake it. Slide the basket holder back into the Smart air fryer and continue to cook.

Note:
Because the rapid hot air technology instantly reheats the air inside of the appliance, pulling the basket briefly out of the appliance during hot air frying will not disturb the cooking process.
Tip:
Sometimes, it is easier to divide cooking times into 2 phases for recipes that require the basket to be shaken mid-cooking. If you set the timer to half the required cooking time, you will hear the timer bell go off when you have to shake the ingredients.
Tip:
If you set the timer to the full cooking time, the timer bell will not go off until cooking is completed. You can pull the basket out at any time to check the cooking condition of the ingredients. The power will shut down automatically and resume after you slide the basket holder back into the appliance. Note that the timer stops counting down automatically in this situation.

1. When a batch of food is ready, the Smart air fryer is instantly ready for preparing another batch.

Note:
You can also switch the appliance off at any time. To do this, simply press the On/Off key. The On/Off icon turns red while the fan continues to function for 20 seconds, cooling down the unit before shutting down.

1. Check to see if the ingredients are ready. If they are not ready, simply slide the basket back into the appliance and set the timer for a few extra minutes.

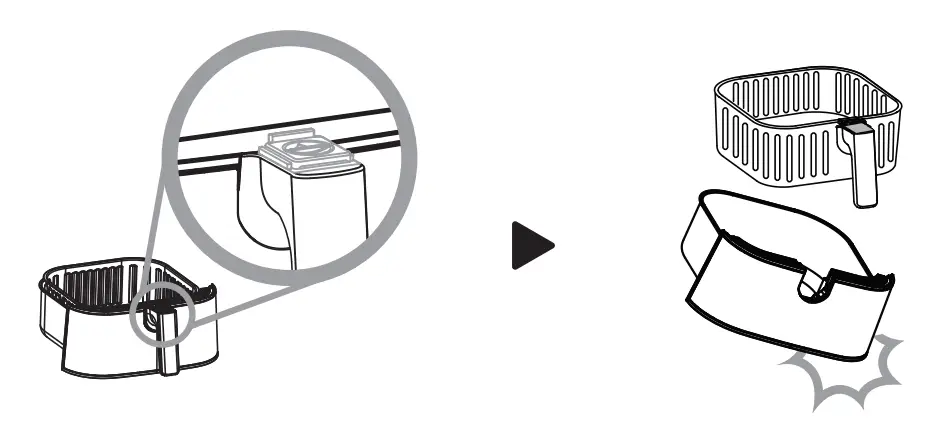

2. To detach the food basket from the basket holder, slide the protection cover until the button is fully visible and press on the basket release button.
3. Holding the basket by the handle, empty the air-fried food into a bowl or onto a plate.

Tip:
To remove large or fragile ingredients, you may use a pair of tongs to lift the ingredients out
of the basket. Use tongs or utensils with heat-resistant plastic tips, as metallic tips or utensils may scratch the coating of the basket.

1. When a batch of food is ready, the Smart air fryer is instantly ready for preparing another batch.

IMPORTANT:
If you notice the fan is not operating once the product starts cooking (no noise or airflow), please discontinue usage immediately and contact Customer Service.
Using the preset menus

1. 8 “short-cut” preset functions are provided: FRIES, STEAK, CHICKEN, CUPCAKE, SHRIMP, PIZZA,FISH and BACON.
2. To select a preset, press the recipe key directly. Press the On/Off key to start air frying. Alternatively, selecting a time, temperature or preset will start the unit automatically after
3. seconds if no key is pressed afterward.
4. To change to a preset after the unit starts, press the On/Off key then press the recipe icons directly to change to the desired preset.
5. Press the On/Off key to restart the unit with the desired preset.

SETTINGS
The following table will help you select the basic settings for the ingredients you want to prepare.
Note:
Keep in mind that these settings are suggestions.

Tips:

1. Any food that can be prepared in a traditional oven can also be prepared in the Smart air fryer.
2. Shaking smaller ingredients halfway through the preparation time optimizes the end result and can help prevent unevenly air-fried food.
3. A larger amount of ingredients only requires a slightly longer preparation time; a smaller amount of ingredients only requires a slightly shorter preparation time.
4. If some foodstuffs tend to stick at the bottom of the basket, think to add some cooking oil spray in the basket prior to adding the ingredients to cook.
5. Do not prepare very greasy ingredients, such as sausages, in the Smart air fryer as the grease could catch fire.
6. Add some oil to fresh potatoes for a crispy result. Fry your ingredients in the Smart air fryer within a few minutes after you add the oil.
7. The optimal amount for preparing crispy fries is 500 grams/ 1.2Ib.
8. Use the pre-made dough to prepare filled snacks quickly and easily.
   Pre-made dough also requires a shorter preparation time than home-made dough.
9. Place a baking tin or oven dish in the Smart air fryer basket if you want to bake a cake or quiche or if you want to fry fragile or filled ingredients.
10. You can also use the Smart air fryer to reheat food. To reheat ingredients, set the temperature to 290°F for up to 10 minutes.

Care & Maintenance

1. Make sure to clean the appliance after each use!
2. Switch the appliance off. Before cleaning, unplug the appliance from outlet and allow it to cool down completely.
3. The basket and basket holder can be cleaned in hot water with mild detergent / dish soap, or in the dishwasher. Do not use metal kitchen utensils or abrasive cleaning materials to clean them, as this may damage the non-stick coating. Rinse and dry thoroughly after cleaning.
4. To remove baked-on food, fill the basket holder with hot, soapy water. Put the food basket in the pan and let the pan and the basket soak for about 1 0 minutes before cleaning in the sink.

Cleaning inside the cavity:

1. Wipe the cavity with a damp cloth or sponge. Dry with a paper towel.
2. Never use abrasive products in the cavity!
3. Never immerse the appliance in water and make sure that no water or moisture penetrates the upper part of the Smart air fryer.
4. Clean the heating element inside the Smart air fryer with a cleaning brush to remove any food residue.

Cleaning the smart air fryer’s exterior:

1. Wipe clean with a damp sponge or cloth. Wipe dry.
2. Do not let any liquids enter the air inlet on the top of the Smart air fryer.

*Any other servicing should be performed by an authorized service representative.
DO NOT PUT THE FRYER ON ANY STOVE ANY TIME!

Troubleshooting

FAQS
