Jimmy Jv63 Vacuum Cleaner Instruction Manual

JV63 Vacuum Cleaner
Instruction Manual

Before use

Unpacking
Open the package, take out the foam pad , all accessories and machine from the package, take off the plastic bag and save them for the purpose of future maintenance and repair.

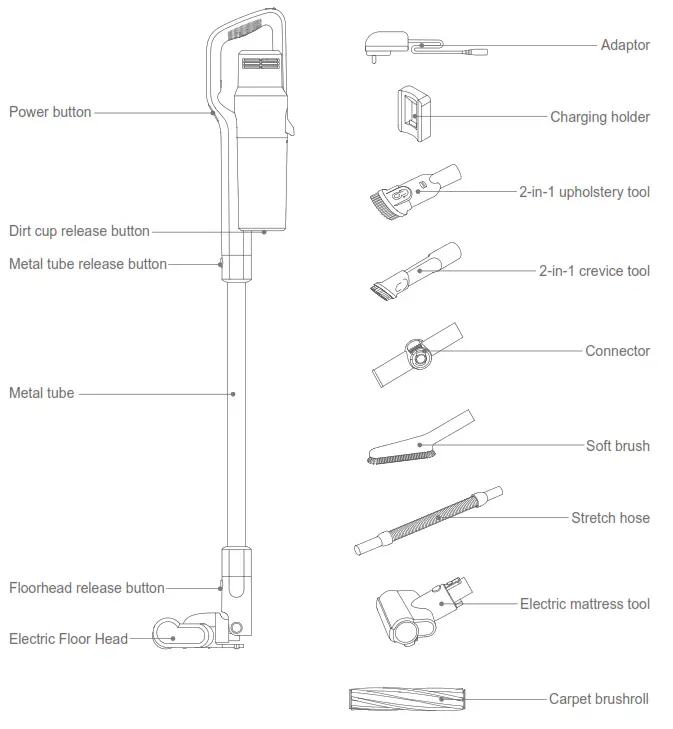

Parts Name

Packing List

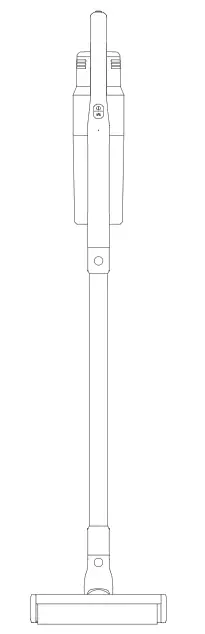

Main-body Assembly
Connect the electric floor head with metal tube
Hold the floor head with left hand, use right hand to insert the metal tube vertically into floor head, align with the conductive needle, press the handle until a “click” sound is  eard.  Attention: Keep the handle and floor head in the same direction, conductive needle shall alignwith the socket.
Assemble the electric head floor, metal tube and handheld vacuum cleaner First, assemble the floor head and conductive metal tube based on the assembling method of   lectric floor head and conductive metal tube. Secondly, align the conductive needle of the conductive metal tube with the suction mouth conductivepipe, push upwards until a  click” sound is heard.

Charge holder assembly

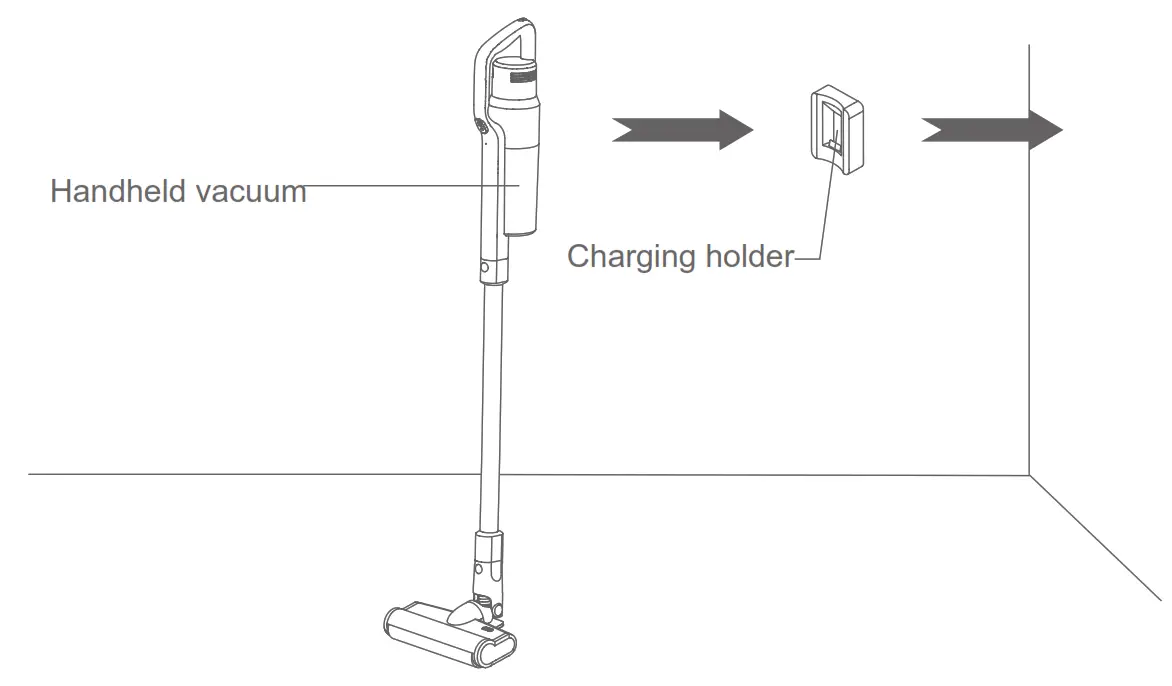

Remove the adhesive glue cover on the back of the holder and push the holder against a smooth wall with holder height 1-1.1M away from floor. (It is recommended that the installation height of the holder be determined according to the height of the holder off the ground after the whole machine is put on holder.) Press it for 5 seconds with 50N force to make the glue adhere to the wall. It is convenient for the hand-held vacuum cleaner to store on the wall.

Assembly of accessories
For ease of use, this product is specially equipped with accessories for the hand-held vacuum cleaner. The handheld can connect to different tools for different cleaning purpose.

JV63/Name	JV63	JV65
2-in-1 crevice tool
Electric mattress tool
2-in-1 upholstery tool
Stretch hose
Soft brush
Connector

Connect handheld vacuum cleaner with 2-in-1 upholstery tool

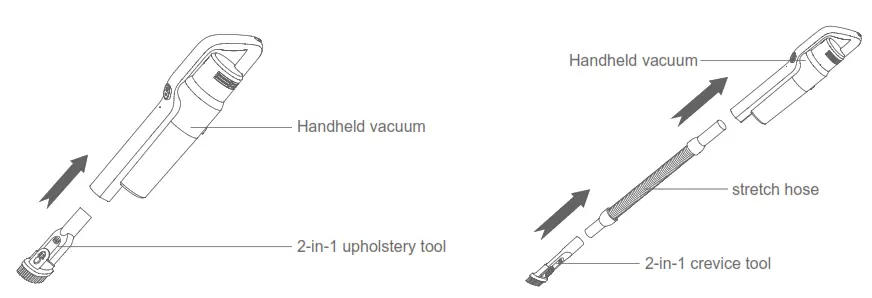

Insert 2-in-1 upholstery tool connector into the handheld air inlet until it is tightly fitted. Attention: The handheld vacuum can also connect other accessories:Electric  attress  ool/2in-1 crevice tool/connector/stretch hose/soft brush. The connecting method is the same as 2-in-1 upholstery tool.
Connect handheld vacuum cleaner with accessories through stretch hose
Align the vacuum cleaner with stretch hose, insert until it is fully tightened; Connect another end of stretch hose with tools.  Attention: The handheld vacuum can connect to  hese accessories: 2-in-1 crevice tool, 2-in-1 upholstery tool, connector, soft brush. The connecting method is the same as 2-in-1 upholstery  tool.

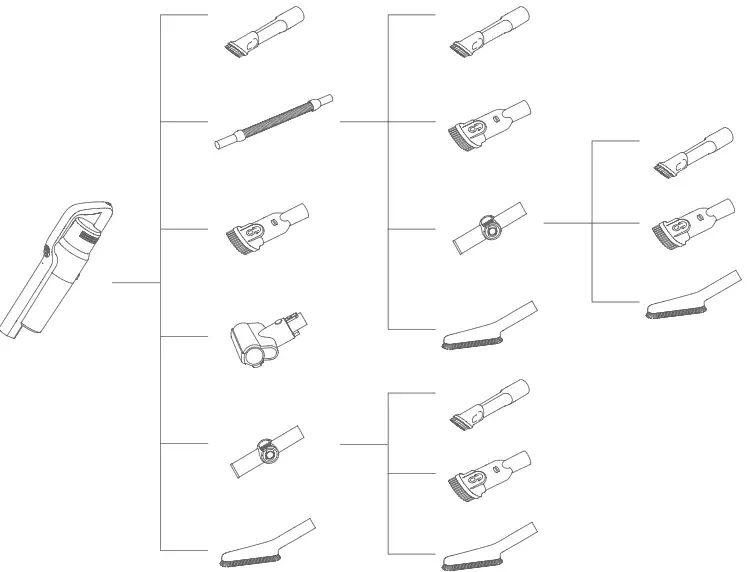

Accessories Connection List

Use of vacuum cleaner
Charging
During using the vacuum cleaner, when indicator blinks in red, the machine need to be charged. When the voltage is too low, to protect the battery, the vacuum will  utomatically turn off. At this time, the vacuum must be charged.

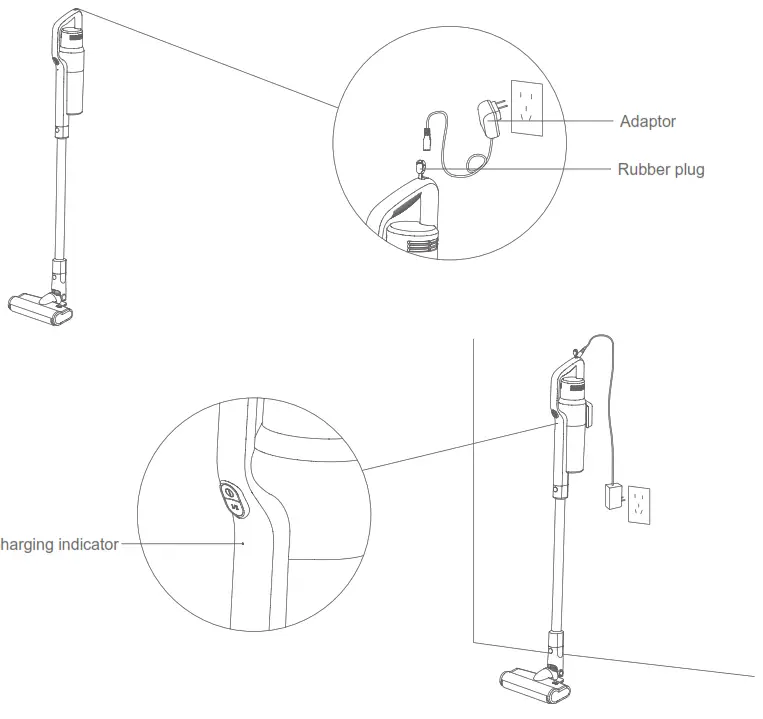

Remove the rubber plug on back on handheld vacuum, insert adaptor tail into charging socket on machine. Lean the product on charging holder. Indicator turns red when it  tarts to charge and turns green when it finishes charging.
Charging time is about 5 hours. When the charging indicator on the hand-held vacuum turns from red to green, it means the vacuum cleaner is fully charged. We recommend  ontinue charging for half an hour to one hour, so that the charging effect is better. After charging, unplug the charger to stop charging.
Attention:

1. When using the machine for the first time, the battery capacity is not full, need to charge the machine. The machine is able to be used after the battery is charged fully.
2. When using the vacuum cleaner for the first time, fully charge the battery and fully discharge the battery before second charge to increase the battery life.

Use of Handheld Vacuum Cleaner

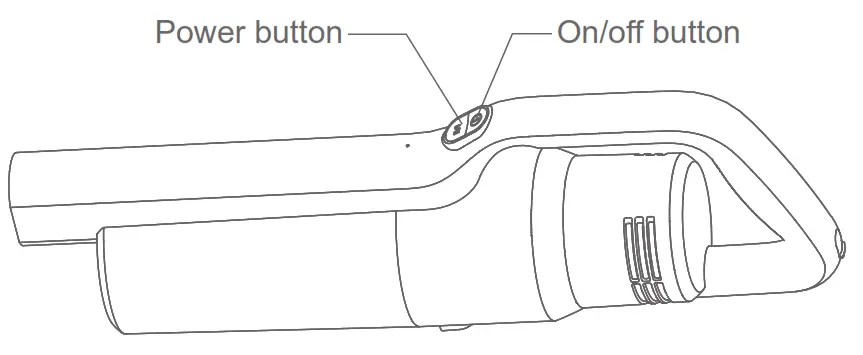

Take the handheld vacuum from the charging holder, press the on/off button to turn on and turn off the vacuum. Green indicator lights up, it is normal mode, press the  peed control button to strong mode, the speed control button can switch between strong mode and normal mode easily.
Attention:JV63 and JV65 has normal/middle/strong three modes.

Use of Electric Floorhead
Electric floorhead can clean short hair carpet, hardfloor or tile floor.
Attention:
When the electric floorhead is running, if brushroll stopped running due to big foreign object blockage or excessive fiber entangle, or the child accidentally putting hand into  rushroll, the  floorhead will stop working to protect personal safety and avoid damage to floorhead motor.

Use of Accessories
2-in-1 crevice tool: Suitable to clean crevices, corners and other narrow areas.

2-in-1 upholstery tool: Suitable to clean dust on closet, sofa,windowsill and table surface.

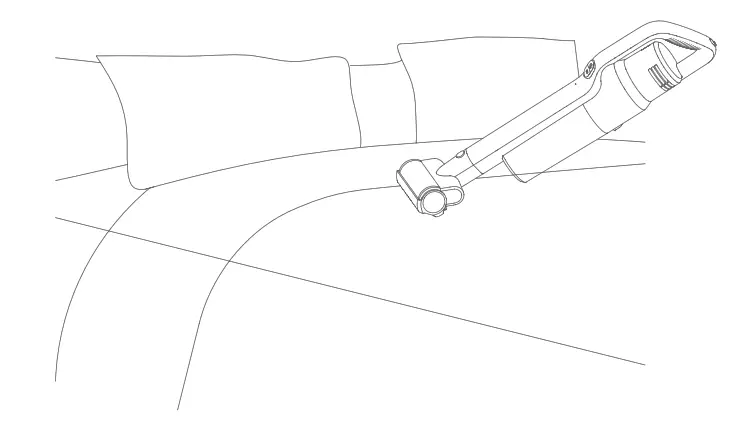

Electric Mattress Head: Beats up and cleans dust、dust mite and dust mite allergen from sofa and bed.

Soft brush and stretch: Stretch hose to connect handheld vacuum cleaner and accessories to clean hard to reach areas. Soft bruh is suitable to clean easily scratched  urniture,such as book shelf, artworks.

Cleaning and Replacing Parts

Attention:

1. HEPA filter is available for sale from local vacuum cleaner distributors.
2. It is recommended to clean the dust cup after each use; When the dust cup is full or the HEPA filter is clogged, it needs to be cleaned and replaced if necessary. Floorhead brushroll might be entangled with hair after long time use, it needs to be cleaned in time to keep the vacuum working more efficiently.

Cleaning Dust Cup
release button, rotate and remove dust cup in the arrow direction.

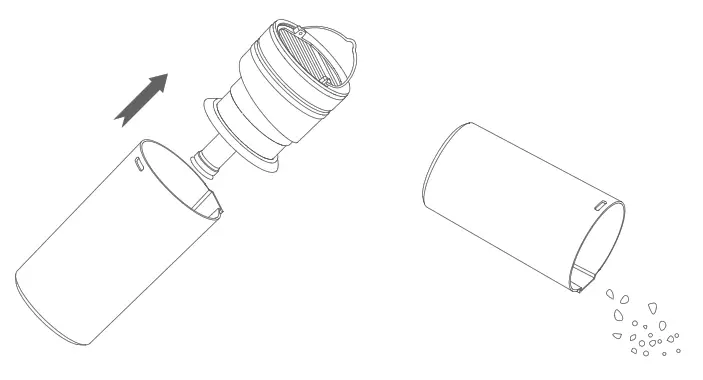

Lift out cyclone assembly and empty the dust in dust cup.

Clean filtration system

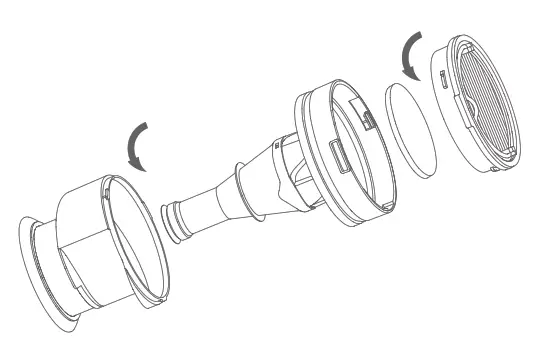

Hold the HEPA and rotate arrow direction. Take out HEPA; Rotate the cyclone in arrow direction to take out cyclone assembly. Clean or wash the HEPA, foam filter, cyclones.

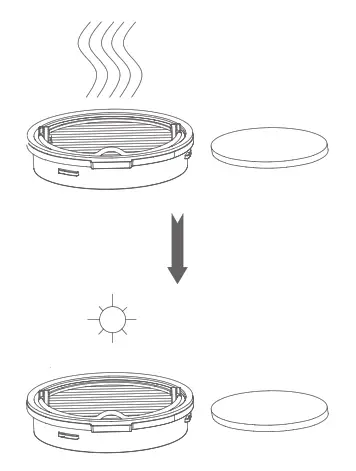

If HEPA and foam filter are washed, they need to be completely dried to be used again. (Replace if necessary). After cleaning, assemble all parts in the opposite direction as   isassembly. Attention:HEPA and fom filter need to be completely dry before assembly.

Cleaning Electric Brushroll

Take out brushroll to clean brushroll:

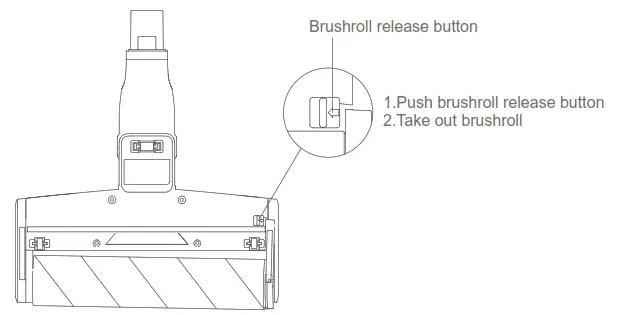

1. Push brushroll release button, brushroll will automatically bump out.
2. Take out one side of the brushroll in the same direction as shown on the picture, then brushrollcan be taken out to clean.
3. After cleaning and replacing, reassemble it in opposite sequence.

Storage of Vacuum Cleaner

Disassemble electric floor head and metal tube
When store or clean the vacuum cleaner, if you need to disassemble the electric floor head, press the electric floor head release button, pull upwards the metal tube.

Disassemble the Handheld Vacuum Cleaner and Metal Tube

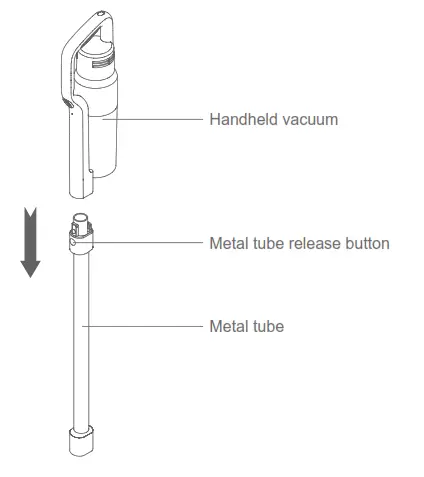

Hold the handheld, press the release button of metal tube, pull out it.

Machine Storage
If the machine is not used for a long time, properly pack it and store it in cool and dry place, avoiding direct sunlight or humid environment.
Safety Notes
This vacuum cleaner is designed for home use. Do not use it for commercial or other purposes.
Please read this instruction manual carefully before use, properly save and store it for future use.
Do not put the vacuum close to fire or other high temperature facility.
Do not use or store the machine under extreme bad conditions, for example, extreme temperature. It is recommended to use it indoors between the temperature of 5℃ to  0℃ . Store the machine in dry place and avoid direct sunlight.
Fully charge the battery before first use or after long storage.
Before using the vacuum, make sure brushroll is assembled, otherwise, it may lead to motor fan blockage, causing motor burn out.
Please do not use the vacuum to pick up detergent, oil, glass slag, needle, cigarette ash, wet dust, water, matches, etc.
Please do not use the vacuum to pick up tiny particles such as cement,gypsum powder, wall powder, or large objects such as paper balls, otherwise it will cause malfunctions  uch as blockage and motor burnout.
Avoid blockage to air inlet or brushroll, it may cause motor failure.
Do not put your hand or foot into floorhead inlet to avoid body hurt.
Do not pour or splash water or other liquids into the machine to avoid short circuit to burn out the machine.
If the brushroll is not working, please check whether the brushroll is entangled with hair or other long fiber, clean it in time.
When storing the machine for a long time, ensure that the battery is fully charged before storage and charge the machine at least every three months.
Unplug the charger to clean or repair the machine. Hold the charger when plugging or unplugging it, and do not pull the charging cord.
Use a dry cloth to clean the machine. Liquids like gasoline, alcohol, lacquer thinner will cause crack or colour fading and cannot be used.
If the machine is not working after fully charged, it must be checked and repaired in our designated office, please do not dismantle the machine on your own.
Discarded machine contains batteries. They should be recycled safely. Do not discard them randomly.
If there is damage on power cord, to avoid danger, it should be replaced or repaired by manufacturer、repairing agency or professional person.

Trouble Shooting

Please check the following issues before sending to designated repair offices:

Attention:If any other failures occurred, which need professional tools, in order to avoid danger, the machine must be repaired or replaced by manufacturer, other maintenance offices or professionals from similar offices.

Product Specification

Technical Parameter

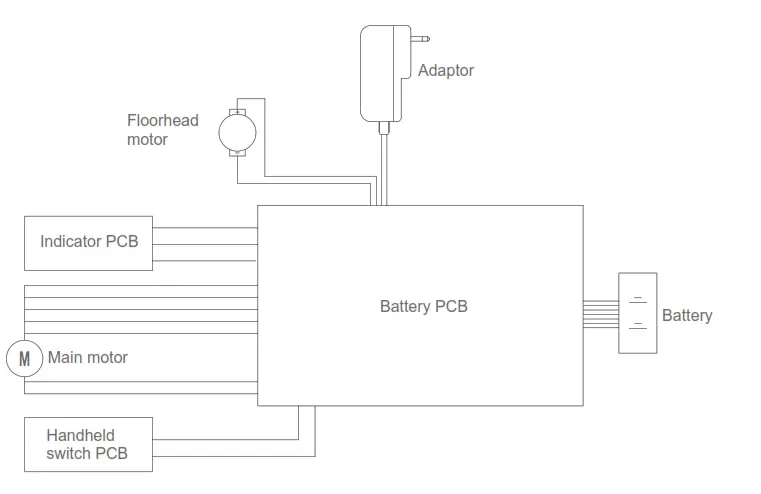

Circuit diagram

Manufacturer Information

Disposal
The machine, accessories and packaging should be sorted for environmental-friendly recycling.
Do not dispose of the machine into household waste!
Only for EC countries: According to the European Guideline 2012/19/EU, machine that are no longer usable, and according to the European Guideline 2006/66/EC,  efective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.
Battery packs/batteries:
Integrated batteries may only be removed for disposal by qualified personnel. Opening the housing shell can damage or destroy the machine.
Do not dispose of battery packs/batteries into household waste, fire or water. Battery packs/batteries should, if possible, be discharged, collected, recycled or disposed of in  n environmental-friendly manner.
Subject to change without notice.

Warranty Information
This product enjoys two year warranty from the date of purchase.
Excluded from the guarantee is normal wear, commercial use, alterations to the appliance as purchased, cleaning activities, consequences of improper use or damage by the  urchaser  or a third person, damage, that can be attributed to external circumstances or caused by the batteries.
