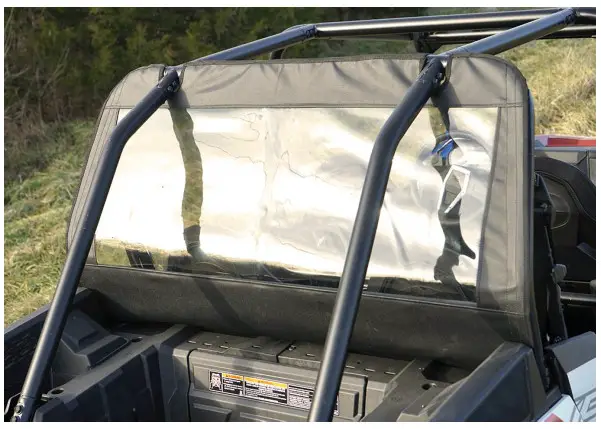

14RZR-XP-RW01 2014-17 Polaris RZR XP Soft Rear Window
Instruction Manual
PO-14RZR-XP-RW01 2014-17 Polaris RZR XP Soft Rear Window
Instructions for Installation and Care of 2014-17 Polaris RZR XP Soft Rear Window PO-14RZR-XP-RW01
Notice: Do not smoke inside the cab or expose the enclosure to direct flames. The cab is Flammable.
- Be sure to read these instructions thoroughly before opening and installing the Ranger RZR XP Soft Rear Window.
- Check over the parts included in the carton with the parts list shown below: Velcro Hook strips:
“ “ 12 each 3” long “ “ 2 each 5” long “ “ 1 each 24” long “ “ 2 each 26” long Snap studs 6 each 1 extra) - Installation of your Soft Rear Window is quite simple. Take the 5 adhesive velcro strips provided and attach them to the roll cage around the perimeter facing the rear of the vehicle. Take the Soft Rear Window and attach it to the vehicle.
- Lastly, install the snaps along the bottom of the window. It works best to pop the snaps into the sockets first. Then push the screw end into the plastic to make an indention or mark. Then pull the snap out and screw it into the plastic.
