INSTALLATION GUIDE
277
Trouble Sounder
GET STARTED

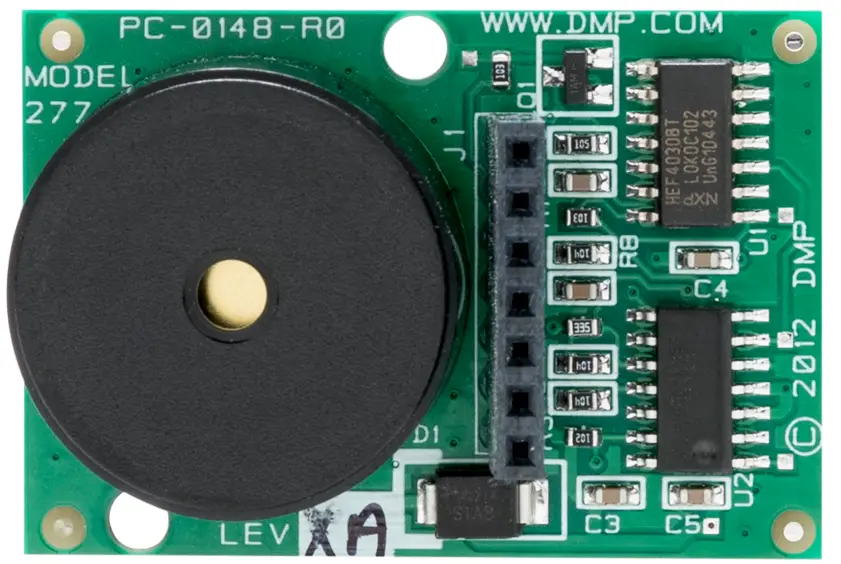

The Model 277 Trouble Sounder is an audible trouble alert that may be installed in place of the Model 893A Module Trouble Alert Sounder.
What’s Included
▶ 277 Trouble Sounder
Processor Fail Alert
The 277 Trouble Sounder monitors the keypad bus to sound an alert whenever the keypad bus is faulted.
The 277 also sounds like a trouble alert whenever the panel processor is reset using the RESET header or the processor stops functioning.
INSTALLATION
1 Install the Sounder
Warning: Ground yourself before handling the panel. To discharge static, touch any grounded metal, such as the enclosure, before touching the panel. Also remove all AC and Battery power from the panel before installing or connecting any modules, cards, or wires to the panel.

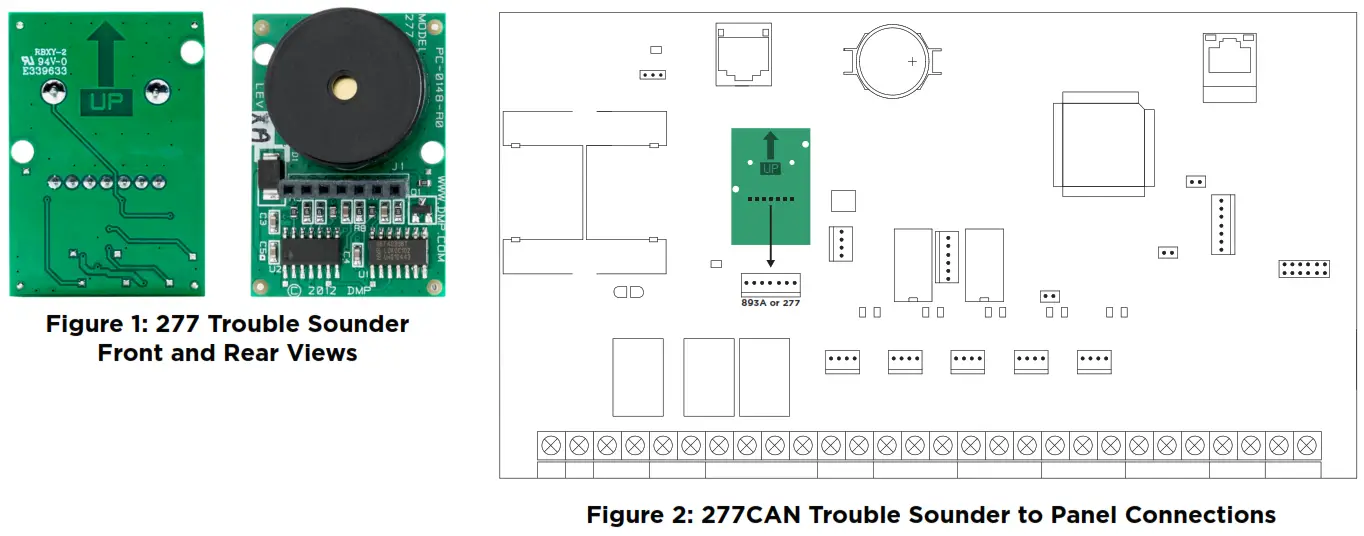

Taking note of the “UP” arrow to properly orient the 277, slide the connector on the 277 onto the panel 893A or 277 connectors.
277 Installation Guide | Digital Monitoring Products
SPECIFICATIONS
| Operating Voltage | 12 VDC from the panel |
| Current Draw | 5 mA |
CERTIFICATIONS
Underwriters Laboratory (UL) Listed
| ANSI/UL 636 | Holdup Alarm Units and Systems Accessory |
| ANSI/UL 1023 | Household Burglar |
| ANSI/UL 1635 | Digital Burglar |
| ANSI/UL 985 | Household Fire Warning |
| ANSI/UL 864 | Fire Protective Signaling 9th Edition |
