About the manual

• Congratulations on your purchase of the E-scooter.
• For your driving Safety, please read this user manual carefully before using and ensure to be able to ride the scooter under correct guidance. Learning all the safety warning and tips listed in this manual that will be helpful for you to better control the scooter.
• Should you have any inquiries, please contact the supplier immediately.

Tips:

1. Children below 14 years old shall be accompanied by an adult.
2. The people without experience, poor ability to accept & physical coordination, should learn to ride with accompanies. Please read this manual carefully before you ride the electric scooter, make sure that you can riding with the correct guide.
3. No parents are Accompanied, children are prohibited from cleaning and maintenance of the product.

Please turn off the power after using the scooter to prevent the scooter starting due to accidental touching the accelerator.

WARNING!
Improper use of the scooter and/or failure to read this user manual may lead to serious bodily injury. Seller will take no responsibility for any injuries caused by improper use without following the manual.

Packing list

Product

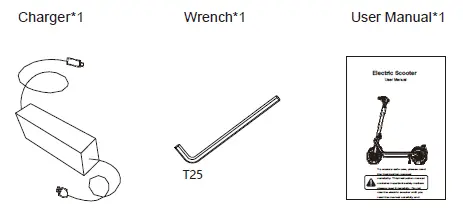

Accessories

If anything missing, please contact the dealer in time!

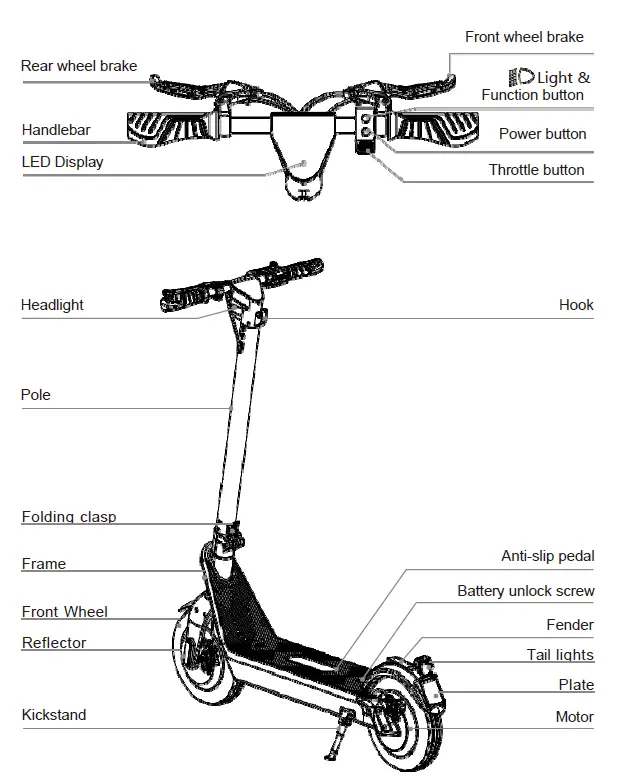

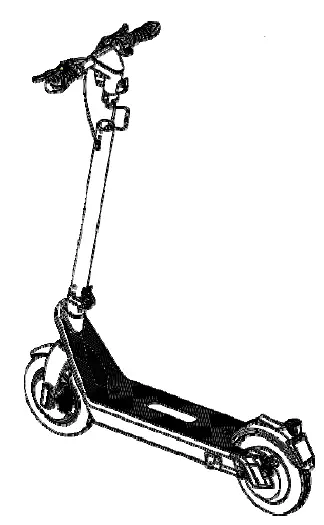

Product introduction

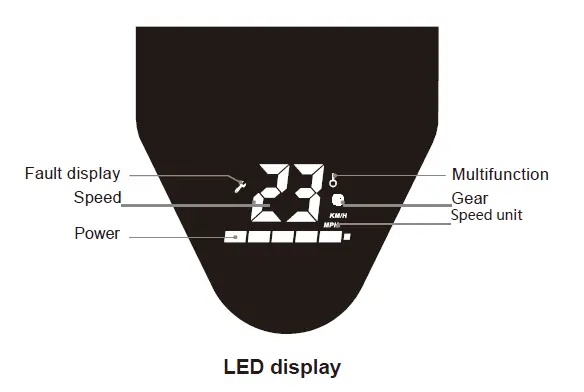

Instructions of buttons

1. Power Switch: Long press the power button to turn on/off.
2. Function Button:
3. Accelerator: Press the acceleration button to start and accelerate.
4. Brake: Hold the brake handlebar to brake.
5. Cruise mode: Keep the current speed(≥6KM/h) for 6 seconds to enter the cruise mode. Exit the cruise mode when pressing the accelerator again or the brake.

Note: When the brake is active, pressing the throttle button to accelerate is invalid!

Product assembly

How to assemble

Assemble

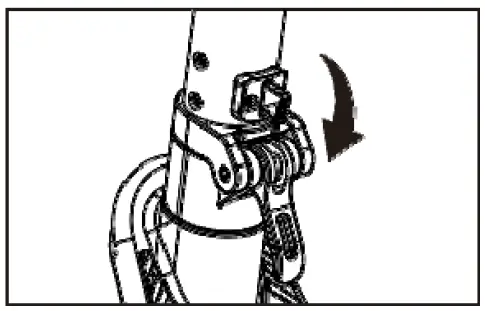

1. Unfold the pole and fasten the folding lock.
2. Connect the two cables, which is the communication wire between the display PCB and controller PCB. Align the notch and connect.

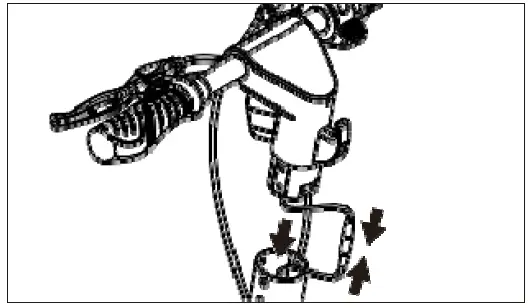

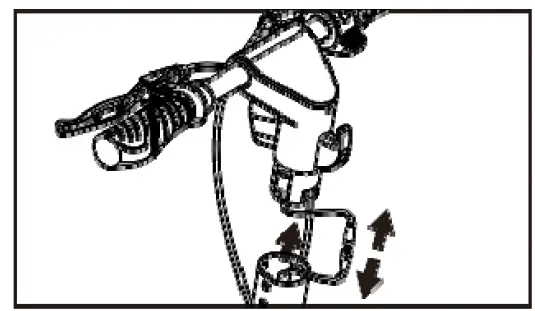

3. Align the T-bar of the scooter then insert it into the pole, use the screw provided with the scooter to install and fix it.

Disassemble

1. Loosen the screws that secure the T-bar of the scooter.
2. Pull out the head of the scooter, unplug the communication line between the display and the controller, the dismantling part of the head of the scooter is complete.

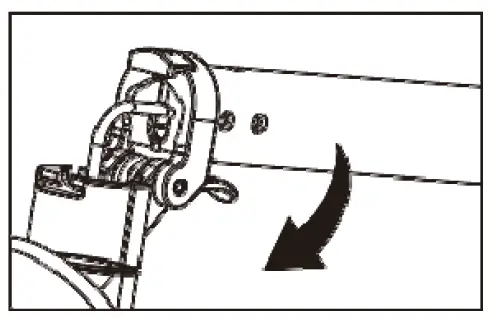

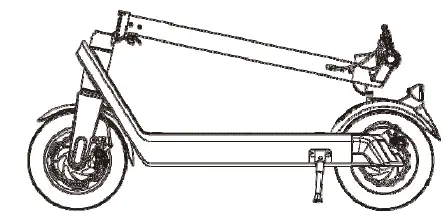

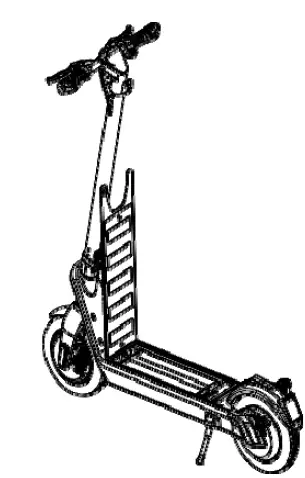

How to fold

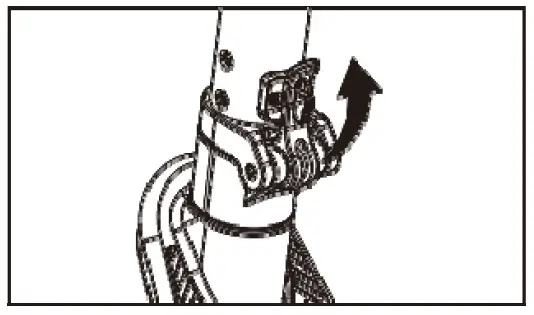

1. Lift up the fixing bolt of the folder.
2. Open the folder wrench.

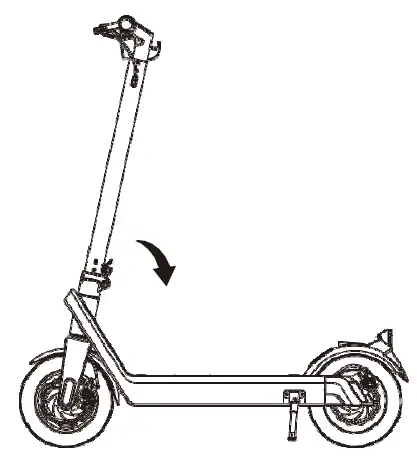

3. Fold the pole.

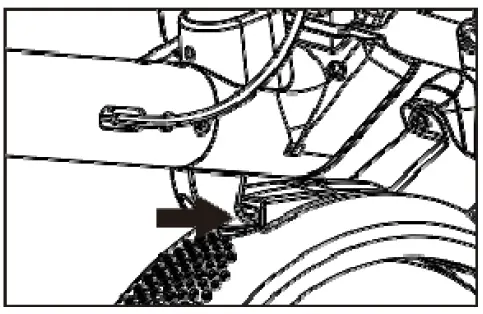

4. Gently press down the hook to the rear baffle.

Battery removal and installation.

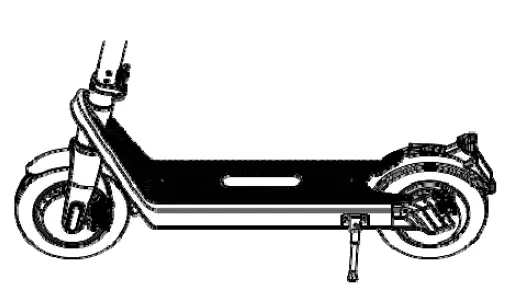

Remove the battery

1. Unscrew the pedal cover screw counterclockwise.
2. Lift the pedal cover from the quick-release screw on the rear wheel side.
3. Lift the battery strap and take out the battery.
4. Unplug the charging plug and the power plug of the controller.

Install the battery

1. Put the battery vertically into the scooter.
2. Connect the charging plug and the power plug of the controller to the battery.
3. Cover the pedal and fasten the silicone edge of the pedal.
4. Install the screws and tighten it clockwise.

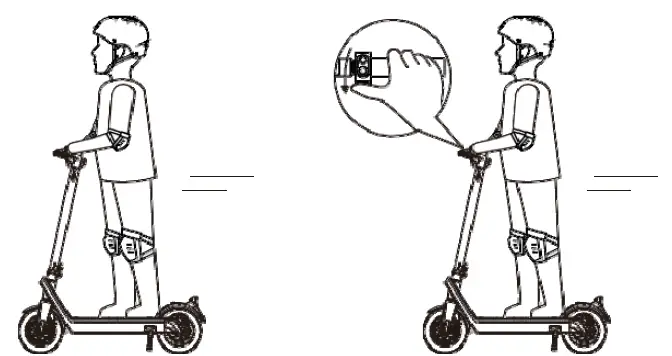

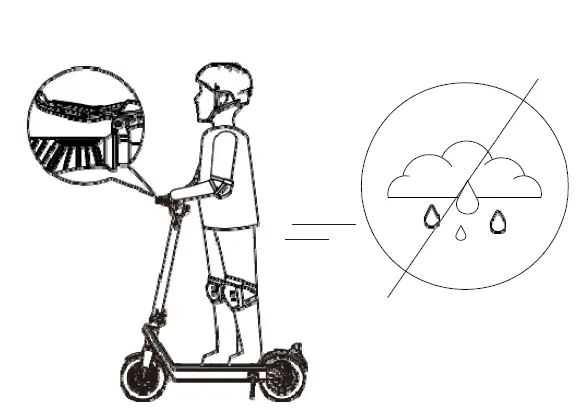

How to ride

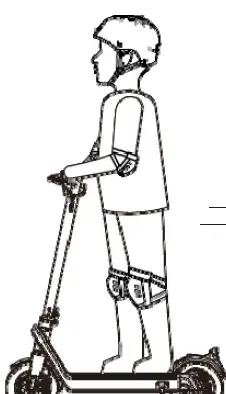

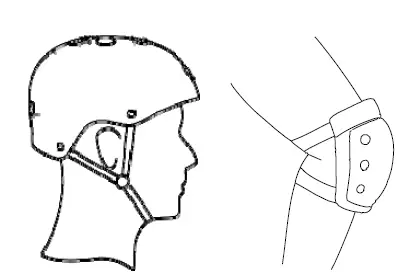

1. Wear helmets and other protective equipment before riding.

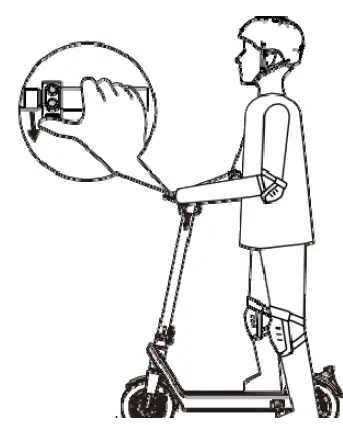

2. Long-Press the power button to turn on scooter, stand on the pedal with one foot, press the accelerator, and push the other foot back on the ground.
3. When the electric scooter is sliding, put the other foot on the pedal and keep both feet remain stable.
4. Continuously press the throttle to speed up. Turn the handle to adjust the direction.
5. Hold the brake grip firmly to slow down and stop. Note:
   1. Riding in rain or snow, the braking distance will be extended, Pls pay attention to slow down.
   2. The rear brake can be used for normal driving. The front and rear brakes need to be used together for emergency braking. Don’t use the front brake for emergency braking at high speed. Otherwise, it can cause a rollover.
6. When the scooter stops or runs at a slow speed, you can get off.
7. Please don’t ride at high speed before you are familiar with the performance of the scooter to avoid accidents.

Safety notes

1. Please abide by traffic laws when using electric scooters. Forbidden to ride it into motor lanes.
2. Don’t park electric scooters in the building’s lobby, evacuation corridor, or safety exit.
3. DO NOT ride after drinking or taking medicine.
4. Forbidden to ride with overweight (maximum load: 100Kg).

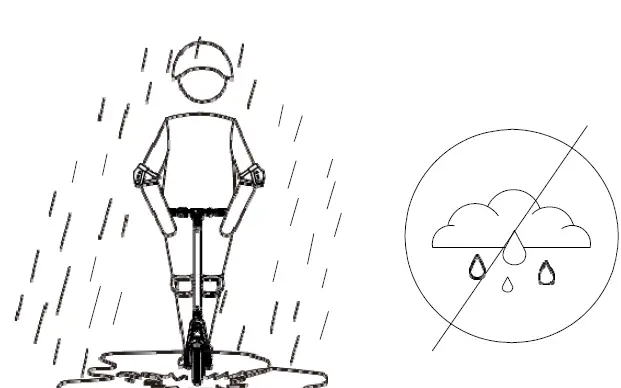

5. Forbidden to ride on the road with heavy water, which is easy to cause danger.
6. Pregnant women and users younger than 16 years old or older than 60 years old are not allowed to ride.

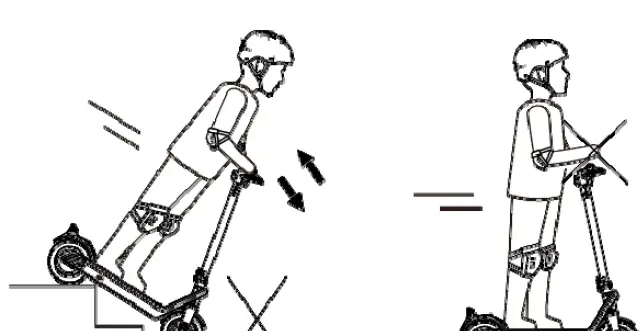

7. Forbidden to ride electric scooters up and down steps or jumping obstacles.

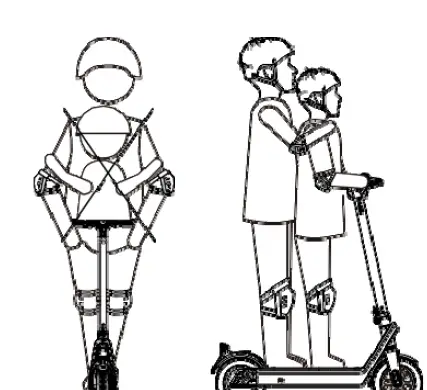

8. Forbidden to leave the handlebar with one hand or both hands at the same time when riding.
9. Forbidden for multiple people or carrying children to ride an scooter at the same time.
10. Forbidden to modify the battery of an electric scooter privately. Modification of the battery is dangerous, and improper operation may cause the battery to explode or fire.
11. Forbidden to modify electric scooters privately. Private modification may cause an unstable electronic system and cause danger when riding.
12. Before riding an electric scooter, please carefully check the scooter condition make sure that there are no signs of looseness or damage on any part.

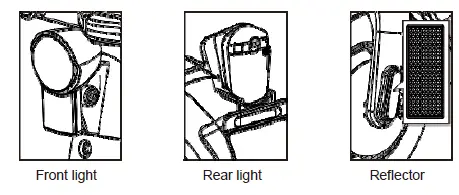

13. Before using the electric scooter, check whether the power circuit, front and rear lights, reflectors, front and rear brakes are normal, and stop using it and repair it in time if there is an abnormality.

Batter instructions

This is about how consumers charge and maintenance, also hereby listed the detailed spec of battery for your info, please refer to this manual well and follow so as to keep long lifespan, and performance for the battery.

Battery parameters

Warns for battery

1. The battery must be charged and used within the temperature range required by the battery specification to make the electric scooter work stably and efficiently.
2. Please make sure you take off the charger when you install the battery to prevent any danger from happening.
3. It is never allowed to dissolve or impale the battery, also make sure NO metal stuff go contact with the battery pin electrode, otherwise, it might break the battery.
4. It is forbidden to disassemble or pierce the battery pack casing to avoid short circuits caused by metal objects contacting the battery contacts, otherwise, it may cause battery damage or personal injury.
5. It is potentially causing fire or explosion if the water enters the battery circuit, thus stop using the battery in case this happens and go to the after-sale immediately.
6. You are only allowed to charge the battery with the original adaptor packed, otherwise it will be causing any unexpected consequences.
7. If finding the battery broken and smells bad or felt hot, you need to stop using it and keep the battery away from other stuff.
8. It helps prolong the lifespan if storing the battery after 100% fully charged
9. It is not allowed to store the battery under -20°C or higher than 50°C conditions.
10. You have to charge it to at least 80% capacity if the battery has not been used for more than 30 days. Better to charge it 100% full every 90 days to protect the battery function.
11. It will help prolong the battery lifespan significantly so that you charge well accordingly to the manuals after every driving instead of running it out. At room temperature, the battery can play a higher range and performance. But battery life and performance will degrade if used at temperatures below 0℃. Typically, the range may be half or less than at room temperature at -10°C.
12. Do not charge and park electric scooters in residential buildings. Keep away from combustibles when charging, and the charging time should not be too long.
13. Improper disposal of used batteries may seriously pollute the environment. Please abide by local regulations when disposing of this battery.

Tips:

1. When the internal temperature of the battery exceeds 50°C, the battery is in a protected state and cannot be charged.
2. After fully charged, the electric scooter exhausts its stored power after about 90- 120 days of standby. If it is not charged in time, it may cause damage to the battery due to excessive discharge. This damage is unrecoverable and it is beyond of our warranty.

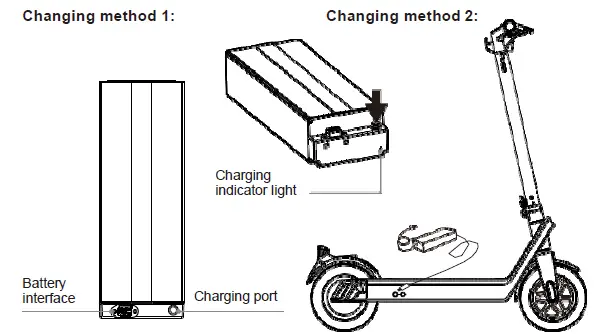

Charging steps

1. Open the dust cover on the battery charging stand.
2. Connect the DC plug of the charger to the battery charging socket.
3. Connect the AC plug of the charger to the AC power (100-240V,50/60Hz) socket, the red light on the charger will light up, start charging, and the indicator will turn green when the charging is completed.

Tip: When the battery is charged separately, the charging status can be viewed on the charging indicator on the battery. It displays red color when charging and green color after full charging.

Note:

Only use the original electric scooter charger for charging. Do not use any other models of power chargers to avoid danger caused by voltage mismatch.

Parameter

Maintenance

Cleaning and storage of electric scooter.
If there are stains on the surface of the electric scooter, Wipe with a damp soft cloth, if the plastic parts of the body are scratched, use sandpaper or other abrasive materials for polishing.

Tips:

1. It is forbidden to use alcohol, gasoline, kerosene or other corrosive and volatile chemical solvents to clean, otherwise it will seriously damage the appearance and internal structure of the scooter.
2. It is forbidden to use high-pressure water guns to spray and flush. When cleaning the electric scooter, make sure the scooter is turned off, and the charger has been unplugged and the dust cover of the charging port has been fastened, otherwise, it may cause electric shock or major failure due to the scooter was flooded.
3. Electric scooter needs to be stored in a cool and dry indoor place. Try to avoid storing outdoors for a long time. Sun exposure, overheating, and cold outdoor environments will accelerate the appearance of electric scooter and tire aging, and reduce the use of the electric scooter and their lithium battery life.

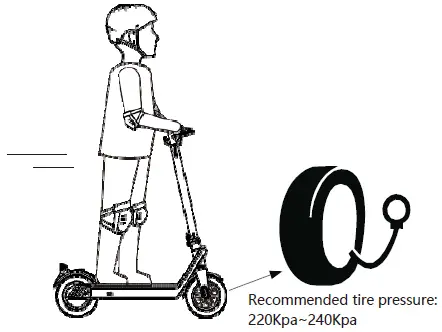

Maintenance of electric scooter tires.
The tires of this product are pneumatic. When the tire height sinks 20%-30%, it needs to be inflated. The recommended inflated tire pressure is 220 Kpa-240 Kpa. The tire needs to be inflated at least once in 2-3 months. Regular inspection of the inflation can reduce the puncture situation and extend the life of the tire.

Warranty card

The product has passed the inspection of the quality control department and allowed to be sold. Please keep the warranty card and purchase invoice properly, and present the warranty card and purchase invoice when repairing. Effective date : Quality inspection pass seal:

Warranty Card

Please keep the warranty card and purchase invoice as after-sales proof. This card must be provided during the warranty. If this card is not provided or the card is altered privately, the company has the right to do non-warranty treatment!
