Arenti VBELL 1 Wireless Doorbell

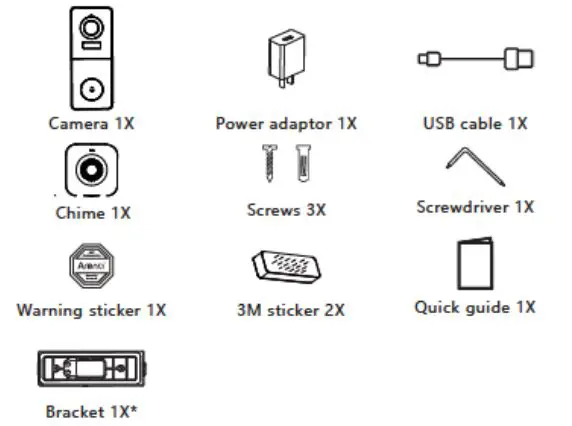

Packing list
- The bracket is attached to the camera.

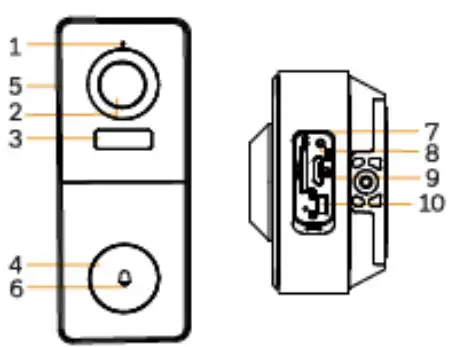

Product description
Microphone- Lens
- PIR
- Doorbell button
- Speaker
- LED indicator
- SD card slot
- Reset
- DC5V USB
- Device ON/OFF
Microphone
- LED indicator
- Speaker
- Ringtone
- Volume
- Function button
- Micro USB
Notice
- To reset the device, press and hold the reset button for 5s.
- The camera beeps when the operation is complete.
- LED indicator of a camera:
| Flashing red light (slow) | Wait for the network config |
| Flashing red light (fast) | Connecting the network |
| Fixed red light | Network is malfunction |
| Fixed blue light | The camera is working correctly |
LED indicator of chime:
| Flashing red light | Wait for pairing |
| Fixed blue light | Succeed to pair |
Installation

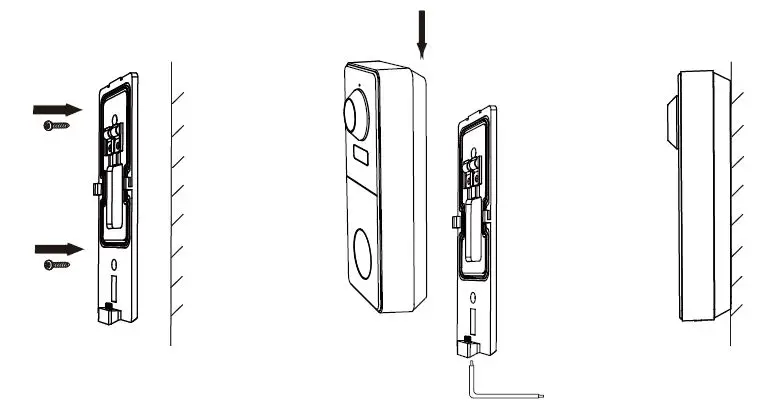

Installation with screws
- Fix the bracket to the wall with the mounting screws.
- Install the camera in the bracket and lock it with the screw.

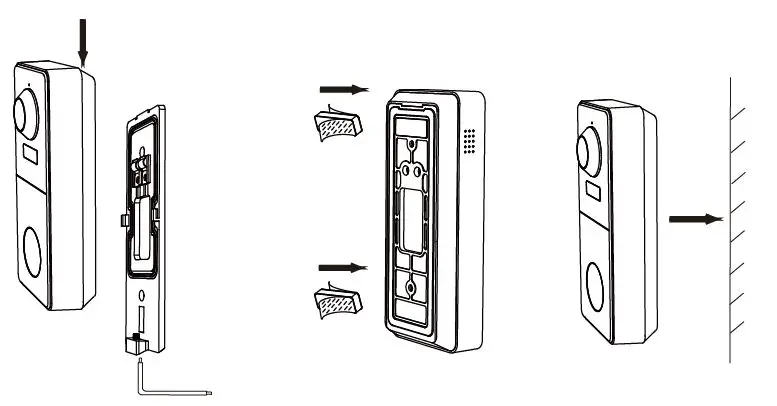

Installation with 3M stickers
- Lock the bracket to the camera with the screw at the bottom.
- Stick the adhesive tapes to the bracket.
- Stick the other side of adhensive tapes to the wall.
Product Configuration
- Step 1 Turn on your camera.
- Step 2 Connect your smartphone to the Wi-Fi network.
- Step 3 Download the Arenti app from the App Store or Google Play depending on your device.
- Step 4 Launch the App and sign up for the first use.
- Step 5 Follow the on-screen instructions to add your camera.
F o r m o re information, scan the QR code.
Notice
- If you have multiple cameras, please follow step 5 again to add devices one by one.
- To change the Wi-Fi network, please restore the camera to factory settings and follow step 5 to add the camera.
Chime Pairing

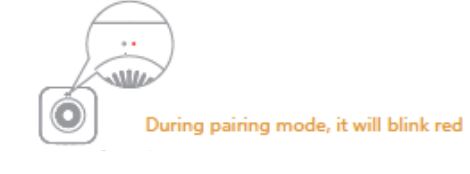

- Short press
(within 2 seconds), the status light flashes red slowly and the chime will be in pairing mode.
- Press the doorbell button to pair, when the chime status light turns off, the song will play automatically, the chime pairing is successful at this time.
(within 2 seconds), the status light flashes red slowly and the chime will be in pairing mode.
Description
- The chime can connect to a maximum of eight doorbells.
- When the chime is in pairing mode, press the. again (within 2 seconds), the chime will automatically exit the pairing mode.
- After adding the chime successfully, the volume will be adjusted to the maximum automatically. When it is at the minimum volume, it will return to the maximum volume after pressing ”

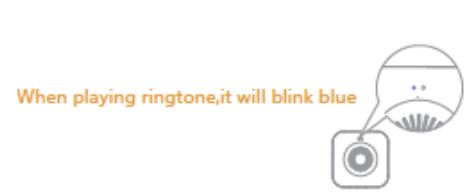

*. - Each press ‘
‘, will play the next song along with a blinking blue light.
*.
‘, will play the next song along with a blinking blue light.
Specifications
| Sensor to | 1/2.7″ CMOS |
| Min. briQhtness | Color 0.0, [email protected] |
| Black and white [email protected] | |
| Resolution | 3 Megapixels |
| Lens | 3.2 mm F2.0 |
| Shutter | 1/25-1/100,000 per second |
| Infrared | High-power LED with ICR |
| Infrared distance | 5 meters |
| FOV | 130° |
| Video compression | H.264 |
| Bit rate | 32Kbps – 2Mbps |
| Max resolution | 2304 X 1296 |
| Framerate | 1 -25 per second |
| Picture settings | Support HD/SD; support flip |
| Storage | SD card (Max 128GB) |
| Audio | Two-way audio |
| Protocols | HTTP, DHCP. DNS |
| WiFi standard | IEEE802.11b/g/n |
| Frequency | 2412-2462MHz/433.92MHz(SRD) |
| WiFi encryption | WPA-PSK/WPA2-PSK |
| Security | AES128 |
| Working temperature | -20’C-50’C |
| Power | DC5V,1A |
| Consumption | 4.5W MAX |
| Size(mm) | 143x57x36 |
| Battery | 6700mAh |
| Standby consumption | 200µA (average) |
| Work consumption | 220mA (IR off) |
| Standby time Working | 10 months |
| time | 3 months (10timeswakeupperday) |
| PIR Detection Range | 7m (Max.) |
| PIR Detection Ang(e | 100° |
Legal notice
Support: www.arenti.com.
Symbols
Direct current (DC)
Don’t throw batteries or out-of-order products with household waste (garbage). The dangerous – substances that they are likely to include may harm health or the environment. Make your retailer take back these products or use the selective collection of garbage proposed by your city.
Hereby, Arenti, declares that the radio equipment ~ type ‘VBell 1’ is in compliance with Directive 2014/53/EU The full text of the EU declaration of conformity is available at the following Internet address: www.arenti.com.
For indoor use only.
Direct current (DC)
Don’t throw batteries or out-of-order products with household waste (garbage). The dangerous – substances that they are likely to include may harm health or the environment. Make your retailer take back these products or use the selective collection of garbage proposed by your city.
Hereby, Arenti, declares that the radio equipment ~ type ‘VBell 1’ is in compliance with Directive 2014/53/EU The full text of the EU declaration of conformity is available at the following Internet address:
For indoor use only.FCC Statement
Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. and (2) this device must accept any interference received, including interference that may cause undesired operation.
FCC Radiation Exposure Statement
This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and it also complies with Part 15 of the FCC RF Rules. This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and consider removing the no- collocation statement.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However. there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
