EOP6010TB 60cm 10 Function Pyrolytic Oven
User Guide
EOP6010TB 60cm 10 Function Pyrolytic Oven
This little Quick Start Guide is everything you need to start cooking up a feast with your EOP6010TB 60cm 10 Function Pyrolytic Oven!
Get ready to use your EOP6010TB 60cm 10 Function Pyrolytic Oven!

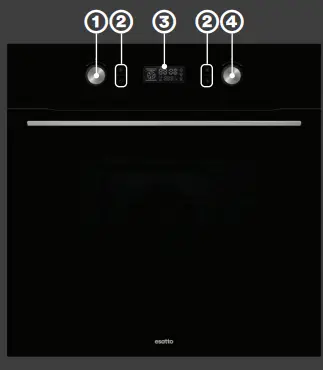

The Controls
- Function & Time Selector Use this knob to select a function or adjust a time setting.
- Touch Control Buttons Use these buttons for Start, Confirm, Pause, Cancel, Minute Minder & Time.
- LED Display The display allows you to view the time, temperature, cooking duration, cooking function and other indicators.
- Temperature & Time Select or Use this knob to adjust the temperature (in Celsius) or time setting.
The Functions
Oven Light: To easily observe the progress of your cooking without letting heat escape by opening the door.
Defrost: The circulation of air at room temperature enables quicker thawing of frozen food.
Bottom Heat: This function is commonly used for cakes, where you want to crisp the bottom or keeping food warm.
Bake (Conventional): The top & bottom heating elements operate together to provide convectional cooking.
Fan Bake: Heat is evenly distributed within the cavity via the fan, top heating element & bottom heating element. Grill: Utilising only the inner grill element, it directs heat downwards onto the food.
Max Grill: Utilising both the inner & upper heating element for larger amounts of cooking on a lower rack.
Max Grill & Fan: Utilising the inner & upper heating elements, along with the fan to circulate the hot air around the oven cavity whilst grill large amounts of cooking on a lower rack.
Fan Forced (Convection): An element around the convection fan evenly circulates hot air allowing multiple shelf cooking.
Pyrolytic Cleaning: Turn any cooking mess into ash by raising the oven temperature to 450°C for 1.5 or 2 hours. WARNING: Ensure that all accessories, including brackets, are removed from the oven before performing this function.
Get in Touch
Need help? Contact our friendly support team via the details below.
Phone / 1300 11 4357 Email / [email protected]
Product Details
Dimensions (W, D, H mm)
595 × 575 × 595
Capacity: 80L (gross)
Warranty 2 Years
Register your Estate product online for a free additional year estate. house/warranty
