FISHER PAYKEL 25815-B 600mm 10 Function Built-in Pyrolytic Oven

INTRODUCTION

BRAND	VOLTAGE	MODEL	PRODUCT CODE
Fisher & Paykel	220-240 50Hz	REFRIG RS7621SRK1 FP EU	25815-B

MODELS
The models covered by this manual are listed on the front cover.
The information detailed in this manual is subject to change without notice. The latest version is indicated by the reprint date and replaces any earlier editions.

KIT PARTS
Where a part number is shown against the descriptions for kit components, they are also available as separate items. In addition, some parts may be supplied with these kits that are not available as separate items, and are therefore either not listed, or a part number is not shown against the part description in this manual.

PARTS LIST KEY

NI	As a part reference, indicates the part is not illustrated on the diagram.
NOT USED	As a part number, indicates the diagram part reference is not used in this manual.
NS	As a part number, indicates the part is not serviceable.

EU UK
Fisher & Paykel Appliances Ltd UK

tel: 08000 886 605
fax: 08000 886 606
e-mail: [email protected]
www.fisherpaykel.com/eu

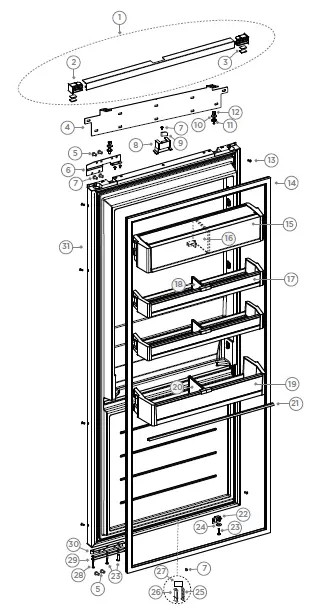

DOOR COMPONENTS

REFERENCE	PART NUMBER	PART DESCRIPTION
1	843507P	EXTRUSION DOOR TOP RS30
	includes 843507	EXTRUSION DOOR TOP RS30
	includes 847229	CAP EXTRUSION DOOR
	includes 846179	STRIP 6 DUAL LOCK TABS
2	847229	CAP EXTRUSION DOOR
3	846179P	STRIP 6 DUAL LOCK TABS PKT 4
4	867831	BRACKET PANEL DOOR RS30 PC
5	847953P	SCREW MC M6X10 BTN HEX ZP PKT10
6	842935	BRACKET ADAPT COL K05 RH
7	841568P	SCREW MC M5X10 PAN PH MS ZP PKT10
8	844632	BRACKET DOOR MAGNET
9	883315	MAGNET DOOR SWITCH ST4
10	842456P	WASHER M8X21X1.6 ZP PKT10
11	838153P	BOLT SKIN DOOR BI PKT10
12	838158P	NUT M8 HEX MS ZP PKT10
13	845432P	DOOR RS30S FOAMED ASSY
14	842947P	GASKET DOOR RS30
15	843425P	DAIRY COMPARTMENT 30S ASSY
16	843891	DIVIDER DAIRY COMPARTMENT
17	843365P	SHELF DR MID 30S ASSY
18	843899	DIVIDER BOTTLE PC SHELF
19	843405P	SHELF DR GALLON 30S ASSY
20	843166	DIVIDER BOTTLE GALLON SHELF
21	843562P	SEAL DIVIDER DOOR RS30
22	844897	BRACKET DR PANEL LOCKING
23	846156P	SCREW MC M6X25 PAN PH MS ZP PKT10
24	842456P	WASHER M8X21X1.6 ZP PKT10
25	847957	CAP FLOW DIVIDER
26	848759	DIVIDER MOUNT ASSEMBLY
27	848730	DUAL LOCK VELCRO
28	846155P	SCREW MC MSX30
29	845914	BRACKET ADAPT SPACER BTM
30	842889	BRACKET ADAPT K05 BTM RH
31	844577P	DOOR RS30S FOAMED ASSY
	includes 843562P	SEAL DIVIDER DOOR RS30

DOOR PANEL COMPONENTS

REFERENCE	PART NUMBER	PART DESCRIPTION
1	848302P	KIT HANDLE D3 852 ASSY
	includes 842292P	SCREW WSH M5X25 KIT
	includes	ENDCAP
1	848304P	KIT HANDLE EVO 786 ASSY
	includes 842292P	SCREW WSH M5X25 KIT
	includes	ENDCAP
1	848305P	KIT HANDLE EVO2 792 ASSY
	includes 842292P	SCREW WSH M5X25 KIT
	includes	ENDCAP
	includes	BAR HANDLE EVO 2
1	848303P	KIT HANDLE RD3 852 ASSY
	includes 842292P	SCREW WSH M5X25 KIT
	includes	ENDCAP
2	842292P	SCREW WSH M5X25 KIT
NI	845432P	SCREW M5X12MUSH PH MT ST PKT10 (FOR SS PANEL)
3	868349P	KIT DOOR TRIM V2
	includes	TRIM SIDE DOOR COLUMNS RHS
	includes	TRIM SIDE DOOR COLUMNS LHS
4	867900	KIT BRACKET PANEL ATTACH V2
	Includes 840371P	SCREW 8GX16 MUSH WASHER HD
	Includes 867267	SLIDER BRACKET SKIN DR 60CM
	Includes 864933	BRACKET TRIM SIDE DOOR 60CM
	Includes 867266	SPACER BRACKET SIDE DR 60CM
5	840371P	SCREW 8GX16 MUSH WASHER HD
6	867267	SLIDER BRACKET SKIN DR 60CM
7	864933	BRACKET TRIM SIDE DOOR 60CM
8	867266	SPACER BRACKET SIDE DR 60CM
9	847871P	PANEL DOOR 3084R4D ASSY
10	527679P	KIT CORNER FLAT DOOR PKT4

SHELVES & BINS AREA

REFERENCE	PART NUMBER	PART DESCRIPTION
1	847532P	SCREW M4X16 PLASTITE PH T15 PK
2	844646	SLIDE 337R SC
	844645	SLIDE 337L SC
3	847044	BRACKET HCL LWR RH
	847043	BRACKET HCL LWR LH
4	844644	SLIDE 224R SC
	844643	SLIDE 224L SC
5	847036P	SCREW TORX CSK SS 8X16 PKT10
6	846765	BRACKET UPPER SHELF
7	843304	RAIL CANTI LH
8	847441	RACK BOTTLE SINGLE CANTI
9	847544P	SHELF CANTI HALF ASSY RS30
10	843322P	SHELF CANTI 30S ASSY
11	844756	RAIL CANTI RH
12	860593	BOTTLE HOLDER SINGLE ASSY
13	847814P	SHELF FIXED UPR ASSY RS30S
14	847768P	HCL SUBASSY RS30
15	845272P	BIN ASSY UPR RS30S
16	844810	DIVIDER BIN UPR
17	844048P	KIT MAT BIN UPR RS30S
	includes	FOOT BUMPON 6MM
18	847178P	SHELF HCL LWR RS30 ASSY
19	844809	DIVIDER BIN LWR
20	845271P	BIN ASSY LWR RS30S
21	844043P	KIT MAT BIN LWR RS30S
	includes	FOOT BUMPON 6MM
22	844711	COVER DIVIDER COLUMNS 30
23	611933P	SCREW ST 8X5/8TA MTS PH H5ZNPL
24	844971	END CAP UI RH RS
25	847484	GASKET UI END CAP RS30 RH
26	844540P	MOD DISP RS30S SVC
27	847483	GASKET UI END CAP RS30 LH
28	844970	END CAP UI LH RS

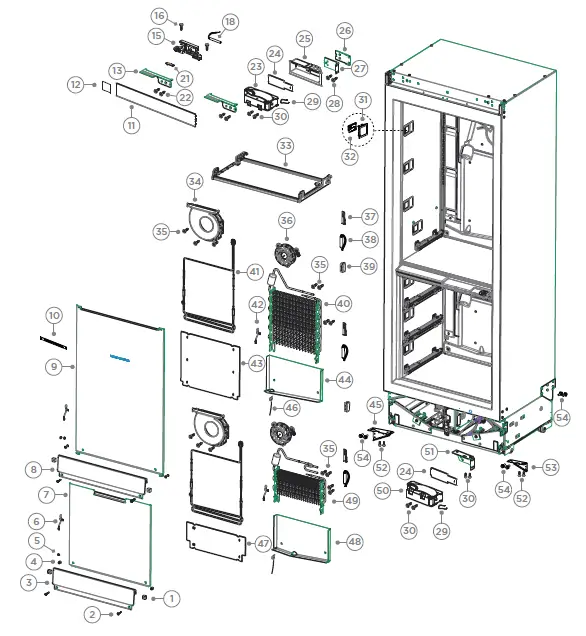

CABINET INTERIOR COMPONENTS

REFERENCE	PART NUMBER	PART DESCRIPTION
1	848128	SPACER COVER DRAIN ASSY
2	848120P	SCREW M4X35 PAN TX15 SS PKT10
3	848748	COVER DRAIN LWR RS30 BRUSHED SS
4	840421P	SCREW ST #8X15-M6X12 WASHER KIT
5	846732P	CLIP EDGE EARTH TAB AR EPF255
6	814460	HARNESS EARTH 100MM
7	849243P	DUCT CVR SEAL LWR SS RS30 ASSY
8	848745	COVER DRAIN UPR RS30 BRUSHED SSEA
9	849240P	KIT DUCT COVER SEAL UPR RS30 ASSY
	includes	DUCT CVR SEAL UPR SS RS30 ASSY
	includes	NAMEPLATE FP CHROME LETTERS
10	847363	NAMEPLATE FP CHROME LETTERS
11	843717	TRIM TOP EXTRUSION RS30
12	847675P	TAPE DUALLOCK SJ3540 50MMX10MM
13	847005	BRACKET ALCOVE TOP RH
15	843872	HOUSING SENSOR
16	840371P	SCREW 8GX16 MUSH WASHER HD PKT10
18	814443P	SWITCH REED FIELD FIX KIT ST4
21	841796P	MOD HUMIDITY SENSOR
22	845432P	SCREW M5X12 MUSH PH MT STL ZN PKT10
23	837842	HINGE K05-A 115GRAD M6 “S”
24	843720	COVER POCKET HINGE
25	843718	POCKET HINGE TOP RH
26	847537	SPACER BRACKET HINGE TOP
27	842944	BRACKET HINGE TOP RS
28	845428P	SCREW M5X12 CSK PH NP PKT10
29	841213P	EARTH WASHER ASBI PKT10
30	839692P	SCREW M6X16CSK DIN965 PH MS ZP PKT10
31	848428	COVER INTEGRATED SIDE LIGHT GR
	includes	COVER INTEGRATED SIDE LIGHT GR
32	849937P	MOD SIDE LIGHT-GR COVER KIT
	includes	MOD SIDE LIGHT INT COL
	includes	COVER INTEGRATED SIDE LIGHT WT

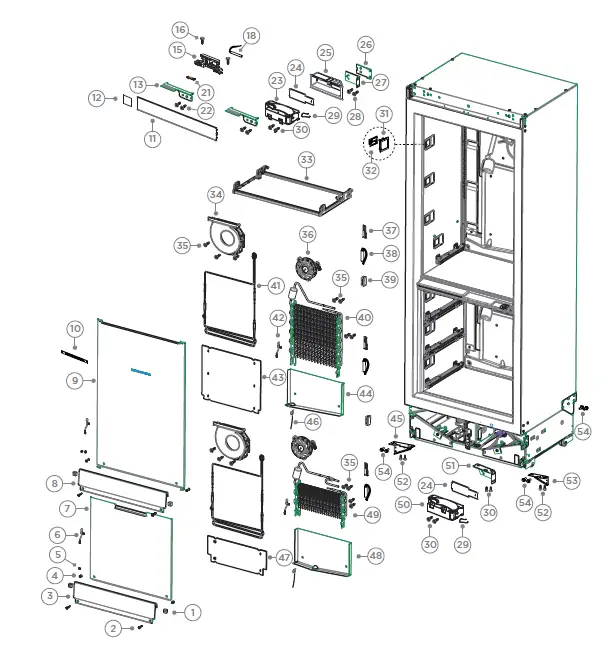

CABINET INTERIOR COMPONENTS

REFERENCE	PART NUMBER	PART DESCRIPTION
33	843760P	ASSY LIGHT CEILING PANEL RS30
34	844551	HOUSING FAN CNTFGL D125 ASSY
35	847532P	SCREW M4X16 PLASTITE PH T15 PK
36	844545P	FAN CNTFGL D125 ASSY
37	845878	CLIP SENSOR
38	813822P	CABINET THERMISTOR KIT
39	821745	COVER PLUG TYCO
40	851047P	KIT EVAP ASSY UPR 24 – 30PC
41	846243P	HEATER DEF 3PV 30 230V
42	847453	HARNESS EARTH
43	844107	SHIELD HEAT 30 UPR FC
44	844876	SHIELD DRAIN UPR 30PC
45	842883	BRACKET PLINTH FRONT LEFT
46	847315	WIRE DRAIN HEATER RS
47	844108	SHIELD HEAT 30 LWR FC
48	844877	SHIELD DRAIN LWR 30PC
49	851046P	KIT EVAP ASSY LWR 24 – 30PC
50	839474	HINGE K05-B 115GRAD M6 “S”
51	842881	BRACKET HINGE LOWER RH
52	845428P	SCREW M5X12 CSK PH NP PKT10
53	842882	BRACKET PLINTH FRONT RIGHT
54	845515P	SCREW MC M5X12 HXW NIB ZP PKT10

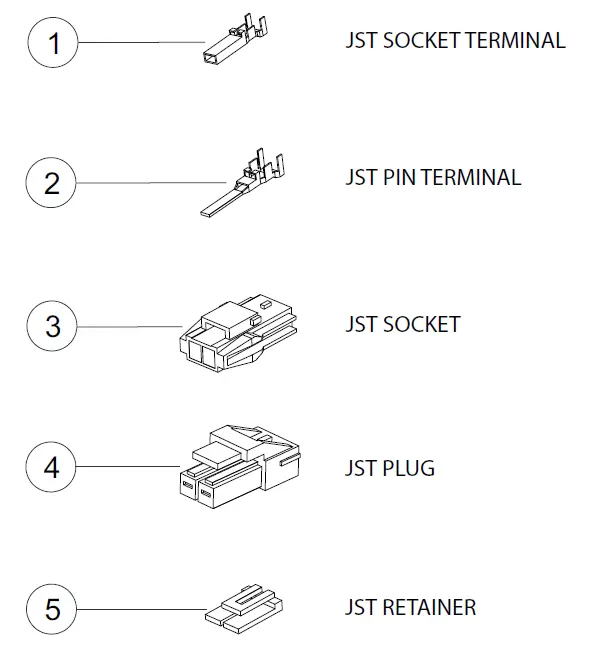

TERMINAL, PLUGS & SOCKETS

REFERENCE	PART NUMBER	PART DESCRIPTION	COMMENTS
1	819607P	TERMINAL SYF-01T PKT 10	26/20 AWG
	819608P	TERMINAL SYF-41T PKT 10	20/16 AWG
2	819609P	PIN/TERM SYM-01T PKT 10	26/20 AWG
	819610P	PIN/TERM SYM-41T PKT 10	20/16 AWG
3	819615	JST SOCKET 2PIN YLR-02V
	819616	JST SOCKET 3PIN YLR-03V
	819617	JST SOCKET 4PIN YLR-04V
	819618	JST SOCKET 6PIN YLR-06VF
	819619	JST SOCKET 8 PIN YLR-08V
4	819611	JST PLUG 2PIN YLP-02V
	819612	JST PLUG 4PIN YLP-04V
	819613	JST PLUG 6PIN YLP-06V
	819614	JST PLUG 8PIN YLP-08V
5	819620	RETAINER 2 WAY YLS-02V
	819621	RETAINER 3 WAY YLS-03V
NI	150807	TERMINAL REMOVAL TOOL
	855288	EXTRACTION TOO M ML AMP 1897271

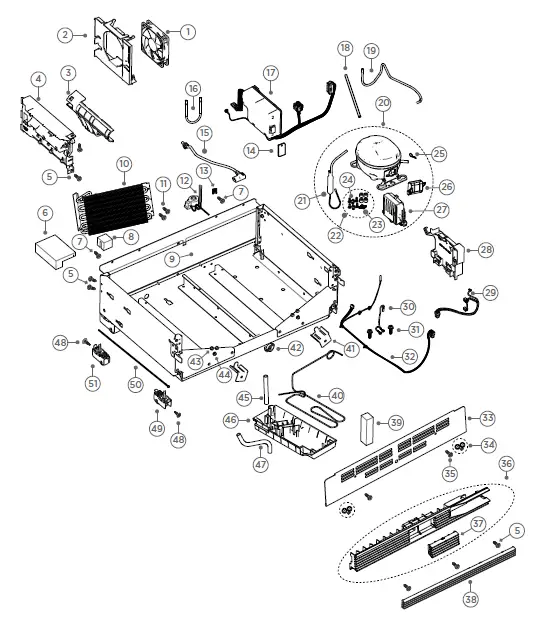

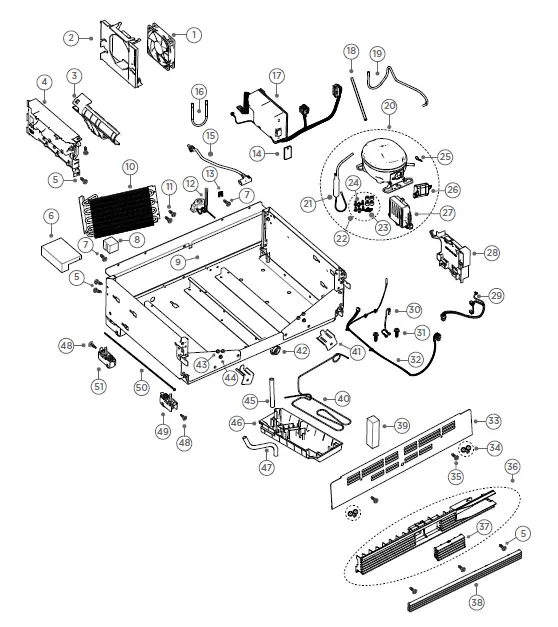

PLINTH COMPONENTS

REFERENCE	PART NUMBER	PART DESCRIPTION
1	838855P	FAN CONDENSER 120X25
2	843139	DIVIDER PLINTH REAR
3	847033	COVER DIVIDER FRONT
4	842779	DIVIDER PLINTH FRONT
5	840371P	SCREW 8GX16 MUSH WASH (PKT10)
6	845772	BLOCKER CONDSR AIRFLOW BYPASS
7	611977P	SCREW ST 8X1/2 SD TRS NIB PH P
8	848130	GROMMET CONDNSR AIR B/PASS
9	842251	LOCKING PLATE REAR PLINTH 30
10	847876P	CONDENSER FOT 260X177 1 PASS
11	546692P	SCREW ST 8X12MM TAB MTS PKT10
12	846688P	VALVE SANKYO NSCE001RA9
13	841023P	CLIP SPIRE SIZE 8
14	884505	COVER COMMS PORT
15	863138	CORDSET POWER IEC ASSY EU
16	845861	TUBE COPPER U-BEND
17	868090P	ASSY CTRL RS WIFI WTR RX SVC
	includes	ASSY CTRL RS WIFI WTR RX
	includes	COVER COMMS PORT
18	842972	TUBE ADAPTOR PROCESS RS
19	842989	TUBE ADAPTOR SUCTION RS
20	207429P	KIT COMPR EMB VESF9C KIT 230V
	includes 207421	INVERTER VESF9C 230V PFC FA
	includes 207310	COVER PROTECTOR VEM
	includes 207419	CLIP R COVER COMP M1.6 S4HPP16
	includes 845757P	GROMMET COMPR MTG 26MM KIT
	includes 845758P	FILTER DRYER DUAL 5G
21	845758P	FILTER DRYER DUAL 5G
22	843824P	GROMMET 26MM KIT
	includes 841291	POST COMP MTG 26MM PKT X4
	incudes	GROMMET 26MM X4
	includes 855270	CLIP FOOT COMPRESSOR X 4

PLINTH COMPONENTS

REFERENCE	PART NUMBER	PART DESCRIPTION
23	855270P	CLIP FOOT COMPRESSOR (PKT 4)
24	841291P	POST COMP MTG 26MM PKT X4
25	207419	CLIP R COVER COMP M1.6 S4HPP16
26	207310	COVER PROTECTOR VEM
27	207421	INVERTER VESF9C 230V PFC FA
28	849714	BRACKET INVERTER MOLEX CONN
29	842765	HARNESS INVERTER EMB RS
30	846708	HARNESS EARTH PLINTH
31	556082P	SCREW ST M4X12 XTITE HXW PKT10
32	846709	HARNESS REF VALVE SNSR RS
33	843253	MOUNTING PLATE KICK STRIP 30
34	866753	KIT TOEKICK MAGNET (4 PER KIT)
	Includes	SCREW WS 8X5/8 TWINFST (PKT10)
	Includes	MAGNET TOEKICK 36X7MM
35	845432P	SCREW M5X12MUSH PH MT ST PKT10
36	847372	GRILLE FIXED ASSEMBLY RS30 RH
	includes 843298	COVER FILTER GRILLE
37	843298	COVER FILTER GRILLE
38	847541	GRILLE MOVING ASSY RS30
39	846405	BLOCKER AIR BYPASS KICKSTRIP
40	842988	TUBE DISCHARGE RS3084
41	842018	BRACKET KICK STRIP ADJUSTING
42	845740P	CLIP HARNESS HT 151-000367
43	843453P	WASHER FLAT M6X12X1.2 PKT10
44	847984P	SCREW CAP M5X20 NZ PKT10
45	845859	DRAIN PLINTH
46	841476	TRAY WATER EVAP COLUMNS
47	845858	DRAIN TUBE PLINTH UPPER RS30
48	849237P	SCREW AB #8X13 HEX PH PKT10
49	842085	PLINTH SUPPORT RAIL ASSY
50	843475	ROD BK LEVELLING
51	843478	PLINTH SUPPORT RAIL ASSY BK

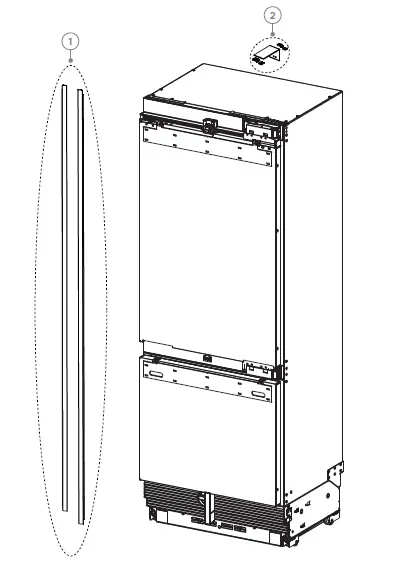

SINGLE INSTALLATION COMPONENTS

REFERENCE	PART NUMBER	PART DESCRIPTION
1	868352P	KIT ALCOVE TRIM
	includes	ASSY ALCOVE TRIM COLUMNS
2	843934	BRACKET ANTI TIP ASSY
	includes	ANTI TIP BRACKET
	includes	SCREW 10-12 X 35 WAFER PH ZN
	includes	PLUG MASONRY SP630#10X30MM
NI	867906	KIT INSTALLATION RS V2
	Includes	BLOCKER AIR BYPASS KICKSTRIP
	Includes	BRACKET ANTI TIP ASSY
	Includes	KIT INSTALL FASTENERS
	Includes	CAP FLOW DIVIDER
	Includes	KIT BOLT LIMITING HINGE K05
	Includes	KIT TOEKICK MAGNET
	Includes 867900	KIT BRACKET PANEL ATTACH V2
NI	867900	KIT BRACKET PANEL ATTACH V2
	Includes	SCREW 8GX16 MUSH WASHER HD
	Includes	BRACKET TRIM SIDE DOOR 60CM
	Includes	SPACER BRACKET SIDE DR 60CM
	Includes	SLIDER BRACKET SKIN DR 60CM
NI	840371P	SCREW 8GX16 MUSH WASH (PKT10)
NI	843662	BOLT LIMITING HINGE K05
NI	848192	KIT INSTALL FASTENERS
NI	848189P	KIT HINGE CHANGE RS30 RH TO LH
	includes	GRILLE FIXED ASSEMBLY RS30 LH
	includes	NUT M5 HEX MS ZP
	Includes	BRACKET HINGE LOWER LEFT
	Includes	BRACKET ADAPT K05 BTM LH
	Includes	BRACKET ADAPT COL K05 LH
	Includes	POCKET HINGE TOP LH
	Includes	BRACKET ALCOVE TOP LH

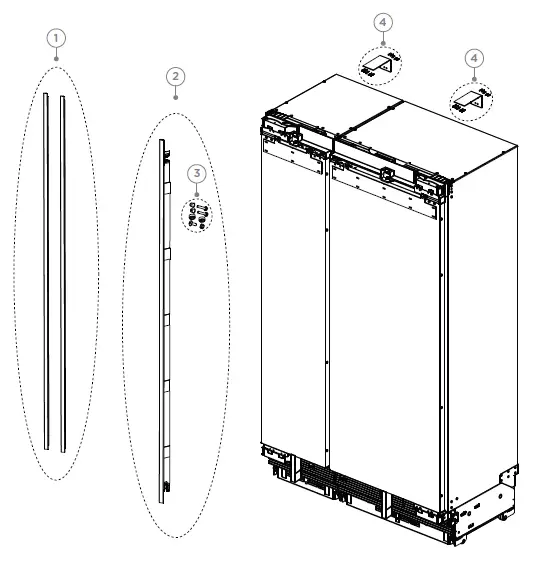

DOUBLE INSTALLATION COMPONENTS

REFERENCE	PART NUMBER	PART DESCRIPTION
1	868352P	KIT ALCOVE TRIM
	includes	ASSY ALCOVE TRIM COLUMNS
2	867910P	KIT DUAL INSTALL
	includes	TRIM JOINER ASSY COL
	includes 867898	KIT BRACKET JOINER V2
	includes	NUT M6 HEX 10AF FS MS ZNPL
	includes	SCREW WSH M6X16
	includes	FLANGE JOINER TRIM COL
	includes	JOINER SLEEVE TOP
	includes	SCREW M5 25 HEX PH LEAD
3	867898	KIT BRACKET JOINER V2
	includes	NUT M6 HEX 10AF FS MS ZNPL
	includes	SCREW WSH M6X16
	includes	FLANGE JOINER TRIM COL
	includes	JOINER SLEEVE TOP
	includes	SCREW M5 25 HEX PH LEAD
4	843934	BRACKET ANTI TIP ASSY
	includes	ANTI TIP BRACKET
	includes	SCREW 10-12 X 35 WAFER PH ZN
	includes	PLUG MASONRY SP630#10X30MM
NI	867900	KIT BRACKET PANEL ATTACH V2
	Includes	SCREW 8GX16 MUSH WASHER HD
	Includes	BRACKET TRIM SIDE DOOR 60CM
	Includes	SPACER BRACKET SIDE DR 60CM
	Includes	SLIDER BRACKET SKIN DR 60CM
NI	847984P	SCREW CAP M5X20 NZ PKT10
NI	843662	BOLT LIMITING HINGE K05
NI	848192	KIT INSTALL FASTENERS
NI	848189P	KIT HINGE CHANGE RS30 RH TO LH
	includes	GRILLE FIXED ASSEMBLY RS30 LH
	includes	NUT M5 HEX MS ZP
	Includes	BRACKET HINGE LOWER LEFT
	Includes	BRACKET ADAPT K05 BTM LH
	Includes	BRACKET ADAPT COL K05 LH
	Includes	POCKET HINGE TOP LH
	Includes	BRACKET ALCOVE TOP LH

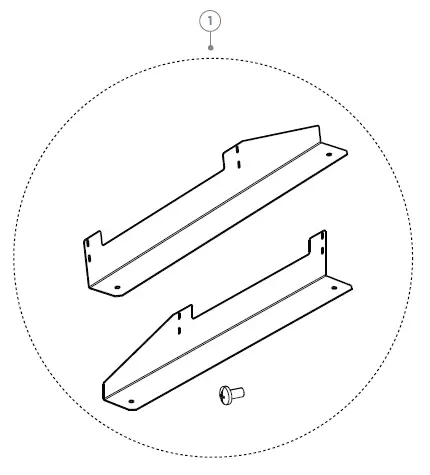

STABILITY COMPONENTS

REFERENCE	PART NUMBER	PART DESCRIPTION
1	847164P	KIT BRACE ANIT TIP
	includes	BRACE ANTI TIP RH
	includes	BRACE ANTI TIP LH
	includes	SCREW AB #8X13 HEX PH X 10

© Fisher & Paykel Appliances 2022. All rights reserved.
The models shown in this guide may not be available in all markets and are subject to change at any time.
The product specifications in this guide apply to the specific products and models described at the date of issue. Under our policy of continuous product improvement, these specifications may change at any time.
For current details about model and specification availability in your country, please go to our website or contact your local Fisher & Paykel dealer.
