JULA 012453 Rear Cargo Basket

REAR CARGO BASKET FOR ATVS

OPERATING INSTRUCTIONS

Important! Read the user instructions carefully before use. Save them for future reference, (Translation of the original instructions).

SAFETY INSTRUCTIONS

• Do not exceed the permitted load for the vehicle’s load carrier when loading the basket.
• Distribute the load as uniformly as possible.
• Put heavy objects in the back of the basket.

SYMBOLS

	Read the instructions.
	Approved in accordance with the relevant directives.

TECHNICAL DATA

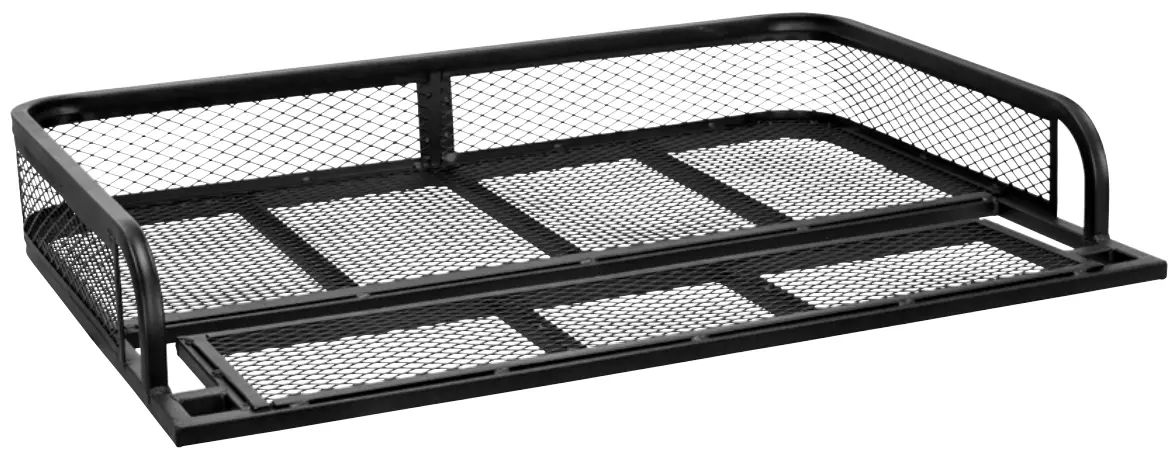

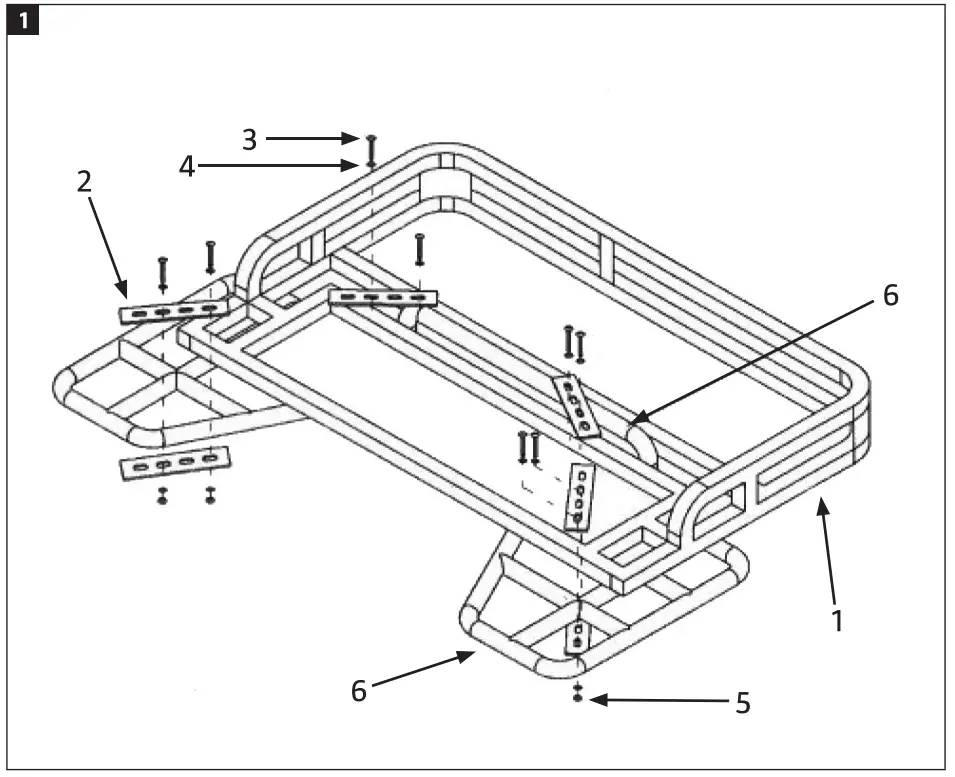

DESCRIPTION

1. Basket
2. Bracket
3. ScrewM6x80
4. Washer 06
5. Nyloc nut M6
6. Load carrier (sold separately)

FIG. 1

ASSEMBLY

1. Put the basket in the centre of the load carrier and fit the upright part of the load carrier through the opening in the basket.
   NOTE:
   Depending on the type of load carrier it may be necessary to remove the upright part to mount the basket.

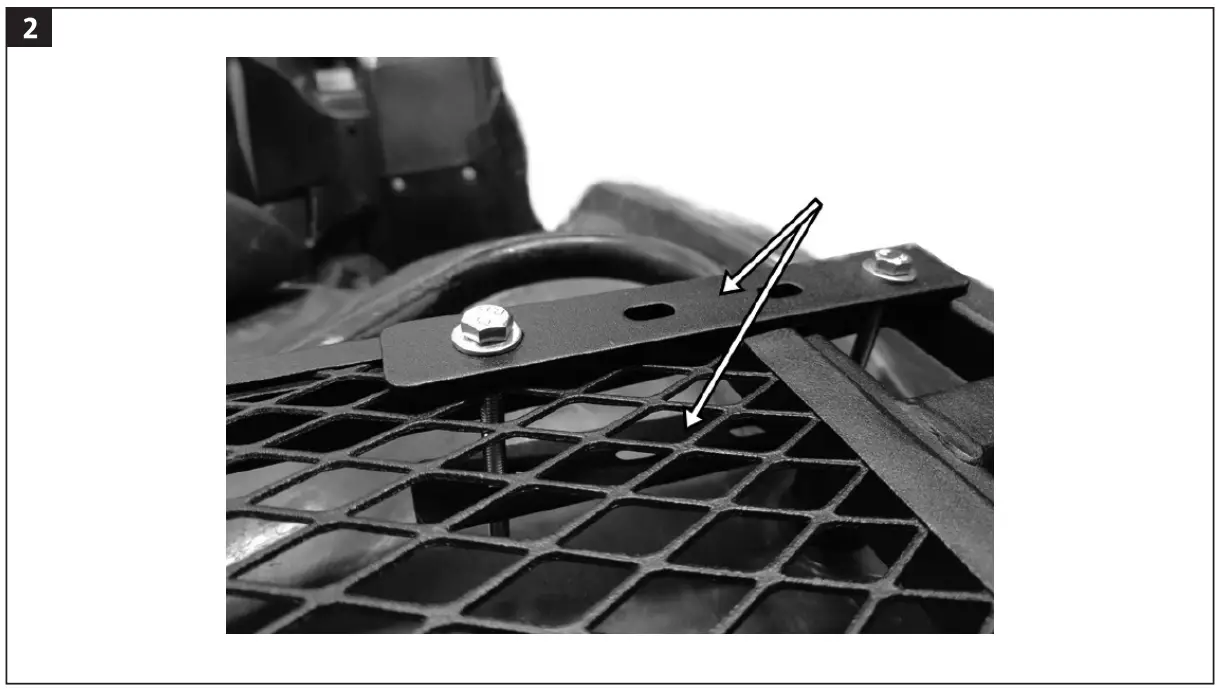

2. Lock one corner of the basket to the load carrier with 2 brackets, 2 screws M6 x 80, 4 washers and 2 nyloc nuts. Check that the bracket over the basket fits over the square tube in the basket frame and that the screws are placed on each side of the tube.
   FIG. 2

   NOTE:
   The bracket deforms when the screws are tightened.
3. Repeat step 2 for the other three corners. Place the brackets evenly spaced over the surface of the basket. Check that the basket is mounted straight and is firmly fixed. Tighten the brackets if necessary.
