KALLSJÖN Robinet

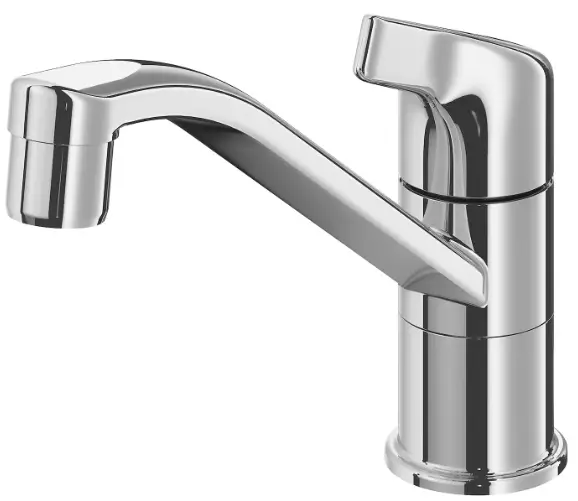

IKEA KALLSJÖN Robinet

Instruction Manual

KALLSJÖN Robinet

IKEA KALLSJÖN Robinet - Fig 1

Installation must be performed in compliance with current local construction and plumbing regulations. If in doubt, contact a professional.

IKEA KALLSJÖN Robinet - icon 1 Switch off main shut-off valve before changing tap.

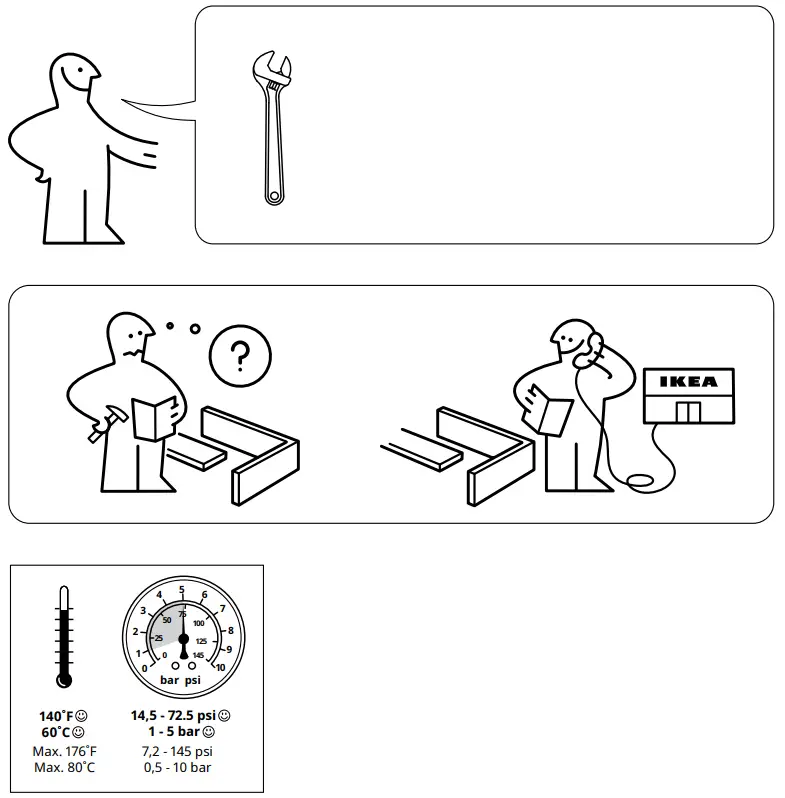

IKEA KALLSJÖN Robinet - Fig 2

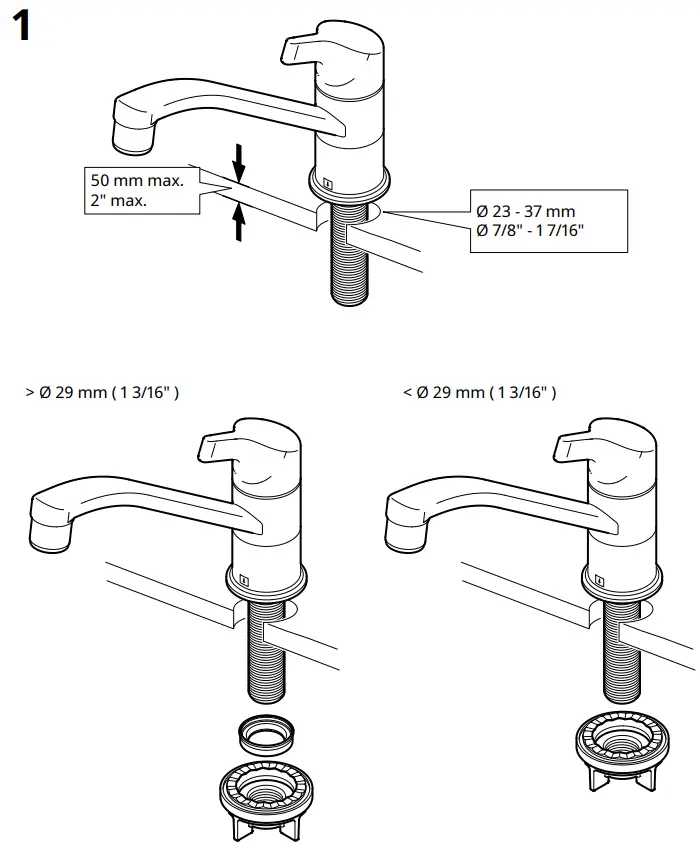

IKEA KALLSJÖN Robinet - Fig 3

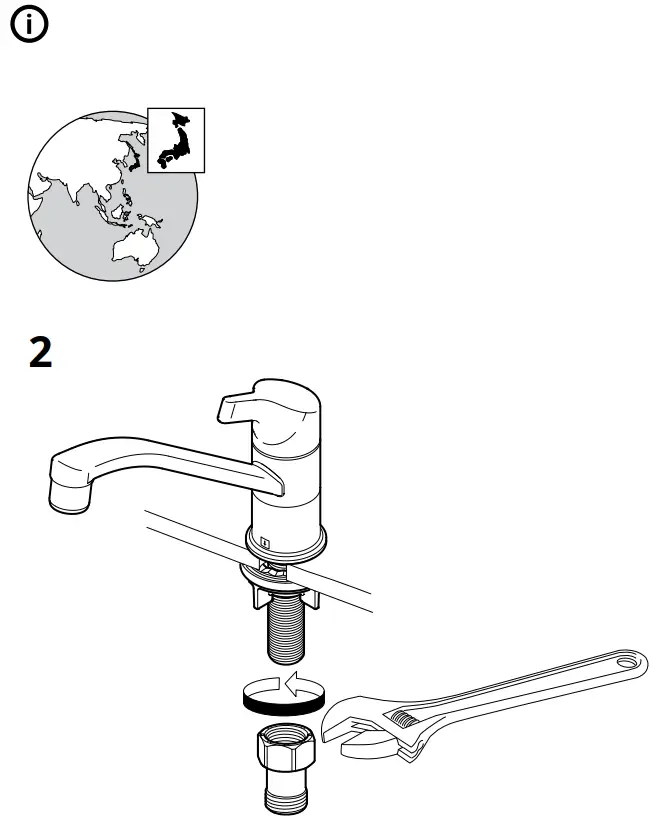

IKEA KALLSJÖN Robinet - Fig 4

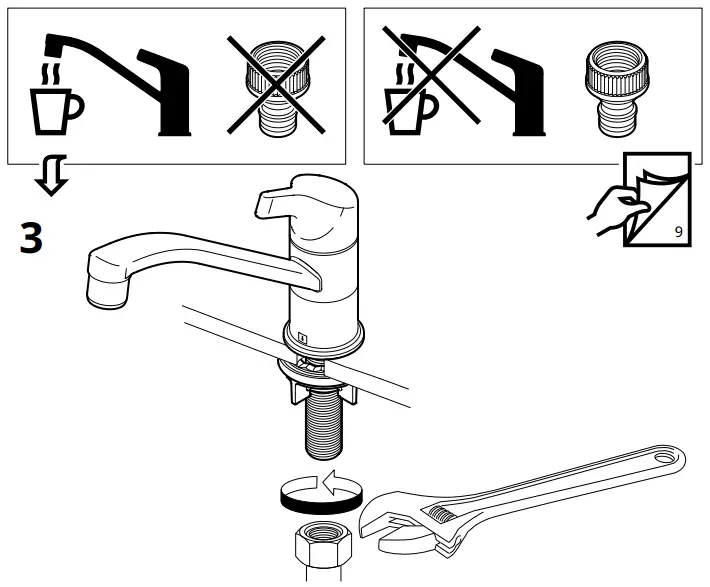

IKEA KALLSJÖN Robinet - Fig 5

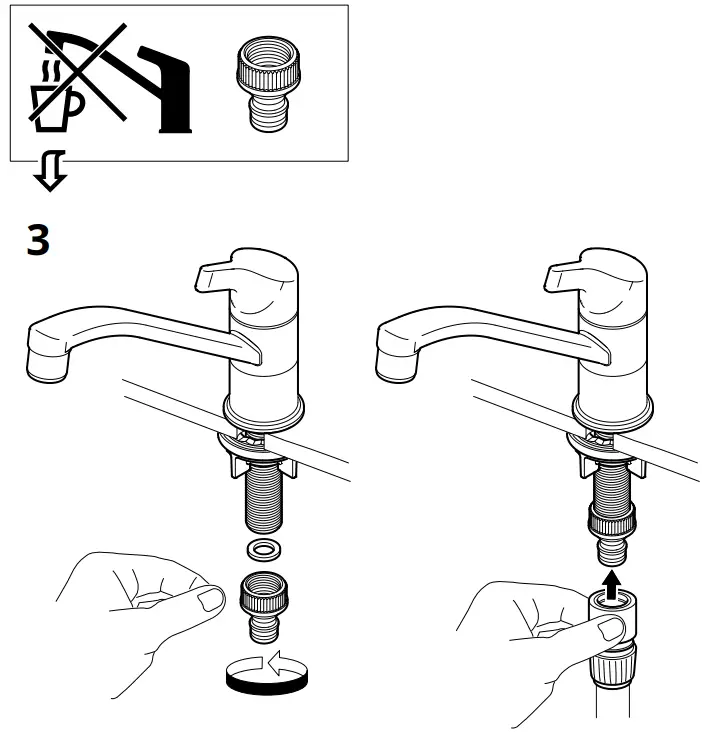

If using a garden hose to connect to the water supply the water is not suitable for drinking.

IKEA KALLSJÖN Robinet - icon 1 IMPORTANT! Do not tighten too hard: this can damage hoses/pipes and washers.

IKEA KALLSJÖN Robinet - Fig 6

Before connecting the product to the water supply system, water should be flushed through the system to remove all debris.

IKEA KALLSJÖN Robinet - icon 1 Outdoor Use
After use switch off the water and disconnect the tap.
Drain and protect from frost

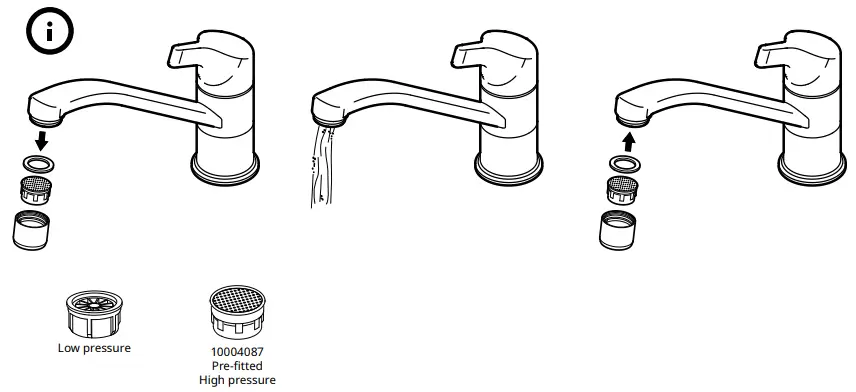

IKEA KALLSJÖN Robinet - Fig 7

Before use: Unscrew the Aerator/Flow Guide and allow the water to run freely for a few minutes. Then screw the Aerator/Flow Guide back in place. Ensure that it is tight to prevent removal by hand.

Check at regular intervals to make sure that the installation is not leaking.

IKEA KALLSJÖN Robinet - Fig 8

© Inter IKEA Systems B.V. 2019
AA-2212711-5
2022-10-25
