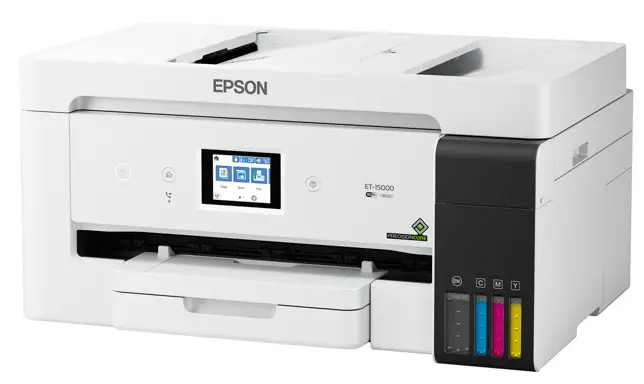

Epson EcoTank ET-15000 All-in-One Supertank Printer

The wireless EcoTank is all-in-one with fast Cartridge-Free Printing up to 13″ x 19″.

• Save up to 90 percent on ink with low-cost replacement bottles vs. ink cartridges1 — about 1 cent per color ISO page vs. about 20 cents
  with cartridges1
• Versatile paper handling — print up to 13″ x 19″ through rear feed; copy and scan up to 8.5″ x 14″ (via the scan bed) or 8.5″ x 14″ (via the ADF)
• Print for up to 2 years with each included or replacement ink bottle set2 — each set includes enough ink to print up to 7,500 pages black/6,000 color3; you could save up to $620 with each one1
• Cartridge-Free Printing — one set of replacement ink bottles equivalent to about 80 individual cartridges4
• Less waste — zero cartridge waste with high-yield ink bottles
• 250-sheet paper capacity — one front tray plus a rear feed for specialty paper
• High productivity — auto 2-sided printing; 2.7″ color touchscreen; borderless printing to 11″x 17″; hands-free voice-activated printing5
• The ultimate wireless solution, plus Ethernet — easy iPad®, iPhone®, Android™ tablet and smartphone printing6; includes Wi-Fi Direct®7 for network-free printing
• Exclusive EcoFit™ ink bottle design — uniquely keyed for easy filling of each color
• Product protection you can count on — 2-year limited warranty with registration8, plus key security features; WPA2 for both wireless and Wi-Fi Direct7, user-initiated data erase and network protocol disablement

EcoTank® ET-15000 All-in-One Supertank Printer

Print

• Printing Technology 4-color MIS-4 4-in-1
• Printer Language(s) ESC/P-R, ESC/P Raster (Factory use)
• Maximum Print Resolution 4800 x 1200 dpi
• Print Speed† Black 17 ISO ppm / Color 9 ISO ppm
• 2-Sided Print Speed† Black 7 ISO ppm / Color 5 ISO ppm
• Min. Ink Droplet Size 3 droplet sizes, as small as 3.3 picoliters

Mobile and Voice-activated Printing5

• Epson Connect™ Solutions6 Epson Connect Email Print,
  Epson iPrint™ Mobile App
• Other Android printing, iOS® printing, Google Cloud Print™,
  Apple® AirPrint® (1.8), Mopria®, Print & Scan App

Copy

• Copy Speed†† Black 11.5 ISO ipm / Color 5.5 ISO ipm
• Copy Quality 256 gradations/color
• Copy Quantity up to 99 pages from standalone
• Maximum Copy Size 8.5″ x 14″ (Legal)
• Copy Features B/W or Color, Density Adjust (lighter/darker),
• Reduce / Enlarge 25% – 400%, Multipage (up to 4 on a page, Quality (standard/high), Remove Shadow, Remove Hole Punches, ID Card Copy, 1-sided to 1-sided, 1-sided to-2 sided

Scan

• Scanner Type Color flatbed/ADF
• Max. Hardware Resolution 1200 dpi
• Hardware Resolution 1200 x 2400 dpi
• Max. Resolution 9600 dpi interpolated
• Auto Document Feeder 35 sheets up to 8.5″ x 14″ Legal
• Scanner Bit Depth 48-bit color input / 24-bit color output
• Scan Bed Size 8.5″ x 14″ Legal
• Max. Scan Size (ADF) 8.5″ x 14″ Legal
• Scan Features Scan to Cloud9, Scan to Computer Event
• Manager, Scan to Web Services for Devices (WSD), Scan to WIA
  (Win), Scan to ICA (Mac®), TWAIN Output Format: PDF, JPEG, PNG,
  TIFF, Multi-TIFF, BMP (Windows®), PICT (Mac)

Fax

• Black-and-white and color capable
• Modem ITU-T T.30 Error Correction Mode
• Memory Up to 100 pages
• Speed Dials 100 numbers max.
• PC-Fax Software Send/Receive, Fax to Email, Fax to Folder

Connectivity

• Standard Connectivity
• Hi-Speed USB
• Wi-Fi® 47 (802.11/b/g/n)
• Ethernet (10/100 Mbps)
• Wi-Fi Direct7
• Operating Systems
• Windows 10 (32-bit, 64-bit), Windows 8, 8.1 (32-bit, 64-bit),
• Windows 7 (32-bit, 64-bit), Windows Vista® (32-bit, 64-bit),
• Windows Server® 2003 SP2 or later, 2008, 2008 R2, 2012, 2012 R2, 201610
  Mac® OS X 10.6.8 – 10.15.x11

Paper Handling

• Max. Paper Size 12.95″ x 47.24″
• Paper Sizes A6, Half letter, Letter, A4, Executive, Legal,
• User-defined 2.13″ x 3.39″ to 12.95″ x 47.24″
• Paper Types Photo Paper: Ultra Premium Photo Paper Glossy,
• Ultra Premium Photo Paper Luster, Premium Photo Paper Glossy,
• Premium Photo Paper Semigloss, Photo Paper Glossy, Value
• Glossy Photo Paper, Velvet Fine Art Paper; Presentation Paper:
• Ultra Premium Presentation Paper Matte, Premium Presentation
• Paper Matte, Presentation Paper Matte, Brochure and Flyer Paper
• Matte; Bright White Pro Paper, Bright White Premium Paper,
• Multipurpose Plus Paper
• Envelope Types No. 10
• Input Paper Capacity 270 sheets plain paper; Cassette 1: 250
• sheets (A4, Letter, Legal); Rear Feed: 20 sheets (Card, L to A3+)
• Borderless Printing up to 11″x17″

General

• Maximum Duty Cycle12 33,000 pages per month / up to 1,600 recommended
• Display 2.7″ Touch LCD
• Temperature Operating: 50 ° to 95 °F (10 ° to 35 °C);
• Storage: -4 ° to 104 °F (-20 ° to 40 °C)
• Relative Humidity Operating: 20% – 80%;
• Storage: 5% – 85% (no condensation)
• Sound Level Sound Power / PC Printing (Plain Paper default)
  6.3 / 6.8 [B(A)]; Sound Pressure / PC Printing (Plain Paper default) 50 / 55 [dB(A)]
• Power Requirements Rated Voltage: AC 100-240 V Universal
  (Automatic), Rated Frequency: 50 – 60 Hz,
• Rated Current: 0.4 – 0.2 A
• Power Consumption Approx. 12 W ISO 24712 (Standalone copy printing), Approx. 5.4 W (Standby), Approx. 1.0 W (Sleep), Approx. 0.2 W (Power Off)
• Safety Approvals UL-60950-1, CSA CAN/CSA-C22.2 No.60950-1 FCC Part15 Subpart B Class B
• Weight and Dimensions (W x D x H)
• Printing: 19.6″ x 29.6″ x 14.3″; Storage: 19.6″ x 14.1″ x 9.6″; Weight: 21.4 lb
• Packaging Dimensions (W x D x H) 21.2″ x 17.8″ x 13.3″, Weight 26.46 lb

What’s in the Box

• EcoTank ET-15000 all-in-one, power cord, 1 bottle of Black ink (127 mL) and 1 bottle each of 502 Cyan, Magenta,
• Yellow (70 mL), CD-ROM for product setup
• Software Included13 Epson® printer driver, Epson Scan 2, PC-Fax, ScanSmart
• Warranty 2 years limited warranty in the U.S. and Canada8, second year requires product registration
• Country of Origin Philippines

Ink

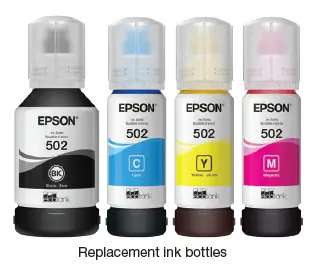

• Ink Bottles 4 individual ink bottles (Cyan, Magenta, Yellow and Black)
• Replacement Ink Bottles3 502 Black ink bottle (127 mL) yield: 7,500 pages; 502 color (Cyan, Magenta, Yellow) ink bottles (70 mL) yield: 6,000 pages
• Epson strongly recommends the use of genuine ink to ensure optimal print quality and performance.

Eco Features

• ENERGY STAR® qualified
• RoHS compliant
• Recyclable product14
• Epson America, Inc. is a SmartWay® Transport Partner15

Ordering Information

• ET-15000 UPC 0 10343 95090 0  C11CH96201

All images simulated.
† Black and color print speeds are measured in accordance with ISO/IEC 24734. Actual print times will vary based on factors including system configuration, software, and page complexity. For more information, visit www.epson.com/printspeed | †† Black and color copy speeds are determined in accordance with ISO/IEC 29183. Actual copy times will vary based on factors including system configuration and page complexity. For more information, visit www.epson.com/copyspeed |

Actual savings and costs will vary considerably based on print tasks, print volumes and usage conditions. Savings and cost per ISO page are based on the cost of replacement ink bottles and the cost of enough standard cartridges to achieve the total page yields of the bottles using the MSRP (USD) and yields for Epson standard-capacity ink cartridges for similarly featured Epson consumer inkjet printers as of February 2019. Based on average monthly document print volumes of about 200 pages.

Part of the ink from the included bottles is used for the initial setup; yields are lower than those of replacement ink bottles. Replacement and included ink bottle yields based on the ISO/IEC 24712 pattern with Epson’s methodology. Actual ink yields will vary considerably for reasons including images printed, print settings, temperature and humidity. Yields may be lower when printing infrequently or predominantly with one ink color. All ink colors are used for printing and printer maintenance, and all colors must be available for printing. For more information, visit www.epson.com/inkinfo | 4 Individual cartridges estimate based on print yields of a replacement set of black and color ink bottles as compared to Epson standard-capacity ink cartridges for similarly featured printers as of June 2019.

Epson Connect account and voice-activated account registration are required. See
www.epson.com/voice for device compatibility. | 6 Most features require an Internet connection to the printer, as well as an Internet- and/or email-enabled device. For a list of Epson Connect-enabled printers and compatible devices and apps, visit www.epson.com/connect | 7 Wi-Fi CERTIFIED™; level of performance subject to the range of the router being used. Wi-Fi Direct may require printer software. | 8 12 months of standard limited warranty or 50,000 plain paper sheets (whichever happens first).

For an additional 12-month extended service plan (total of 24 months or 50,000 plain paper sheets, whichever happens first), register your product and use Epson genuine ink bottles. See Limited Warranty for details. Requires an Internet connection, a free Epson Connect account and a destination email address or cloud storage account. For a list of supported cloud services, visit www.epson.com/connect Only printing and scanning are supported under Windows Server OS. | 11 Some applications and/or functions may not be supported under Mac OS X. Monthly duty cycle up to 33,000 pages max. is the highest duty a user could expect in a month, based on the near-constant operation of a device of this kind. It is not recommended that the device be run at this duty. For best device performance, run the device at the recommended duty of 1,600 pages per month.

Internet access is required to install OS X drivers and software. | 14 For convenient and reasonable recycling options,
visit www.epson.com/recycle | 15 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency. See the latest innovations from Epson Business Solutions at www.epson.com/forbusiness
