Evolution Powersports 203fc0042 2020-2021 X3 V-flow Intake Kit Instruction Manual

2020-2021 X3 V-Flow Intake Kit
Instruction Manual
SKU(s): 203FC0042

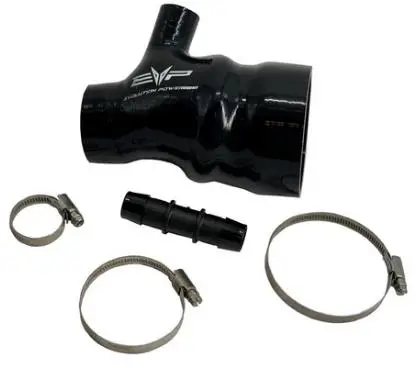

INCLUDED PARTS

1. EVP V-Flow
2. 3/4-3/4” Nylon Hose Adapter
3. 80-100 Worm Drive Clamp
4. 60-40 Worm Drive Clamp
5. 20-32 Worm Drive Clamp


REQUIRED TOOLS
13mm Socket
7mm Socket
Flat Head Screwdriver

INSTALLATION STEPS:

Step 1 – Remove air box

• Use a 13mm Socket.
• Remove the hose from the boost control solenoid on the airbox.

Step 2 -Remove clamp from turbo

• Using a flat head screwdriver remove the clamp from the turbo.

Step 3 – Remove the clamp from the crank vent tube

• Remove from stock V-Flow.

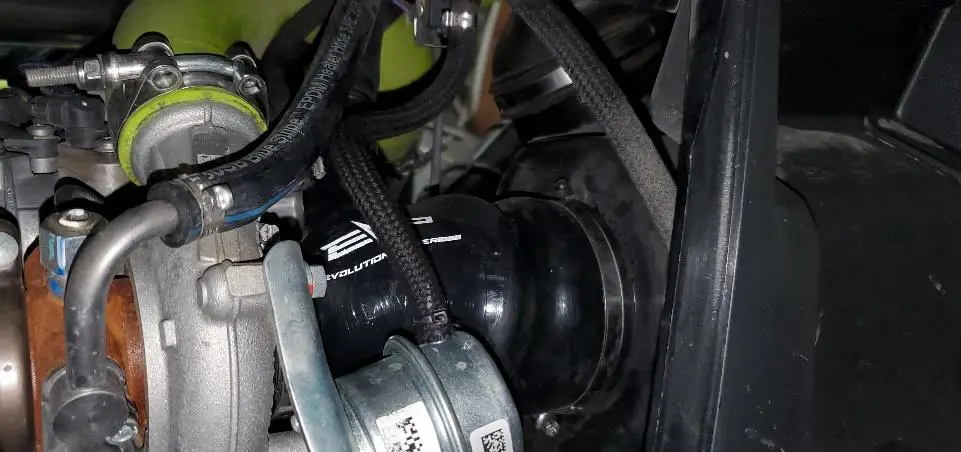

Step 4 – Insert EVP V-Flow Intake
-Small ID fits turbo.
– Larger ID fits the air box.
– Attach crankcase vent tube to 3/4-3/4” hose adapter.

Thank you for choosing Evolution Powersports products. If you require further assistance, please call our Tech Support @ (715) 247-3862

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA-certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing, and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant
that the product is purchased only in connection with EPA -certified, emission-regulations-exempt, and noise regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
