Modbus Communication
Danfoss AK-CC55 controllers are using Modbus RTU. Communication speed is default “auto detection” Default communication settings are “8 bit, Even parity, 1 stop bit”.

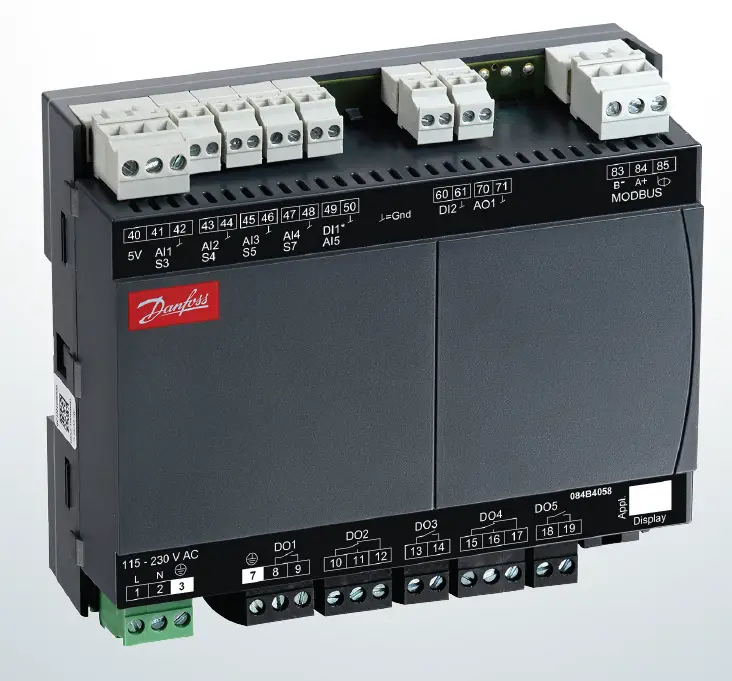

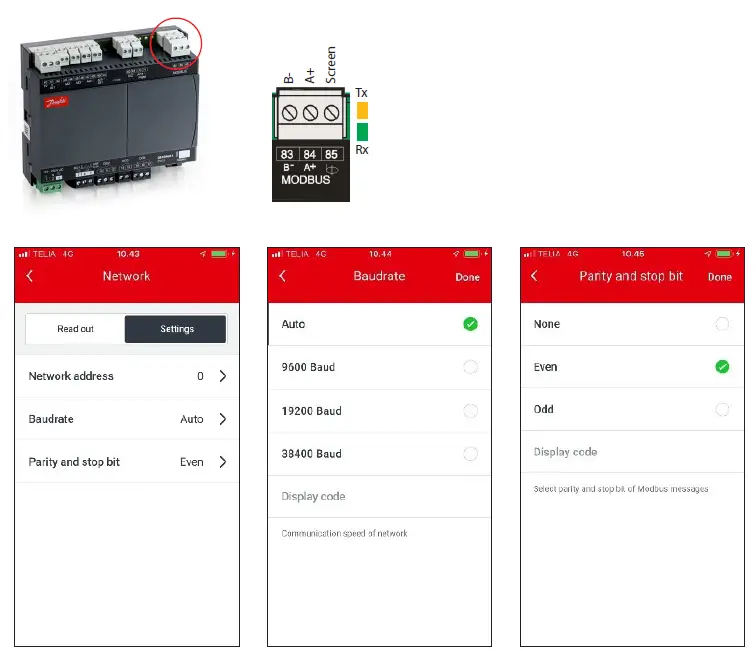

Network address can be set via AK-UI55 setting display and Network address as well as Network communication settings can be changed via the AK-UI55 Bluetooth display and the AK-CC55 Connect service app. For further information see AK-CC55 Documentation. Danfoss AK-CC55 controllers are Modbus compliant and MODBUS Application Protocol Specification can be found via below link http://modbus.org/specs.php AK-CC55 Documentation: AK-CC55 User Guides and Installation Guides can be found via www.danfoss.com: https://www.danfoss.com/en/products/electronic-controls/dcs/evaporator-and-room-control/#tab-overview
Parameter list for Compact (084B4058)
| Parameter | PNU | Value | Min. | Max. | Type | RW | Scale | A |
| Readouts | ||||||||
| — Sum alarm | 2541 | 0 | 0 | 1 | Integer | R | 0 | |
| u00 Ctrl. state | 2007 | 0 | 0 | 50 | Integer | R | 0 | |
| u17 Ther. air | 2532 | 0.0 | -200.0 | 200.0 | Float | R | 1 | |
| u12 S3 air temp. | 2530 | 0.0 | -200.0 | 200.0 | Float | R | 1 | |
| u16 S4 air temp. | 2531 | 0.0 | -200.0 | 200.0 | Float | R | 1 | |
| u09 S5 temp. | 1011 | 0.0 | -200.0 | 200.0 | Float | R | 1 | |
| u93 S8 temp | 2616 | 0.0 | -200.0 | 200.0 | Float | R | 1 | |
| u98 S7 temp | 2621 | 0.0 | -200.0 | 200.0 | Float | R | 1 | |
| U72 Food temp. | 2702 | 0.0 | -200.0 | 200.0 | Float | R | 1 | |
| U73 Def.StopTemp | 2703 | 0.0 | -200.0 | 200.0 | Float | R | 1 | |
| u57 Alarm air | 2578 | 0.0 | -200.0 | 200.0 | Float | R | 1 | |
| u86 Ther. band | 2607 | 1 | 1 | 2 | Integer | R | 0 | |
| u13 Night Cond. | 2533 | 0 | 0 | 1 | Integer | R | 0 | |
| u90 Cutin temp. | 2612 | 4.0 | -200.0 | 200.0 | Float | R | 1 | |
| u91 Cutout temp. | 2613 | 2.0 | -200.0 | 200.0 | Float | R | 1 | |
| u52 Comp. Cap. | 2685 | 0 | 0 | 100 | Integer | R | 0 | A |
| U28 Pump speed | 2665 | 0 | 0 | 100 | Integer | R | 0 | A |
| Settings | ||||||||
| r12 Main switch | 117 | 0 | -1 | 1 | Integer | RW | 0 | |
| r00 Cutout | 100 | 2.0 | r03 | r02 | Float | RW | 1 | |
| r01 Differential | 101 | 2.0 | 0.1 | 20.0 | Float | RW | 1 | |
| — Def. Start | 1013 | 0 | 0 | 1 | Integer | RW | 0 | |
| d02 Def.StopTemp | 1001 | 6.0 | 0.0 | 50.0 | Float | RW | 1 | |
| d04 Max Def.time | 1003 | 45 | d24 | 360 | Integer | RW | 0 | |
| d28 DefStopTemp2 | 1046 | 6.0 | 0.0 | 50.0 | Float | RW | 1 | |
| d29 MaxDefTime2 | 1047 | 45 | d24 | 360 | Integer | RW | 0 | |
| A03 Alarm delay | 10002 | 30 | 0 | 240 | Integer | RW | 0 | |
| A13 HighLim Air | 10019 | 8.0 | -60.0 | 50.0 | Float | RW | 1 | |
| A14 LowLim Air | 10020 | -30.0 | -60.0 | 50.0 | Float | RW | 1 | |
| Parameter | PNU | Value | Min. | Max. | Type | RW | Scale | A |
| Alarms | ||||||||
| — Contr. error | 20000 | 0 | 0 | 1 | Boolean | R | 1 | |
| — RTC error | 20001 | 0 | 0 | 1 | Boolean | R | 1 | |
| — S3 error | 20002 | 0 | 0 | 1 | Boolean | R | 1 | |
| — S4 error | 20003 | 0 | 0 | 1 | Boolean | R | 1 | |
| — S5 error | 20004 | 0 | 0 | 1 | Boolean | R | 1 | |
| — S7 error | 20005 | 0 | 0 | 1 | Boolean | R | 1 | |
| — S8 error | 20006 | 0 | 0 | 1 | Boolean | R | 1 | |
| — High t.alarm | 20007 | 0 | 0 | 1 | Boolean | R | 1 | |
| — Low t. alarm | 20008 | 0 | 0 | 1 | Boolean | R | 1 | |
| — Door alarm | 20009 | 0 | 0 | 1 | Boolean | R | 1 | |
| — Max HoldTime | 20010 | 0 | 0 | 1 | Boolean | R | 1 | |
| — DI1 alarm | 20011 | 0 | 0 | 1 | Boolean | R | 1 | |
| — DI2 alarm | 20012 | 0 | 0 | 1 | Boolean | R | 1 | |
| — Comp. fault | 20013 | 0 | 0 | 1 | Boolean | R | 1 | |
| — Standby mode | 20014 | 0 | 0 | 1 | Boolean | R | 1 | |
| — Case clean | 20015 | 0 | 0 | 1 | Boolean | R | 1 | |
| — SpeedDriveAl | 20016 | 0 | 0 | 1 | Boolean | R | 1 | |
| — Refg.Leak | 20017 | 0 | 0 | 1 | Boolean | R | 1 | |
| — MaxBrineTemp | 20018 | 0 | 0 | 1 | Boolean | R | 1 | |
| — Wrong IO cfg | 20019 | 0 | 0 | 1 | Boolean | R | 1 | |
| — Max Def.Time | 20020 | 0 | 0 | 1 | Boolean | R | 1 | |
