ThinkSystem NE1064TO RackSwitch
User Guide

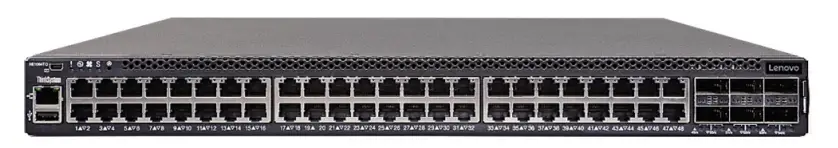

ThinkSystem NE1064TO RackSwitch

The Lenovo ThinkSystem NE1064TO RackSwitch is designed for big data, cloud, and enterprise workloads in the data center, and it provides 1/10 Gb Ethernet (RJ-45) connectivity with 40 Gb/100 Gb Ethernet upstream links. The switch delivers line-rate, low-latency, and high-bandwidth switching while providing high availability for business-sensitive traffic with the hot-swap redundant power supplies and fans. The ThinkSystem NE1064TO RackSwitch has 48x 1/10 Gb Ethernet (RJ-45) fixed ports and 6x QSFP28/QSFP+ ports that support 40 GbE QSFP+ and 100 GbE QSFP28 optical transceivers, active optical cables (AOCs), and direct attach copper (DAC) cables. Four of the QSFP28/QSFP+ ports can also be split out into two 50 GbE (for 100 GbE QSFP28), or four 10 GbE (for 40 GbE QSFP+) or 25 GbE (for 100 GbE QSFP28) connections by using breakout cables. The ThinkSystem NE1064TO RackSwitch is shown in the following figure.

Did you know?
With exceptional port density and flexibility with break-out cables, the ThinkSystem NE1064TO RackSwitch can support up to 64x 1/10 GbE connections or a mix of 1/10 GbE server and storage connections with up to six 40 GbE or 100 GbE upstream network connections in a 1U rack form factor. The ThinkSystem NE1064TO RackSwitch includes the Open Network Install Environment (ONIE) which is an open, standards-based boot code that provides a deployment environment for loading certified ONIE networking operating systems onto networking devices.

Key Features

The ThinkSystem NE1064TO RackSwitch provides a simple and open network infrastructure designed to scale for your business needs. Its intelligent, cloud-scale performance delivers a software-defined Ethernet solution that is simple to manage and easy to deploy using common management tools. The switch is based on industry standards for better data center interoperability, and it enables support of network virtualization, automation, and orchestration applications for tight integration into the data center ecosystem. The ThinkSystem NE1064TO RackSwitch is considered particularly suited for the following environments:

• Open networking architectures that are based on certified ONIE networking operating systems, such as Cumulus Linux.
• 10 GbE UTP Category 6a or 7 server and storage connectivity with 40 GbE or 100 GbE upstream aggregation
• Data center interconnect fabric for accelerated, low-latency communications across clustered applications
• Cloud and virtualization solutions
• Web-scale and hyper converged solutions

The ThinkSystem NE1064TO RackSwitch offers the following features and benefits:

• High performance The ThinkSystem NE1064TO RackSwitch offers 10/25/40/50/100 Gb Ethernet switching with low latency and non-blocking line-rate performance.
• Lower power and better cooling The rear-to-front cooling design of the ThinkSystem NE1064TO RackSwitch reduces data center air conditioning costs by having airflow match the servers in the rack cabinet. In addition, variable-speed fans help reduce power consumption.
• Fault tolerance The ThinkSystem NE1064TO RackSwitch offers redundant hot-swap hardware components to provide availability for network communications across business-critical applications.
• Open Network Install Environment (ONIE) The ThinkSystem NE1064TO RackSwitch provides an open install environment for networking devices without operating systems. ONIE enables a network switch ecosystem for end users to choose among different Network Operating Systems by discovering NOS installer images and loading them onto the switch.
• Seamless interoperability Based on industry standards, the ThinkSystem NE1064TO RackSwitch interoperates seamlessly with other vendors’ switches.

Components and connectors

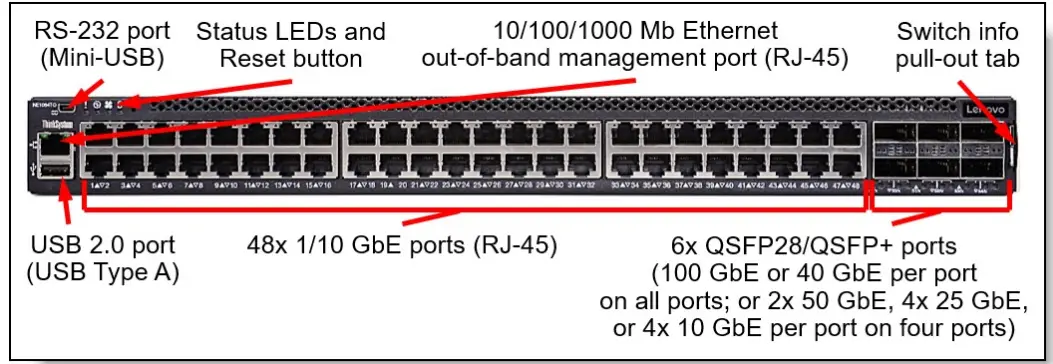

The following figure shows the front (port-side) panel of the ThinkSystem NE1064TO RackSwitch:

Figure 2. Front panel of the ThinkSystem NE1064TO RackSwitch.
The front panel of the ThinkSystem NE1064TO RackSwitch includes the following components:

• 48x RJ-45 ports for 1 Gb or 10 Gb Ethernet connections over twisted pair.
• 6x QSFP28/QSFP+ ports to attach QSFP28/QSFP+ transceivers, DAC cables, and AOCs for 100 Gb or 40 Gb Ethernet connections or breakout cables for 2x 50 Gb or 4x 25 Gb Ethernet connections out of a 100 GbE port, or 4x 10 GbE connections out of a 40 GbE port.
• One RJ-45 10/100/1000 Mb Ethernet port for out-of-band management.
• One USB Type-A port for mass storage devices.
• One Mini-USB RS-232 console port provides another means to configure the switch.
• Status LEDs and a Reset button.
• Switch information pull-out tab.

The following figure shows the rear (non-port-side) panel of the ThinkSystem NE1064TO RackSwitch.

Figure 3. Rear panel of the ThinkSystem NE1064TO RackSwitch. The rear panel of the ThinkSystem NE1064TO RackSwitch includes the following components:

• Two redundant hot-swap 800 W AC power supplies (each with the IEC 320-C14 power connector).
• Five N+1 redundant hot-swap system fans.

System specifications

The following table lists the ThinkSystem NE1064TO RackSwitch hardware specifications. Table 1. ThinkSystem NE1064TO RackSwitch hardware specifications.

Models
Product availability: The ThinkSystem NE1064TO RackSwitch is withdrawn and no longer available for ordering.
The following table lists the ThinkSystem NE1064TO RackSwitch models.
Table 2. ThinkSystem NE1064TO RackSwitch models

The ThinkSystem NE1064TO RackSwitch models include the following items:

• One ThinkSystem NE1064TO RackSwitch with two power supplies and five system fans
• Generic Rack Mount Kit (2-post)
• RJ-45 (plug) to DB-9 (plug) serial console cable (3 m)
• Mini-USB to RJ-45 (jack) serial adapter cable
• Electronic Publications Flyer

Configuration notes:

• Power cables are not included and should be ordered for the switch (see Power supplies and cables for details).
• Transceivers and cables are not included and should be ordered for the switch (see Transceivers and cables for details).

Transceivers and cables

With the flexibility of the ThinkSystem NE1064TO RackSwitch, customers can choose the following connectivity technologies:

• For 1 GbE links, customers can use RJ-45 fixed ports with UTP cables for distances up to 100 meters. For 10 GbE links, customers can use RJ-45 fixed ports (10GBASE-T) with UTP Category 6a or 7 cables for distances up to 100 meters. To increase the number of available 10 GbE ports, customers can split out four 10 GbE ports for each QSFP28 port by using QSFP+ to 4x SFP+ DAC or active optical breakout cables for distances up to 5 meters. The 40GBASE-iSR4 QSFP+ transceivers can be used for distances up to 100 meters on OM3 or up to 150 meters on OM4 MMF MPO-to-LC breakout cables. For longer distances, the 40GBASE-eSR4 transceivers can be used for up to 300 meters on OM3 or up to 400 meters on OM4 MMF MPO-to-LC breakout cables. Note: A maximum of four QSFP28 ports can be split out at the same time. For 25 GbE links, customers can split out four 25 GbE ports for each QSFP28 port by using QSFP28 to 4x SFP28 DAC breakout cables for distances up to 5 meters or active optical breakout cables for distances up to 20 meters.
• For longer distances, the 100GBASE-SR4 QSFP28 transceivers can be used for up to 70 meters on OM3 or up to 100 meters on OM4 MMF MPO-to-LC breakout cables. Note: A maximum of four QSFP28 ports can be split out at the same time.
• For 40 GbE links, customers can use QSFP28 ports with QSFP+ to QSFP+ DAC cables for distances up to 7 meters or QSFP+ to QSFP+ active optical cables for distances up to 20 meters. These DAC cables and AOCs have QSFP+ connectors on each end, and they do not need separate transceivers. For longer distances, customers can use the 40GBASE QSFP+ bi-directional transceivers or 40GBASE-SR4/iSR4 QSFP+ transceivers for distances up to 100 meters on OM3 or up to 150 meters on OM4 MMF cables. The 40GBASE-eSR4 QSFP+ transceiver can be used for distances up to 300 meters on OM3 or up to 400 meters on OM4 MMF cables. The 40GBASE-LR4 QSFP+ transceiver can be used for distances up to 10 kilometers on SMF cables.
• For 50 GbE links, customers can split out two 50 GbE ports for each QSFP28 port by using the QSFP28-2xQSFP28 DAC breakout cables (not supplied by Lenovo). Note: A maximum of four QSFP28 ports can be split out at the same time.
• For 100 GbE links, customers can use QSFP28 ports with QSFP28 DAC cables for distances up to 5 meters or QSFP28 active optical cables for distances up to 20 meters. These DAC cables and AOCs have QSFP28 connectors on each end, and they do not need separate transceivers. For longer distances, the 100GBASE-SR4 QSFP28 transceivers support distances up to 70 meters on OM3 or up to 100 meters on OM4 MMF cables. The 100GBASE-LR4 QSFP28 transceiver can be used for distances up to 10 kilometers on SMF LC cables.

Configuration notes:

• If Port 49 is configured for break-out, Port 52 is disabled and cannot be used.
• If Port 54 is configured for break-out, Port 51 is disabled and cannot be used.
• The following tables list the supported cables and transceivers:
• Optical transceivers and cables
• Active optical cables
• DAC cables

Table 3. Optical transceivers and cables

Table 4. Active optical cables

Table 5. DAC cables

The network cables that can be used with the switch are listed in the following table.
Table 6. ThinkSystem NE1064TO RackSwitch network cabling requirements

Software

The ThinkSystem NE1064TO RackSwitch includes the Open Network Install Environment (ONIE) which is a small Linux-based operating system that provides an open install environment for networking devices without operating systems. ONIE enables a network switch ecosystem for end users to choose among different Network Operating systems by discovering NOS installer images and loading them onto the switch. The following operating systems are certified for the ThinkSystem NE1064TO RackSwitch: Cumulus Linux The following table lists ordering information for the Cumulus software license and support options. Table 7. Cumulus software license and support options (per switch)

Software support: Lenovo does not provide support for third-party software that is certified with the switch. Customers should contact a third-party software vendor directly o submit a software support request, and the software vendor will own the software-related problem resolution until closure.
Ethernet standards
The ThinkSystem NE1064TO RackSwitch supports the following Ethernet standards:

• IEEE 802.1Q VLAN tagging
• IEEE 802.3 10BASE-T Ethernet (Ethernet management port)
• IEEE 802.3u 100BASE-TX Fast Ethernet (Ethernet management port)
• IEEE 802.3ab 1000BASE-T copper twisted pair Gigabit Ethernet
• IEEE 802.3an 10GBASE-T copper twisted pair 10 Gb Ethernet
• IEEE 802.3ba 40GBASE-SR4 short range fiber optics 40 Gb Ethernet
• IEEE 802.3ba 40GBASE-CR4 copper 40 Gb Ethernet
• IEEE 802.3bm 100GBASE-SR4 short range fiber optics 100 Gb Ethernet
• IEEE 802.3ba 100GBASE-LR4 long-range fiber optics 100 Gb Ethernet
• IEEE 802.3bj 100GBASE-CR4 copper 100 Gb Ethernet 25G/50G Ethernet Consortium

Cooling
The ThinkSystem NE1064TO RackSwitch ships with five variable-speed, hot-swap system fans that provide N+1 cooling redundancy.
Power supplies and cables
The ThinkSystem NE1064TO RackSwitch supports two load-sharing, redundant hot-swap 800 W AC power supplies.
The ThinkSystem NE1064TO RackSwitch ships without any power cables. The part numbers and feature codes to order the power cables (two power cables are required per  witch) are listed in the following table. Table 8. AC power cable options

Rack installation
The ThinkSystem NE1064TO RackSwitch ships with the 2-post rack mount kit. For 4-post rack installations,  the ThinkSystem NE1064TO RackSwitch supports the optional adjustable 19-inch 4-post rail kit and the air inlet duct (optional for the 4-post rail kit).
The following table lists rack installation options for the ThinkSystem NE1064TO RackSwitch.
Table 9. Rack installation options

Physical specifications
The ThinkSystem NE1064TO RackSwitch has the following physical specifications:

• Height: 44 mm (1.7 in.)
• Width: 440 mm (17.3 in.)
• Depth: 483 mm (19.0 in.)
• Maximum weight: 10.0 kg (22.0 lb)

Operating environment
The ThinkSystem NE1064TO RackSwitch is supported in the following operating environment:

• Temperature: 0 – 45 ºC (32 – 113 ºF).
• Relative humidity: 10 – 90% (non-condensing)
• Altitude: Up to 2000 m (6,561 feet)
• Electrical input: 50 / 60 Hz, 100 – 240 V AC auto-switching
• Power consumption (maximum): 562 W
• Heat dissipation (maximum): 1918 BTU/hour
• Airflow: Non-port side to port side

Warranty and support

The ThinkSystem NE1064TO RackSwitch comes with a 3-year Customer Replaceable Unit (CRU) hardware limited warranty with 9×5 Next Business Day (NBD) parts delivered. The hardware options that are installed in the switch assume the switch’s base warranty and any Lenovo warranty service upgrade for the switch. Software support: Lenovo does not provide support for third-party software that is certified with the switch. Customers should contact a third-party software vendor directly to submit a software support request, and the software vendor will own the software-related problem resolution until closure. Lenovo’s additional support services provide a sophisticated, unified support structure for a customer’s data center, with an experience consistently ranked number one in customer satisfaction worldwide. The following Lenovo support services are available:

• Premier Support provides a Lenovo-owned customer experience and delivers direct access to technicians skilled in hardware, software, and advanced troubleshooting, in addition to the following capabilities: Direct technician-to-technician access through a dedicated phone line. 24x7x365 remote support. Single point of contact service. End to end case management. 3rd Party collaborative software support. Online case tools and live chat support. On-demand remote system analysis. Warranty Upgrades (Preconfigured Support) are available to meet the on-site response time targets that match the criticality of the customer’s systems: 3, 4, or 5 years of service coverage. 1-year or 2-year post-warranty extensions. Foundation Service: 9×5 service coverage with next business day onsite response.
• Essential Service: 24×7 service coverage with 4-hour onsite response or 24-hour committed repair (available only in select regions). Advanced Service: 24×7 service coverage with 2-hour onsite response or 6-hour committed repair (available only in select regions). Managed Services Lenovo Managed Services provide continuous 24×7 remote monitoring (plus 24×7 call center availability) and proactive management of a customer’s data center using state-of-the-art tools, systems, and practices by a team of highly skilled and experienced Lenovo services professionals. Quarterly reviews check error logs, and verify firmware and operating system device driver levels, and software as needed. Lenovo will also maintain records of the latest patches, critical updates, and firmware levels, to ensure customers’ systems are providing business value through optimized performance.
• Technical Account Management (TAM) A Lenovo Technical Account Manager helps customers optimize operations of their data centers based on a deep understanding of customers’ business. Customers gain direct access to a Lenovo TAM, who serves as their single point of contact to expedite service requests, provide status updates, and furnish reports to track incidents over time. Also, a TAM helps proactively make service recommendations and manage service relationships with Lenovo to make certain that customer’s needs are met.
• Health Check Having a trusted partner who can perform regular and detailed health checks is central to maintaining efficiency and ensuring that customer systems and businesses are always running at their best.
• Health Check supports Lenovo-branded server, storage, and networking devices, as well as select Lenovosupported products from other vendors that are sold by Lenovo or a Lenovo-Authorized Reseller.

Some regions might have different warranty terms and conditions than the standard warranty. This is due to local business practices or laws in the specific region. Local service teams can assist in explaining region-specific terms when needed. Examples of region-specific warranty terms are second or longer business day parts delivery or parts-only base warranty.
If warranty terms and conditions include onsite labor for the repair or replacement of parts, Lenovo will dispatch a service technician to the customer site to perform the replacement. Onsite labor under base warranty is limited to labor for the replacement of parts that have been determined to be field-replaceable units (FRUs). Parts that are determined to be customer-replaceable units (CRUs) do not include onsite labor under base warranty.
If warranty terms include parts-only base warranty, Lenovo is responsible for delivering only replacement parts that are under base warranty (including FRUs) that will be sent to a requested location for self-service. Parts-only service does not include a service technician being dispatched onsite. Parts must be changed at the customer’s own cost and labor and defective parts must be returned following the instructions supplied with the spare parts. Lenovo support services are region-specific. Not all support services are available in every region. For information about Lenovo support services that are available in a specific region, refer to the following resources:

• Service part numbers in Data Center Solution Configurator (DCSC): http://dcsc.lenovo.com/#/services
• Lenovo Services Availability LocatorL: https://lenovolocator.com/
• For service definitions, region-specific details, and service limitations, refer to the following documents: Lenovo Statement of Limited Warranty for Infrastructure Solutions Group (ISG) Servers and SysteStorage http://pcsupport.lenovo.com/us/en/solutions/ht503310
• Lenovo Data Center Services Agreement: http://support.lenovo.com/us/en/solutions/ht116628

Services
Lenovo Services is a dedicated partner to customer success. Lenovo’s goal for customers is to reduce capital outlays, mitigate IT risks, and accelerate time to productivity. Here is a more in-depth look at what Lenovo can do for their customers:

• Asset Recovery Services
  Asset Recovery Services (ARS) helps customers recover the maximum value from their end-of-life equipment in a cost-effective and secure way. On top of simplifying the transition from old to new equipment, ARS mitigates environmental and data security risks associated with data center equipment disposal. Lenovo ARS is a cash-back solution for equipment based on its remaining market value, yielding maximum value from aging assets and lowering total cost of ownership for customers. For more information, see the ARS page, http://lenovopress.com/lp1266.
• Assessment Services
  An assessment helps solve customer IT challenges through an onsite, multi-day session with a Lenovo technology expert. Lenovo performs a tools-based assessment which provides a comprehensive and thorough review of a company’s environment and technology systems. In addition to the technology-based functional requirements, the consultant also discusses and records the non-functional business requirements, challenges, and constraints. Assessments help organizations, no matter how large or small, get a better return on their IT investment and overcome challenges in the ever-changing technology landscape.
• Design Services Professional
  Services consultants perform infrastructure design and implementation planning to support customers’ strategies. The high-level architectures provided by the assessment service are turned into low-level designs and wiring diagrams, which are reviewed and approved prior to implementation. The implementation plan will demonstrate an outcome-based proposal to provide business capabilities through infrastructure with a risk-mitigated project plan.
• Basic Hardware
  Installation Lenovo experts can seamlessly manage the physical installation of a customer’s server, storage, or networking hardware. Working at a time convenient for the customer (business hours or off shift), the technician will unpack and inspect the systems on the customer site, install options, mount in a rack cabinet, connect to power and network, check and update the firmware to the latest levels, verify operation, and dispose of the packaging, allowing customers to focus on other priorities.
• Deployment Services
  When investing in new IT infrastructures, customers need to ensure that their business will see quick time to value with little to no disruption. Lenovo deployments are designed by development and engineering teams who know Lenovo products and solutions better than anyone else, and Lenovo technicians own the process from delivery to completion. Lenovo will conduct remote preparation and planning, configure and integrate systems, validate systems, verify and update appliance firmware, train on administrative tasks, and provide post-deployment documentation. Customer’s IT teams leverage Lenovo skills to enable IT staff to transform with higher-level roles and tasks.
• Integration, Migration, and Expansion Services
  Integration, Migration, and Expansion Services allow to move existing physical and virtual workloads easily or to determine technical requirements to support increased workloads while maximizing performance. These services include tuning, validation, and documenting ongoing run processes, and they leverage migration assessment planning documents to perform necessary migrations.

Some service options may not be available in every region. For more information about Lenovo service offerings that are available in a specific region, contact a local Lenovo ales representative or business partner.

Regulatory compliance

The ThinkSystem NE1064TO RackSwitch conforms to the following regulations:

• FCC Part 15 Class A
• CAN/CSA-C22.2 60950-1
• CISPR 32 Class A
• IEC60950-1
• EN55032 Class A
• EN60825-1
• EN60950-1
• EN61000-3-2
• EN61000-3-3
• UL60950-1
• Reduction of Hazardous Substances (ROHS)

Related publications and links
For more information about the ThinkSystem NE1064TO RackSwitch, see the following resources:

• Lenovo RackSwitch InfoCenter
  http://systemx.lenovofiles.com/help/topic/com.lenovo.systemx.common.nav.doc/overview_rack_switches.html
• Lenovo ThinkSystem NE1064TO RackSwitch Installation Guide
• Lenovo ThinkSystem NE1064TO ONIE User Guide Lenovo Data Center Solution Configurator (DCSC): http://dcsc.lenovo.com
• LenovoData Center Support: http://datacentersupport.lenovo.com
• Cumulus Linux User Guide: https://docs.cumulusnetworks.com/cumulus-linux/
