Timetrax Elite Bio Biometric Time Clock System User Guide

Timetrax Elite Bio Biometric Time Clock System User Guide

timetrax logoElite bio
Biometric Time Clock System-Ethernet
TTPROXEK

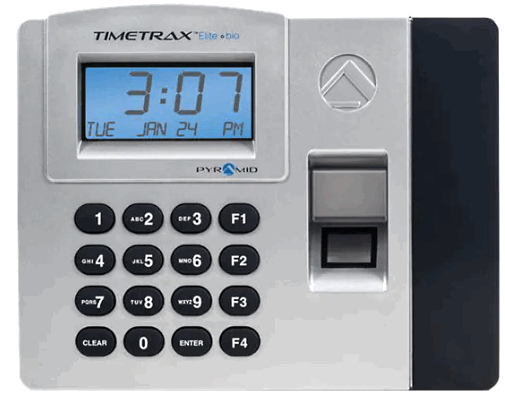

timetrax logo 1TIMETRAX Elite Prox Proximity Time Clock System - figasd 1TIMETRAX Elite Prox Proximity Time Clock System - fig dsTIMETRAX Elite Bio Biometric Time CLock Systemd

Elite Bio Biometric Time CLock System

A brilliant end to buddy punching.
The TTELITEEK Biometric Time Clock System eliminates buddy punching and automates employee time and attendance processing. The time clock scans employee finger and uses biometrics to instantly identify employees and record punches. Keypad enables optional supervisor-approved pin number entry. Manages weekly, bi-weekly, semi-monthly, or monthly pay periods. Includes TimeTrax™ time and attendance software download. Edit employee time cards and run reports including: Time Card, Attendance, Employee Punch, Detail Payroll, Employee Detail, Hourly Summary and Employee Seniority reports.Automatically calculates employee hours, overtime and holiday hours. Creates export files for most major payroll providers, including ADP ® , Fidelity ®  , Heartland ® , and PayChex Preview ® .
Directly syncs with Quickbooks ® . Simple to set up and easy to expand with employee upgrade packages, and/or TTELITEET Add-On Time Clock Terminals.

  • Scans employee finger to positively identify each employee and record punches 1
  • Audible beep and card number screen display confirms successful employee punch
  • Eliminates need for paper time sheets or time cards
  • Includes TimeTrax™ time and attendance software download
  • Automatically downloads employee punches to PC software
  • Accommodates unlimited employees with Employee Upgrades 2
  • Enables employee time card editing
  •  Features payroll reports
  • Manages weekly, bi-weekly, semi-monthly or monthly pay periods
  1.  Time Clock terminal does not store actual fingerprint.
  2. Employee software upgrades & additional terminals sold separately.
    Registers up to 1000 employee finger scans per terminal.
    Holds up to 6000 punches per terminal, per download.
    Increase savings by adding terminals.

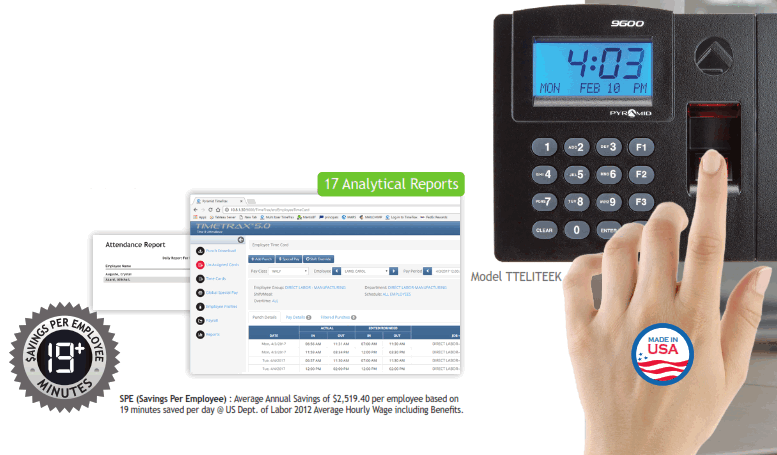

TIMETRAX Elite Bio Biometric Time CLock System

SPE (Savings Per Employee) : Average Annual Savings of $2,519.40 per employee based on 19 minutes saved per day @ US Dept. of Labor 2012 Average Hourly Wage including Benefits.

  • TimeTrax™ software enables flexible payroll management, reporting & exporting to most major payroll providers
  • Flexible payroll period options (weekly, bi-weekly, semimonthly & monthly)
  • Holiday & bonus hours for global or select employee groups
  • Ethernet connectivity enables multiple time clock stations & ability to mix/match terminals (same time zone,same network)
  • USB port on the clock to download punches via a flashdriveif necessary
  • Care free automatic reset for short months, leap year & daylight saving time
  • Internal battery backup safeguards data & settings for up to 7 days without power
  • 1-Year manufacturer’s limited warranty & 90 day free software support. Extended service/support & hardware warranty available

SPECIFICATIONS

Part#TTELITEEK
Size (WXHXD)7” x 5.625” x 2”
Weight1.2lbs
Power100-240VAC, 50/60Hz
ColorBlack
MountingWall mount
Warranty1-year manufacturer’s limited warranty and 90-day free software support. Extended service/support and hardware warranty available.
Punch TypeBiometric (finger scan) Manual Keypad Entry (card#)
Audio/Visual
Punch Verification
Beep, card displayed on screen
ConnectivityEthernet
Base Employees50
Maximum EmployeesUnlimited 1
Standard Reports17
Pay ClassUnlimited
Employee GroupsUnlimited
Pay TypesUnlimited
Pay PeriodsWeekly, Bi-Weekly, Semi-Monthly or Monthly
ExportingMost Major Payroll Providers
OperatingWindows 8 or higher

1 Employee software upgrades & additional terminals sold separately. Registers up to 1000 employee finger scans per terminal.

REPORTS

Detail PayrollEmployee PunchHourly SummaryPayroll Summary
Time CardAttendanceBirth DateEmergency Contact
Employee CardEmployee SeniorityEmployee DetailHire Date
Phone DirectorySupervisor CardTerminationDepartment Hours
Department List
Job Code List*Time Card with Job Codes*Job Code Hours by Department*Job Code by Employee* …/

*Job Code Reports are available with Job Code upgrade purchase.

ACCESSORIES

TTELITEETTT Elite Bio Terminal
5300Bell Ringer (24v) Single Zone
413616” Bell 24V DC
413928” Bell 24V DC
41362Horn 24V DC Flush or Panel Mount
5200N13” Analog Clock
5217N17” Analog Clock
DIG-4BLED Digital Clock 4 Digit
DIG-6BLED Digital Clock 6 Digit

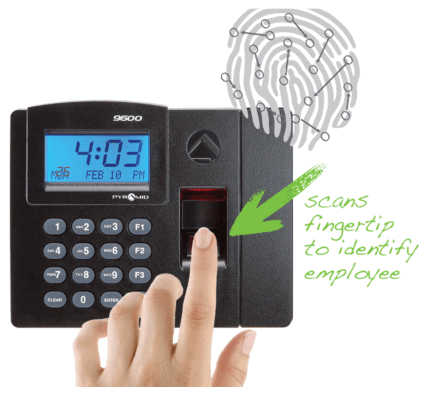

TIMETRAX Elite Bio Biometric Time CLock System - fig 1

  • TTELITEET Terminal
  • TimeTrax™ Software Download
  • Cables (RJ45)
  • UL Power Supply
  • Quick Start Guide

TIMETRAX Elite Bio Biometric Time CLock System - fig

timetrax logo 3SENNHEISER SEBT4 HD 450BT Wireless Headphone - call icon888.479.7264
[email protected]
pyramidtimesystems.com
© 2022 Pyramid Time Systems, LLC. All Rights Reserved.

timetrax logo 12
