CI304PTX1 N Induction Cooktop
User Guide

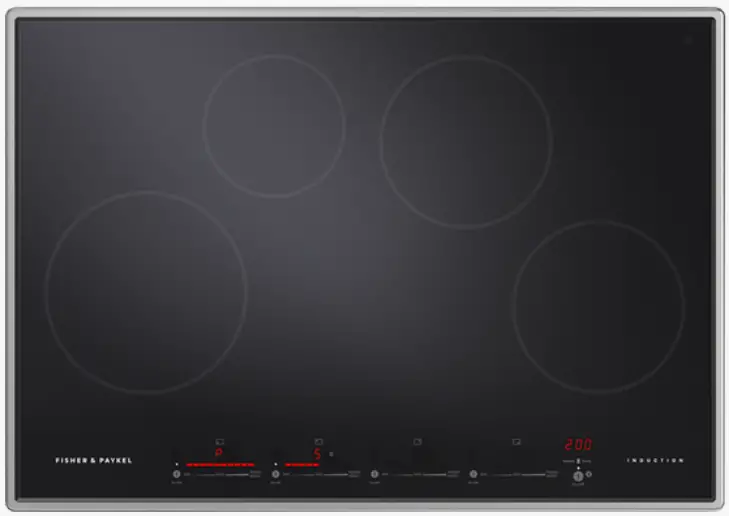

CI304PTX1 N Induction Cooktop
Induction Cooktop, 30″, 4 Zones
Series 9 | Professional
Black GlassThis Series 9 cooktop is a joy to use, with the instant response and energy efficiency of induction technology.
- Immediate heat response and extremely accurate temperature control
- Child and pet safe cooktop remains cool to touch until a pot or pan is placed on the surface
- PowerBoost activates a very high heat, bringing liquid to boil in less than a minute
- Touch&Slide controls easily control each cook zone

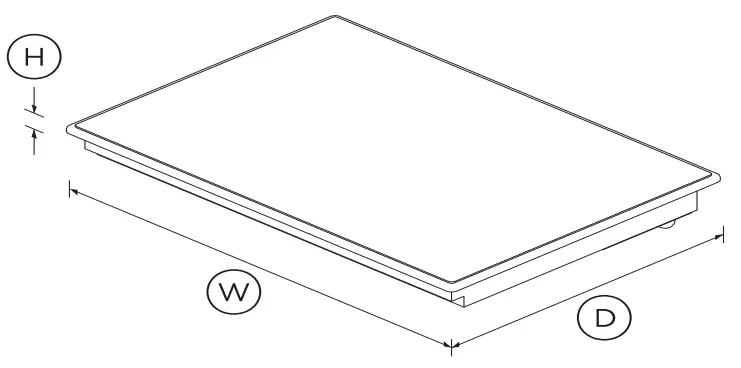

DIMENSIONS
| Height | 3 11/16″ |
| Width | 30″ |
| Depth | 21″ |
FEATURES & BENEFITS
Enhanced features
PowerBoost and GentleHeat deliver either very high or very low heat fast. Perfect for specialized cooking tasks such as searing meat and melting chocolate.
Safer choice
Induction cooktops only start heating your cookware once you’ve placed it on the ceramic surface and stop once it’s removed. This means you don’t have to worry about curious little fingers or leaving an element on.
Instant response
Touch&Slide controls respond immediately for quick temperature changes. Go from boil to simmer in seconds.
Easy cleaning
When you use an induction cooktop, only your cookware is heated when placed on the ceramic surface. This makes spills easier to clean up.
Superior efficiency
This Fisher & Paykel Professional induction cooktop offers extremely accurate, consistent temperature control from very high to very low heats, so you can sear, sauté and temper like a pro.
Designed to match
Built to last with distinctive, bold styling, this cooktop is designed to match the Fisher & Paykel Professional style family of appliances.
SPECIFICATIONS
| Cleaning | |
| Flat easy clean glass surface | • |
| Pan detection system | • |
| Controls | |
| Auto cut-off timer for each | • |
| Minute timer | • |
| Soft-touch electronic controls | • |
| Touch and slide controls | • |
| Performance | |
| Auto heat reduce | • |
| Dual color display | • |
| Heat settings | 9 |
| Induction cooking technology | • |
| Power requirements | |
| Amperage | 32A |
| Supply voltage | 240VV |
| Product dimensions | |
| Depth | 21″ |
| Height | 3 11/16″ |
| Width | 30″ |
| Safety | |
| Keylock | • |
| Pan detection system | • |
| Safety time out | • |
| Spillage auto off | • |
| Surface hot indicators | • |
| Zone ratings | |
| Left front | 2300W (3700W*) |
| Left rear | 1400W (2200W*) |
| PowerBoost | up to 3700W |
| Right front | 1850W (3000W*) |
| Right rear | 1850W (3000W*) |
| Zones | |
| Number of elements | 4 |
| SKU | 71338 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
