AC2405 Power Socket Cube

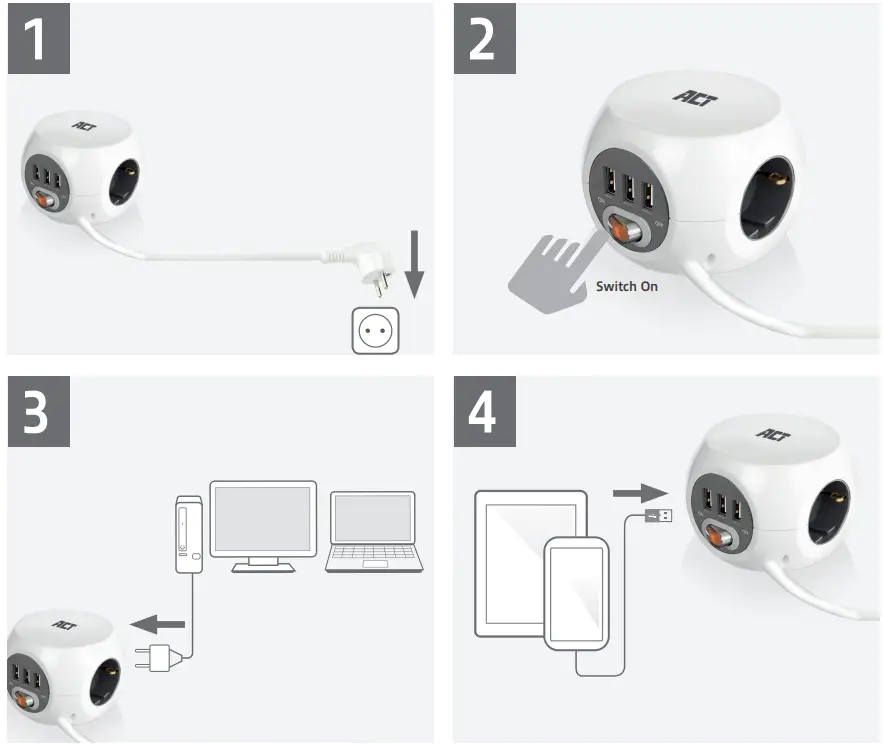

Installation Guide
AC2405

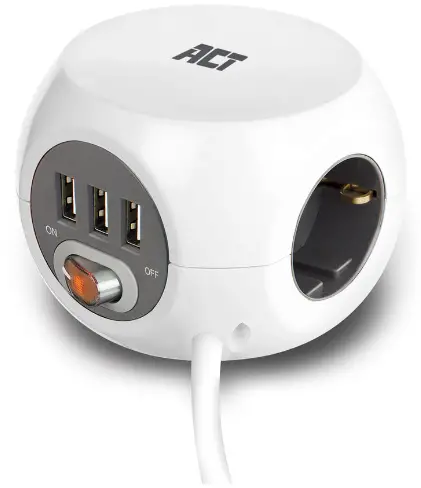

AC2405 Power Socket Cube
Power Strip Cube
You can find safety information at www.act-connectivity.com/safety
For service, manuals, firmware or updates visit www.act-connectivity.com
2 Year Warranty
ACT, Koolhovenstraat 1E, 3772 MT Barneveld, The Netherlands
Safety Instruction:
For PLUGGABLE EQUIPMENT, the socket-outlet shall be installed near the equipment and shall be easily accessible
Input: 230V~50Hz, 0.2A Max.
Max. Power: 3680.0Watt (16A/230V)
Single USB Output: 5.0V 2.4A, 12.0W Max.
Total USB Output: 5.0V 2.4A, 12.0W Max.
Power USB Output: 12.0W Max.
Caution For Indoor Use Only
THE PRODUCT MENTIONED BELOW IS COMPLIANT WITH THE NEW STANDARD FOR ERP CERTIFICATION (EU) 2019/1782 (SOMETIMES REFERRED TO AS ECO DESIGN) OF EXTERNAL POWER ISSUED BY THE EUROPEAN UNION, REPEALING COMMISSION REGULATION(EC) NO 278/2009 FROM 1 APRIL 2020.
| Value and precision | Unit | |
| Model number | AC2405 | – |
| Input voltage | 230 | V |
| Input frequency | 50 | Hz |
| Max. output voltage | 5 | V |
| Max. output current | 2.4 | A |
| Max. output power | 12 | W |
| Average active efficiency | 82.5 | % |
| Efficiency at low load (10%) | 69.1 | % |
| No-load power consumption | 0.1 | W |
SIGNED FOR AND ON BEHALF OF:
| Manufacturer’s name | ACT Koolhovenstraat 1E 3772 MT Barneveld The Netherlands | |
| Commercial registration | ||
| Place and date of issue: Barneveld, 12 January 2022 | Signature: | Name, function: Marc Swolfs, Managing director |
