UniFi USW Switch Industrial

Package Contents

UniFi Switch
Screws (Qty. 6)
Screw Anchors (Qty. 6)

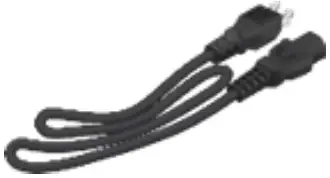

Power Cord

Installation Requirements

Drill with 6 mm drill bit
Phillips screwdriver
Cat5/6 UTP cable for indoor installations. Plenum-rated cabling for plenum spaces.

System Requirements

Linux, Mac OS X, or Microsoft Windows 7/8/10
Java Runtime Environment 1.8 or above recommended
Web Browser: Google Chrome (Other browsers may have limited functionality)
UniFi Network Application v5.10.x (or newer), available at: ui.com/download/unifi

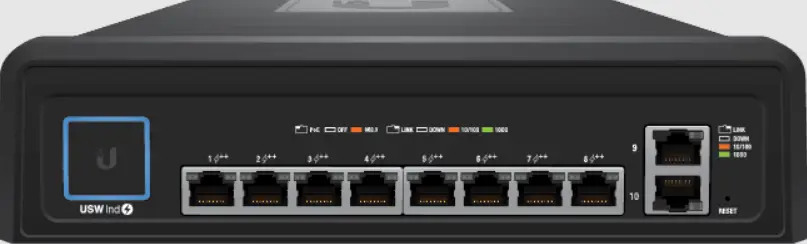

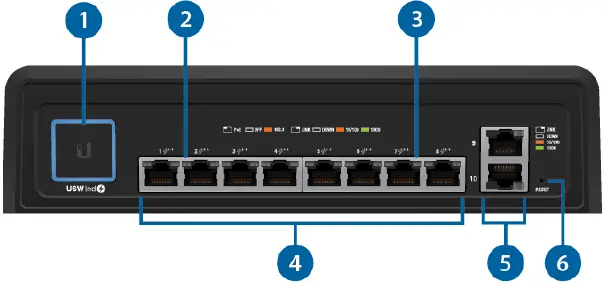

System LED
Flashing White	Initializing.
Steady White	Factory defaults, waiting for adoption.
Alternating White/Blue	Device is busy; do not touch or unplug it. This usually indicates that a process such as a firmware upgrade is taking place.
Steady Blue	Successfully adopted by a network and working properly.
Flashing Blue	This is used to locate a device. When you click Locate in the UniFi Network Application, the System LED will flash blue. The Application will also display the location of the UniFi Switch on the map.
PoE LED
Off	PoE Disabled
Amber	802.3af/at/bt PoE
Link/Speed/Activity LED
Off	No Link
Amber	Link Established at 10 or 100 Mbps

Green
Ports 1 – 8
RJ45 ports support 10/100/1000 Ethernet connections and 802.3af/at/bt PoE output.
Ports 9 – 10
RJ45 ports support 10/100/1000 Ethernet connections.
Reset Button
This button serves two functions for the UniFi Switch: Restart Press and release the Reset button quickly. Restore to Factory Default Settings Press and hold the Reset button for more than five seconds.

Hardware Installation

You have two options for mounting:

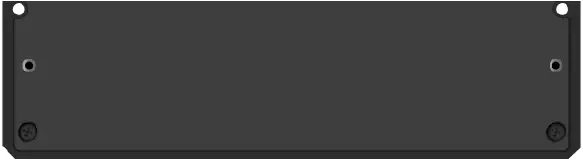

Screws and Screw Anchors You can use the included Screws and Screw Anchors. Go to “Wall Mounting”.

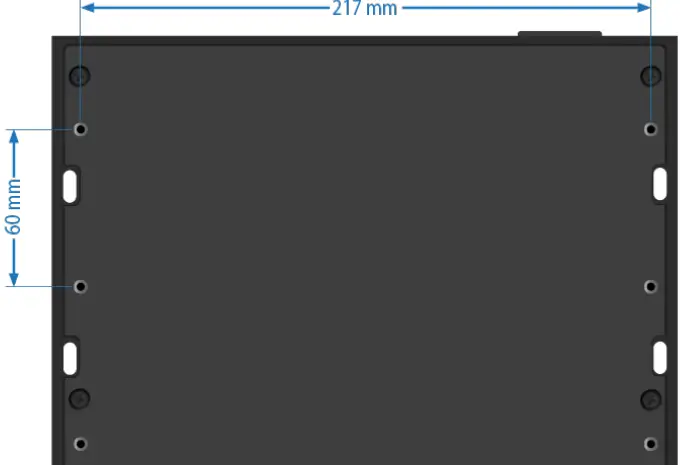

Machine Screws You can use eight M4 machine screws (not included), which must be long enough to extend 6 mm into the Switch.

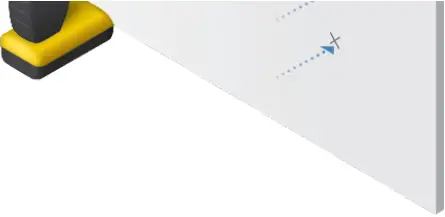

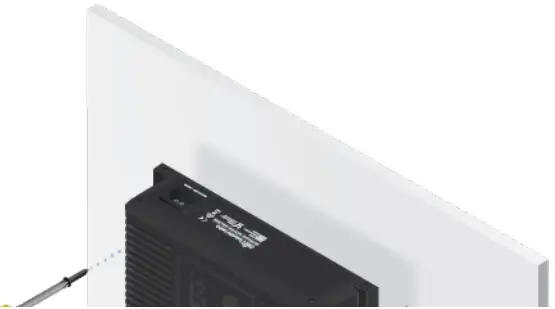

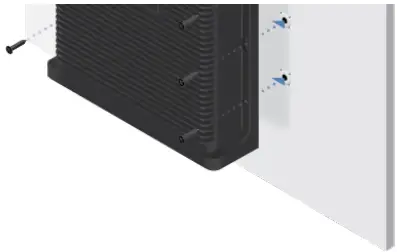

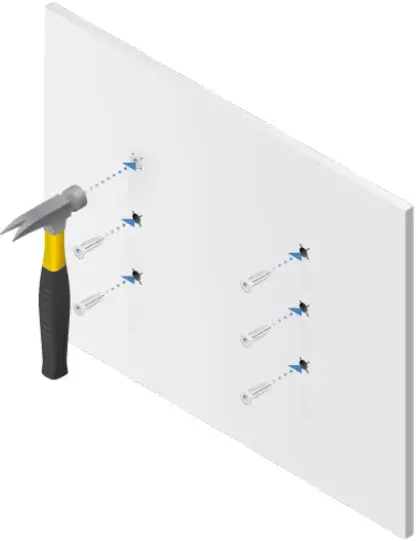

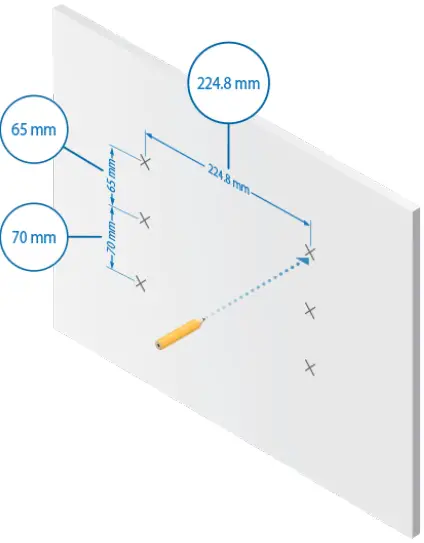

Wall Mounting

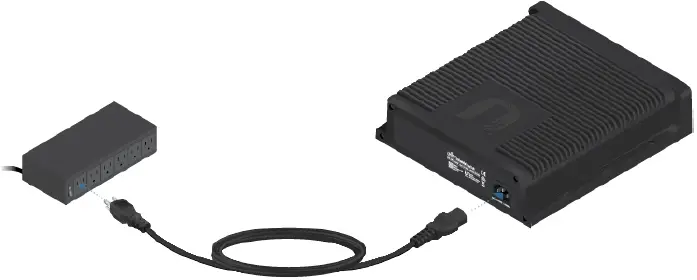

Connecting Power

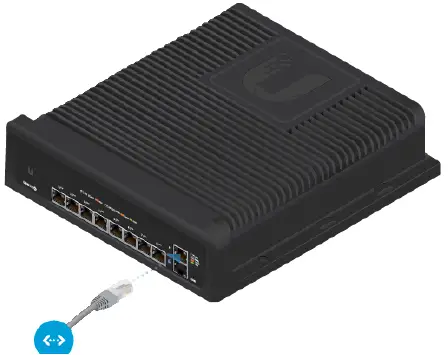

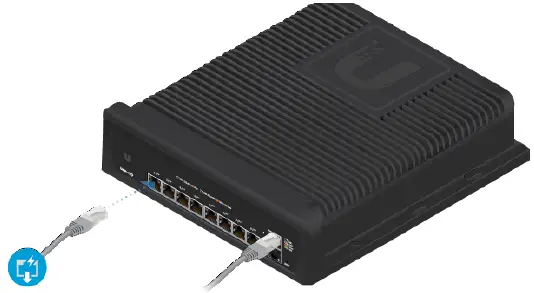

Connecting Ethernet

Specifications

USW-Industrial
Dimensions	254 x 235 x 60 mm (10 x 9.25 x 2.36″)
Weight	3.85 kg (8.49 lb)
Interfaces Networking Managemen	(8) 10/100/1000 802.3bt PoE RJ45 Ports (2) 10/100/1000 RJ45 Ports Ethernet In-Band
Power Method	100 – 240 VAC, 50/60 Hz Universal Input
Power Supply	AC/DC, Internal, 450W DC
Supported Voltage Range	AC Input: 100 to 240VAC, Max. 6A
Max. Power Consumption (Excluding PoE Output)	20W
LEDs System RJ45 Ports	Status PoE, Speed/Link/Activity
ESD/EMP Protection	Air: ± 24 kV, Contact: ± 24 kV
Shock and Vibration	ETSI300-019-1.4 Standard
Operating Temperature Internal AC/DC @ 450W Internal AC/DC @ 240W	-40 to 50° C (-40 to 122° F) -40 to 60° C (-40 to 140° F)
Operating Humidity	5 to 95% Noncondensing

Safety Notices

Read, follow, and keep these instructions.
Heed all warnings.
Only use attachments/accessories specified by the manufacturer.

WARNING: Failure to provide proper ventilation may cause fire hazard. Keep at least 20 mm of clearance next to the ventilation holes for adequate airflow.

To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.
Do not use this product in location that can be submerged by water.
Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning.

Electrical Safety Information

Compliance is required with respect to voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified may result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed.
There are no operator serviceable parts inside this equipment. Service should be provided only by a qualified service technician.
This equipment is provided with a detachable power cord which has an integral safety ground wire intended for connection to a grounded safety outlet.

Do not substitute the power cord with one that is not the provided approved type. Never use an adapter plug to connect to a 2-wire outlet as this will defeat the continuity of the grounding wire.
The equipment requires the use of the ground wire as a part of the safety certification, modification or misuse can provide a shock hazard that can result in serious injury or death.
Contact a qualified electrician or the manufacturer if there are questions about the installation prior to connecting the equipment.
Protective earthing is provided by Listed AC adapter. Building installation shall provide appropriate short-circuit backup protection.
Protective bonding must be installed in accordance with local national wiring rules and regulations.

ui.com/support/warranty
The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and, where applicable, specify arbitration instead of jury trials or class actions.

Compliance FCC

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions.

This device may not cause harmful interference, and
This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operations of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

ISED Canada
CAN ICES-3(A)/NMB-3(A)

Australia and New Zealand
