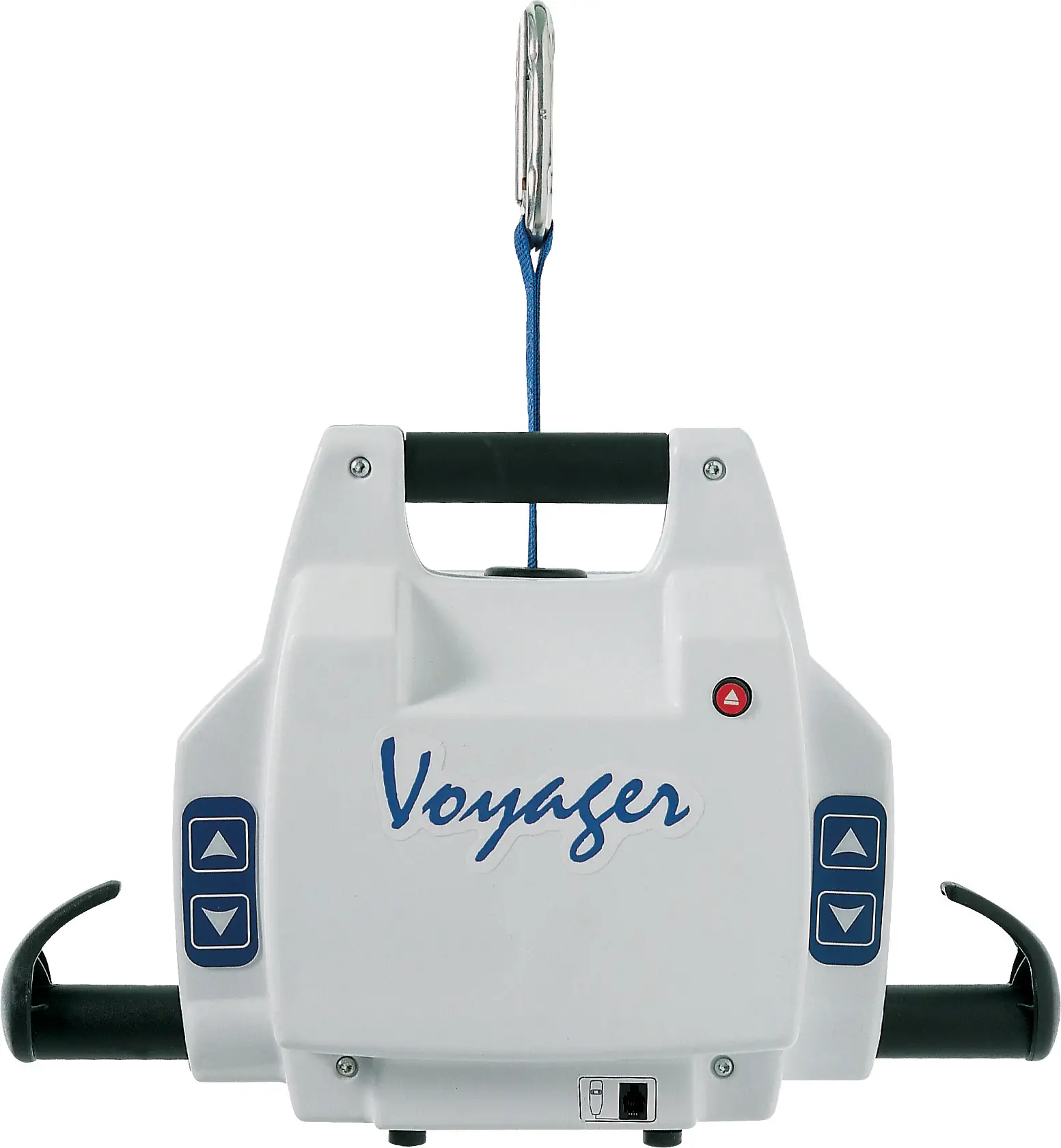

Oxford Voyager VOY-700.16809-33 Portable Hoist User Manual

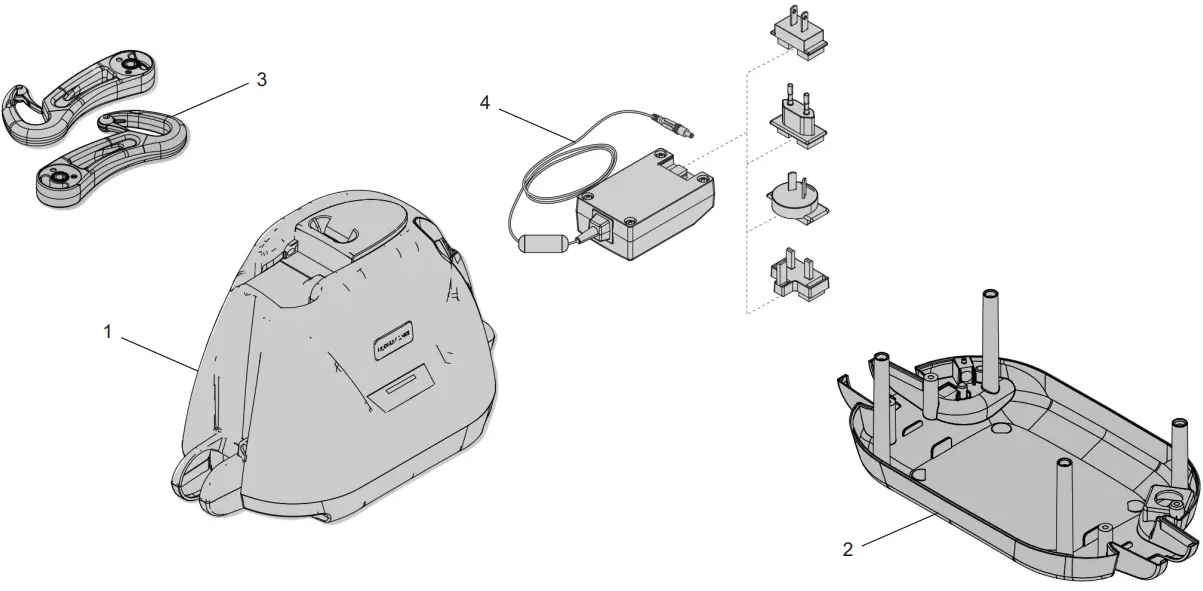

Replacement Kits
| NO | PART NUMBER | DESCRIPTION | QTY |
| 1 | VOY-700.16809-33 | Plastic Cab Replacement Kit | 1 |
| 2 | VOY-700.16829-33 | Bottom Cab Inc. Clip Replacement | 1 |
| 3 | VOY-700.16560 | Folding Arms Replacement Kit | 1 |
| 4 | VOY-700.24201 | Ceiling Lift Charger and Adapters | 1 |

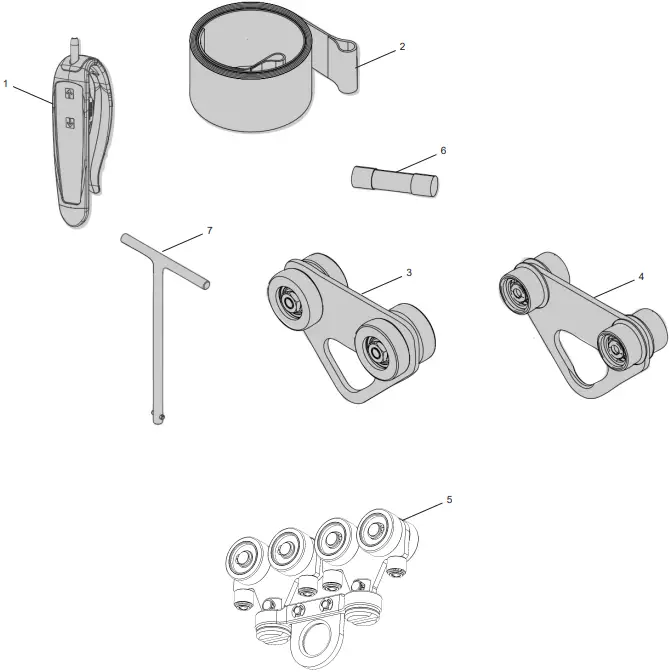

General Parts / Accessories
| NO | PART NUMBER | DESCRIPTION | QTY |
| 1 | VOY-700.13820-B | 2 Button Hand Control | 1 |
| 2 | VOY-362.01365 | Black Strap | 1 |
| 3 | VOY-A5900 | Trolley for Voyager Fixed Rails | 1 |
| 4 | VOY-700-10650-B | Trolley for Portable Lifts (EasyTrack) | 1 |
| 5 | 0YJH018510 | Trolley for Elara Rails | 1 |
| 6 | VOY-C8FGMA10 | GMA 10 Amp Fuse | 1 |
| 7 | VOY-005.16500 | Emergency Lowering Tool | 1 |

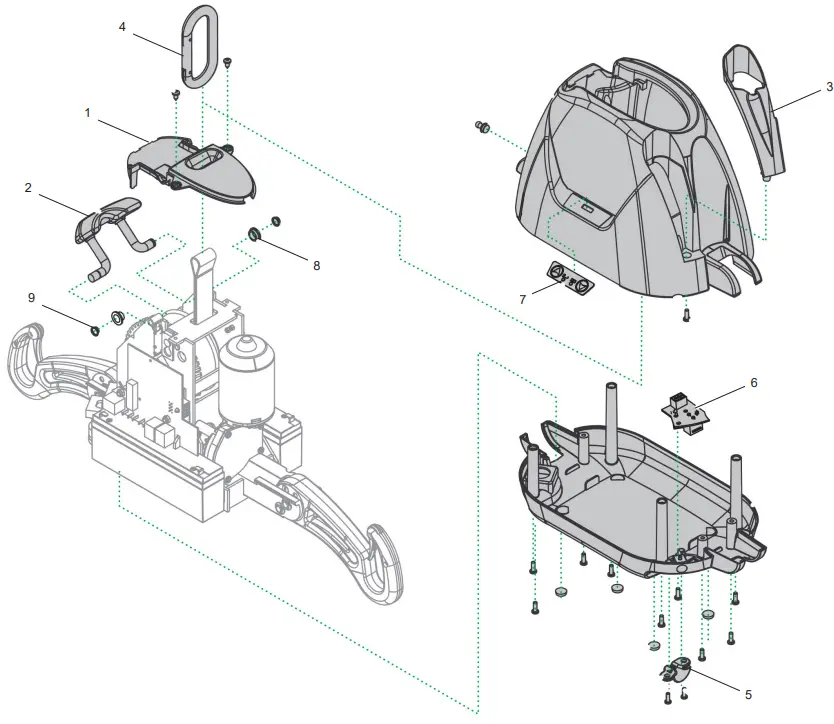

Housing
| NO | PART NUMBER | DESCRIPTION | QTY |
| 1 | VOY-200.16849-33 | Strap Inlet Cover | 1 |
| 2 | VOY-200.16870 | Tarzan Hook | 1 |
| 3 | VOY-200.16889-33 | Hand Control Pocket | 1 |
| 4 | VOY-000.08000 | Carabiner | 1 |
| 5 | VOY-200.16801 | Cable Clamp | 1 |
| 6 | VOY-492.00051 | Hand Control and Charger Inlet Circuit Board | 1 |
| 7 | VOY-001-08100-33 | Touch Pad Membrane with Charge Indicator | 1 |
| 8 | VOY-000.16550 | Bushing 3/8 x 1/2 Flange Plastic | 2 |
| 9 | VOY-000.00846 | 9mm Circlips | 4 |

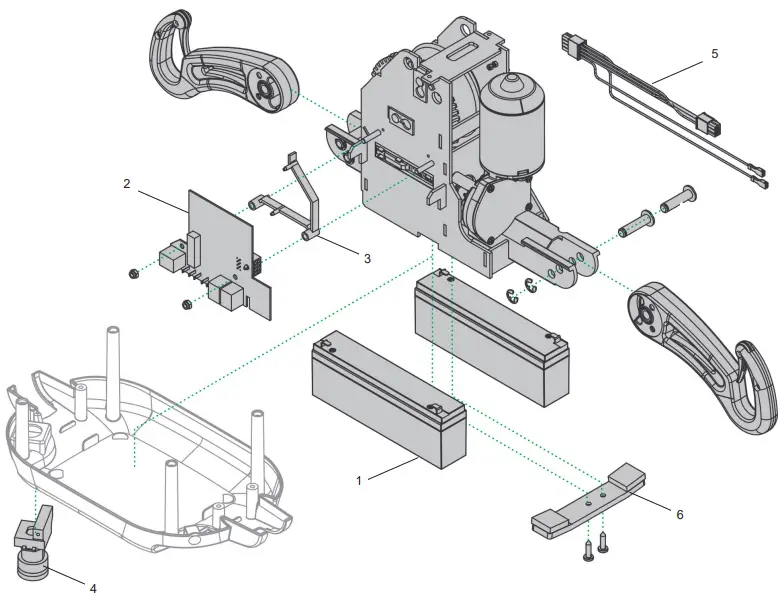

Chassis
| NO | PART NUMBER | DESCRIPTION | QTY |
| 1 | VOY-E6585 | Battery 12V 2.3Ah | 1 |
| 2 | VOY-492-00047-1-B | Main PCB | 1 |
| 3 | VOY-200.14240 | PCB Support | 1 |
| 4 | VOY-C6P22MM | Emergency Stop Button | 1 |
| 5 | VOY-102.16000 | Wiring Kit | 1 |
| 6 | VOY-202.16510 | Battery Support | 1 |

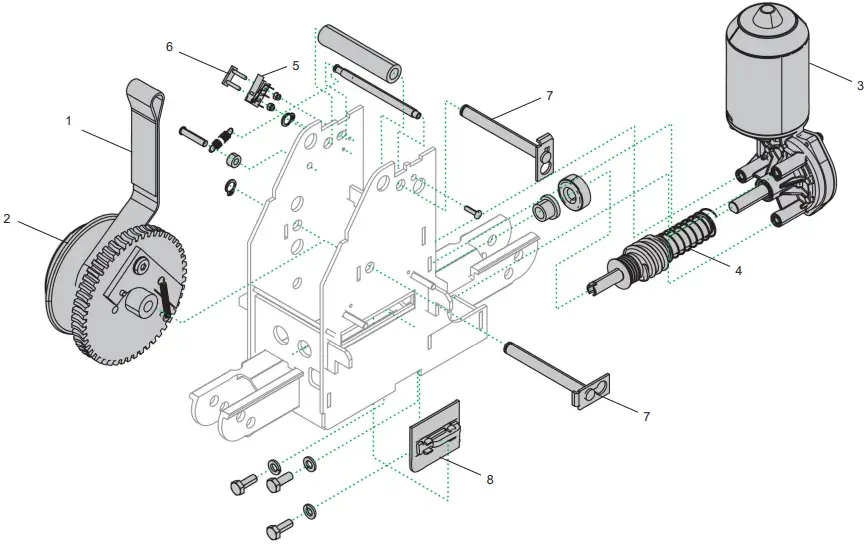

Transmission
| NO | PART NUMBER | DESCRIPTION | QTY |
| 1 | VOY-362.01365 | Black Strap | 1 |
| 2 | VOY-700.08052 | Portable Drum with Black Strap | 1 |
| 3 | VOY-E0006 | Gear Motor | 1 |
| 4 | VOY-700-16521 | Assy Shaft Worm | 1 |
| 5 | VOY-460.00005 | Limit Switch DB2 Terminal 0.110 | 1 |
| 6 | VOY-200.14090 | Limit Switch Retaining Plate | 1 |
| 7 | VOY-200.08065 | Shaft 9mm | 1 |
| 8 | VOY-200.14230 | CBLM Plate | 1 |
