Huananzhi P55 Motherboard User Manual

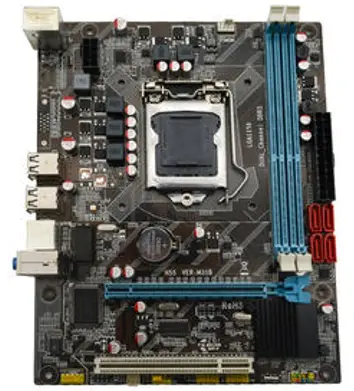

P55 Motherboard
User Manual

SAFETY PRECAUTIONS

• Products could probably be damaged due to electrostatic discharge(ESD). Please follow these steps below for a successful computer assembly.
• Make sure all parts are firmly connected; otherwise, it might lead to the failure of recognizing components or starting the computer.
• In order to prevent products from being damaged by ESD, please make sure to discharge your body static by touching other metal objects before taking the motherboard out of box.
• Hold the border of motherboard when taking it out. Do not touch the sensitive parts of motherboard.
• Please put the motherboard in an anti-static container or on anti-static pad if not needed.
• Before turning on the computer, make sure all parts inside the case are firmly connected without any loose screws or metal components.
• Do not start the computer before installation finished, otherwise it might result in permanent damage to the computer parts or even injury to the user.
• If you need any assistance in the process of installation，please contact our after-sales customer service or reach us on HUANANZHI official E-mail: [email protected] for professional technical support.
• Prior to installation or disassembly, please switch off the power and pull the power cable from the socket.
• Place the main engine in a dry place
• Keep the motherboard away from moisture.
• Keep the user manual for future reference.
• Before plugging the power supply, please make sure the socket provides the corresponding voltage.
• In any of the following situations, please keep the motherboard and power cable in a safe place. Do not put anything onto the power cable.
• In the event of any of the following conditions, have the board checked by a service technician:
  Liquid penetrated into the computer.
  Motherboard is exposed to moisture.
  Motherboard does not work even if you follow the instructions on user manual.
  Motherboard fell off to the ground and got damaged.
  Motherboard has clear signs of damage.

PACKING

• Please confirm that the motherboard is properly packaged upon purchase of the product. If there is any damage to packaging or lack of accessories, contact us as soon as possible
• 1.1*HUANANZHI P55 motherboard
• 2.1*SATA data cable
• 3.1*I/O shield back plat
• 4.1* User Manual
• 5.1*Warranty Card

BRIEF INTRODUCTION

Features
CPU:
Intel ® LGA1156 Intel ® Core ™
Intel ® LGA1156 Intel ® Xeon™
RAM:
2*DIMM supports up to 16GB DDR3
1600/1333MHZ Non-ECCmemory
Two-Channel Memory Architecture
Actual memory data capacity rate depends on CPU type and DRAM module
I/O effects:
4 x SATA2.0
4 x USB2.0 ports
1 x PS/2 Mouse and Keyboard port
1 x RJ45 Network card interface
Audio:
Realtek Audio Trans coder
Realtek 5.1 Channel High Fidelity Audio
Audio output: Front Out/Front Speaker Out
Audio input: Microphone input，Audio input
Ethernet: 1 x Realtek 100MB/S Ethernet
Expansion slot:
1 x PCIe 2.0 x16
1 x PCI

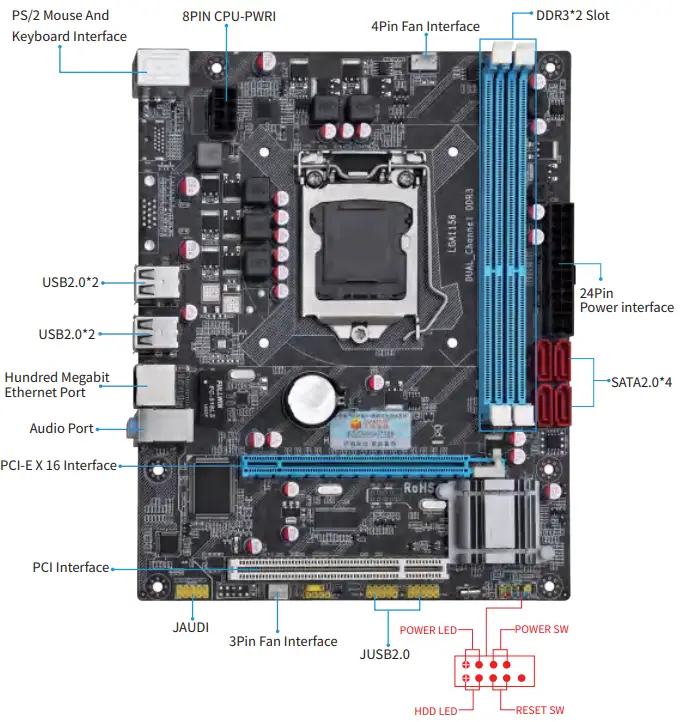

MOTHER BOARD IMAGE

1-1 P55 motherboard illustrationRear I/O Panel

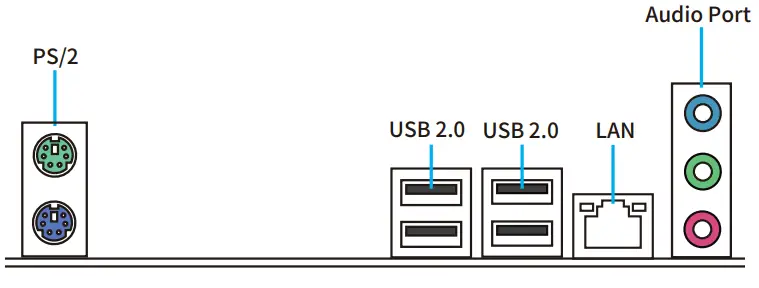

1-2 Overall Rear I/O Panel Display

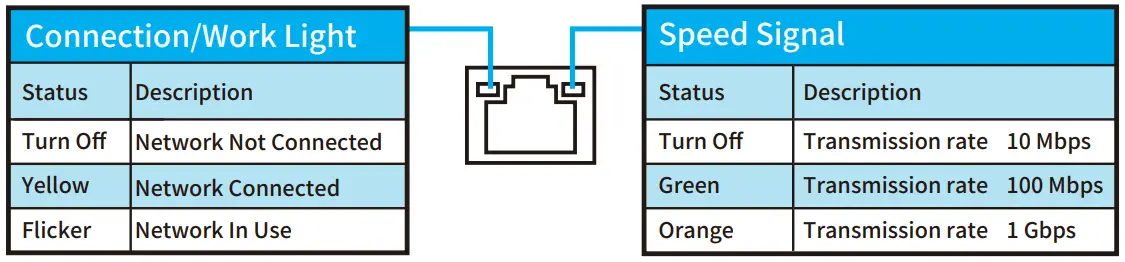

1-3 LAN Port Status Table

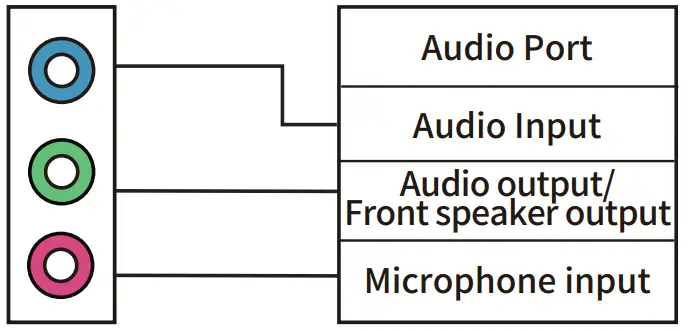

1-4 Audio Port Configuration

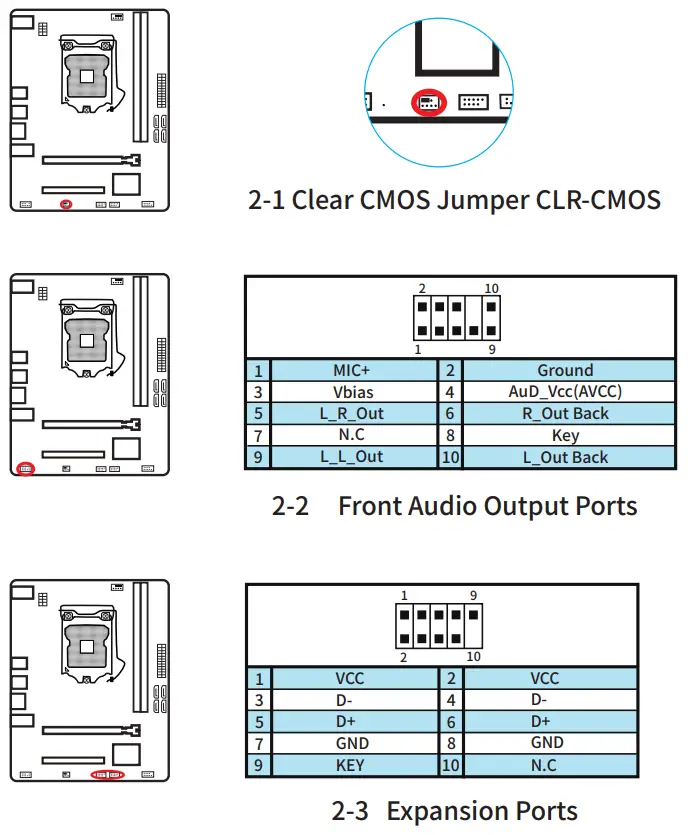

Installation And Settings

NOTICE

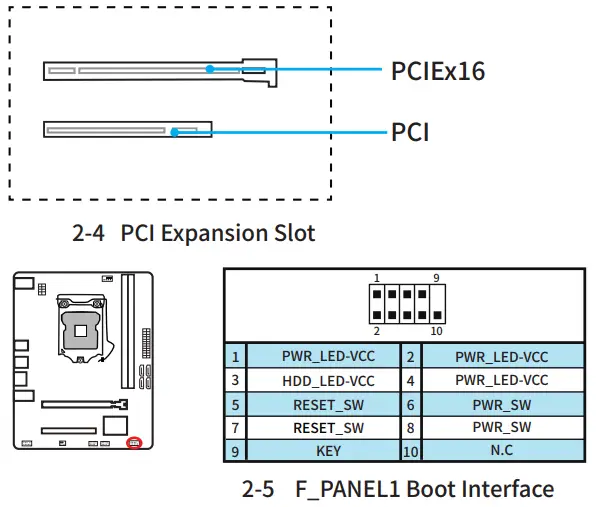

Please check the motherboard where all pins marked with number “1” or white bold line are position “1”.

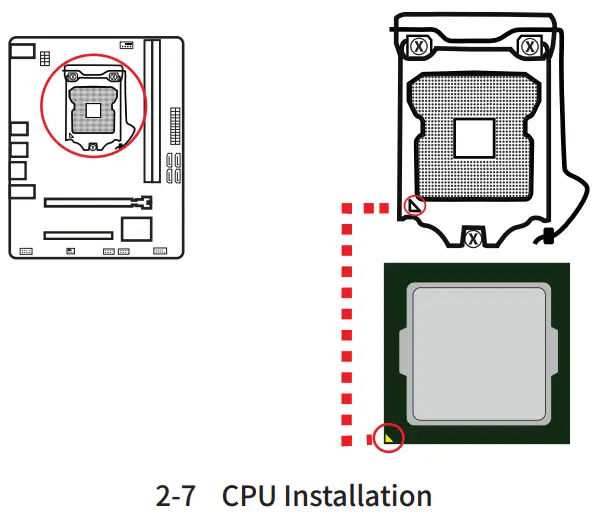

In order to properly place the CPU in the motherboard, the surface of the LGA1156 CPU has two pairs of starting points and a golden triangle.Golden triangle indicates Pin1

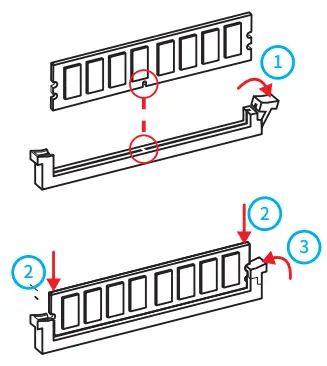

2-8 Memory Installation

1. Pull the clips on both ends of the memory slot outward, and the memory strip corresponds to the protruding position of the slot to determine the direction of installation
2. Align the memory module into the slot and press
3. Let the snaps on both ends of the slot automatically bounce

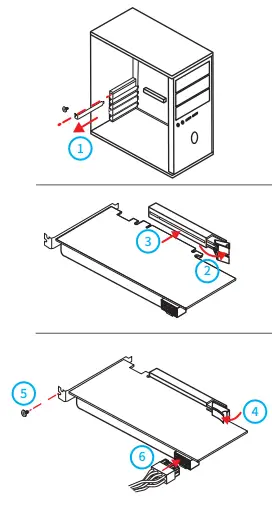

2 -9 Graphics Card Installation

1. Use a screwdriver to remove the bezel and screws on the main unit
2. Need to pick up the card slot of the card slot when installing the graphics card
3. Insert the graphics card into the card slot of the graphics card
4. After the installation is in place, the chuck will automatically return to its position.
5. Secure the graphics card to the chassis with screws
6. Install the power cord

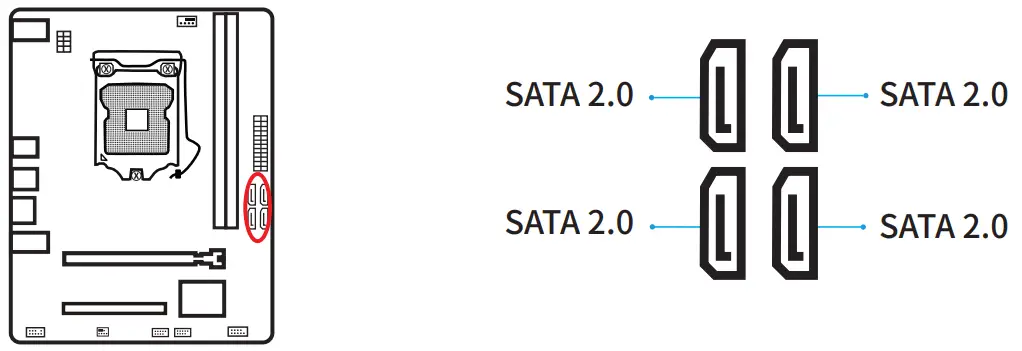

2 -10 SATA Interface

Drivers installation

1. Drivers listing:


   Driver Directory	Driver Description	Operating System
   P55 Chipset Driver	Intel chip information installation	win7/win10
   P55 Sound Card Driver	Realtek series sound card driver installation	win7/win10
   P55 LAN Driver	Realtek network card driver installation	win7/win10

2. Intel Chip Information Installation
   Run “Control Panel – System – Hardware – Device Manager” Click the right mouse button to change the driver’s hardware device and proceed with the installation below:
   Option: Property l – Update driver l – Not connect to Internet – Manually installation
   Find the corresponding directory
   Select “Next step”
3. Audio driver installation
   Before this installation, please check the model of the audio chip on the motherboard first(you may refer to this manual), Select the proper driver accordingly for installation.
   3.1 Audio driver installation (take HD Audio series for example)
   Run “driver installer”: /P55 SOUND CARD DRIVER/VISTA-WIN7-R267, take WDW-267 if OS is XP
   Click on “next”to continue,and then”finished”
   The system will automatically restart itself to finish the installation
   3.2 Uninstallation of audio driver(take HD Audio series for example)
   Getting into Windows desktop, choose “setting”/ “control”,and then “add/remove programs”. Later, choose “Realtek High Defi-nition Audio Driver ” in the menu and click on “add/remove”so thatthe driver will be automatically removed.
4. Driver installation of external video card
   Run “driver installer” , take Setup.exe
   click on “next”- “yes”
   -“next”
   -“next”and”finished”
   The system will automatically search for devices to complete the installation
5. Driver installation of network
   Run “driver installer”: P55 LAN DRIVER/WIN7 XP click on “next”-“installation”-“finished” and restart the computer，the system will automatically search for devices to complete the installation.

BIOS Settings

In order to enable the computer to work well or execute specifc functions, CMOS SETUP normally stores all kinds of data in CMOS SRAM of the motherboard. When the computer is shut down, motherboard’ s battery will supply power to CMOS SRAM. When the computer is turned on and starts POST(Power On Self Test), press “Delete/Del” key to enter into AMI BIOS CMOS SETUP main page. Motherboard warm boot key is ” F7″
Menu: please pay attention to every option in the settings menu. When there is a triangle shaped symbol on the left side of menu, it means that you choose this sub-menu,so a pop-up sub-menu will be available.

1. Main Menu Function
   Main
   System Overview
   Date/Time settings, HDD specs/Monitor type settings.
   Advanced
   Advanced Settings
   Step one:choose IDE Configuration
   Step two:choose Configure SATA as
   Chipest
   Advanced Chipest Settings
   Boot
   Boot Settings
   Security
   Security Settings
   Exit/Save
   Exit Options/Save Setting
   Exit settings include loading of optimized defaults value/loading of fail-safe defaults/discarding changes/exiting without saving.Exit settings include loading of optimized defaults value/loading of fail-safe defaults/discarding changes/ exiting without saving.
   Save Settings include Save the changes/discarding change/Loading default/loading of fail-safe defaults

SZ HUANAN SANXIAN TECHNOLOGY CO.,LTD.
WWW.HUANANZHI.COM
