DELL Latitude 9420 14 Inch FHD Laptop
Notes, cautions, and warnings
- NOTE: A NOTE indicates important information that helps you make better use of your product.
- CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
- WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
Set up your Latitude 9420
NOTE: The images in this document may differ from your computer depending on the configuration you ordered.
- Connect the power adapter and press the power button.
NOTE: The battery may go into power-saving mode during shipment to conserve charge on the battery. Ensure that the power adapter is connected to your computer when it is turned on for the first time. - Finish Windows setup.
Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you:- Connect to a network for Windows updates.
NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when prompted. - If connected to the Internet, sign in with or create a Microsoft account. If not connected to the Internet, create an offline account.
- On the Support and Protection screen, enter your contact details.
- Connect to a network for Windows updates.
- Locate and use Dell apps from the Windows Start menu—Recommended.
Table 1. Locate Dell appsTable 1. Locate Dell apps
| Resources | Description |
 | Dell Product Registration Register your computer with Dell. |
 | Dell Help & Support Access help and support for your computer. |
| Resources | Description |
| SupportAssist SupportAssist is the smart technology that keeps your computer running at its best by optimizing settings, detecting issues, removing viruses and notifies when you need to make system updates. SupportAssist proactively checks the health of your system’s hardware and software. When an issue is detected, the necessary system state information is sent to Dell to begin troubleshooting. SupportAssist is preinstalled on most of the Dell devices running Windows operating system. For more information, see SupportAssist for Home PCs User’s Guide on www.dell.com/serviceabilitytools. NOTE: In SupportAssist, click the warranty expiry date to renew or upgrade your warranty. |
 | Dell Update Updates your computer with critical fixes and latest device drivers as they become available. For more information about using Dell Update, see the knowledge base article SLN305843 at www.dell.com/support. |
 | Dell Digital Delivery Download software applications, which are purchased but not pre-installed on your computer. For more information about using Dell Digital Delivery, see the knowledge base article 153764 at www.dell.com/support. |
Views of Latitude 9420

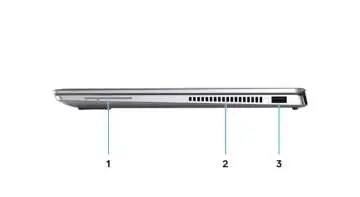

Right
- Antenna (WWAN only)
- Air vents
- USB 3.2 Gen 1 port with PowerShare

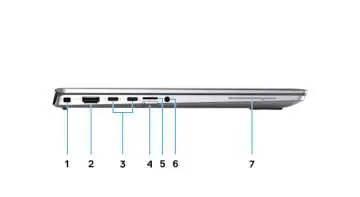

Left
- Wedge-shaped lock slot
- HDMI 2.0 port
- Two Thunderbolt 4 ports with DisplayPort Alt Mode/USB4/ Power Deliver
- microSIM slot (WWAN only)
- microSD-card slot
- Universal audio port
- Antenna (WWAN only)

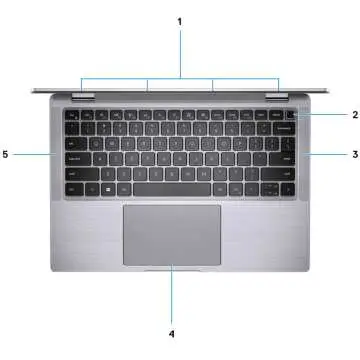

Top
- Quad-array microphones
- Power button with optional fingerprint reader
- Right speaker
- Clickpad
- Left speaker
Front
- Proximity Sensors
- Ambient-light sensor
- IR Camera light
- Camera-status light
- Camera (RGB/IR) with SafeShutter
- IR Camera light
- Display
- Battery-status light/Diagnostic-status light

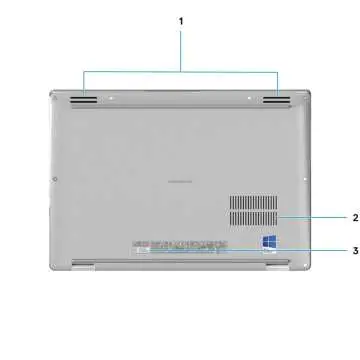

Bottom
- Speakers
- Air vents
- Service tag label
Modes
NOTE: The modes are applicable to 2-in-1 only.

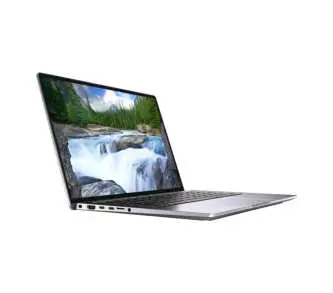

Notebook

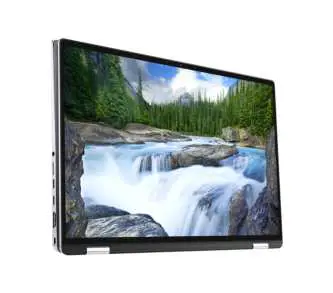

Tablet

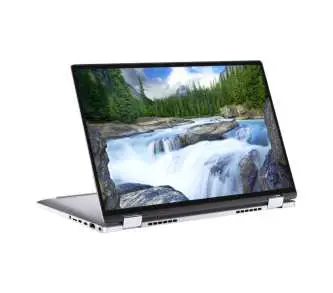

Stand

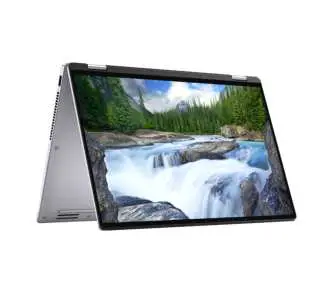

Tent
Battery Charge and Status LED
Table 2. Battery Charge and Status LED Indicator
| Power Source | LED Behavior | System Power State | Battery Charge Level |
| AC Adapter | Off | S0 – S5 | Fully Charged |
| AC Adapter | Solid White | S0 – S5 | < Fully Charged |
| Battery | Off | S0 – S5 | 11-100% |
| Battery | Solid Amber (590+/-3 nm) | S0 – S5 | < 10% |
- S0 (ON) – System is turned on.
- S4 (Hibernate) – The system consumes the least power compared to all other sleep states. The system is almost at an OFF state, expect for a trickle power. The context data is written to hard drive.
- S5 (OFF) – The system is in a shutdown state.
Specifications of Latitude 9420
Dimensions and weight
The following table lists the height, width, depth, and weight of your Latitude 9420.
Table 3. Dimensions and weight
| Description | Values | |
| Height: | ||
| Front height | 8.42 mm (0.33 in.) | |
| Rear height | 13.91 mm (0.54 in.) | |
| Width | 310.59 mm (12.22 in.) | |
| Depth | 215.18 mm (8.47 in.) | |
| Weight |
NOTE: The weight of your computer depends on the configuration ordered and manufacturing variability. | |
Processor
The following table lists the details of the processors supported by your Latitude 9420.
NOTE: Processor numbers are not a measure of performance. Processor availability subject to change and may vary by region/country.
Table 4. Processor
| Processor | Wattage | Core count | Thread count | Speed | Cache | Integrated graphics |
| 11th Generation Intel Core i5-1135G7 | 28 W | 4 | 8 | 2.40 GHz to 4.20 GHz | 8 MB | Intel Iris Xe Graphics |
| 11th Generation Intel Core i5-1145G7 | 28 W | 4 | 8 | 2.60 GHz to 4.40 GHz | 8 MB | Intel Iris Xe Graphics |
| 11th Generation Intel Core i7-1185G7 | 28 W | 4 | 8 | 3.00 GHz to 4.80 GHz | 12 MB | Intel Iris Xe Graphics |
Chipset
The following table lists the details of the chipset supported by your Latitude 9420
Table 5. Chipset
| Description | Values |
| Chipset | Integrated with the processor |
| Processor | 11th Generation Intel Core i5/i7 processors |
| DRAM bus width | 64-bit |
| Flash EPROM | 32 MB |
| PCIe bus | Up to Gen4 |
Operating system
Your Latitude 9420 supports the following operating systems:
- Windows 11 Home, 64-bit
- Windows 11 Pro, 64-bit
- Windows 11 Pro National Academic, 64-bit
- Windows 10 Home, 64-bit
- Windows 10 Pro, 64-bit
- Windows 10 Pro Education, 64-bit
- Windows 10 Enterprise, 64-bit
- Ubuntu 20.04 LTS, 64-bit
Memory
The following table lists the memory specifications of your Latitude 9420.
Table 6. Memory specifications
| Description | Values |
| Memory slots | Integrated NOTE: This is not upgradeable. |
| Memory type | LPDDR4x |
| Memory speed | 4266 MHz |
| Maximum memory configuration | 32 GB |
| Minimum memory configuration | 8 GB |
| Memory size per channel | 8 GB, 16 GB, 32 GB |
| Memory configurations supported |
|
External ports
The following table lists the external ports on your Latitude 9420.
Table 7. External ports
| Description | Values |
| USB ports |
|
| Audio port | One universal audio port |
| Video port/ports | One HDMI 2.0 port |
| Media-card reader | One microSD-card slot |
| Power-adapter port | Type-C power input |
| Security-cable slot | One wedge-shaped lock slot |
Internal slots
The following table lists the internal slots of your Latitude 9420.
Table 8. Internal slots
| Description | Values |
| M.2 |
NOTE: To learn more about the features of different types of M.2 cards, search in the Knowledge Base Resource at www.dell.com/support. |
Wireless module
The following table lists the onboard Wireless Local Area Network (WLAN) module supported on your Latitude 9420.
Table 9. Wireless module
| Description | Values |
| Model number | Intel AX210 |
| Transfer rate | Up to 2.40 Gbps |
| Frequency bands supported | 2.4 GHz/5.0 GHz/6.0 GHz |
| Wireless standards | Wi-Fi 6E (WiFi 802.11ax) |
| Encryption |
|
| Description | Values |
| Bluetooth | Bluetooth 5.2 |
WWAN module
The following table lists the Wireless Wide Area Network (WWAN) module supported on your Latitude 9420.
Table 10. WWAN module specifications
| Description | Option one | Option two |
| Model number | Qualcomm Snapdragon X20 Global Gigabite LTE | Qualcomm Snapdragon X55 Global Gigabite NR/LTE |
| Transfer rate | Up to 1 Gbps DL/150 Mbps UL (CAT 16) | Up to 3Gbps DL/250 Mbps UL (3GPP Release15 NR/LTE CAT 20) |
| Frequency bands supported | (1,2,3,4,5,7,8,12,13,14,17,18,19,20,25,26,2 | NR |
| 8,29,30,32,38,39,40,41,42,43,46,66), | (1,2,3,5,7,8,12,20,28,38,41,66,71,77,78,79 | |
| HSPA+ (1, 2, 4, 5,6, 8, 9, 19) | ) | |
| LTE | ||
| (1,2,3,4,5,7,8,12,13,14,17,18,19,20,25,26,2 | ||
| 8,29,30,32,34,38,39,40,41,42,46,48, 66) | ||
| HSPA+ (1,2,4,5,6,8,9,19) |
NOTE: For instructions on how to find your computer’s IMEI (International Mobile Station Equipment Identity) number, see the knowledge base article 000143678 at www.dell.com/support.
Audio
The following table lists the audio specifications of your Latitude 9420.
Table 11. Audio specifications
| Description | Values | |
| Audio controller | Realtek ALC711-CG | |
| Stereo conversion | Supported, 24-bit DAC (Digital-to-Analog) and ADC (Analog- to-Digital) | |
| Internal audio interface | SoundWire interface | |
| External audio interface | Universal audio jack | |
| Number of speakers | Four | |
| Internal-speaker amplifier | Realtek ALC1319D | |
| External volume controls | Keyboard shortcut controls | |
| Speaker output: | ||
| Average speaker output | 8 W | |
| Peak speaker output | 10 W | |
| Description | Values |
| Subwoofer output | Supported |
| Microphone | Quad-array microphone |
Storage
This section lists the storage options on your Latitude 9420. Your computer supports one M.2 2230 solid-state drive:
- One M.2 2230 solid-state drive
Table 12. Storage specifications
| Storage type | Interface type | Capacity |
| M.2 2230, Class 35 solid-state drive | Gen 3 PCIe x4 NVMe | Up to 1 TB |
| M.2 2230, Class 35 solid-state drive, Self-encrypting drive | Gen 3 PCIe x4 NVMe | Up to 256 GB |
Media-card reader
The following table lists the media cards supported by your Latitude 9420.
Table 13. Media-card reader specifications
| Description | Values |
| Media-card type | One microSD-card slot |
| Media-cards supported |
|
| NOTE: The maximum capacity supported by the media-card reader varies depending on the standard of the media card installed in your computer. | |
Keyboard
The following table lists the keyboard specifications of your Latitude 9420.
Table 14. Keyboard specifications
| Description | Values |
| Keyboard type | Backlit keyboard |
| Keyboard layout | QWERTY |
| Number of keys |
|
| Keyboard size | X=19.05 mm key pitch |
| Description | Values |
| Y=18.05 mm key pitch | |
| Keyboard shortcuts | Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key. NOTE: You can define the primary behavior of the function keys (F1–F12) changing Function Key Behavior in BIOS setup program. For more information, see Keyboard shortcuts. |
Camera
The following table lists the camera specifications of your Latitude 9420.
Table 15. Camera specifications
| Description | Values | |
| Number of cameras | One | |
| Camera type | HD RGB Infrared camera | |
| Camera location | Front camera | |
| Camera sensor type | CMOS-sensor technology | |
| Camera resolution: | ||
| Still image | 0.92 megapixel | |
| Video | 1280 x 720 (HD) at 30 fps | |
| Infrared camera resolution: | ||
| Still image | 0.23 megapixel | |
| Video | 640 x 360 at 15 fps | |
| Diagonal viewing angle: | ||
| Camera | 78 degrees | |
| Infrared camera | 78 degrees | |
To uchpad
The following table lists the touchpad specifications of your Latitude 9420.
Table 16. Touchpad specifications
| Description | Values |
| Touchpad resolution: | >=300dpi |
| Description | Values | |
| Touchpad dimensions: | ||
| Horizontal | 116 mm (4.56 in.) | |
| Vertical | 72 mm (2.83 in.) | |
| Touchpad gestures | For more information about touchpad gestures available on Windows, see the Microsoft knowledge base article 4027871 at support.microsoft.com. | |
Power adapter
The following table lists the power adapter specifications of your Latitude 9420.
Table 17. Power adapter specifications
| Description | Option one | Option two | Option three | |
| Type | 60 W AC adapter, USB-C | 65 W AC adapter, USB-C | 90 W AC adapter, USB-C | |
| Input voltage | 100 VAC—240 VAC | 100 VAC—240 VAC | 100 VAC—240 VAC | |
| Input frequency | 50 Hz—60 Hz | 50 Hz—60 Hz | 50 Hz—60 Hz | |
| Input current (maximum) | 1.70 A | 1.70 A | 1.50 A | |
| Output current (continuous) |
|
|
| |
| Rated output voltage | 20 VDC/15 VDC/9 VDC/5 VDC | 20 VDC/15 VDC/9 VDC/5 VDC | 20 VDC/15 VDC/9 VDC/5 VDC | |
| Temperature range: | ||||
| Operating | 0 °C to 40 °C (32 °F to 104 °F) | 0 °C to 40 °C (32 °F to 104 °F) | 0 °C to 40 °C (32 °F to 104 °F) | |
| Storage | -40 °C to 70 °C (-40 °F 158 °F) | -40 °C to 70 °C (-40 °F 158 °F) | -40 °C to 70 °C (-40 °F 158 °F) | |
| CAUTION: Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components. | ||||
Battery
The following table lists the battery specifications of your Latitude 9420.
Table 18. Battery specifications
| Description | Option one | Option two |
| Battery type | 2-cell, 39.7 WHr, ExpressChargeBoost | 3-cell, 59.6 WHr, ExpressChargeBoost |
| Battery voltage | 7.70 VDC | 11.40 VDC |
| Description | Option one | Option two | |
| Battery weight (maximum) | 0.19 kg (0.41 lb) | 0.26 kg (0.57 lb) | |
| Battery dimensions: | |||
| Height | 250.70 mm (9.87 in.) | 250.70 mm (9.87 in.) | |
| Width | 89.18 mm (3.50 in.) | 89.18 mm (3.50 in.) | |
| Depth | 6.17 mm (0.24 in.) | 6.17 mm (0.24 in.) | |
| Temperature range: | |||
| Operating |
|
| |
| Storage | -20 °C to 60 °C (-4 °F to 140 °F) | -20 °C to 60 °C (-4 °F to 140 °F) | |
| Battery operating time | Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions. | Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions. | |
| Battery charging time (approximate) NOTE: Control the charging time, duration, start and end time, and so on using the Dell Power Manager application. For more information on the Dell Power Manager see, Me and My Dell on www.dell.com. | 4 hours (when the computer is off) | 4 hours (when the computer is off) | |
| CAUTION: Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components. | |||
Display
The following table lists the display specifications of your Latitude 9420.
Table 19. Display specifications
| Description | Option one | Option two | |
| Display type | 14-inch, Full High Definition (FHD+) | 14-inch, Quad High Definition (QHD+) | |
| Display-panel technology | Low blue light (LBL) | Low blue light (LBL) | |
| Display-panel dimensions (active area): | |||
| Height | 188.49 mm (7.42 in.) | 188.49 mm (7.42 in.) | |
| Width | 301.59 mm (11.87 in.) | 301.59 mm (11.87 in.) | |
| Diagonal | 355.64 mm (14.00 in.) | 355.64 mm (14.00 in.) | |
| Display-panel native resolution | 1920 x 1200 | 2560 x 1600 | |
| Luminance (typical) | 500 nits | 500 nits | |
| Description | Option one | Option two |
| Megapixels | 2.30 | 4.09 |
| Color gamut | sRGB 100% | sRGB 100% |
| Pixels Per Inch (PPI) | 161 | 216 |
| Contrast ratio (typ) | 16:10 | 16:10 |
| Response time (max) | 35 ms | 35 ms |
| Refresh rate | 60 Hz | 60 Hz |
| Horizontal view angle | 88 degree | 88 degree |
| Vertical view angle | 88 degree | 88 degree |
| Pixel pitch | 0.1572 mm | 0.1178 mm |
| Power consumption (maximum) | 2.85 W | 3.70 W |
| Anti-glare vs glossy finish | Anti-glare | Anti-reflection, Anti-smudge |
| Touch options | No | Yes |
Fingerprint reader (optional)
The following table lists the specifications of the optional fingerprint-reader of your Latitude 9420.
Table 20. Fingerprint reader specifications
| Description | Values |
| Fingerprint-reader sensor technology | Trans-capacitive sensing |
| Fingerprint-reader sensor resolution | 500 dpi |
| Fingerprint-reader sensor pixel size | 108 x 88 |
Sensor
The following table lists the sensor of your Latitude 9420.
Table 21. Sensor
| Sensor support |
| Gyroscope |
| eCompass/Magnetometer |
| Accelerometer |
| GPS (via WWAN Card only) |
| Ambient Light Sensor |
| Adaptive Thermal Performance (via Gyroscope/Accelerometer) |
| Sensor support |
| Dell ExpressSign-In 1.0 (via Proximity Sensor) |
| Dell ExpressSign-in 2.0 (via Intel Camera Sensing Technology) |
| Wake/Power on with lid open |
GPU—Integrated
The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Latitude 9420.
Table 22. GPU—Integrated
| Controller | External display support | Memory size | Processor |
| Intel Iris Xe Graphics | HDMI 2.0, DisplayPort over USB Type-C | Shared system memory | 11th Generation Intel Core i5/i7 Processors |
Operating and storage environment
This table lists the operating and storage specifications of your Latitude 9420. Airborne contaminant level: G1 as defined by ISA-S71.04-1985
Table 23. Computer environment
| Description | Operating | Storage |
| Temperature range | 0°C to 40°C (32°F to 104°F) | -40°C to 60°C (-40°F to 140°F) |
| Relative humidity (maximum) | 10% to 90% (non-condensing) | 0% to 95% (non-condensing) |
| Vibration (maximum)* | 0.66 GRMS | 1.30 GRMS |
| Shock (maximum) | 140 G† | 160 G† |
| Altitude range | -15.2 m to 3048 m (-50 ft to 10000 ft) | -15.2 m to 10668 m (-50 ft to 35000 ft) |
| CAUTION: Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components. | ||
* Measured using a random vibration spectrum that simulates user environment.
† Measured using a 2 ms half-sine pulse.
Dell Optimizer
On Latitude 9420 with Dell Optimizer, the following features are supported:
- Express Connect—Automatically joins the access point with the strongest signal, and directs bandwidth to conferencing applications when in use.
- Express Sign-in—The Intel Context Sensing Technology’s proximity sensor detects your presence to instantly wake up the computer and login using the IR camera and Windows Hello feature. Windows locks when you walk away.
- ExpressResponse—Prioritizes the most important applications. Applications open faster and perform better.
- ExpressCharge—Extends the battery runtime and improves battery performance by adapting to your patterns.
For more information on configuring and using these features, see the Dell Optimizer User’s guide at,
https://www.dell.com/support/home/en-in/product-support/product/dell-optimizer/docs.
SafeShutter
SafeShutter is an automatic security webcam that knows when to automatically open or close the camera shutter by syncing to your video conferencing applications when you grant permission.
SafeShutter lets you take control of your privacy with the Camera disable (F9 Key) and Mic mute (F4 Key) to override software settings. When the Camera is on, press the F9 key to close the Camera shutter and then press the F9 key again to open the Camera shutter.
Dell low blue light display
WARNING: Prolonged exposure to blue light from the display may lead to long-term effects such as eye strain, eye fatigue, or damage to the eyes.
Blue light is a color in the light spectrum which has a short wavelength and high energy. Chronic exposure to blue light, particularly from digital sources, may disrupt sleep patterns and cause long-term effects such as eye strain, eye fatigue, or damage to the eyes.
The display on this computer is designed to minimize blue light and complies with TÜV Rheinland’s requirement for low blue light displays.
Low blue light mode is enabled at the factory, so no further configuration is necessary.
To reduce the risk of eye strain, it is also recommended that you:
- Position the display at a comfortable viewing distance between 20 and 28 inches (50 and 70 cm) from your eyes.
- Blink frequently to moisten your eyes, wet your eyes with water, or apply suitable eye drops.
- Look away from your display, and gaze at a distant object at 20 ft (609.60 cm) away for at least 20 seconds during each break.
- Take an extended break for 20 minutes every two hours.
Keyboard shortcuts
NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations.
Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. The symbol shown on the lower part of the key refers to the character that is typed out when the key is pressed. If you press shift and the key, the symbol shown on the upper part of the key is typed out. For example, if you press 2,
2 is typed out; if you press Shift + 2, @ is typed out.
The keys F1-F12 at the top row of the keyboard are function keys for multi-media control, as indicated by the icon at the bottom of the key. Press the function key to invoke the task represented by the icon. For example, pressing F1 mutes the audio (refer to the table below).
However, if the function keys F1-F12 are needed for specific software applications, multi-media functionality can be disabled
by pressing Fn + Esc. Subsequently, multi-media control can be invoked by pressing Fn and the respective function key. For example, mute audio by pressing Fn + F1.
NOTE: You can also define the primary behavior of the function keys (F1–F12) by changing Function Key Behavior in BIOS setup program.
Table 24. List of keyboard shortcuts
| Function key | Primary behavior | Function key | Secondary behavior |
| F1 | Mute audio | Fn + F1 | Operating system and application specific F1 behavior |
| F2 | Decrease volume | Fn + F2 | Operating system and application specific F2 behavior |
| F3 | Increase volume | Fn + F3 | Operating system and application specific F3 behavior |
| F4 | Mic Mute | Fn + F4 | Operating system and application specific F4 behavior |
| F5 | Keyboard backlight NOTE: Not applicable for non- backlight keyboard. | Fn + F5 | Operating system and application specific F5 behavior |
| F6 | Decrease screen brightness | Fn + F6 | Operating system and application specific F6 behavior |
| F7 | Increase screen brightness | Operating system and application specific F7 behavior | |
| F8 | Switch to external display | Fn + F8 | Operating system and application specific F8 behavior |
| F9 | Disable camera | Fn + F9 | Operating system and application specific F9 behavior |
| Function key | Primary behavior | Function key | Secondary behavior |
| F10 | Print Screen | Fn + F10 | Operating system and application specific F10 behavior |
| F11 | Home | Fn + F11 | Operating system and application specific F11 behavior |
| F12 | End | Fn + F12 | Operating system and application specific F12 behavior |
The Fn key is also used with selected keys on the keyboard to invoke other secondary functions.
Table 25. Secondary behavior
| Function key | Behavior |
| Fn + Esc | Toggle Fn-key lock |
| Fn + PrtScr | Turn off/on wireless |
| Fn + B | Pause/Break |
| Fn + Insert | Sleep |
| Fn + S | Toggle scroll lock |
| Fn + H | Toggle between power and battery-status light/hard-drive activity light |
| Fn + R | System request |
| Fn + Ctrl | Open application menu |
| Fn + PgUp | Page up |
| Fn + PgDn | Page down |
| Fn + Home | Home |
| Fn + End | End |
Getting help and contacting Dell
Self-help resources
You can get information and help on Dell products and services using these self-help resources:
Table 26. Self-help resources
| Self-help resources | Resource location |
| Information about Dell products and services | www.dell.com |
| Tips | |
| Contact Support | In Windows search, type Contact Support, and press Enter. |
| Online help for operating system | www.dell.com/support/windows |
| Troubleshooting information, user manuals, setup instructions, product specifications, technical help blogs, drivers, software updates, and so on. | www.dell.com/support |
| Dell knowledge base articles for a variety of computer concerns. | 1. Go to https://www.dell.com/support/home/? app=knowledgebase. 2. Type the subject or keyword in the Search box. 3. Click Search to retrieve the related articles. |
Contacting Dell
To contact Dell for sales, technical support, or customer service issues, see www.dell.com/contactdell.
NOTE: Availability varies by country and product, and some services may not be available in your country.
NOTE: If you do not have an active internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.
