JBL Xtreme 3 Speaker
Quick Start Guide

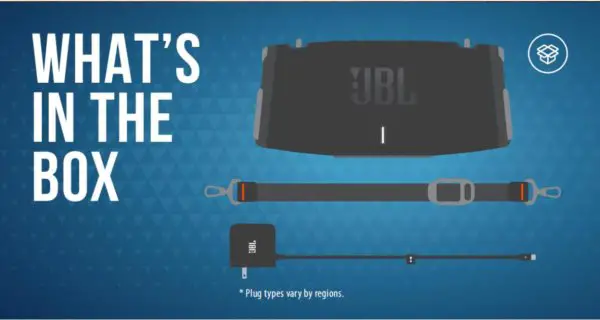

WHAT’S IN THE BOX

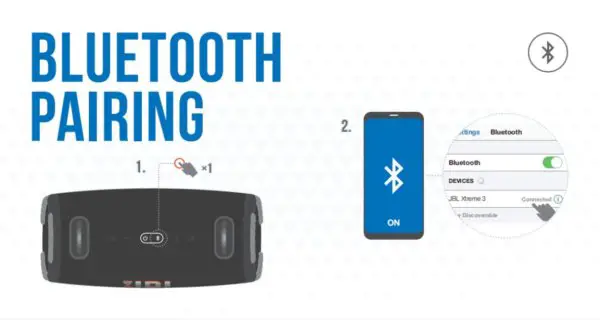

BLUETOOTH PAIRING

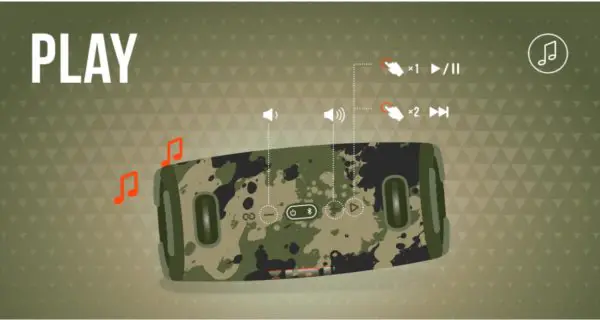

PLAY

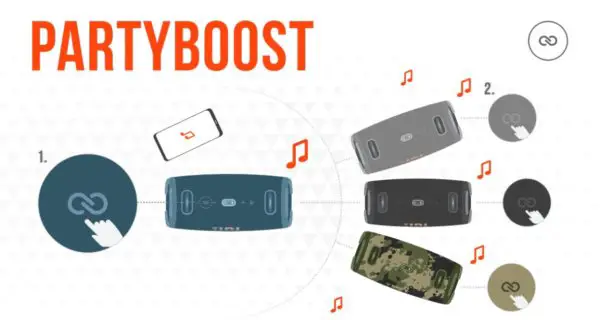

PARTYBOOST

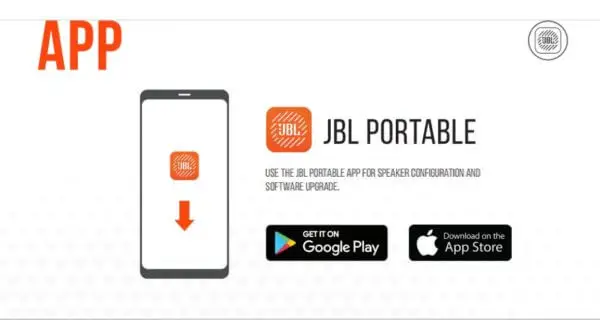

APP

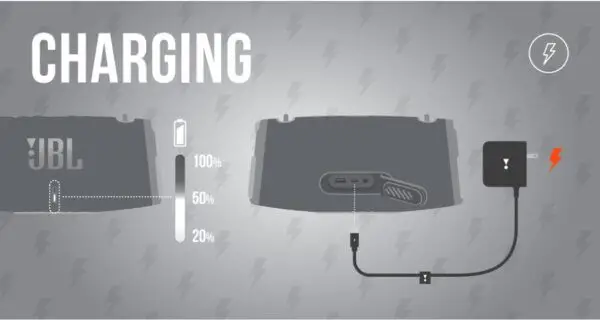

CHARGING

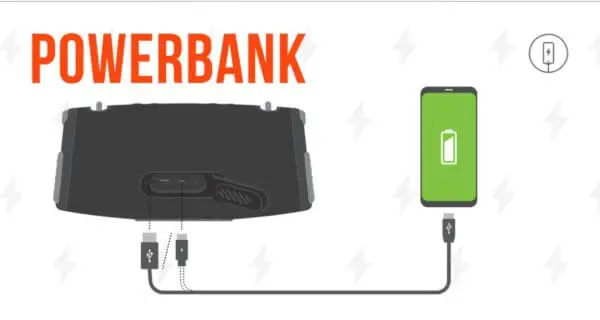

POWERBANK

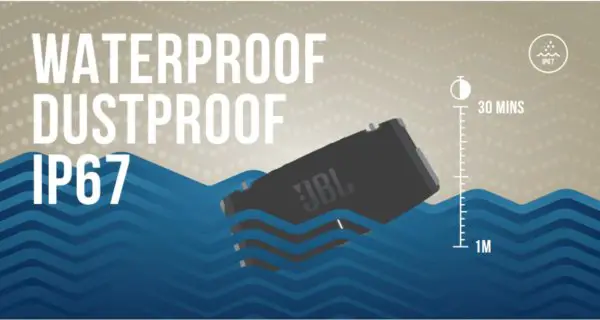

WATERPROOF DUSTPROOF IP677
TECH SPEC
- Transducers: 2 x 70 mm woofer / 2 x 2.75’’, 2 x 20 mm tweeter/ 2 x 0.75”
- Output power: 2 x 25W RMS woofer + 2 x 25W RMS tweeter (AC power mode)
- Power input: 5V / 9V / 12V / 15V / 20V, 3A
- Frequency response: 53.5 Hz – 20 kHz
- Signal-to-noise ratio: > 80 dB
- Battery type: Li-ion 36.3 Wh
- Battery charge time: 2.5 hours (20 V/3 A)
- Music playtime: up to 15 hours (dependent on volume level and audio content)
- USB-A charge out: 5V / 2A (maximum)
- USB-C charge out: 5V / 1.5A (maximum)
- Total 2.5A maximum for USB-A & USB-C
- Bluetooth® version: 5.1
- Bluetooth® profile: A2DP 1.3, AVRCP 1.6
- Bluetooth® transmitter modulation: GFSK, π/4 DQPSK, 8DPSK
- Bluetooth® transmitter frequency range: 2400 MHz – 2483.5 MHz
- Bluetooth® transmitter power: < 12 dBm (EIRP)
- 2.4GHz SRD frequency range: 2407 MHz ~ 2475 MHz
- SRD transmitter power: < 10 dBm (EIRP)
- Dimensions (W x H x D): 298.5 x 136 x 134 mm / 11.75 x 5.35 x 5.28”
- Weight: 1.968 kg / 4.339 lbs
Warning
To protect battery lifespan, fully charge at least once every 3 months. Battery life will vary due to usage patterns and environmental conditions.
Do not expose the JBL Xtreme 3 to liquids without removing cable connection. Do not expose JBL Xtreme 3 to water while charging. After a liquid spill, do not charge your speaker until it’s completely dry and clean. Charging when wet may result in permanent damage to the speaker or power source.
When using an external adapter or USB-C cable, the speaker performance will be affected during charging.
