Urbanista Nashville Bluetooth Speaker User Manual

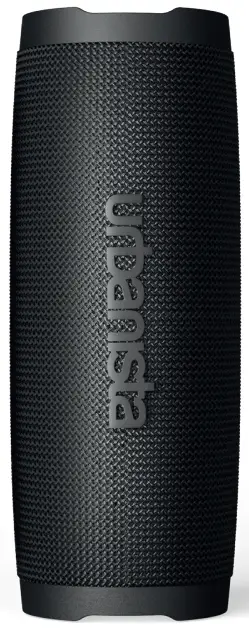

NASHVILLE Bluetooth Speaker
User Manual

NASHVILLE Bluetooth Speaker

URBANISTA NASHVILLE
Thank you for choosing an Urbanity product.

CONNECT TO DEVICE

Turn on the speaker via -button and then turn on the Bluetooth on your device. Select “Urbanista Nashville”.
If the speaker have been connected to a device before, it will automatically go into pairing mode and connect to the device when powered on.
To disconnect the current device, press and hold down the – button for 2 seconds.

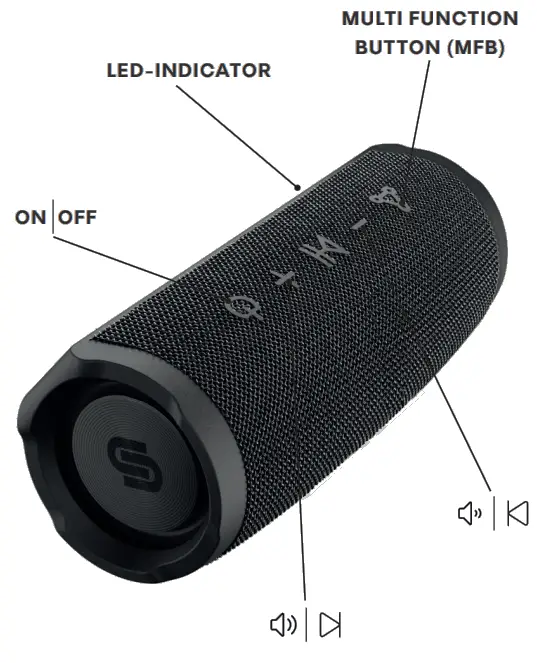

BUTTON CONTROLS

Volume up/Next Track Button
Volume Up:
Press and Release to increase volume
Holding the button down will result in next track
Track Forward:
Press and Hold Down for 2 Seconds
Volume down/Track Back Button
Volume Down:
Press and Release decrease volume
Holding the button down will result in track back
Track Back:
Press and Hold for 2 Second

LED LIGHTS
Lit Blue when speaker is on:
Flashing Blue; speaker is in pairing mode
Solid Blue; Speaker is connected
Lit Red when charging:
Slowly flashing Red; battery is charging
Solid Red; battery is fully charged

PAIRING TWO SPEAKERS

1. Connect speaker A to a device.
2. Put Speaker B into pairing mode by powering it on .
3. Double-ck lick the Multi Function Button on speaker A to enter Stereo Link pairing mode.
4. Speaker A and B will now connect, followed by solid blue and white LED indications.

WIRELESS HANDS FREE SPEAKERPHONE

• The Wireless Hands Free Personal Speakerphone feature works over Bluetooth with Smartphones and iPhones only.
• This feature is not supported when connected to PCs, laptops, Apple Mac or other types of devices.

To answer an Incoming Call / To End a Call:

• Short press the MFB-button

To Reject an Incoming Call:

• Longpress the MFB- Button for 2 Seconds.

Please keep the speaker close in front of you so you may be heard clearly by the listener.
You can use your Smartphone or iPhone to switch between using Hands Free Speakerphone and your phone.

IPX7 WATERPROOF
IPX7 means the Urbanista Nashville is WaterProof and can handle water spray or being splashed and can handle being partially or fully submerged in water up to a maximum of 3 feet/0.9m deep, for up to a maximum of 30 minutes.
Important Safety Precaution: To avoid the risk of electric shock, please do not use your speaker near water when charging”.
