Thundercomm Turbox C865 Development Kit User Guide

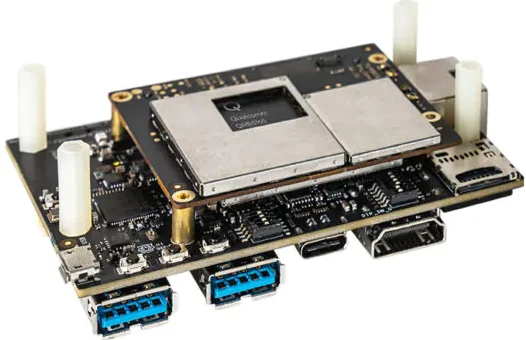

Thundercomm TurboX C865 Development Kit

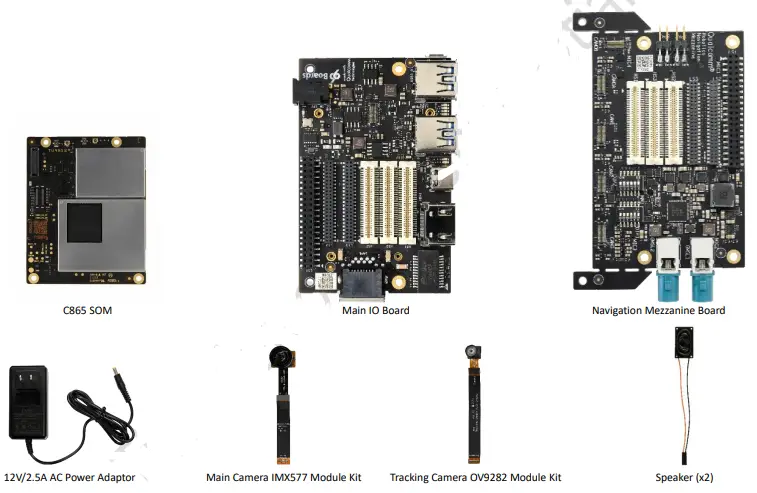

Package List

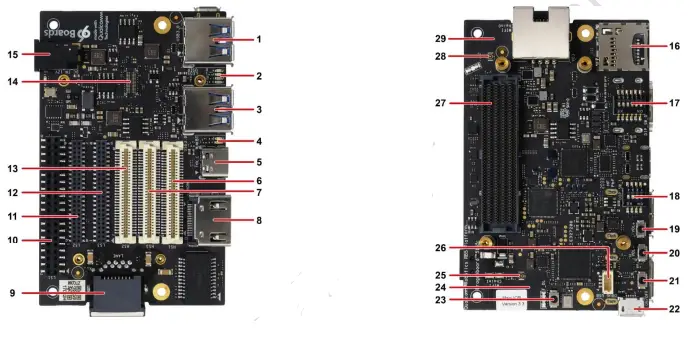

Main IO Board Interface List

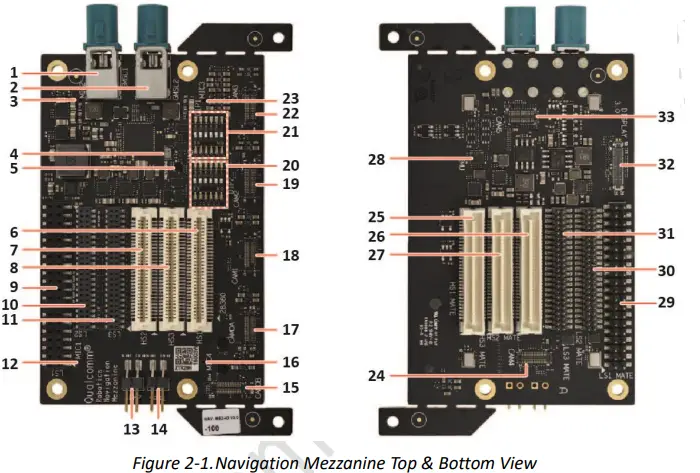

Navigation Mezzanine Board Interface List

Table 2-1. Navigation mezzanine interface list

* LS/HS mate connectors on navigation mezzanine goes to main IO LS/HS connectors

Let’s Get Started

Follow the steps below to boot up your device.

1. Remove C865 DK board carefully from the package.
2. Connect the power adapter to the board via DC jack (connector 15 on Main IO Board).

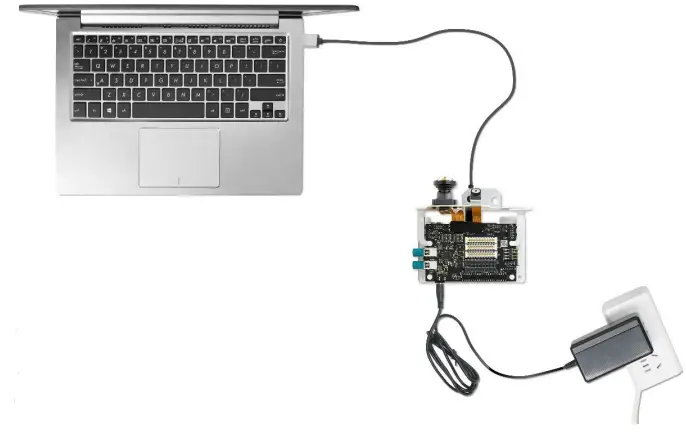

3. Connect the board assembly to a computer via
   • Type-C USB 3.1 connector (connector 5 on Main IO Board) if adb tool is needed.
   • USB 2.0 debug connector (connector 22 on Main IO Board) if debug function is needed.
4. Press Power on button (connector 21 on Main IO Board) for three seconds to boot up the device.

Contact us

Email: [email protected]
Address: 1601 McCarthy Blvd Suite R-12 Milpitas CA,95035
Support software and documentation downloads: www.thundercomm.com
