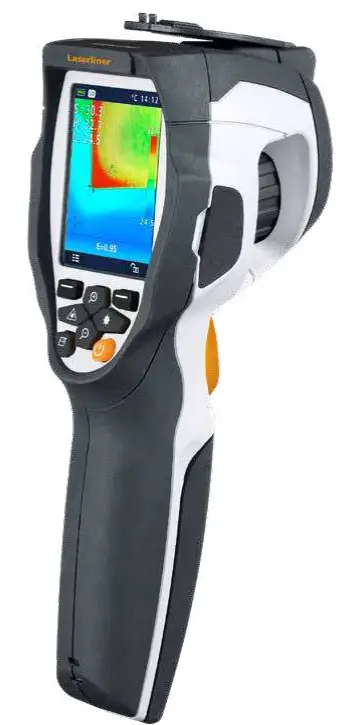

Laserliner 082.083A ThermoCamera Compact Plus Pro

Function / Application

This thermographic camera allows for non-contact temperature measurement on surfaces by means of radiation in the infrared wavelength range via the integrated non-chilled microbolometer. The imaging technology of the sensor provides a visual image of the temperatures surrounding the inspected object. The temperature differences can be visualised by colour-coding the individual temperatures in a thermo-gram with false colour display. Possible application options include detecting thermal bridges and insulation flaws, locating overheating spots in electrical or mechanical building elements, finding heating pipes in walls or floors, detecting leaks, locating defective solar cells in PV modules etc.

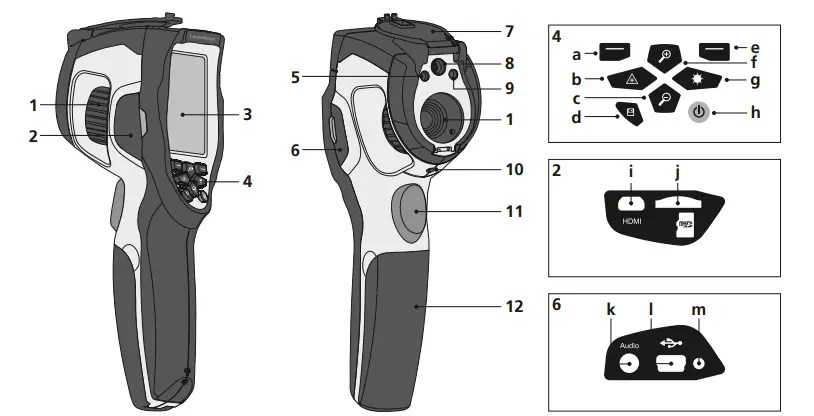

Infrared camera lens / Focusing ring
Shaft left
2,8“ TFT colour display
Hot keys
LED lighting
Shaft right
Lens cover
Camera
Laser output
1/4“ tripod connection
Trigger: Capture
Battery compartment
- Main menu / Control menu (Confirmation)
- Activate / deactivate laser / Menu navigation
- Zoom – / Menu navigation
- Media gallery
- Control menu (Cancel) / Temperature range manual / automatic
- zoom + / Menu navigation
- LED lighting on/off / Menu navigation
- ON/OFF
- Video output
- Micro-SD card slot
- Microphone / headphone jack
- Mini USB interface / Power supply / battery charger input
- Charging LED

ThermoCamera Compact Plus / Pro

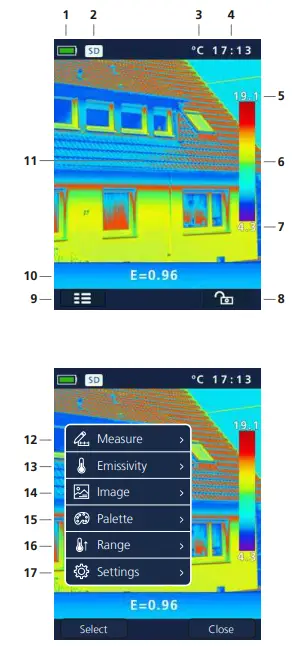

Standard measurement view

Battery charge indicator
Micro-SD card inserted
Temperature unit
Time
Max. temperature
Colour spectrum with a temperature range
Min. temperature
Temperature range manual / automatic 9 Main menu
Set emissivity coefficient
Thermography image

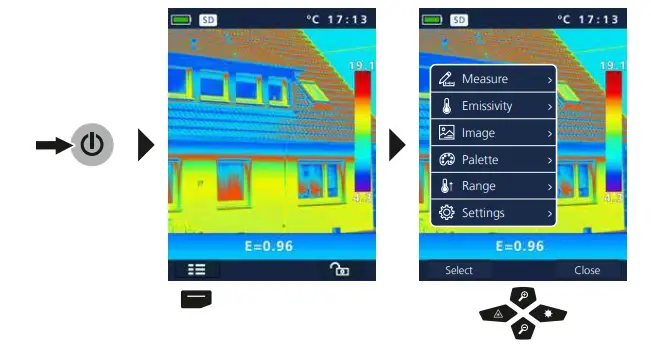

Main menu
Add measurement points
Set emissivity coefficient
Set image

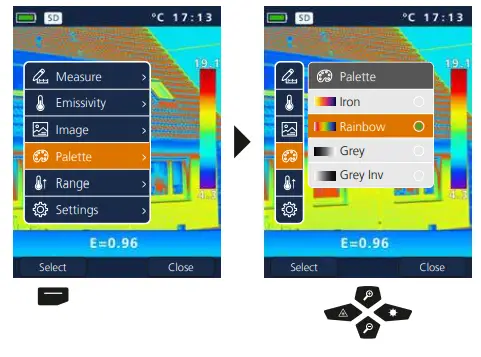

Change colour pallet
Set measuring range
General and measurement-specific settings

ON / OFFCharging the li-ion battery

To charge the Li-Ion battery pack, plug the supplied power supply/battery charger into charging socket „l“ and connect it to an appropriate power source. Operation while charging is possible.

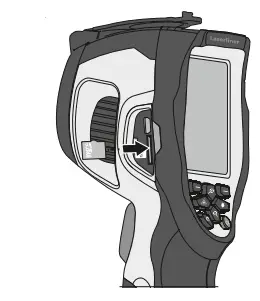

Inserting micro-SD cardTo insert a micro-SD card, first open the rubber cover and then insert the memory card as illustrated. You cannot record anything without a storage medium.
SD card prerequisite: microSDHC, class 10, FAT32
Removing/inserting li-ion battery pack
Open battery compartment (12).
Main menuGeneral and measurement-specific settings can be the main menu. The menu made in the four buttons (b, c, f, g).

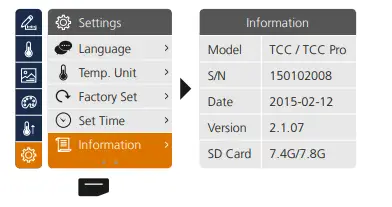

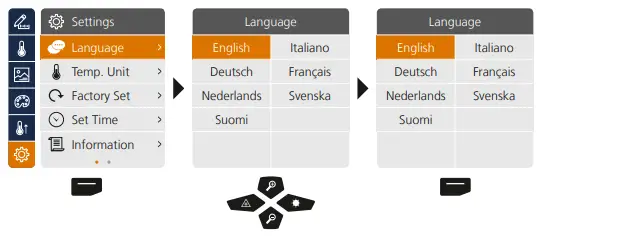

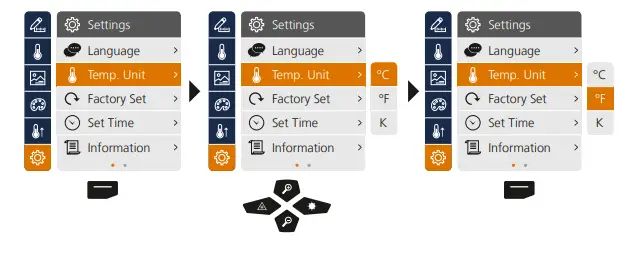

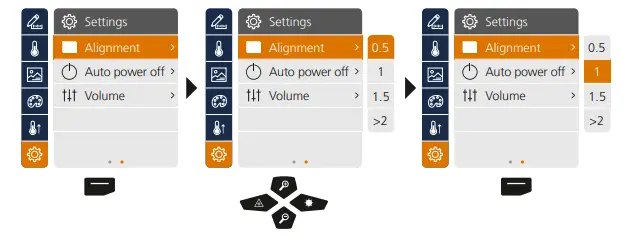

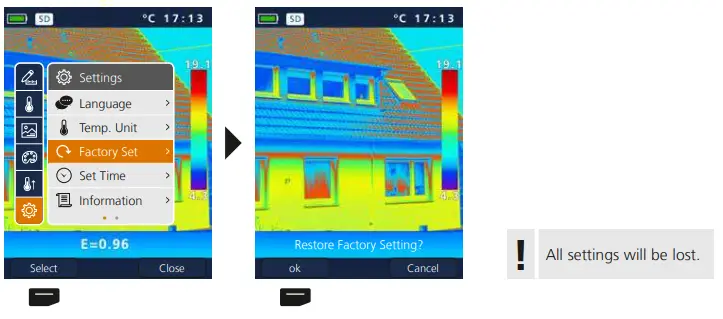

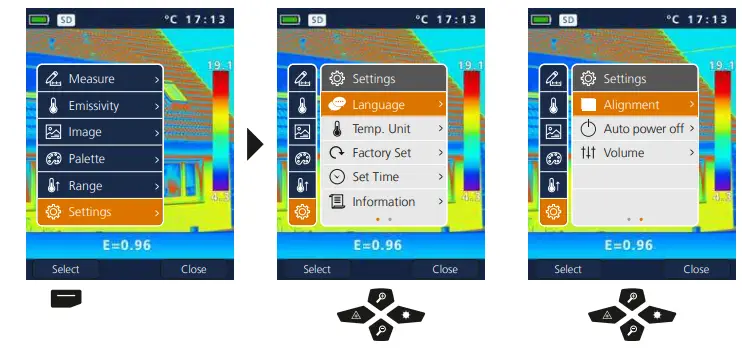

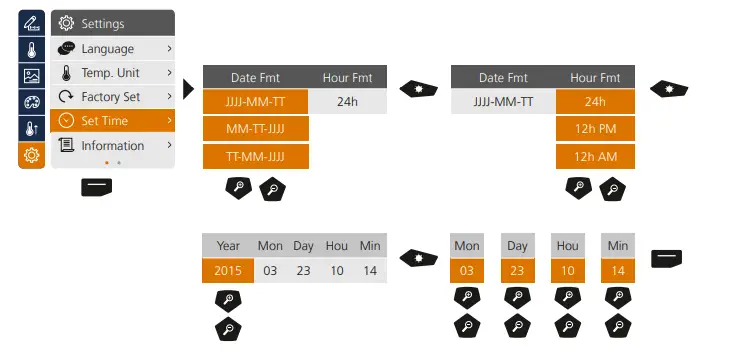

SettingsSettings: To set menu language EN / DE / NL / FI / IT / FR / SVSettings: Temperature unitSettings: Factory Set Settings: Set TimeSettings: Information Settings: AlignmentSettings: Auto power off

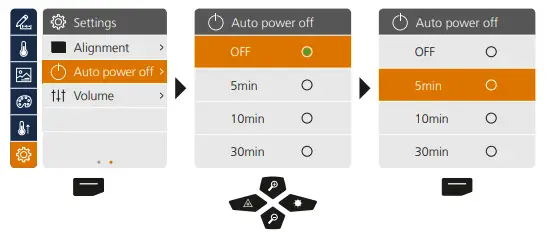

The device switches off automatically after a set period of inactivity.

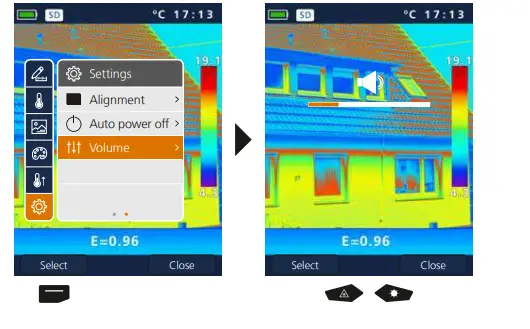

Settings: VolumeMeasure

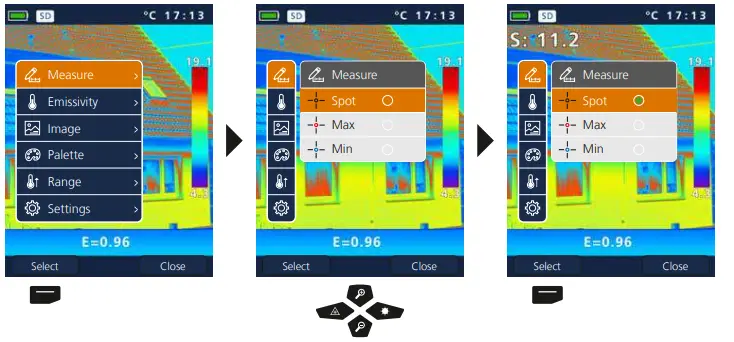

Up to three measuring points can be defined simultaneously (Spot (S): temperature at centre of image, Max (H): highest temperature, MIN (C): lowest temperature).Emissivity
Before each use, check the settings for infrared measurement and adjust them to the respective measuring situation to ensure accurate measurements. Pay particular attention to the general parameters for the emissivity coefficient and the reflection temperature.

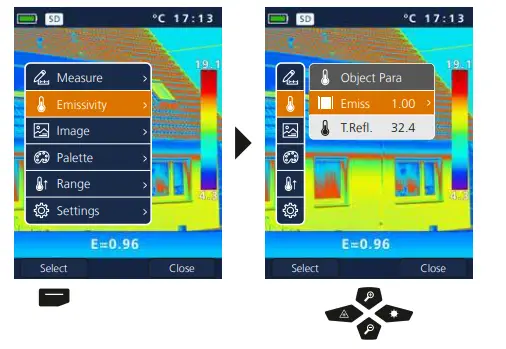

Emissivity: Emissivity coefficient
The level of infrared emissions given off by everything depends on the specific material and surface. This factor is determined by the emissivity coefficient (0.10 … 1.0). For accurate measurements, it is absolutely essential that the emissivity coefficient is set first. The emissivity coefficient can either be custom set or selected based on the predefined emissivity coefficients from the material list. Pressing and holding the button increases or decreases the value in steps of 10.

Emissivity table (reference values with tolerances)

Metals
Alloy A3003 Oxidised Roughened	0.20 0.20	Iron Oxidised With rust	0.75 0.60	Steel Alloy (8% nickel, 18% chromium) Galvanised Oxidised Heavily oxidised Freshly rolled Rough, flat surface Rusty, red Sheet, nickel plated Sheet, rolled Stainless steel	0.35 0.28 0.80 0.88 0.24 0.96 0.69 0.11 0.56 0.45
Aluminium Oxidised Polished	0.30 0.05	Iron, cast Non-oxidised Molten mass	0.20 0.25
Brass Polished Oxidised	0.30 0.50	Iron, forged Matt	0.90
		Lead Rough	0.40
Chromium oxide	0.81
Copper Oxidised Copperoxide	0.72 0.78	Platinum Black	0.90
				Zinc Oxidised	0.10
		Steel Cold rolled Ground plate Polished plate	0.80 0.50 0.10
Inconel Oxidised Electropolished	0.83 0.15

Nonmetals
Asbestos	0.93	Gravel	0.95	Paper All colours	0.96
Asphalt	0.95	Grit	0.95	Paper All colours	0.96
Basalt	0.70	Gypsum	0.88	Plastic Translucent PE, P, PVC	0.95 0.94
Brick, red	0.93	Gypsum cardboard	0.95	Plastic Translucent PE, P, PVC	0.95 0.94
Carborundum	0.90	Heat sink Black, anodized	0.98	Quartz glass	0.93
Cement	0.95	Heat sink Black, anodized	0.98	Rubber Hard Soft, grey	0.94 0.89
Ceramics	0.95	Human skin	0.98
China Brilliant white With glaze	0.73 0.92	Ice Clear With heavy frost	0.97 0.98
				Sand	0.95
				Screed	0.93
Clay	0.95	Laminate	0.90	Snow	0.80
Coal Non-oxidised	0.85	Lime	0.35	Soil	0.94
Coal Non-oxidised	0.85	Lime malm brick	0.95	Tar	0.82
Concrete, plaster, mortar	0.93	Limestone	0.98	Tar paper	0.92
Cotton	0.77	Marble Black, dull finish Greyish, polished	0.94 0.93	Transformer paint	0.94
Earthenware, matt	0.93	Marble Black, dull finish Greyish, polished	0.94 0.93	Wallpaper, light-coloured	0.89
Fabric	0.95	Masonry	0.93	Water	0.93
Glass	0.90	Paint Black, matt Heat-resistant White	0.97 0.92 0.90	Wood Untreated Beech, planed	0.88 0.94
Glass wool	0.95
Graphite	0.75

Emissivity: Reflection temperature

Reflection temperature

Infrared measurements of specific objects can be affected by reflection from other objects nearby or even from the ambient air because the measured object cannot be fully isolated. The reflection temperature setting can help compensate for the interference. The reflection temperature is generally the same as the ambient temperature. However, if larger objects with significantly different temperatures (approx. > 20 °C) are in close proximity to the measured area, its effects must be taken into account. For this purpose, follow these steps:

Set emissivity coefficient to 1.0
Blur the object out of focus (Refer to Section 14)
Aim the camera in the opposite direction of the actual measured object
Determine the average temperature
Set the average temperature as the reflection temperature

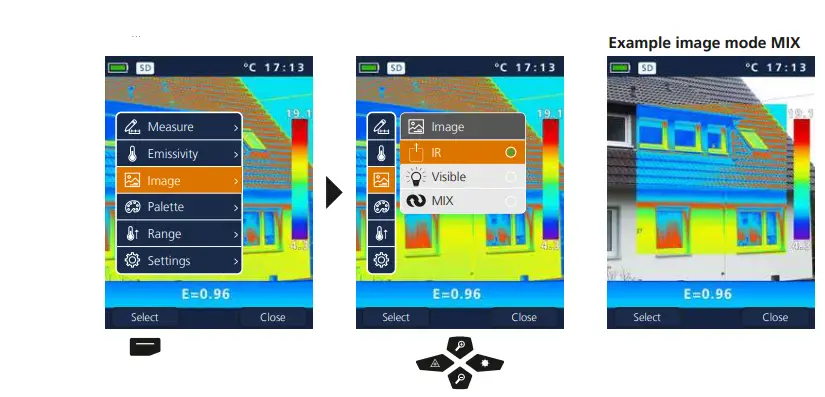

Image modes

There are 3 image modes to choose from.

IR image (IR)
Digital image (Visible)
Digital full-screen image with IR image (MIX)

Colour ranges IR image

You can choose from several standard colour ranges to represent the measured infrared temperatures. Depending on the colour palette, the measured temperatures are adjusted within the current image section and displayed in the respective colour space. The bargraph for the respective minimum/ maximum temperatures of the entire image serves as a reference for the corresponding temperature/ colour mapping.

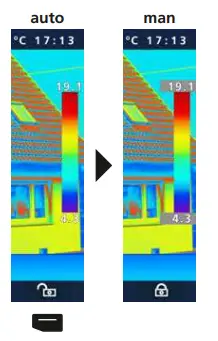

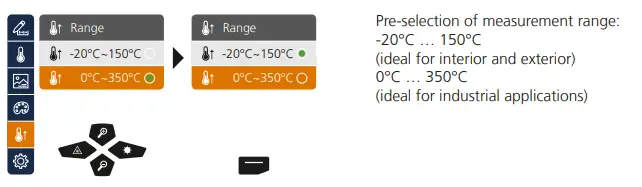

Measurement rangeTemperature range manual/automatic

Automatic temperature range
This setting is used to adjust the temperature range of the IR image and the resulting distribution of the colour spectrum of the infrared image. The colour spectrum of the measured IR image is determined in relation to the temperature range and colour scale.
The colour distribution of the IR image is automatically and dynamically adjusted in the bargraph based on the measured min./max. values.
Manual temperature range

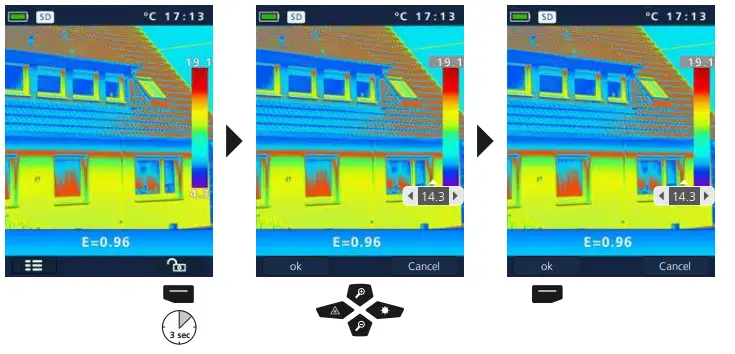

In manual settings mode, the temperature range is no longer set automatically based on the measured min./max. values but rather determined on the basis of manual values. Refer to Section 13
The min/max values last measured are taken as the default setting every time the temperature range is switched from AUTO to Manual.

Manual temperature rangeCamera focus / Shutter-function

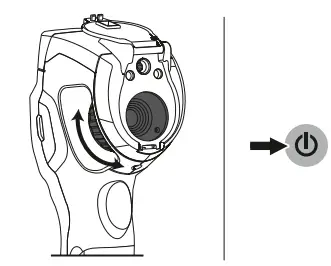

In addition to the basic settings in the measuring tool, the camera focus and the shutter function (image calibration) play an essential role in achieving high-quality thermography results. You should focus on the measured object as well as possible so that the outlines and contours are clearly visible on the display.
Image calibration takes place automatically or can be triggered manually by briefly pressing the ON/OFF button.

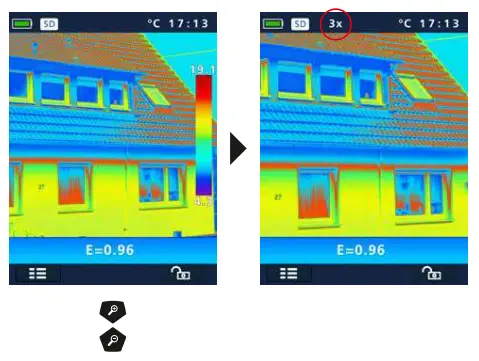

Zoom

The view can be zoomed (32x). Pressing and holding the button accelerates the zoom levels.

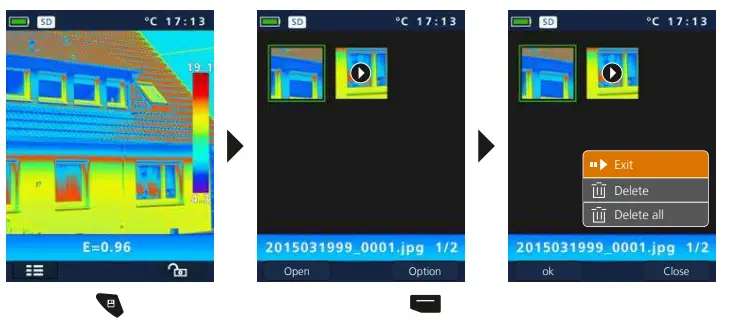

Media gallery / playback mode / to delete recording

In the media gallery, you can access and play all of the images and videos recorded with the ThermoCamera Compact

Capture image / record audio

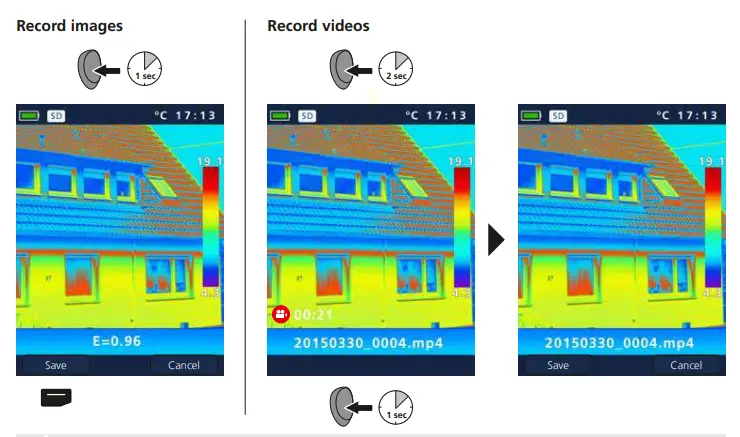

Using the „Trigger“ button (11), users can take images or video of any measurement situation for subsequent documentation. The microphone integrated in the headset also records audio while recording a video.You cannot record anything without a storage medium.

Target laser

The target laser makes area-specific measurements easier by facilitating pinpointing. In addition, the laser is represented as a red dot on the display. Press and hold button „b“ to switch the device on and off.

LED lighting

The LED lighting is switched ON/OFF by pressing and holding the button „g“.

USB data transfer

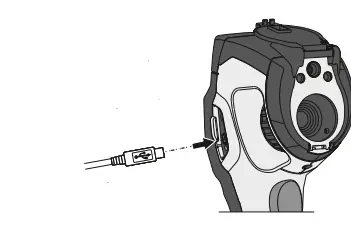

Data saved on the SD card can be transferred to PC either with a suitable card reader or directly via the USB port. Please refer to the manual supplied with your card reader for information about connecting your card adapter or card reader to a PC.

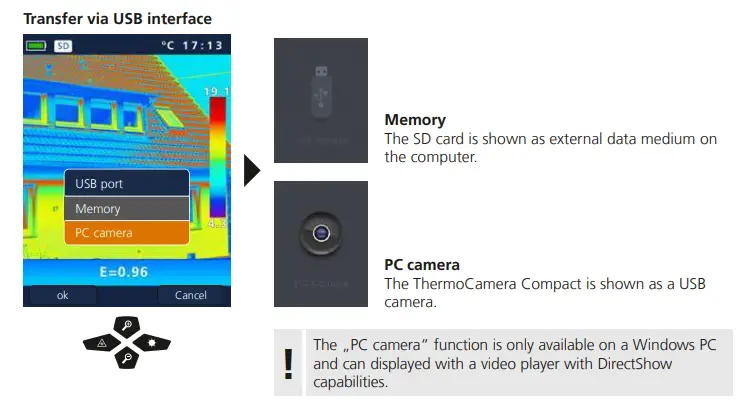

Transfer via USB interface

Software (optional)

With the software provided on the CD it is possible to transfer the recorded data to a PC and to use the data for further processing and documentation.

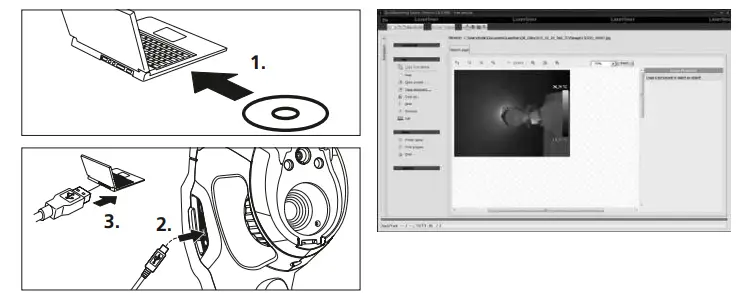

Load the CD in the drive and follow the installation routine. After successful installation, start the application. Connect one end of the supplied USB cable to the mini-USB port of the device and the other end to a free USB port on your computer. For further information on how to use the software, refer to the Help function that contains a detailed description of the functions.
It is not necessary to install a driver. The software operates under Windows XP / 7 / 8 and 10.

Instructions for maintenance

Perform the task at a location that is clean and free of dust and water
Switch off the camera, remove the battery
Do not touch the lens
Earth to protect from static charges
Do not touch the parts inside the thermal camera (sensors)
Protect both the interior and the lens from dust and contamination
Warranty expires in the case improper handling

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU.
This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.
Further safety and supplementary notices at: www.laserliner.com/info

General safety instructions

Laser radiation!
Do not stare into the beam! Class 2 laser < 1 mW · 635 nm
EN 60825-1:2014/AC:2017

Attention: Do not look into the direct or reflected beam.
The laser may not get into the hands of children!
Do not point the laser beam towards persons.
If a person‘s eyes are exposed to class 2 laser radiation, they should shut their eyes and immediately move away from the beam.
Do not expose the device to mechanical stress, extreme temperatures, moisture or significant vibration.
The device must only be used in accordance with its intended purpose and within the scope of the specifications. Modifications or changes to the device are not permitted.

Technical Data

(Subject to technical changes without notice. Rev18W48)

Technical Data (Subject to technical changes without notice. Rev18W48)
Distance measurement
Precision (typical)*	± 2 mm
Inside measurement range**	0,1 m – 50 m

Angle measurement
Measuring range	± 90°
Resolution	0,1°
Precision	0,1°

Laser class	2 < 1 mW
Laser wavelength	650 nm
Operating conditions	-10°C … 40°C, max. humidity 80% rH, no condensation, max. working altitude 2000 m above sea level
Storage conditions	-20°C … 70°C, max. humidity 80% rH
Radio module operating data	Bluetooth LE 4.x interface; Frequency band: ISM band 2400–2483.5 MHz, 40 channels; Transmission power: max. 10 mW; Bandwidth: 2 MHz; Bit rate: 1 Mbit/s; Modulation: GFSK/FHSS
Automatic switch-off	30-sec laser / 10 min device
Power supply	2 x AAA 1.5 Volt batteries

Technische Daten (Subject to technical changes without notice)
Dimensions (W x H x D)	43 x 110 x 27 mm
Weight (incl. batteries)	100 g

* measuring distance up to 10 m with strongly reflective target surface and at room temperature. The measurement deviation may increase by ± 0.2 mm/m for greater distances and under unfavourable measuring conditions such as strong sunlight or weakly reflective target surfaces.
** at max. 5000 lux
