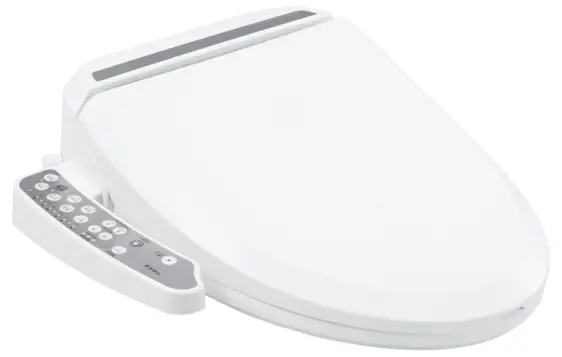

Puluomis US-AS003-X Smart Toilet

SAFETY PRECAUTIONS / PRECAUTIONS

For the safety of you and others, to avoid unnecessary harm and loss, please strictly follow the following tips to properly use this product.

WARNING
Warns you how to avoid personal injury.

ATTENTION

Indicates that you must observe or avoid some operation to prevent damage to the equipment or other items.

MARK	DESCRIPTION
Do not disassemble	This figure shows [forbidden]. Left shows [Do not disassemble].
Must be obeyed	This diagram shows the content that is mandatory. The figure on the left shows[Must be obeyed].
WARNING
	Do not disassemble, repair or modify the product yourself, otherwise it may cause malfunction.
	Do not pour water or detergent on the product body or power plug, as this may cause electric shock or malfunction.
	Do not use a wet hand to plug the power plug, it may be an electric shock.
	Make sure the water used is clean. Water pressure in line with the requirements.
Must be obeyed	This product is an electrical product, do not place it in a place where it is easy to be sprayed or moist. Make sure that the product’s power outlet must be 110V（220V） / 50Hz / 60Hz. The product’s power outlet must be grounded. Please use a socket that can load 1000W(1600W).
ATTENTION	Do not step on the body and seat cover. Do not use banana water, gasoline, pharmaceuticals and detergents or insecticides to wipe the product. For a long time sitting only on the toilet, please adjust the temperature to low, to avoid the end of the temperature burns. In the product is not water supply, do not reverse the product, will cause the heating tube dry failure. Persons with physical, perceptual, mental deficiencies or lack of experience and common sense (including children) Guardians use the case, is strictly prohibited children play the device.

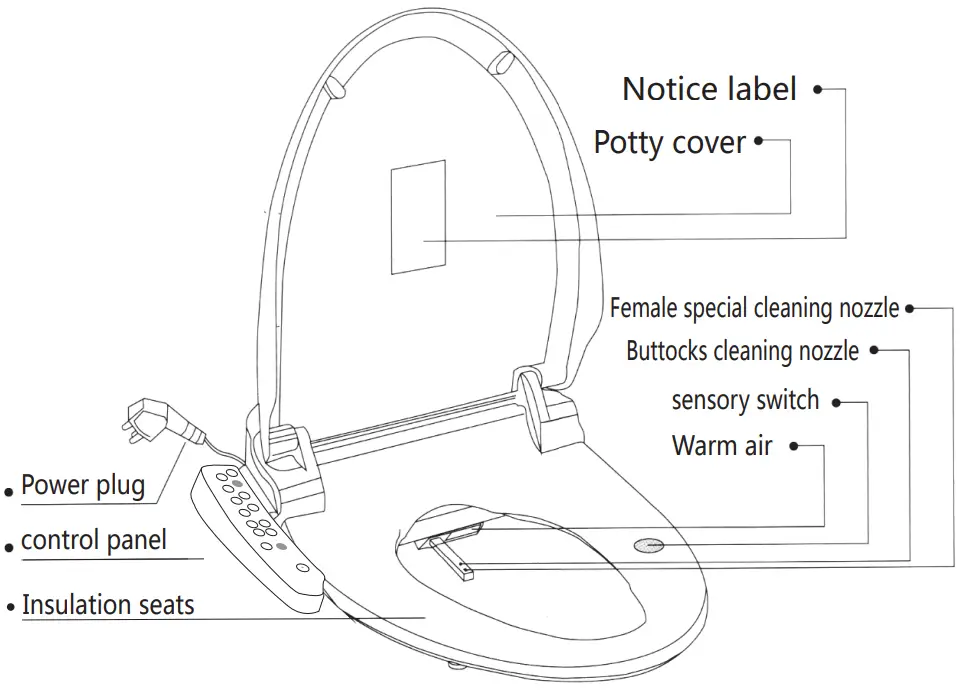

NAME OF EACH PART

PANEL DESCRIPTION:

Accessory

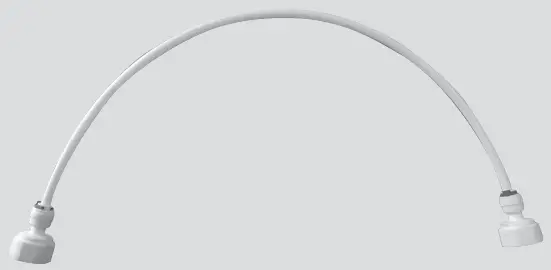

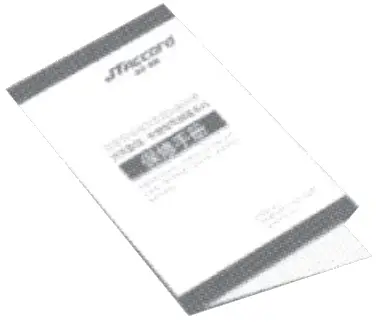

Three-way, 2 pieces of expansion, 2 pieces of expansion column, black gasket, fixed floor, stainless steel pipe, user manual.

INSTRUCTIONS

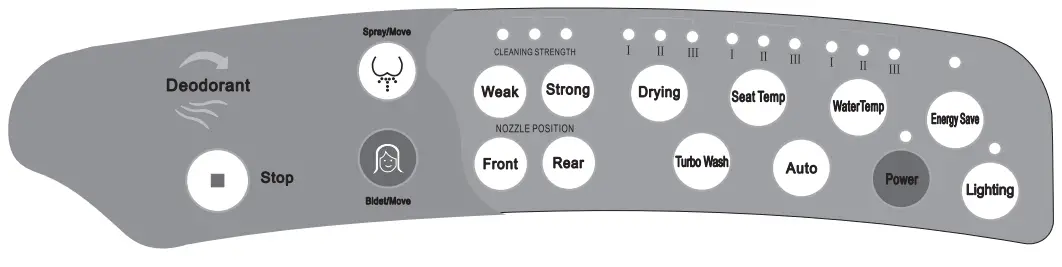

Key operation panel instructions

• Stop
  Pressing the stop button during use will stop running. When you get up from the toilet seat, it will stop automatically.
• Hip cleaning
  Press the wash button, run for 1 minutes will automatically stop. When the button is pressed again at run time, the nozzle moves back and forth to clean more parts. During operation, press the strength button to adjust the strength of the flushing water potential.
• Female special cleaning / moving
  Press this button to run for 1 minutes and then stop automatically. When running this button, the nozzle will move back and forth to clean more parts. During operation, press the strength button to adjust the strength of the flushing water potential.
• Warm air drying
  Press this button to start the heater drying function, about 3 minutes will automatically stop. Running in accordance with the strength of the button temperature will be low temperature – medium high four files gradually change.
• Fully automatic Press this button to run the auto-cleaning function (run automatically in “Cleaning function Move function – Hair function”)
• Will help
  Press this button to stop the function, and the [Stop] key can be stopped during the extension of the spray bar.
• Strength (warm air temperature cleaning strength)
  Buttocks wash outlet outlet, water pressure for the high-grade, water thin and urgent. Use this button during the use of personal hobbies, in the clean water can change the strength of change. In the drying, press this button to adjust the temperature of the hair, the fourth gear adjustable (room temperature / low / medium / high)
• Forward and backward
  This key for the spray bar before and after the adjustment key, when the original value of the mid-range out, in the use of cleaning process by the forward spray bar can be extended on the basis of the original value of 5mm; press the back button to the original value of the Based on the return 5mm. Forward 2 files adjustable, adjustable back 2 files.
• Water temperature
  This key is the water temperature adjustment key, Water temperature is divided into: room temperature / low temperature / medium temperature / high temperature, four gear cycle, according to their own preferences to adjust.
• Seat temperature
  This key is the seat temperature adjustment key, Block temperature is divided into: room temperature / low temperature / temperature / high temperature, four gear cycle, according to their own preferences to adjust.
• Energy-saving
  This key for the power button, power saving indicator light, enter the power saving mode
• power supply
  This key is the power on / off key

Terms and Conditions

There is water left around the nozzle

Just sitting in the toilet seat and cleaning process, the nozzle may be around the water, which is the product in the design needs, not a malfunction. In addition to the above, if there is more than water, close the water supply angle valve, remove the power plug from the outlet, and contact the purchased or after-sales service department by telephone or fax.

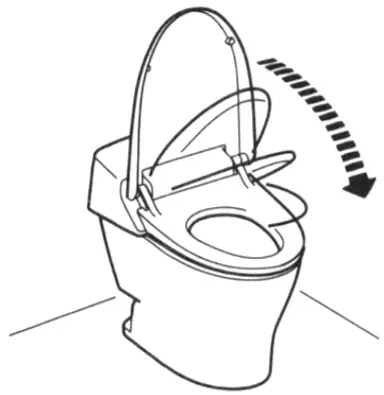

Slowly close the toilet seat and cover it

In order to prevent the toilet seat and toilet cover suddenly closed, this product has a slow down function, so that it can slowly shut down. Please note that forced shutdown will cause a malfunction.

CLEANING AND MAINTENANCE METHODS

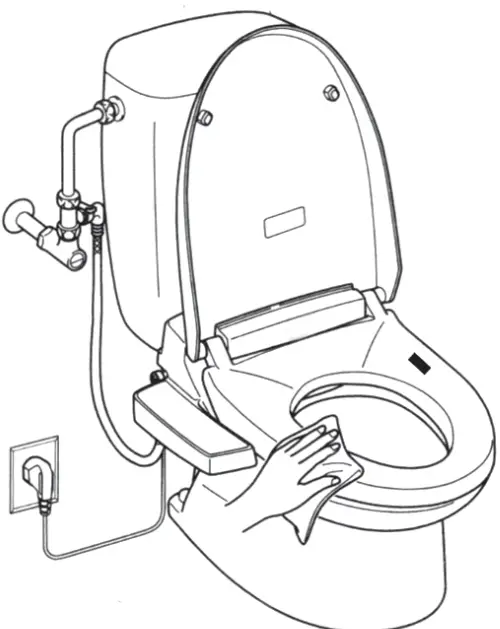

Daily cleaning and maintenance

About antibacterial parts

Nozzle, toilet seat, cover the use of antibacterial resin, the operation of the switch panel using antibacterial film.

WARNING

Do not sprinkle or clean the toilet seat and the power plug.Otherwise it is easy to cause electric shock, fire.
PROHIBIT WATERING

ATTENTION

When cleaning and maintenance, you must press the power button to confirm that the power indicator is off.When the nozzle is being cleaned, proceed with the power supply.

ATTENTION
When cleaning and maintaining plastic parts, do not use unsuitable cleaning agents (such as toilet cleaning agent, household cleaning agent, bleach, benzene, paint thinner, decontamination powder, cresol).Otherwise the plastic part of the crack will cause personal injury, electric shock, causing a fire.

FORBIDDEN

Installation Notes

Prepare before installation

Please be sure to follow the instructions in the correct installation, please check the parts before installation accessories as follows:

Installation step 1

You will be used:

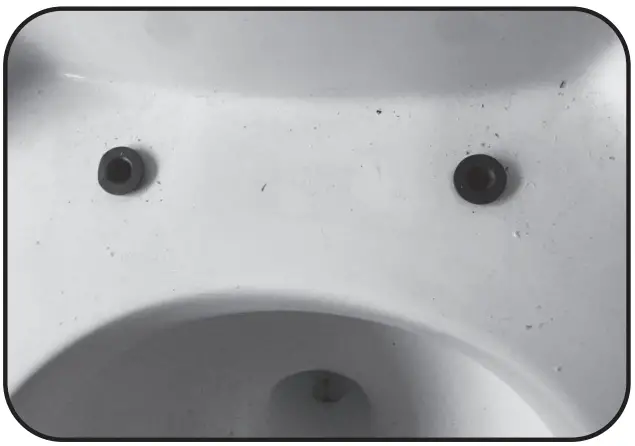

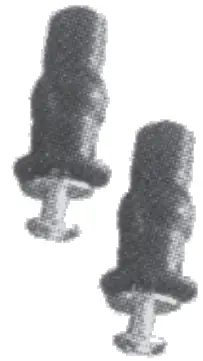

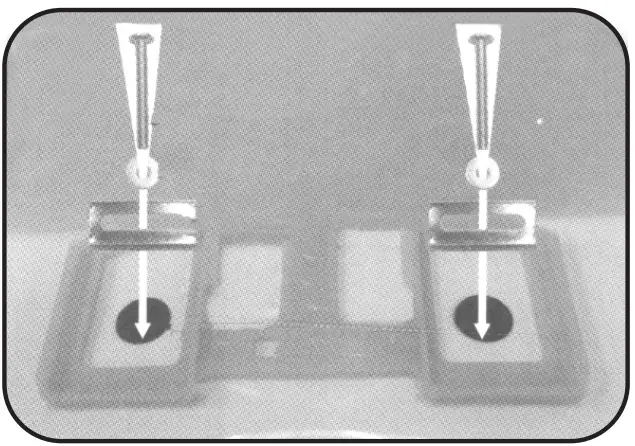

1. Remove the old toilet cover and wipe the toilet clean. Remove the expanded stud screw and insert the rubber into the toilet bowl.

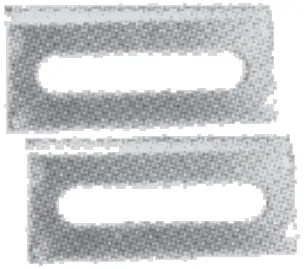

2. Will be fixed floor, stainless steel regulator, stainless steel gasket and expansion of the corresponding column hole in turn put.

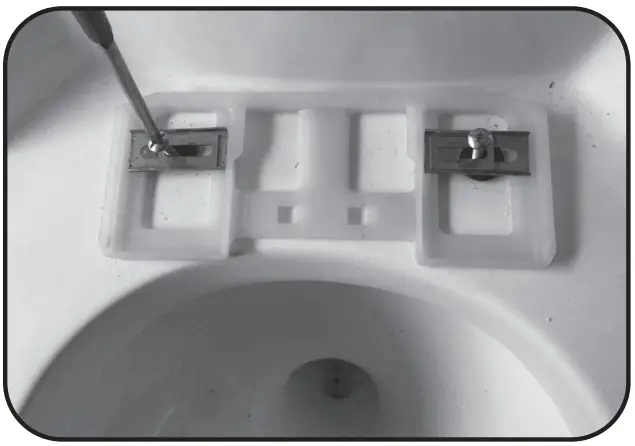

3. Will lock the stainless steel screws, the initial do not twist too tight, will be fixed around the bottom of the floor position, the stainless steel screws tightened, let it not shaking.

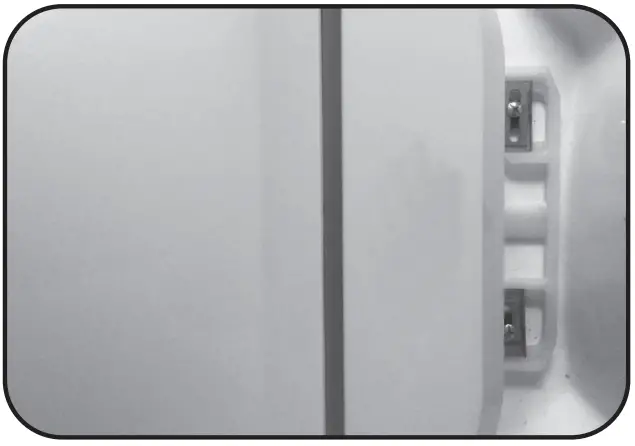

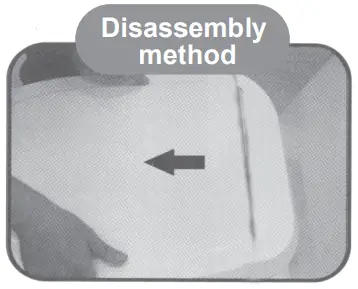

4. When the main body cover is separated from the ceramic, the hands are held on both sides of the main body and lifted upwards, pulled out and the removal method is shown.


When the main body cover is mounted on the toilet, the other side of the main body is held in one hand and the other hand is slowly pushed in parallel until it is advanced.

TIPS
Be sure to turn off the power and water before disassembling

Installation Step 2.

You will use:

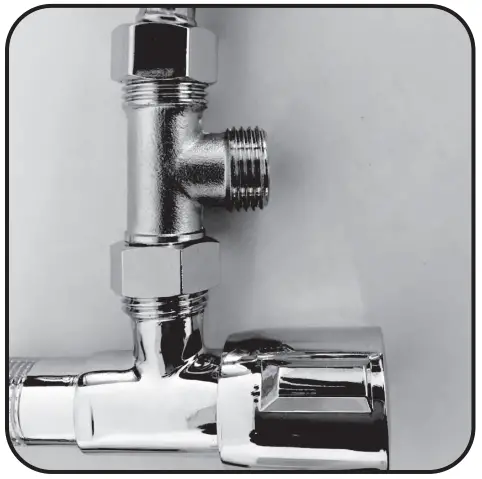

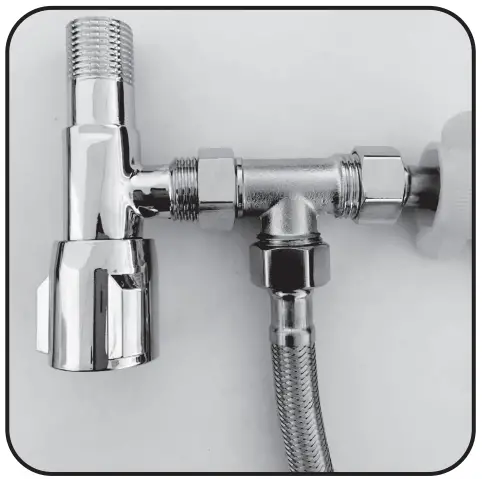

1. This is the toilet water tank, located in the back of the toilet, the first water valve closed, then the angle valve preparation hose removed, the three links and angle valve connection.

2. And then the other end of the water pipe connected to the three-way water hole to complete!

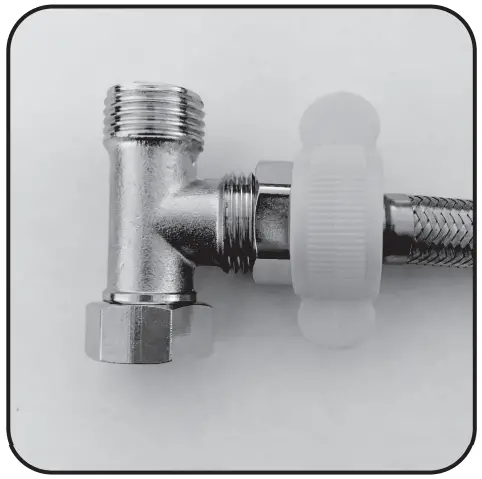

3. Place the disassembled hose at the other end with the tee, tighten with a wrench.

4. Connect the “water pipe” to the inlet of the toilet bowl


WARNING

1. Smart toilet accessories factory has been deployed, is strictly prohibited unauthorized disassembly, if any questions, please contact the local dealer or my company after-sales service department.
2. All contents of this manual are based on the latest information on the product at the time of printing. The Company reserves the right to make changes without notice.
3. If the power cord damage, please contact the local dealer or my company after-sales.

TECHNICAL INDICATORS

• WARMTH: IF YOU HAVE ANY CHANGES, YOU WILL NOT BE NOTIFIED.

APPLY FOR PRE-MAINTENANCE CONFIRMATION

WARRANTY MANUAL

Dear user:
Thank you for using our products, We offer the following services whole heartedly for you.

1. Warranty period
   On the premise that the product has been proved to be normally installed and used, the main spare parts will be replaced free of charge within one year from the date of purchase.
   If the warranty period exceeds, the spare parts and labor costs will be charged as appropriate.
2. Free maintenance regulations
   During the warranty period, in accordance with the instructions, the normal matters and other contents in the normal use, the company will be repaired for free.
3. The following circumstances do not belong to the free maintenance serviceand require paid maintenance
   ① Beyond the warranty period.
   ② No valid invoice and warranty card can be produced during the warranty period.
   ③ Failure or damage caused by transportation, collision, etc. after purchase.
   ④ During the warranty period, abnormal use is damaged, but a failure or damage caused by human or natural disasters.
   ⑤ Failure or damage caused by a user’s self separation, modification, or maintenance.
   ⑥ Failure or damage caused by violation of the maintenance regulations in use.
   ⑦ According to customer requirements for two or more times moving.

Thank you for choosing our company’s products. If you have problems in use, please check the products according to the instructions. If you can’t discharge them, please contact the local distributors or the local designated service centers in time
