Bht-001series Round Thermostat User Guide

001Series Round Thermostat
User Guide

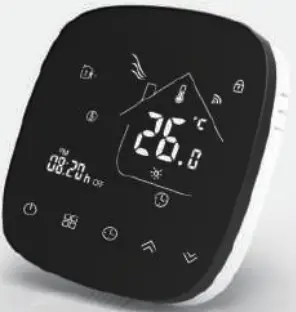

BHT-001Series Round Thermostat

For Water Heating/Boiler/Electric Heating
WIFI TYPE
Welcome
Thank you for your purchase. Your new thermostat will provide uniform and comfortable temperature control throughout every room in your property. We bring together technology, craftsmanship and the highest quality materials to provide you with a safe, reliable product combined with sleek, contemporary design. Please read this installation/programming manual for comprehensive instructions on installing and operating your thermostat. Please also ensure a suitably qualified person installs your thermostat and complies with all local regulations.
In the box you will find

ABOUT YOUR THERMOSTATS

The BHT-001 series range has been developed to control electric underfloor, water heating or water/gas boiler systems. These units are designed for use in commercial, industrial, civil and domestic properties.

MODEL DEFINITION

GA: Water heating, 5A
GB: Electric floor Heating, 16A
GC: Water/Gas Boiler, SA
L: Backlight
P: Weekly Programmable
N: Modbus Communication
W: Wifi
S2: Both internal sensor and floor external sensor
For example: BHT-001 GCLW

FEATURES

On Appearance

1. Negative black screen will bring you to a secret world.
2. Modern appearance leads to modern life.
3. Beautiful UI design.
4. Touch buttons to make simple operation.
5. 86mm hidden box and European 60mm round box is suitable.
6. White, black housing creates your colorful life.

On Functionality

1. Powerful functions are available such as WIFI etc,
2. 0.5°C Accuracy keeps temperature within the level you set.
3. Humidity sensor helps you know the humidity around you.
4. Data memory when power is off.
5. 7 days six periods programmable maximize comfort and economy.
6. Interated with Amazon Echo ,Google Home.
7. All setting languages synchronize your time zone, address and language.
8. No limit to add rooms and support device sharing with family.

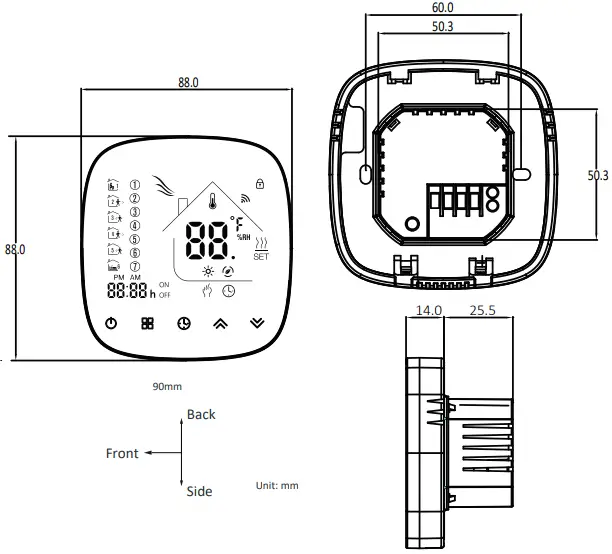

DIMENSION

TECHNICAL DATA

Power Supply: 95 ∼ 240 VAC, 50 ∼ 60HZ
Current Load: 5A (water heating/water boiler/gas boiler) 16A (electric heating)
Sensor: NTC3950, 10K±1%
Accuracy: ±0.5 ºC
Set Temp. Range: 5 -35°C
Display Temp. Range: 5∼99 ºC
Ambient Temp.: 0 ∼ 45 ºC
Storage Temp.: -5 ∼ 45 °C
Power Consumption: <1.5W
Timing Error: < 1%
Shell Material: PC +ABS ( Fireproof)
Installation Box: 86 * 86mm Square or European 60mm Round Box
Wire Terminals: Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
Protection Class: IP 20
Buttons: Capacitive Touch Buttons

BEFORE WIRING AND INSTALLING

1. Read these instructions carefully. Failure to follow them could damage the product or cause a hazardous condition.
2. Check the ratings given in the instructions and on the product to make sure the product is suitable for your application.
3. Installer must be a trained, experienced service technician.
4. After installation is complete, check out product operation as provided in these instructions.

CAUTION
Electrical Shock or Equipment Damage Hazard. Can shock individuals or short equipment circuitry. Disconnect power supply before installation.

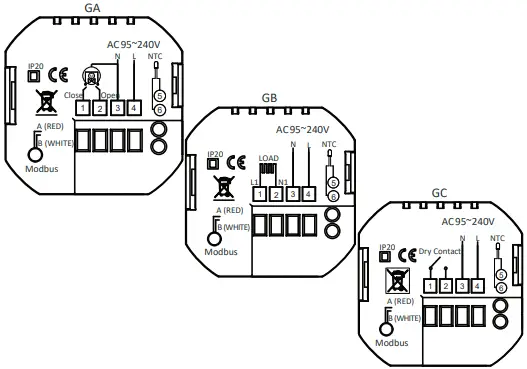

WIRING

INSTALLATION

Your thermostat is suitable for installation within a standard 86mm pattress box or European 60mm pattress box.
Step 1. Keep power off. See Fig 1.
Step 2. Remove the mounting Plate by rotating the LCD part. See Fig 2.

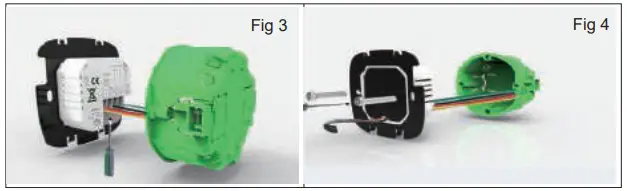

Step 3. Connect power supply, load into the appropriate terminals. (see “Wiring your thermostat” for details and Fig 3).
Step 4. Fix the mounting plate into the wall with screws in the box. See Fig 4.

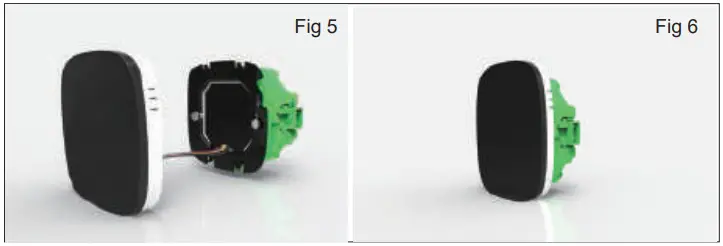

Step 5. Fasten body of thermostat and the mounting plate through rotating. See Fig 5.
Step 6. Installation complete. See Fig 6.

HOME SCREEN QUICK REFERENCE

OPERATION

During Power On

1. Power On/off: Press to turn the thermostat on/off.
2. Manual & Programmable
   Touch (mode) to change between manual mode and programme mode. In manual mode, will show in the screen.
   In programmable mode, the period icon will show on the right side.
3. Setting Temperature
   In the mode of programmable, set temperature, time could not be adjusted.If the user want to change, please go to manual mode or programmable mode.
   In the mode of manual, press to set the desired temperature.
4. Adjusting/Setting the Clock
   Touch the icon to set minute, hour and weekday (1 = Monday, 2 = Tuesday etc.) by using the arrows.
5. Locking your Thermostat
   Press and hold the for 3 seconds to lock/unlock your thermostat
6. Adjusting/setting the Program Schedules
   When Wi-Fi connection is made, your thermostat will automatically accept the program schedule made via the APP on your device (see below for detailed instructions) To  set the program schedules through your thermostat (NOT via your smartphone/tablet) simply follow the instructions as below:
   Please note: Setting the programme schedule through your thermostat can only be carried out if there is no Wi-Fi connection between your thermostat and smartphone/tablet.
   Touch to change between manual mode and programme mode. In manual mode, will show in the screen.
   In programme mode, touch and hold the icon until the weekday.
   schedule settings appear (1 means Monday will show one by one on the right side)
   Use the and arrows to adjust the time.
   Press the icon and use the and farrows to set the temperature. (1st period).
   Repeat this process for periods 2, 3, 4 and 5 6.
   Press the icon once more to enter other days’ schedule setting.
   Press once more to confirm and exit.
   Default settings for program schedule


   Mon.

   Set Temp.

   Tue.

   Set Temp.

   Wed.

   Set Temp.

   Thu.

   Set Temp.

   Fri.

   Set Temp.

   Sat.

   Set Temp.

   Sun.

   Set Temp.

   06:00

   20°C

   06:00

   20°C

   06:00

   20°C

   06:00

   20°C

   06:00

   20°C

   06:00

   20°C

   06:00

   20°C

   08:00

   15°C

   08:00

   20°C

   08:00

   20°C

   08:00

   15°C

   08:00

   15°C

   08:00

   15°C

   08:00

   15°C

   11:30

   15°C

   11:30

   20°C

   11:30

   20°C

   11:30

   15°C

   11:30

   15°C

   11:30

   15°C

   11:30

   15°C

   13:30

   15°C

   13:30

   20°C

   13:30

   20°C

   13:30

   15°C

   13:30

   15°C

   13:30

   15°C

   13:30

   15°C

   17:00

   22°C

   17:00

   20°C

   17:00

   20°C

   17:00

   22°C

   17:00

   22°C

   17:00

   22°C

   17:00

   22°C

   22:00

   15°C

   22:00

   15°C

   22:00

   15°C

   22:00

   15°C

   22:00

   15°C

   22:00

   15°C

   22:00

   15°C

7. Checking the Temperature of Floor Sensor
   Press and hold the arrow for 3 seconds to display the temp. of floor sensor.

During Power Off
Setting the Functions and Options
When power is off, press and hold and at the same time for 5 sec. in order to reach system function. Then press to scroll through the available functions, and use the and arrows to change the available options. All settings are confirmed automatically.

ABOUT WIFI

WI-FI CONNECTION
Before using your Wi-Fi thermostat for the first time,you must configure the Wi-Fi signal and settings through your smartphone or tablet ,This will allow communication  between your connected devices
Step 1 Download your APP (Fig1-1)

http://app.yimusmart.com/smartlife

Search for “Smart life” in Apple Store or Google Play or use a browser to scan the QR code above (Figure 1-2), and complete account registration and installation according to the guidance of the APP.
Step 2. Connect the thermostat
Check the tutorial below to complete the connection and setup.

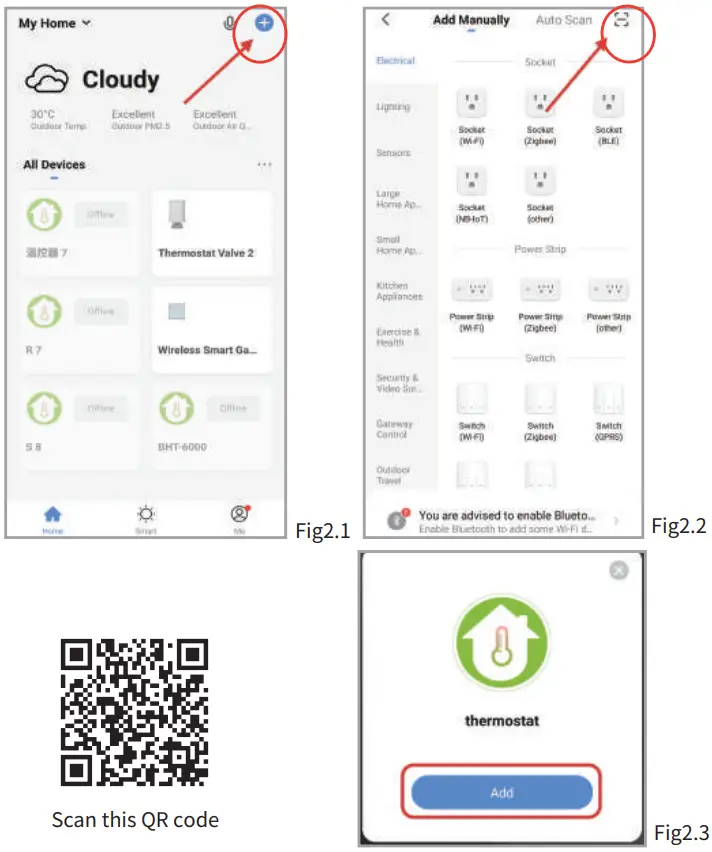

Method 1: Scan the QR code to configure the network guide (Fig 2.1-Fig 2.3)

https://smartapp.tuya.com/s/p?p=N8bUqOZ8HBQjU0K0&v=1.0

Method 2: Ordinary distribution network guidance

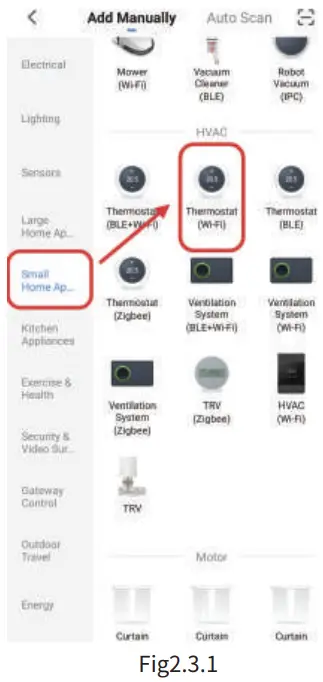

(Fig. 2. 1&Fig. 2.3.1)

Network distribution mode:

1. EZ Mode

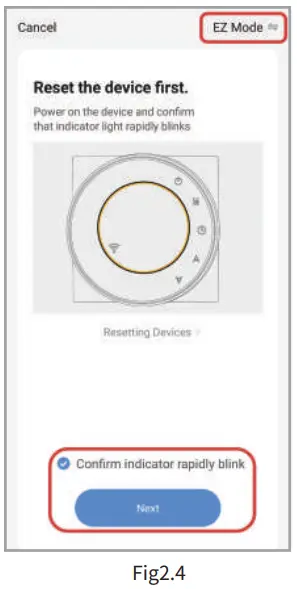

   When the thermostat is off, press and hold the ““until the thermostat screen flashes quickly and displays the “” icon, and then operate according to the following figure (Fig 2.4-Fig 2.7).

2. AP Mode

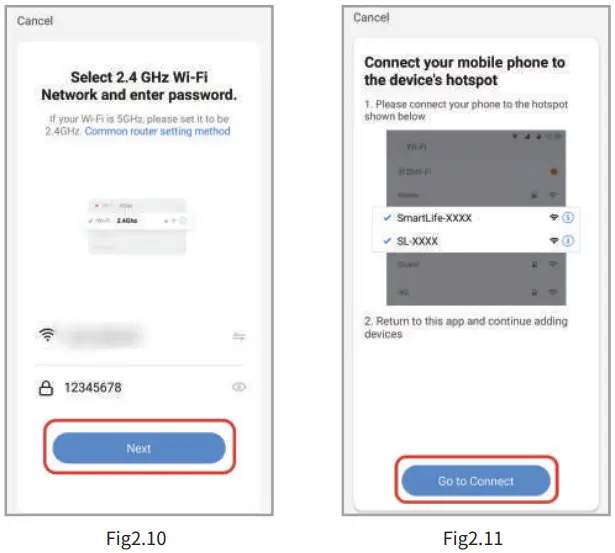

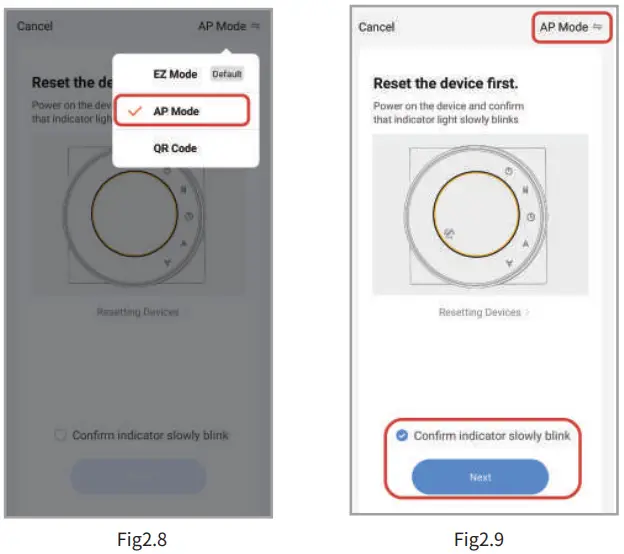

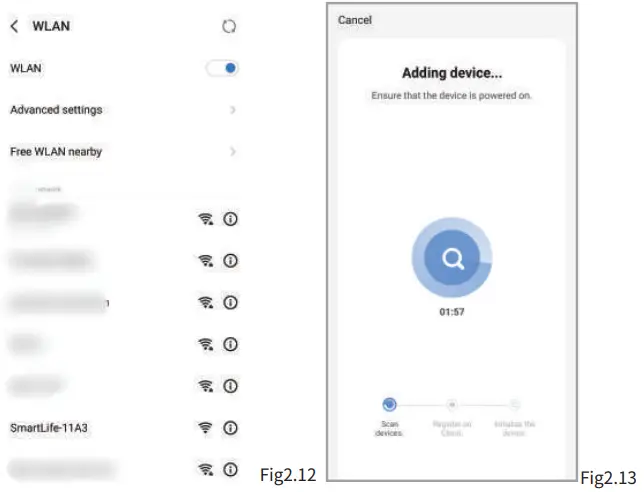

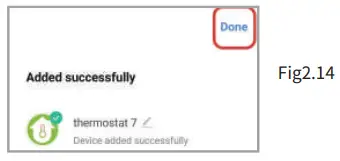

   When the thermostat is off, press and hold the “” until the thermostat screen flashes slowly and the “” icon is displayed (if the “” icon appears, continue to press the “” until the thermostat screen Flashes slowly and displays the “” icon), and then operate according to the following figure (Fig 2.8-Fig 2.14).
   After connecting to this hotspot, return to the “smart life” APP

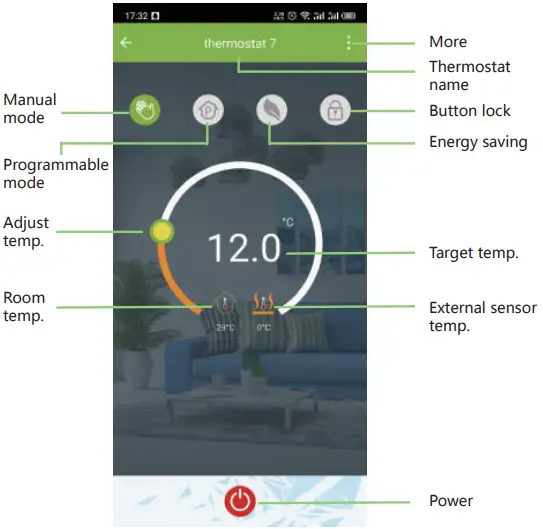

APP operation interface description
(heating thermostat)

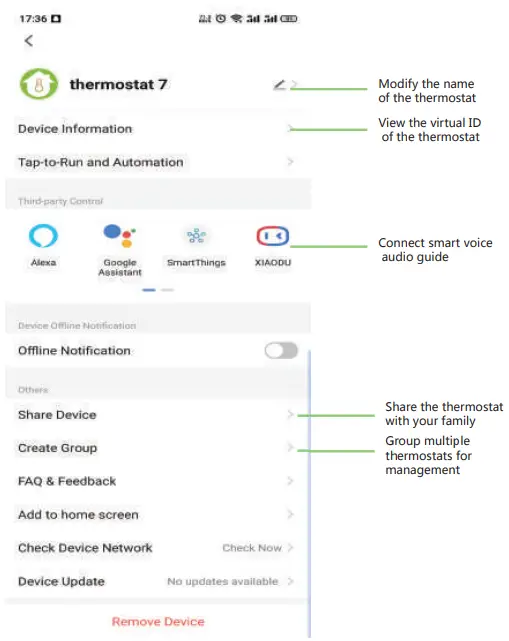

More settings

SIMPLE EXCEPTION HANDLING

SERVICE
Your thermostat carries an 24 months warranty from date of purchase. Service outwith the warranty period may incur a charge. More detail please contact with us directly.
