Perixx Px-5300 Kbl Mechanical Gaming Keyboard User Manual

PX-5300 KBL Mechanical Gaming Keyboard
User Manual

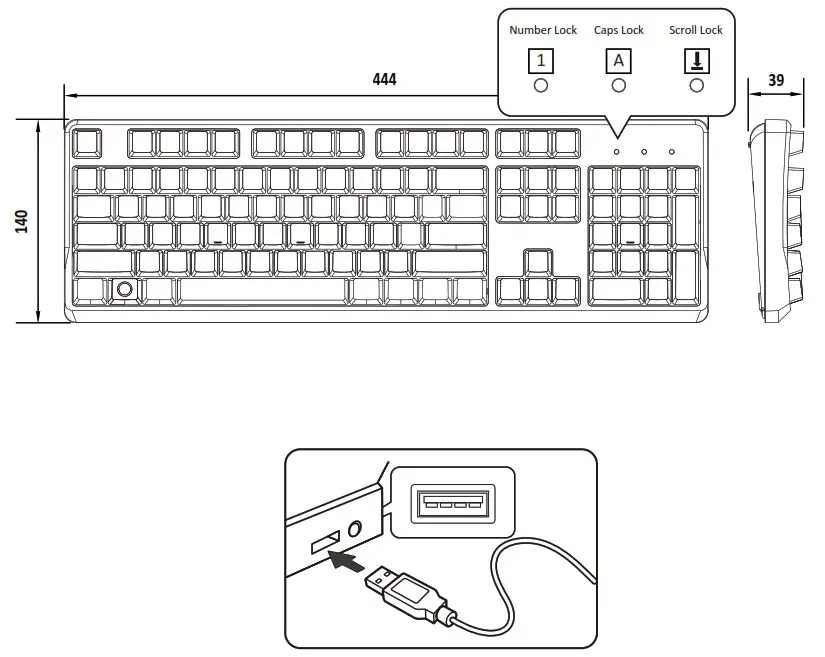

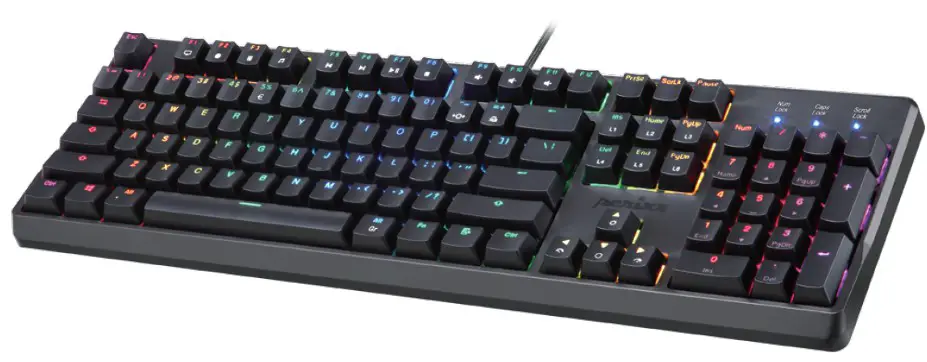

Product Illustration

FCC Warning

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE 1:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

NOTE 2:
Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Caution

• The manufacturer and re-resellers are not responsible for any technical malfunctions, damage, or personal injury incurred by:
  • Any attempt to dismantle, change or modify the product in any manner
  • Malfunction or damage is due to misuse or improper alteration or repair.
  • Malfunction or damage caused by external influence such as falling
  • Malfunction or damage is caused by fire, salt, gas, earthquake, lightning, wind, water, or other natural calamities, or abnormal voltage.
  • Malfunction or damage is caused by other devices connected to the products.
  • Malfunction or damage is caused by high temperature, humid, greasy, dusty, and hazardous environment.
• You are cautioned that changes or modifications not expressly approved by Perixx Computer GmbH could void your authority to operate the equipment.
• All brand names, trademarks, and logos are the properties of their respective owners.

Please Note: Long-term repetitive use of any keyboard and mouse could cause injury to the user. Perixx recommends users avoid excessive use of this or any keyboard and mouse.

Important Safety Instructions:

• Avoid dropping.
• Do not disassemble.
• This product is suitable for moderate climates only.
• The maximum ambient temperature during use of this product must not exceed 40 degree
• Open flame sources, such as candles, must not be placed on this product.
• Only use a dry cloth or brush to clean this product.

Perixx offers a one-year limited warranty with an optional one-year extension.

Specification

Multimedia keys

	My computer		Play/Pause
	Home Page		Stop
	Calculator		Mute
	Media player		Volume down
	Previous Track		Volume up
	Next Track

	Increase LED brightness
	Decrease LED brightness
	Increase LED speed
	Decrease LED speed
	Change LED direction
	LED colour selection
	Exchange WASD and ↑↓←→
	Lock Windows. Press again to unlock.
	Reset keyboard

Keyboard LED function

	Press once: LED mode 1; Press twice: LED mode 2; Press thrice: LED mode 3
	Press once: LED mode 4; Press twice: LED mode 5; Press thrice: LED mode 6
	Press once: LED mode 7; Press twice: LED mode 8; Press thrice: LED mode 9
	Press once: LED mode 10; Press twice: LED mode 11; Press thrice: LED mode 12
	Press once: LED mode 13; Press twice: LED mode 14; Press thrice: LED mode 15
	Press once: LED mode 16; Press twice: LED mode 17; Press thrice: LED mode 18

PX-5300 Driver

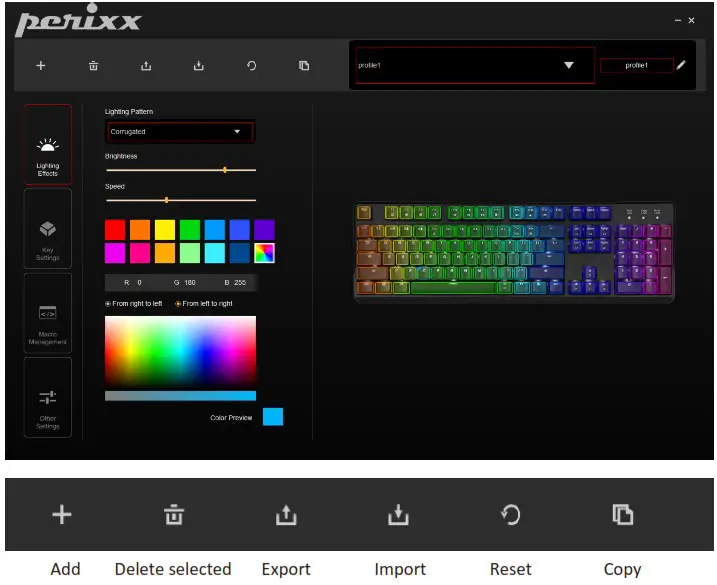

ASSIGNING KEYBOARD SHORTCUT KEYS

Please add a new profile and rename it, before you start customizing the keyboard.

You can customize your own gaming keyboard by choosing the desired functions:

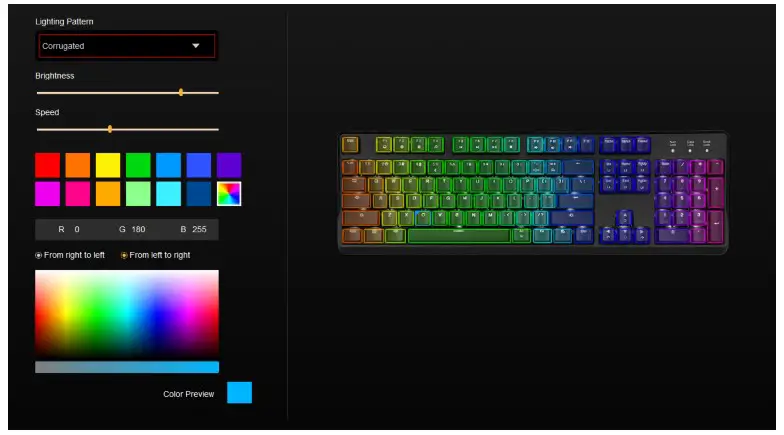

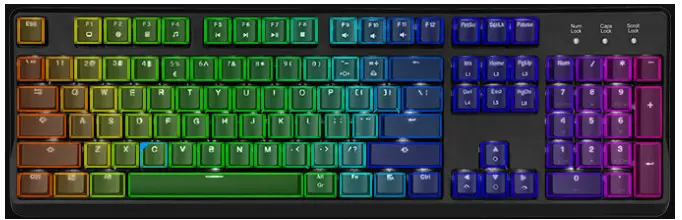

1. Lighting effects: You can customize your desired lighting effect on the keyboard.

• Lighting pattern
• Brightness
• Speed
• From right to left
• From left to right
• Color preview

2. Key settings: By selecting one key on the visual keyboard, you can assign one specific function to the chosen key. Please don’t forget to save the settings that you just made.

• Default function

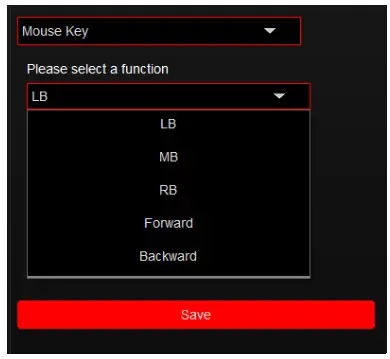

• Mouse key
  • LB (Left button)
  • MB (Middle button)
  • RB (Right button)
  • Forward
  • Backward

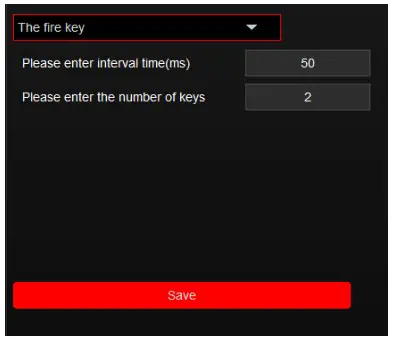

• The fire key
  • Please enter interval time(ms)
  • Please enter the number of keys

• Standard keyboard button

Please enter a button

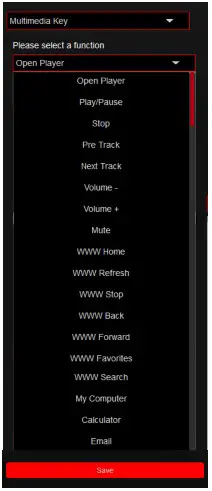

• Multimedia key
• Please select a function
  • Open player
  • Play/Pause
  • Stop
  • Pre Track
  • Next Track
  • Volume –
  • Volume +
  • Mute
  • WWW Home
  • WWW Refresh
  • WWW Stop
  • WWW Back
  • WWW Forward
  • WWW Favorites
  • WWW Search
  • My Computer
  • Calculator
  • Email

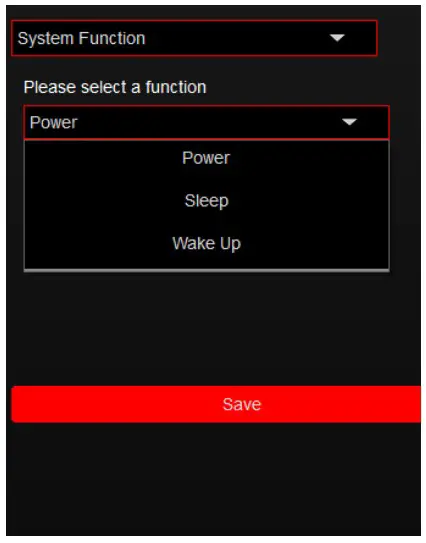

• System function
o Please select a function

• • Power
  • Sleep
  • Wake up

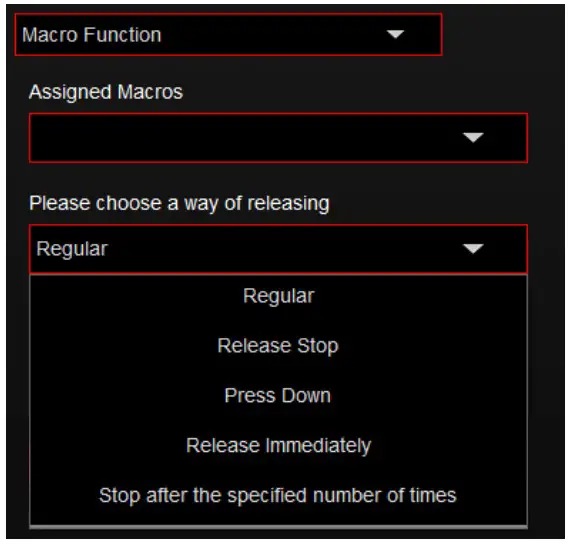

• Macro function: Please assign a macro on Macro Management and choose a way of releasing.

• Please choose a way of releasing
  • Regular
  • Release Stop
  • Press Down
  • Release Immediately
  • Stop after the specified number of times

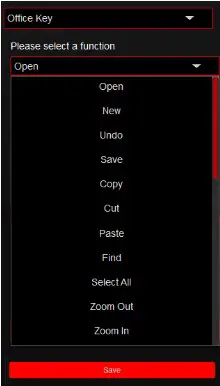

• Office key
o Please select a function

• • Open
  • New
  • Undo
  • Save
  • Copy
  • Cut
  • Paste
  • Find
  • Select All
  • Zoom Out
  • Zoom In

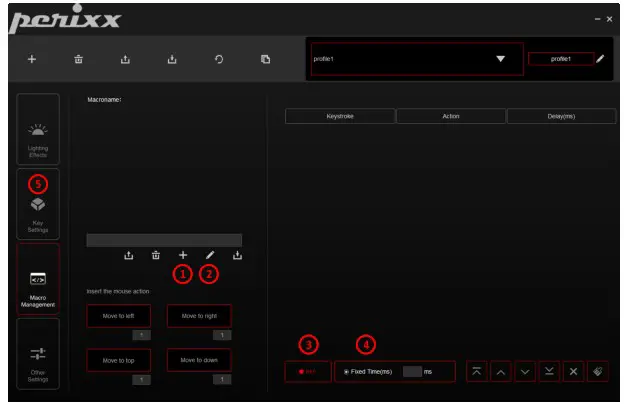

Macro Management

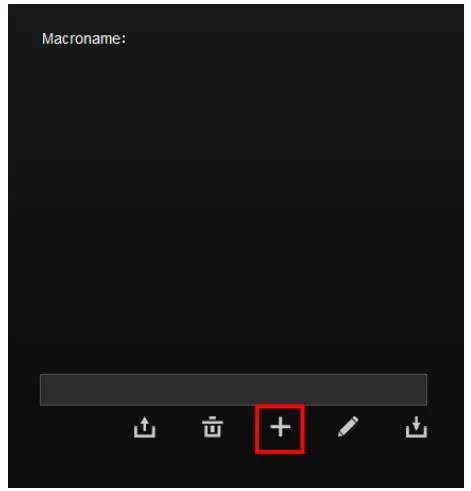

1. Click + to create your own macro.

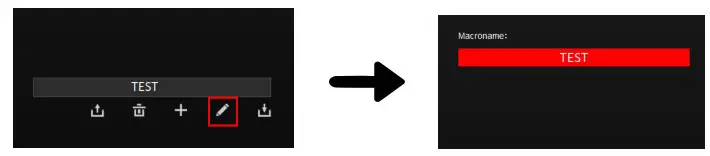

2. You can give the new macro a name by typing your desired name in the blanks and click to rename it.

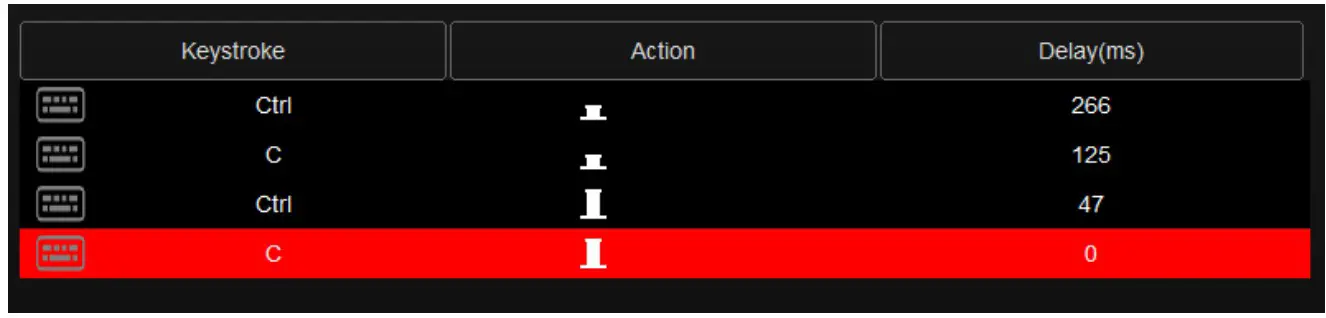

3. Click to record the macro, press the combination directly (e.g. Ctrl+C)
   and click to save the macro that you just set up.

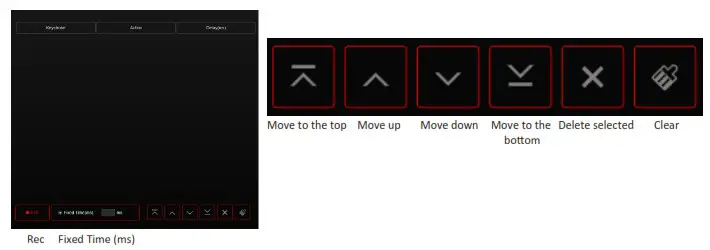

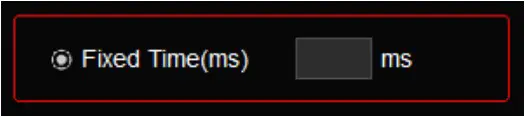

4. You can decide the fixed time.

5. Go to “Key Settings”.

6. Select the desired key that you want to assign the macro.
7. Choose the “Macro Function” and then choose the desired macro that you just set up under “Assigned Macros”.
8. Choose a way of releasing.
9. Click to save the macro setting.

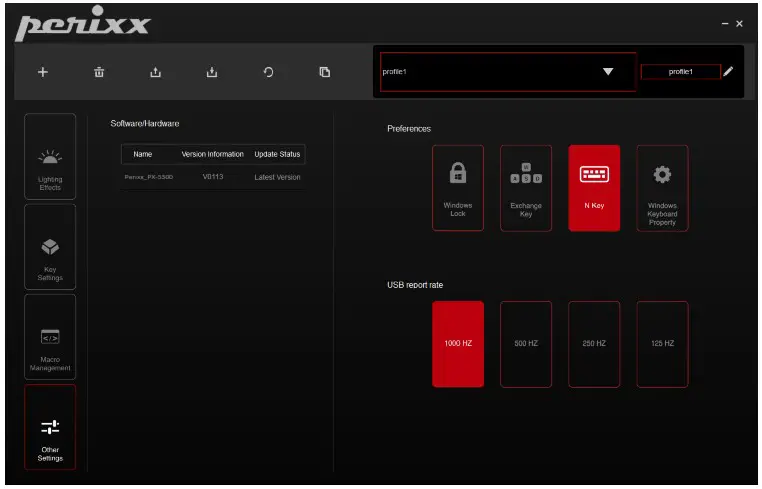

Other Settings:

• Preferences

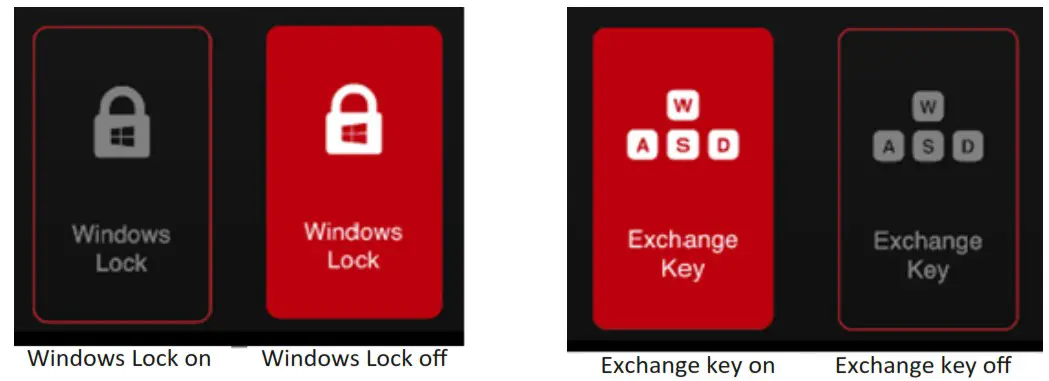

  • Windows Lock
  • Exchange key: If exchange key is on, you can use WASD as ↑←↓→

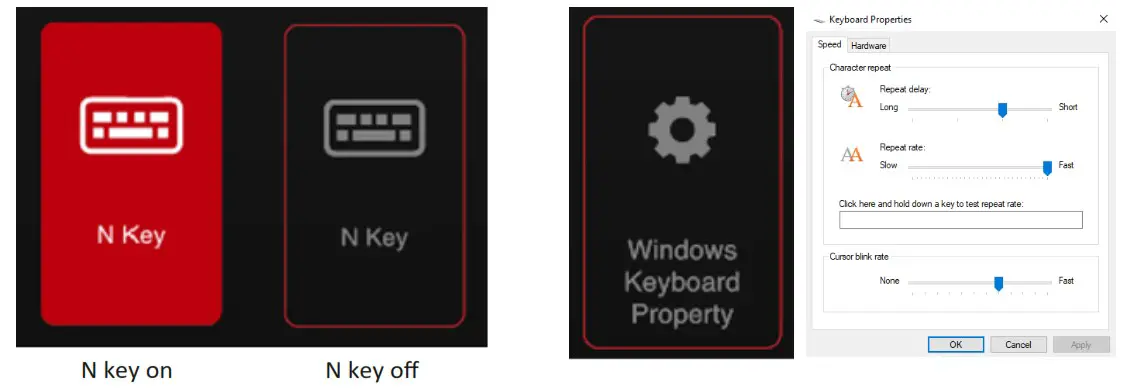

  • N key
  • Windows Keyboard Property

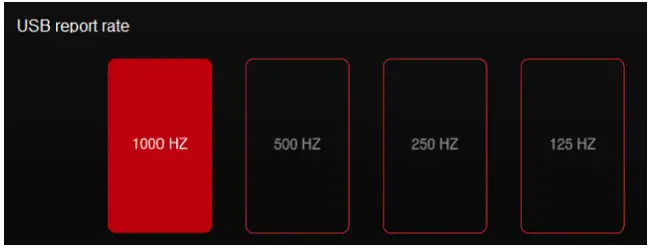

• USB report rate
