Toto Tes204abcp Touchless Soap Dispenser Instructions

Product Information:

Product Number: Kit# TES204AB#CP TES205AB#CP TES204AD#CP
TES205AD#CP

Spout#: TLK07001G#CP *2 TLK07001G#CP *3 TLK07003G#CP *2
TLK07003G#CP *3

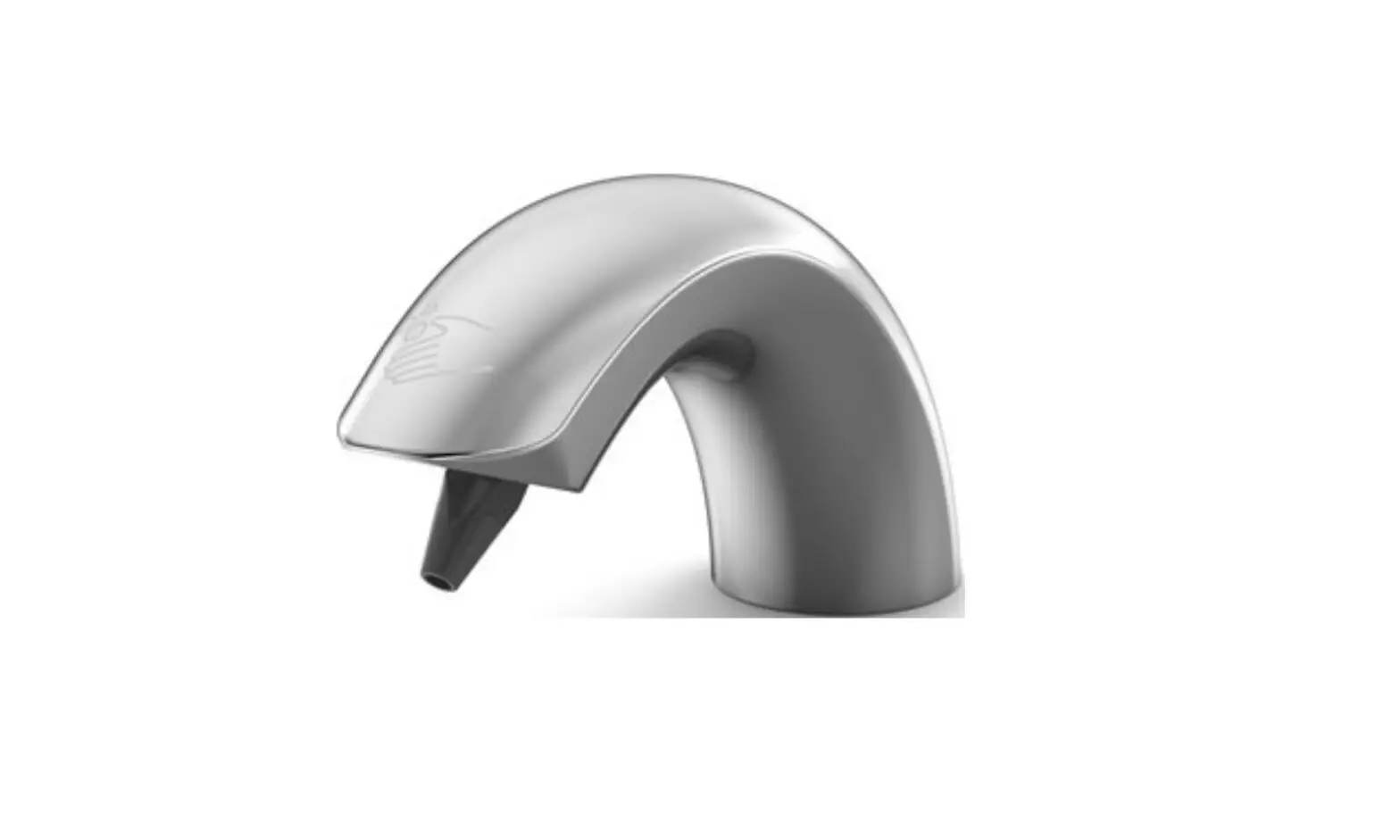

Product Description: Touchless Soap Dispenser, Round, 2~3 Spout,
Controller and Tank Reservoir with Sub Tank

Controller#: / Tank TLK01106UA /TLK01401U TLK01107UA /TLK01401U
TLK01106UA /TLK01401U TLK01107UA /TLK01401U

Product Usage Instructions:

1. Spout Nozzle Piece (Round): Attach the round spout nozzle piece
   to the soap dispenser.
2. Set Screw (1 pc): Use the set screw to secure the spout nozzle
   piece in place.
3. Filter: Install the blue air hose filter for optimal
   performance.
4. Air Hose (L=66-15/16, 1700mm): Connect the air hose to the
   dispenser for air supply.
5. Soap Hose (L=78-3/4, 2000mm): Connect the clear soap hose to
   the dispenser for soap supply.
6. Hose Clamp Screw (1 pc, for TLK07001G#CP spout only): Use the
   hose clamp screw to secure the spout hose.
7. Nut w/ Gaskets and Slip Washer: Use the nut with gaskets and
   slip washer to secure the dispenser in a 1-1/8~1-1/2 (28~38mm)
   hole.
8. Escutcheon for 1-1/8~1-1/2 (28~38mm) hole: Use the escutcheon
   for a clean and finished look around the dispenser.
9. Spout Round: Attach the round spout to the dispenser.
10. Vessel: Install the vessel for the soap reservoir.
11. Tank Joint x2 for TES204A*: Connect the tank joints to the soap
    dispenser if using TES204A* model.
12. Tank Joint x3 for TES205A*: Connect the tank joints to the soap
    dispenser if using TES205A* model.
13. Soap and air pump x2 for TES204A*: Install the soap and air
    pumps for TES204A* model.
14. Soap and air pump x3 for TES205A*: Install the soap and air
    pumps for TES205A* model.
15. Controller Board: Connect the controller board to the
    dispenser.
16. Ground wire w/ screws: Attach the ground wire to ensure proper
    grounding.
17. Float switch: Install the float switch for liquid level
    detection.
18. Sensor sockets: Connect the sensor sockets to the dispenser for
    touchless operation.
19. Float switch connector: Connect the float switch connector to
    the dispenser.
20. Soap tank bracket set: Install the soap tank bracket for proper
    support.
21. Air deflation hose set: Connect the air deflation hose to
    release air pressure.
22. Soap tank: Fill the soap tank with liquid soap.
23. Coupling cap: Use the coupling cap to secure the soap
    tank.
24. Cap: Attach the cap to the controller for 2 or 3 spout
    configurations.
25. Controller for 2 Spout & Reservoir: Connect the controller
    to the dispenser for 2 spout operation.
26. Controller for 3 Spout & Reservoir: Connect the controller
    to the dispenser for 3 spout operation.
27. Y-Shaped Nipple: Connect the Y-shaped nipple to the
    dispenser.
28. Hose Clamp: Use the hose clamp to secure hoses and tubes.
29. Connecting Tube, 16.4′ (5m): Connect the tube for extended
    reach.
30. Cap, Sub Tank: Attach the cap to the sub tank.
31. Strainer, Sub Tank: Install the strainer in the sub tank for
    filtration.
32. Sub Tank Mount Bracket: Mount the sub tank bracket for secure
    installation.
