hager VA4T2SDSPD Protection Devices User Manual
VA4T2SDSPD
VA4T2SDSPDD
100A Switch with Type 2 Surge Protection
Remove the desired knockouts and fit the meter tail cable protector plates on the load and/or supply side of the enclosure.

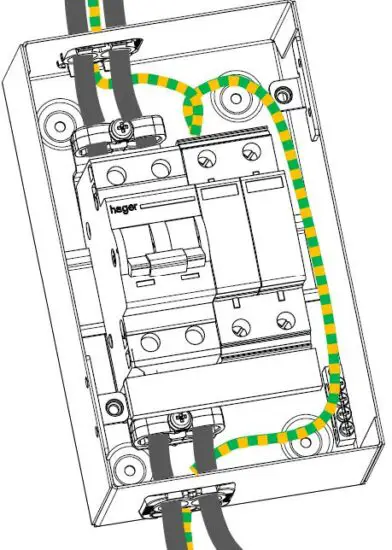

Bring the (meter tails) into the bottom of the enclosure including the 16mm Earth cable, terminate the L&N tails into the main switch and torque to 3.6Nm.

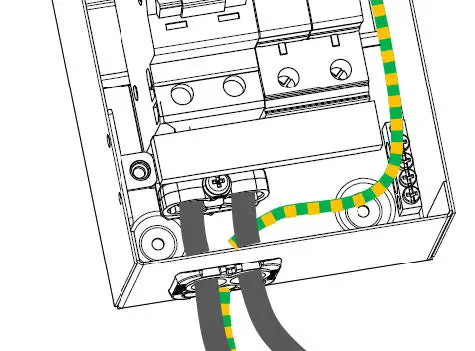

Bring the (meter tails) into the top of the enclosure including the 16mm Earth cable, terminate the L&N tails into the main switch and torque to 3.6Nm, terminate both earth cables into the Surge protection Earth connection point and torque to 3.6Nm. (Ensure Cable clamps are clamping the meter tails top and bottom)

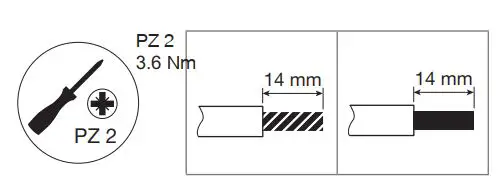

Key Specifications
- Power Supply System -TN / TT
- Requirement class -SPD class II acc. to IEC 61643-11; SPD Type 2 acc. to EN 61643-11
- Max. continuous operating voltage Uc -L-N: 275 V a.c. / N-PE: 260 V a.c.
- Nominal voltage Un -230/400 V AC 50/60 Hz
- Nominal discharge current In (8/20) microseconds 20 kA
- Max. discharge current I max (8/20) microseconds 40 kA

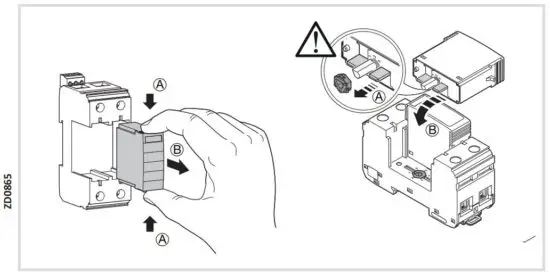

SPB015, SPB015N

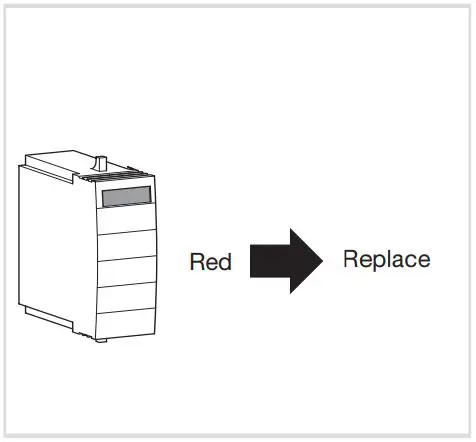

Fault indication

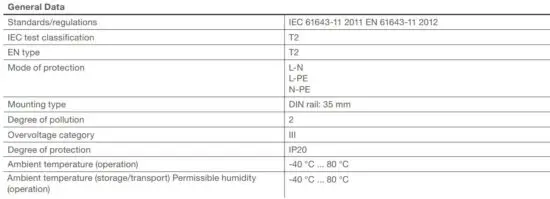

Technical Specifications
