PrePal PPSLA-14 14 Inch Heavy Duty Automatic Slicer Instruction Manual
MODELS: PPSLA-14
“YOUR KITCHEN PAL!”
Toll Free: 855-855-0399 Email: [email protected]
www.atosa.com | www.atosausa.com
California, Colorado, Florida, Georgia, Illinois, Massachusetts, New Jersey, Ohio, Texas, Washington
PPSLA FRONT VIEW
PPSLA ANGLE
Standard Features
- Automatic high precision capacity and cutting, improved with 3 carriage speed and 3 stroke lengths (small-medium-large)
- All functions for slice count, carriage speed control, stroke length control, start/hold/down control are integrated in a digital display and button panel
- Double powerful motors to drive this slicer device, one motor(1/2 HP, 370watts) drives blade, another motor(2/3 HP, 450watts) drives stroke moving
- 14” and 13” special alloy knife (Rasspe@, high quality brand made in Italy), longer lasting and easier to sharpen
- Heavy duty slicer for full capacity at cheese slicing, all day-long duty slicing, slicing volume rate range at 37-62 slices per minute

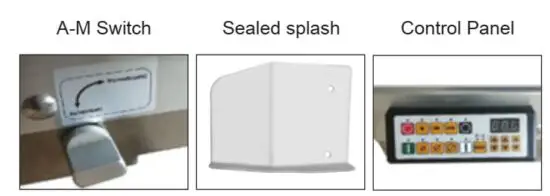

- Easier switch between automatic slice model to manual slice mode
- High quality reliable structure at base, frame and carriage, include: stainless steel bottom base, anodized aluminum frame base and carriage
- Plastic free structure at this slicer: stainless steel material at index knob, carriage handle and feet
- Top mounted metal knife sharpener with two stones for a razor sharp cutting edge
- High quality stainless steel index knob control gets to 9/16”(14mm) precision slice thickness adjustment
- Knife cover interlock prevents slicer from operating without knife cover in place
- Sealed splash zones for added sanitation and seamless edges and radius corners
- Large square food receiving plate
- Big carriage angle 42°, full gravity feed food chute
- Power switch secures no voltage release preventing inadvertent reactivation of slicer in the event of power or interlock interruption
SPECIFICATIONS

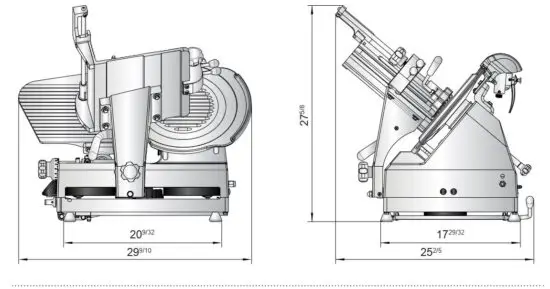

PLAN VIEW
Atosa International
www.atosa.com
Atosa USA
www.atosausa.com
*Atosa is continuously improving products. Specifications are subject to change without notice.*
