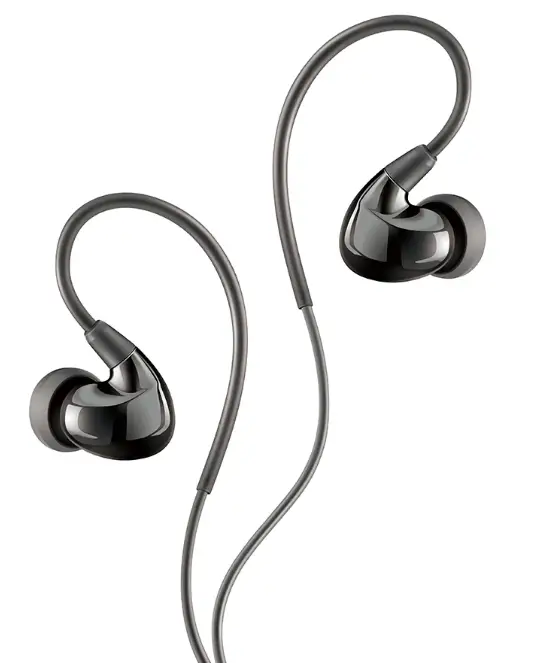

TAKSTAR TS-2260 In-Ear Monitor Headphone
Preface
Dear Customer,
Thank you for purchasing TAKSTAR TS-2260 In-ear monitor headphone (or earphone). Please read the user manual before operation. If you have any question or suggestion, please dial contact us.
Features
- 9.2mm high resolution driver unit reproduces rich sound details.
- Even and accurate sound, tailored for fold back monitoring.
- Ergonomic design.
- Provided with <1>6.3mm adapter for various applications.
- Provided with portable bag for convenient carrying.
Application
Network Karaoke monitoring, personal recording monitoring
Specification
- Type: dynamic stereo earphone
- Unit Diameter: <1>9.2mm
- Unitlmpedance: 0±15%
- Frequency Response: 20Hz~20KHz
- Sensitivity: ±3dBSPL (94 dB SPL=lPa) at lKHz with input=0.134V(l mW)
- Peak Power: SmW
- Rated Power: 3mW
- Cable:<1>2.3mm x2 m
- Connector: <1>3.Smm gold plated 3-pole connector
- Net Weight: 13±1.Sg

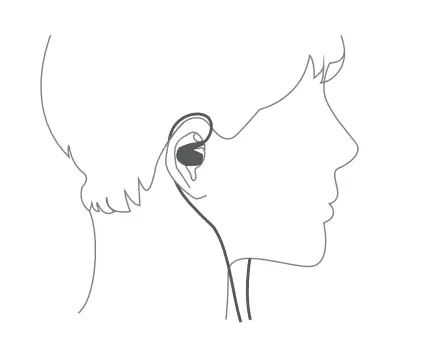

Wearing Diagram

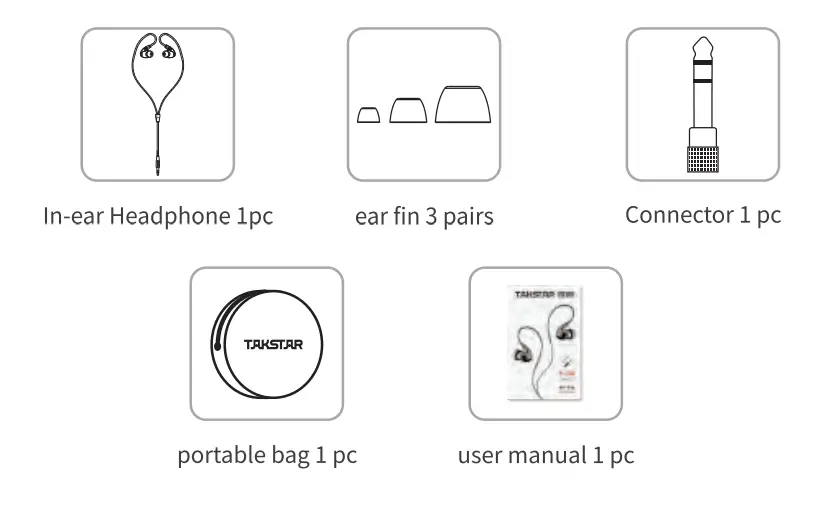

Standard Configuration
Correct Operation
To avoid hearing loss, please set the playing equipment volume to minimum before connecting the headphone (or earphone). After wearing the headphone (or earphone), increase the volume to a proper level. The noise is calculated by dB. The noise above 85 dB leads to hearing loss.
Please pay attention to your operation habit The relationship of volume & hearing time and hearing loss as below: the hlgher the volume Is, the shorter the hearing time should be. The more proper the volume level is, the longer the hearing time can be. The long time hearing at high volume level leads to pennanent hearing loss.
TS-2260 In-ear Monitor Headphone
This dB table lists the comparison of some normal sounds and the potential hurt level to your hearing.
| Sound Source | Noise Level | Consequence on Hearing |
| whisper | 30dB | very quiet |
| quiet office | 50-60dB | comfortable hearing level is below 60dB |
| vacuum cleaner/ hair drier | 70dB | It has some invasion and interference to the telephone talking |
| food processor | 85·90dB | 85dB (continuously Shours) is the level to hurt the hearing |
| garbage cleaning machine or cement mixer | lO0dB | It is recommended to hear the sound of 90-lO0dB for less than 15 minutes |
| electric motor saw/ electric drill | ll0dB | Hearing the sound over lOOdB without any protective measure leads to permanent hearing loss |
| rock & roll concert (it depends) | 110-140dB | The painful hearing threshold is about 120dB |
The average person can hear the music safely at 70% volume for4.6 hours every day. It is very important to know the volume and time when hearing music. Use your equipment sufficiently at safe volume level to enjoy the outstanding sound performance.
Maintenance
- After the operation for some time, please use dry cloth or the tower with neutral soapsuds or detergent for cleaning. Do not put it into water for cleaning.
- Operating the headphone in high temperature or high humidity leads to headphone damage or shortening the headphone life.
- Keep the headphone away from strong magnet to avoid demagnetizing or headphone sensitivity decreased.
Caution
DANGER
| To guarantee personal safety, do not wear or keep the headphone close (less than 10cm) to the pacemaker. |  |
| Do not connect the cable plug with AC power socket. | |
| To guarantee personal safety, do not operate the headphone (or earphone) during driving or riding or walking. |
|
| Keep the headphone {or earphone) away from fire to avoid explosion. |
|
| The rated power of TS-2260 is 3 mW. Please do not operate it at overload status to avoid headphone (or earphone) damage. |  |
| Please keep the headphone (or earphone) in dry and clean environment.During operation, prevent the headphone (or earphone) from water entering into it or dropping or colliding to avoid damage. |
|
Warning
| Supervise the children when they are using this product because this product is not a toy. |
|
| Abide by the relative regulation or law during operation. Do not usethis headphone if it is prohibited by regulation or law to avoid accident. |
|
| Please do not disassemble or repair the headphone by yoursel to avoid problem happens. |  |
Scan for more product information
Designed Manufactured by:
Guangdong Takstar Electronic Co., Ltd.
Address: No. 2 Fu Kang Yi Rd., Longxi Boluo
Huizhou, Guangdong 516121 China
