FISHER PAYKEL WB30SDEX1 30 Inch 16 Place Settings Warming Drawer User Guide

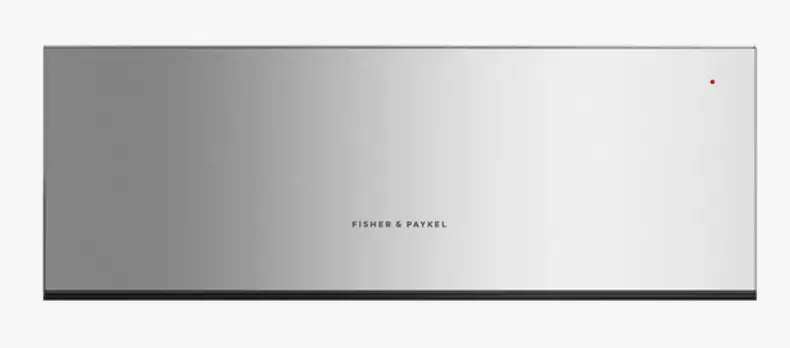

Warming Drawer, 30″
Series 9 | Contemporary
Stainless Steel
Keep plates warm until ready to serve; rapid proof or slow cook to perfection. Pair with an oven for matching Contemporary design.
- A companion product, designed to match with other
- Contemporary style Fisher & Paykel products
- Space to keep 16 standard-sized place settings evenly warm, with accessory rack for optimising space
- Easy to clean smooth-glass base
- Six versatile tailored programmes for warming, proofing, dehydrating and slow cooking
DIMENSIONS]
| Height | 10 11/16″ |
| Width | 29 15/16″ |
| Depth | 22 5/16″ |
FEATURES & BENEFITS
| Complementary design Our Warming Drawer comes in either a stylish black reflective glass or brushed stainless steel, for seamless pairing with our matching ovens. |
| Multi-function flexibility Choose from six tailored functions including Rapid Proof, Dehydrate and Slow Cook. |
| Easy to clean <> |
| Easy to use Handle-free, push-to-open with capacitive touch controls, our Warming Drawer comes with an accessory rack for optimising space. |
| Precise control With fast and even heating, our warming drawer is great for keeping food warm and low temperature cooking, as well as resting after a traditional roast in the oven and proofing dough. |
| Safe and sound With Automatic switch-off and Delayed start functionality, our warming drawers help keep dishes warm until it is time to serve the main meal. |
SPECIFICATIONS
Accessories
Wire shelf
Capacity
| Accessory rack maximum | 42lb |
| Cappuccino cups | 24 |
| Espresso cups | 54 |
| Maximum allowable weight | 55lbs |
| Place settings | 16 |
| Usable depth | 16 1/16″ |
| Usable height | 9 1/16″ |
| Usable width | 27 1/2″ |
Cleaning
| Easy clean smooth-glass base | • |
Controls
| Audio feedback | • |
| Automatic timers | 30′, 45′, 1h, 2h, 4h, 6h |
| Delayed start | • |
| Electronic capacitive touch | • |
| On/Off indicator | • |
| Pre-set heating functions | • |
| Push-to-open drawer | • |
| Sabbath mode | • |
| Soft close drawer | • |
| Standby mode | • |
Functions
| Cups | • |
| Dehydrate | • |
| Plates | • |
| Slow cook | • |
| Warm | • |
Performance
| Heated glass base and fan | • |
| Low temperature cooking | • |
| Temperature levels | 6 |
| Temperature range | 95°F-185°F |
Power requirements
| Amperage | 10A |
| Power outlet | 3-prong grounding-type |
| Supply frequency | 60Hz |
| Supply voltage | 110V |
Product dimensions
| Adjustable front door panel to | • |
| Depth | 22 5/16″ |
| Height | 10 11/16″ |
| Width | 29 15/16″ |
Safety
| Adjustable front door panel to | • |
| Depth | 22 5/16″ |
| Height | 10 11/16″ |
| Width | 29 15/16″ |
Safety
| Automatic turn off after 12 | • |
| Full extension slides | • |
Warranty
| Parts and labour | 2 years |
| SKU | 82112 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020

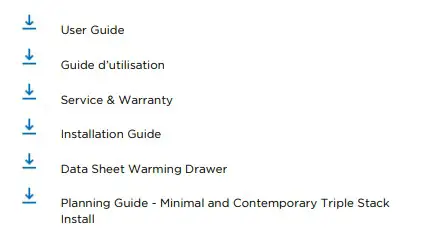

Other product downloads available at fisherpaykel.com
|
