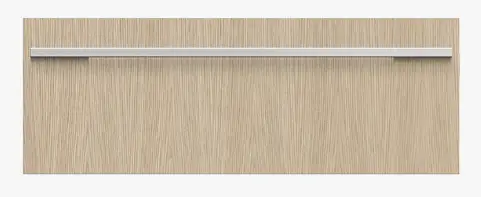

FISHER PAYKEL WB30SDEI1 30 Inch Integrated Warming Drawer
INTRODUCTION
INTRODUCTIONKeep plates warm until ready to serve; rapid proof or slow cook. Panel-ready, you can match it with your cabinetry.
- Integrate your warming drawer into your surrounding cabinetry for seamless design
- Space to keep 16 standard-sized place settings evenly warm, with an accessory rack for optimizing space
- Easy to clean smooth-glass base
- Six versatile tailored programs for warming, proofing, dehydrating and slow cooking
DIMENSIONS
| Height | 10 11/16″ |
| Width | 28 7/16″ |
| Depth | 22 3/16″ |
FEATURES & BENEFITS
Complementary design
Choose from six tailored functions including Rapid Proof, Dehydrate and Slow Cook.
Multi-function flexibility
Choose from six tailored functions including Rapid Proof, Dehydrate and Slow Cook.
Easy to clean
Cleaning and care of the Warming Drawer is simple. After each use, just wipe out the smooth glass interior with a damp cloth.
Easy to use
Soft-close with capacitive touch controls, our Warming Drawer comes with an accessory rack for optimising space.
Precise control
With fast and even heating, our warming drawer is great for keeping food warm and low temperature cooking, as well as resting after a traditional roast in the oven and proofing dough.
Safe and sound
With Automatic switch-off and Delayed start functionality, our warming drawers help keep dishes warm until it is time to serve the main meal.
SPECIFICATIONS
Accessories
| Professional round flush handle | Part 82139 (optional) |
| Square fine aluminium handle | Part 82105 (optional) |
| Square fine black handle kit | Part 82103 (optional) |
| Wire shelf | 1 |
Capacity
| Accessory rack maximum | 42lb |
| Cappuccino cups | 24 |
| Espresso cups | 54 |
| Maximum allowable weight | 55lbs |
| Place settings | 16 |
| Usable depth | 16 1/16″ |
| Usable height | 9 1/16″ |
| Usable width | 27 1/2″ |
Cleaning
| Easy clean smooth-glass base | • |
Controls
| Audio feedback | • |
| Automatic timers | 30′, 45′, 1h, 2h, 4h, 6h |
| Delayed start | • |
| Electronic capacitive touch | • |
| Pre-set heating functions | • |
| Sabbath mode | • |
| Soft close drawer | • |
| Standby mode | • |
Functions
| Cups | • |
QUICK REFERENCE GUIDE > WB30SDEI1
| Dehydrate | • |
| Number of functions | 6 |
| Plates | • |
| Rapid proof | • |
| Slow cook | • |
| Warm | • |
Performance
| Heated glass base and fan | • |
| Low temperature cooking | • |
| Temperature levels | 6 |
| Temperature range | 95°F-185°F |
Power requirements
| Amperage | 10A |
| Power outlet | 3-prong grounding-type |
| Supply frequency | 60Hz |
| Supply voltage | 110V |
Product dimensions
| Adjustable front door panel to | • |
| Depth | 22 3/16″ |
| Height | 10 11/16″ |
| Width | 28 7/16″ |
Safety
| Automatic turn off after 12 | • |
| Full extension slides | • |
Warranty
| Parts and labor | 2 years |
| SKU | 82114 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
User GuideGuide d’utilisationService & WarrantyInstallation GuideData Sheet Integrated Warming Drawer
