Hitway 14f005 Mini Folding High End Electric Bicycle User Manual

MINI FOLDING HIGH-END ELECTRIC BICYCLE
User’s Manual
Product Model 14F005

Precautions

Battery and charging:
Charge at 0 C –45 C, discharge at -20C —60 C, Please keep the battery dry. It is strictly forbidden to put the battery n acidic or alkali.* liquid, avoid rain, keep away from fire, heat and high-temperature environment. It is also forbidden to reverse the positive and negative poles of the battery and insert or short-circuit the battery. When charging, please use the original special charger, not more than 6 hats, and the charging current does not exceed 2A. When suspended for a long time, please keep the battery in a dry place. and charge the battery for five hours every month. The user must charge according to the instructions, otherwise, customers need to bear the necessary responsibilities. Please pay attention to the type of battery and the applied voltage that the charger can charge use of matched chargers is strictly prohibited. When charging, it should be placed in a ventilated environment. It is forbidden to charge in residential buildings and confined spaces or in hot and high-temperature environments. When charging, insert the large battery first, then the small plug: after fully charging, cut off the small plug first, and then pull out the battery plug. When the green fight is on, the power supply should be cut off in time, do not connect the charger to the AC power for a king time without charging. During the charging process, if the indicator light is abnormal, odor, or the charger case is overheated. stop charging immediately, and repair or replace the charger. During the use and storage of the charger, pay attention to avoid the entry of foreign objects, especially to avoid the flow of water or other liquids, so as not to cause a short circuit inside the charger. The charger should not be carried with the vehicle as much as possible. If it is indeed necessary to carry it. it should be placed in the toolbox after shock absorption treatment. Do not disassemble or replace the accessories in the charger.
Riding:
Do not use it until you read the instructions carefully and understand the performance of the product; do not lend it to anyone who will not manipulate the product. Check whether the brake is working before riding the bicycle. When braking, please use the rear brake first and then the front brake. Pay attention to the tightness of the brake. If you find that the brake is too loose, you can use an alien wrench to tighten It. Pay attention to increasing the braking distance when riding In rain or snow. Applicable age: 16 to 65 years old riding.
Cyclists must wear safety helmets, comply with traffic guidelines, and are not allowed to drive on motor vehicle lanes and roads with many pedestrians. Please check the tire pressure before riding.
The recommended tire pressure is 35 – 45 PSI.
Downhill and non-paved roads do not exceed 15KM/h. When using the motor, be careful not to hit It strongly and you need to keep the shaft lubricated. It is not allowed to ride more than the maximum negative weight of the body (maximum load 120KG)
After use, the bike can not be parked in the building entrance hall, evacuation stairs, or safety exit. The rider must be properly parked in accordance with the safety regulations. One-handed riding is prohibited!

Responsibility statement

After the ride, please store the car in a place without sunlight and rain, and cannot be placed in a residential building;
Often check the motor and brakes;
Regularly check the screws of the car and the places to be tightened, and tighten regularly. Recommended torque: (unit: kg.cm) 60-80 horizontal screws, 175-200 vertical screws, 175-200 seat cushion screws, 320-450 wheel screws;
The front and rear wheels of the vehicle should be located in the center of the front fork or frame; Always check the wheels for scars, cracks, or excessive wear. The inner tube and valve should be perpendicular to the wheel hub and should not be skewed. Damaged or excessive; worn tires need to be replaced immediately. Please find a professional technician to replace your tires. If your tires accidentally puncture and leak, please contact a professional technician for repair or replacement.

Maintenance:

With the product model, specifications, or related information mentioned in this manual, the company reserves the right to modify and final interpretation;
The functions of specific models mentioned in this manual are only applicable to the specific model; This use of The product model, specifications or related information mentioned in the manual are subject to any modification or change without notice;
Without the prior written permission of the company, it not allowed to be copied, modified, reprinted, disseminated or used in any form to use the content of the manual.
Please read this user manual carefully and follow the operation manual before using the product, otherwise, the company will not be responsible for product damage or personal or property damage caused by improper use or error.

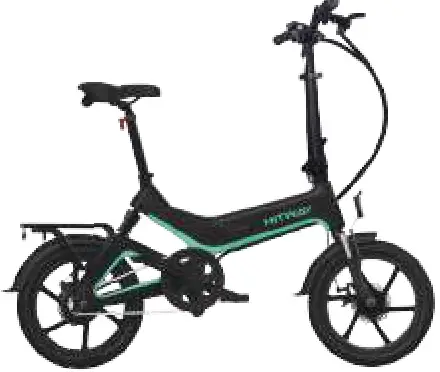

Whole vehicle diagram

Function introduction

1. Charging: open the plastic cover on the right side of the frame, and connect the charger to start charging, when the battery power is full, and the charger indicator changes from red to yellow-green, indicating that it is fully charged.

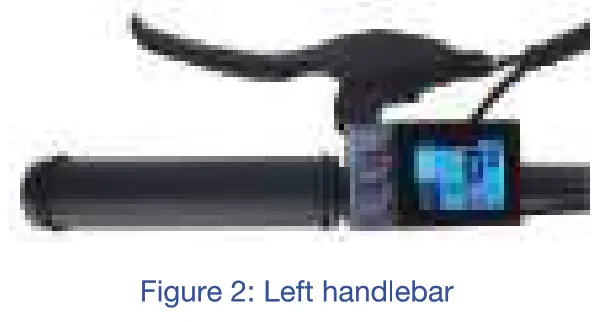

2. Power on: Referring to Figure 2, long press the t key to turn off the power.
3. Power display: The display lights up after power is on, shoving the power, and the power is displayed in four grids, corresponding to high, medium, and low power.
4. Front light: Refer to Figure 2, long press key to turn off the front light.
5. Start-up mode: power-assisted riding, stepping on the car sprocket, and only after a certain speed, automatically start electric power-assisted.lf you don’t need power, you can turn off the power or turn off the battery.

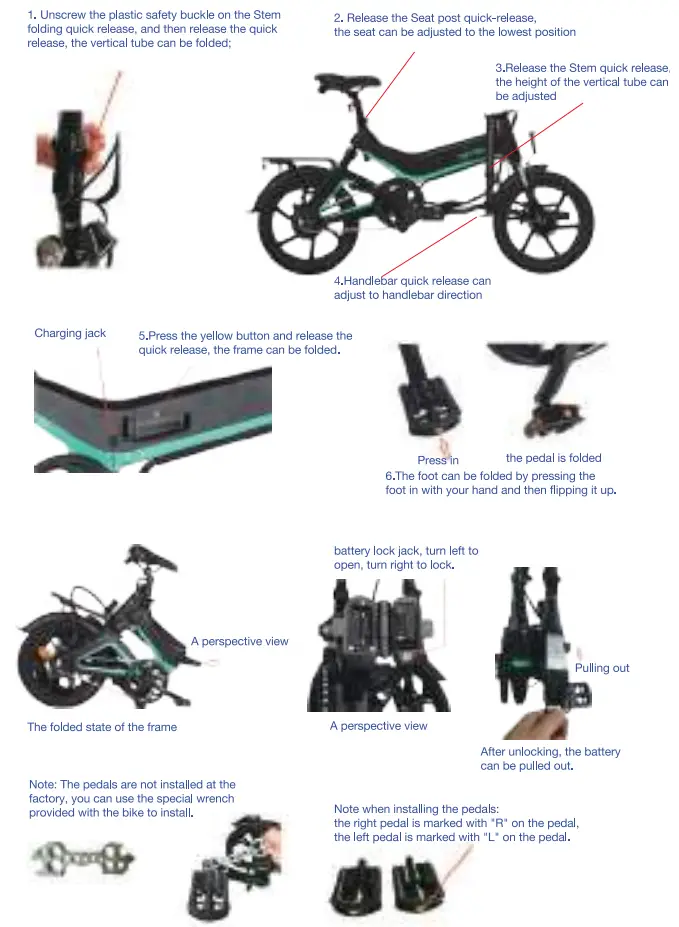

Illustration of the folding operation

Product parameters

Remark:
Many factors will affect the max speed, such as power, load. Type pressure, road conditions, chain, lubrication degree, etc. Mileage has been measured on basis of temperature 25″C , a load of 60KG, spend of 15-20KM/H, smooth and hard road, and from full battery to a dead battery. It also is subjected to many factors, such as driving habits, temperature, load, tire pressure, road conditions, etc.

Part description and specification

Part description

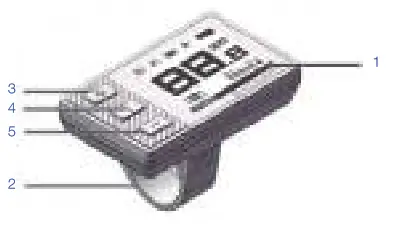

1. Black and white liquid screen
2. Fixed bracket
3. “+” key
4. i” Displays the information switch key
5. ‘-“key

Electrical parameters

Installation

Instrument installation

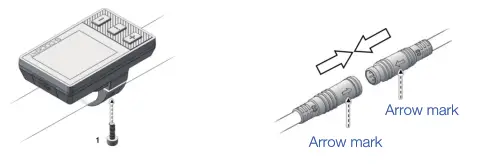

1. Use an M3 inner hexagonal screw 1 to lock the control unit on the left handle. Recommended position: to the right of the brake fixing ring.
2. Don’t lock too tightly or it will cause damage to the instrument.

Connection cable
Align the arrow mark on the instrument exit line and the Ebike exit joint, and firmly plug the two cables.

The system USES

Initial operational guidance

1. Press “+” and “-” at the same time for 2 seconds to enter the settings menu.
2. Use the “+” / “2 key to select “S8” and other options, and click “i” to be sure, as shown in the following figure and table.
3. On the appropriate page, use the “+” / “2 key to increase/decrease the parameters.
4. The lower right corner is the adjusted parameter.
5. After a set of numbers is adjusted, press the “i” key to jump to the next set of numbers and repeat the operation until all numbers are set.

If it is used with Likewise APP, manual setting of date and time is not necessary. When the instrument connects to the APP via Bluetooth for the first time every day, the APP will automatically adjust the time of the instrument to the same time as the user’s mobile phone.
According to the optional function of the instrument with different configurations, the value of the instrument without this function is invalid.

The keyboard

1.  “+”button:


   	Short Press	Long Press	Long Press & Hold
   Meter Interface	Assist level Up	E-bike Lights On/Off	—-
   Menu Interface	Cursor Up / Increase	—-	—-

2.  “-” button:


   	Short Press	Long Press	Long Press & Hold
   Meter Interface	Assist level Down	—-	6km/h Start-up Mode
   Menu Interface	Cursor Down / Decrease	—-	—-

3. “i” button:


   	Short Press	Long Press	Long Press & Hold
   Meter Interface	Change Info Display	System On/Off	—
   Menu Interface	Ok / Confirm		—

4. + & – Press buttons together:


   	Short Press	Long Press	Long Press & Hold
   Meter Interface		Enter Menu Interface	—
   Menu Interface			—

5. + & i Press buttons together:


   	Short Press	Long Press	Long Press & Hold
   Display		ClearTrip miles, ride times	—-

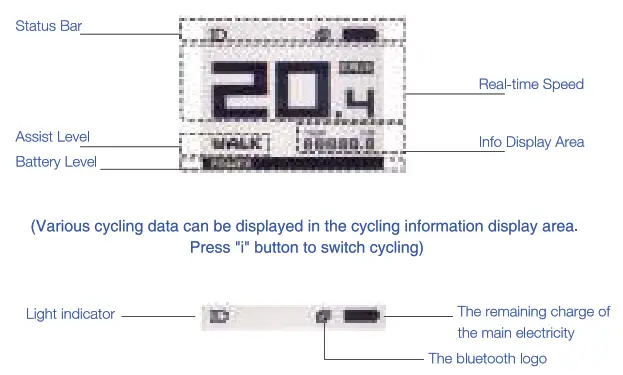

Instrument interface

The instrument interface is the default interface of B-COCKPIT.

The status bar will appear on all the screens, Call reminder via Likewise APP support When the “Bluetooth logo” breathes out, it means that one or more pieces of riding data waiting to be synchronized with the APP have been stored in the instrument.
System settings warning
If you don’t know the relevant knowledge, changing the parameters in the system settings may cause Ebike to work abnormally, and even bring hidden safety hazards Before modifying the parameters in the advanced settings, please consult the Ebike manufacturer.

Other interface

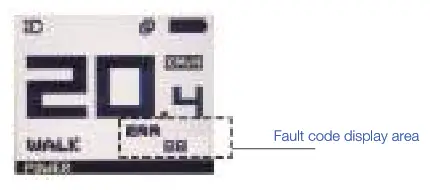

Fault code display
Fault code table (varies by customer, the following table uses KM5S protocol as an example)

Maintenance and after-sales

Daily maintenance and cleaning
Do not immerse the meter in water or use water spray to clean the meter. Please use a soft cloth moistened with clean water when cleaning. Do not wipe with any detergent.
Disposal
Do not discard the meter or any other Ebike accessories as household garbage. Please abide by local laws and regulations, and dispose of or recycle Ebike accessories in an environmentally friendly manner.

(please read this manual carefully before use)
