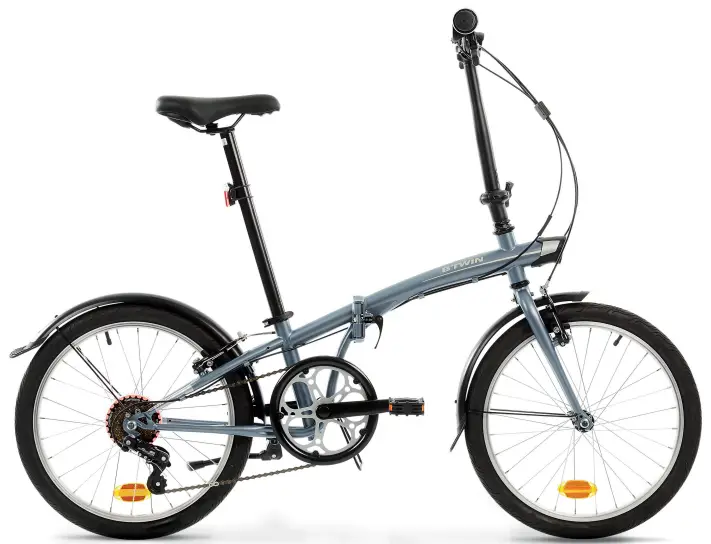

OXYLANE 100/120 Folding Bike
BEFORE YOU RIDE
- Before each bike ride check that your front and back brakes are working perfectly.
- An under-inflated tyre will affect the performance of your OXYLANE bike. Recommended pressure: 4 bars.
- Your OXYLANE bike is hardwearing but is not a BMX. It isn’t designed to carry out acrobatics and other tricks.
- Some accessories you add could make it difficult to fold your bike correctly, such as a front basket or pannier bag
- Keep the same tyre width at the front and back of your bike.
- Levers and drive train components must only be replaced with identical models.
- Do not oil the seat post.
- You can adjust the position of your saddle according to the position recommended below.
- Maximum user load: 100 kg
- For optimum stability of your OXYLANE bike on the ground when folded, we recommend you use the left pedal, slightly tilted back.
- Cyclist height: Minimum: 145cm – Maximum: 185cm
- The stem is designed to be mounted as a stopper, height adjustment is prohibited.

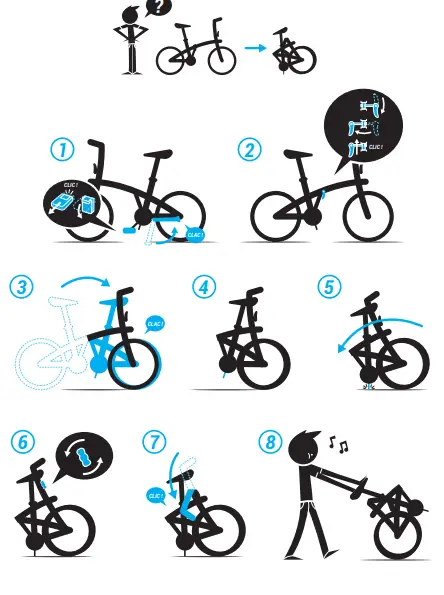

OXYLANE 100 – 120 – FOLDING

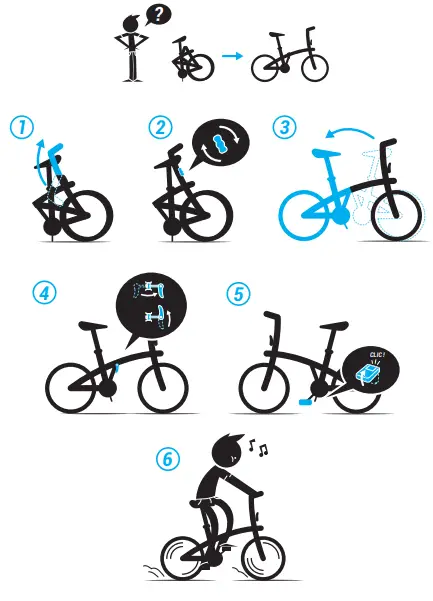

OXYLANE 100 – 120 – UNFOLDING

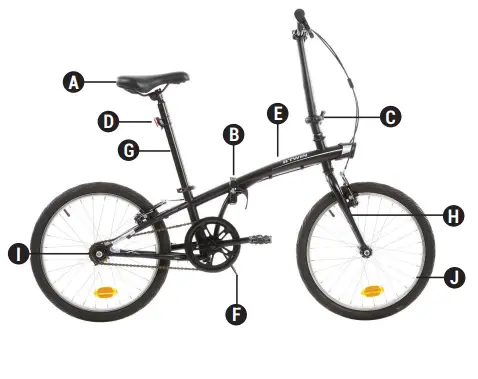

OXYLANE 100 – TECHNICAL DESCRIPTION
- A Ergonomic seat handling
- B EOH frame hinge
- C Stem hinge
- D Battery-powered light (LED) E Steel Frame
- F Frame stand
- G Steel saddle post
- H Steel fork
- I Single-speed transmission J Single-wall rim, 20×1.75 tyres
Specifications
| Weight: | 13,3 kg |
| Frame: | Hi-Ten steel. Frame guaranteed for life, excluding the hinge. |
| Fork: | Hi-Ten steel. Life-time guaranteed fork. |
| Drive train: | Single speed. Progress in metres for one turn of the crank: 3.80m. |
| Brakes: | V brakes with black steel brake callipers. |
| Crank-set: | 165 mm steel cranks. |
| Handlebar/stem/head set: | Semi-upright aluminium handlebars, aluminium stem. |
| Wheels: | 20-inch aluminium single-wall rims. |
| Tyres: | Btwin Mobility 20×1.75 |
| Seat/seat post: | Quick-release seat post clamp, steel seat post diameter 31.6mm. Comfort saddle in ergonomic shape. |
| Pedals: | Non-folding |
| Accessories/equipment: | Double chain ring guard, front and rear battery-operated lighting. Bike compatible with the OXY- LANE carry case, the btwin folding bike carrier rack. Compatible with OXYLANE 120 mudguards, available to order from the after-sales service. |
| Folded dimensions: | L 78 cm, H 66 cm, W 41 cm. |
| Unfolded: | L 145 cm, H 108 cm, W 58,5 cm. |

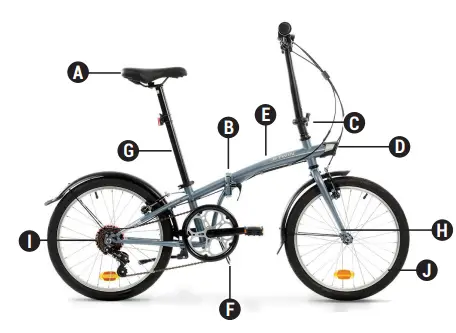

OXYLANE 120 – TECHNICAL DESCRIPTION
- A Comfortable saddle with shape memory
- B EOH frame hinge
- Stem hinge
- D Front LED light built into the frame. Complies with the rules of the road.
- E Steel Frame
- F Frame stand
- G Steel seat post.
- H Aluminium forks
- I 6-speed transmission
- J Single-wall rim, 20×1.75 tyres.
Specifications
| Weight: | 14,5 kg |
| Frame: | Hi-Ten steel. Frame guaranteed for life, excluding the hinge. |
| Fork: | Hi-Ten steel. Life-time guaranteed fork. |
| Drive train: | 6 speeds 14/28. Progress in metres for one turn of the crank: 2.96m – 5.90m. 52-tooth chain ring. |
| Brakes: | V brakes with black steel brake callipers. |
| Crank-set: | Aluminium crankset. 165mm cranks. |
| Handlebar/stem/head set: | Semi-upright steel handlebars. Aluminium stem. |
| Wheels: | 20-inch aluminium single-wall rims. |
| Tyres: | Btwin Mobility 20×1.75 |
| Seat/seat post: | Quick-release seat post clamp, steel seat post diameter 31.6mm. Comfort saddle with ergonomic shape. |
| Pedals: | Folding |
| Accessories/equipment: | Rod mudguard, stand, double chain ring guard, battery-operated front and rear lighting. Bike compatible with the OXYLANE carry case, the btwin folding bike carrier rack. Compatible with OXYLANE 120 mudguards, available to order from the after-sales service. |
| Folded dimensions: | L 78 cm, H 66 cm, W 34 cm. |
| Unfolded: | L 146 cm, H 108 cm, W 58,5 cm. |
