Aroma Dt-1522 Essential Oil Humidifier User Manual

Aroma Diffuser
User Manual

User Manual

This Aroma Diffuser uses Ultrasonic Technology to atomize the water and essentail oil in the water tank, and produces a cool, humid and fragrant mist.

1. LIGHT Button
2. Cover
3. MIST Button

1. Main Body
2. Water Tank
3. Drainage Outlet
4. Water Line
5. Air Outlet
6. Water Outlet
7. DC Socket
8. Air Intake

OPERATION

1. Position the Aroma Diffuser upright, pull upwards to remove cover. (Fig. 1)
2. Connect AC adaptor power cord into the DC input jack at the base of the Aroma Diffuser. lt is suggested to route cable via track provided. (Fig 2)

Fig 1         Fig 2

3. Pour water and essential oil into Aroma Diffuser. DO NOT fill above the “MAX” marking 400m1. DO NOT use boiling water. DO NOT fill when power is on It is recommended to add 2-3 drops of essential oil for each 100m1of water. (Fig. 3)
4. Set the cover back on the base. Spout is adjustable to guide aroma into desired direction. Aroma Diffuser must NOT be operated without the cover. (Fig. 4)

Fig 3          Fig 4

5. Plug diffuser into power outlet.
6. To turn on mist, press “MIST” and choose operation time required ( Timing: 1 H/3H/6H/ON). Mist level is adjustable by hard-pressing “MIST” until the Aroma Diffuser beeps (One beep for high and two beeps for low). To switch off, continue pressing “MIST” through the cycle until it is off. (1 hour -> 3 hour -> 6 hour -> ON Continuous -> Off). (Fig. 5)
7. Press “LIGHT’ turn on LED light. Brightness is adjustable through the following cycle. (Bright -> Dim -> Off) (Fig. 6)

Fig 5        Fig 6

8. It is recommended to drain water from tank and keep dry when not in use
9. Diffuser will automatically shut off when there is insufficient water.

ATTENTION

• The amount and intensity of mist will vary depending on water type, temperature and air currents
• Automatically powers off when water runs out
• Only use 100% natural essential oils. Using oils that contain chemical ingredients, flavors or impurities may cause damage to the product.

ACCIDENTAL LEAKAGE

In the event of the unit being knocked over or tipped during use, please follow the steps below to avoid damage to the unit

1. Unplug the unit and remove cover.
2. Pour out any remaining water from the water tank.
3. Tip the unit to drain water, and then air dry it for at least 24 hours

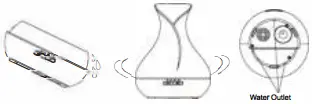

MAINTENANCE

After using 5-6 times, or 3-5 days, please clean the product as follow

1. Unplug the unit and remove cover.
2. Pour out any remaining water from the tank
3. Use a small amount of dish soap to clean. Gently wipe with a soft cloth. Use a dry towel to dry the diffuser after it is clean
4. NEVER use other acids or enzymes to clean the unit as they could react with the essential oil residue and cause harmful vapors to be released or cause a malfunction

1. Air Outlet
2. Drainage Outlet

PRECAUTIONS

Please read below to avoid any malfunction to the unit:

• If you are not a technician do not try to dismantle the diffuser to repair it. Contact the seller if repair is necessary
• Do not turn power on when the tank is empty
• Do not touch the atomization plate
• Clean regularly as per Maintenance instructions to avoid malfunction
• Always unplug before maintenance.
• For hygiene reasons, after use, pour out the remaining water from the tank and wipe with a clean dry cloth
• Only use the measuring cup to add water into the tank, do not fill water directly from the sink.
• Do not let mist come in direct contact with fumiture, clothing, walls, etc
• Keep out of direct sunlight.
• Always keep on a hard, stable, flat surface. Do not place on a towel, carpet or any other unstable surface
• Keep away from electronic equipment, such as TV and Audio equipment
• Wait 60 minutes between uses to avoid damage to the atomization piece
• Do not use sparkling water. Only use tap water or mineral water.
• Never move product when it is working
• Do not touch any part of the product with wet hands
• Keep away from pets and small children
• If the power cord is smoking or burning, unplug immediately!

TROUBLESHOOTING

Please refer to the table below in the event of the product operating abnormally

SPECIFICATIONS

Aroma Diffuser
