IINSTRUCTIONS INSTRUCTIONS

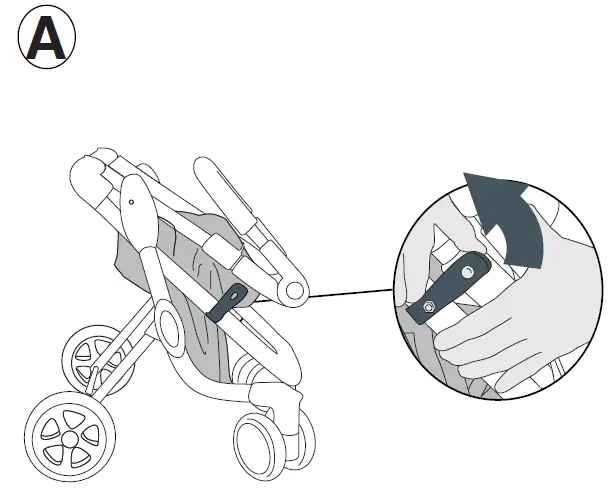

Unfolding: To unfold the Go Up, release the safety catch (A).

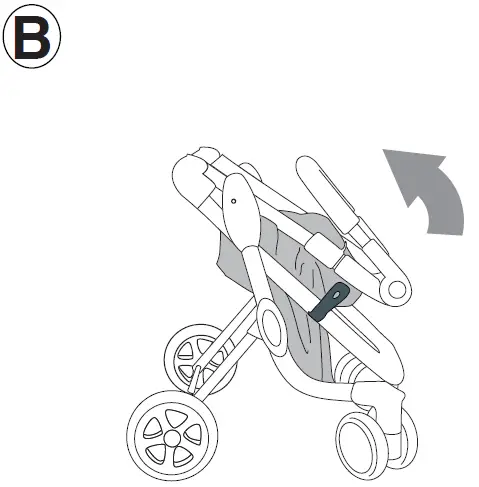

Push the chassis backwards until it clicks indicating it is correctly fastened (B).

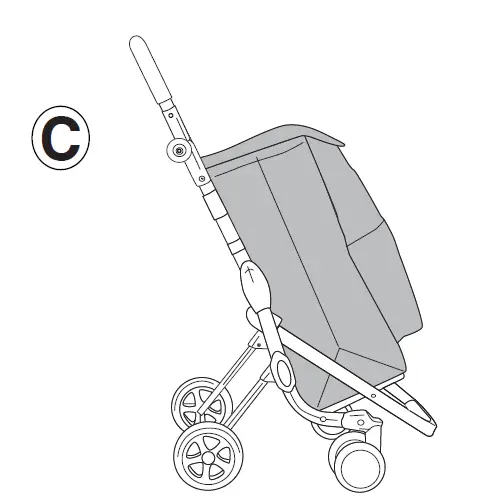

Next, adjust the opening of the bag and adjust the handlebar height (C).

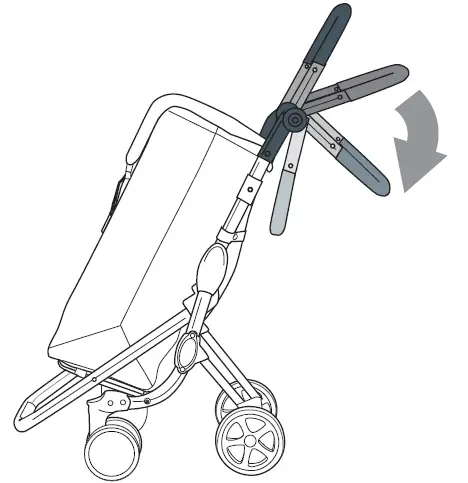

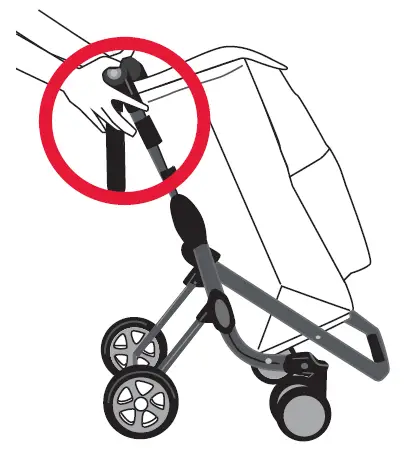

Height-adjustable foam-covered handle. To change position pres. bottoms placed at the sides.
Characteristics of the wheels

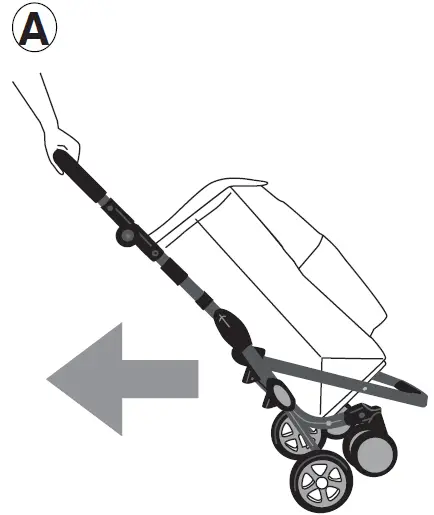

Empty GO UP carts are dragged with two wheels (A) and loaded they are easily pushed with four wheels (B).

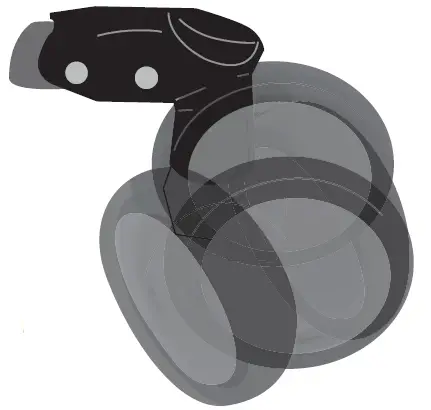

Two small swiveling front wheels that allow marking all types of maneuvers.

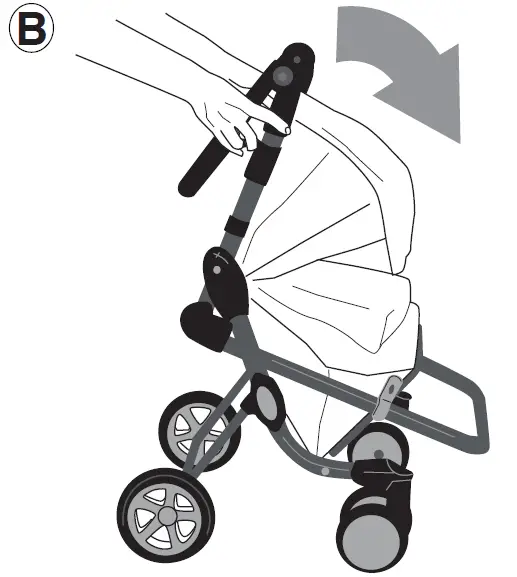

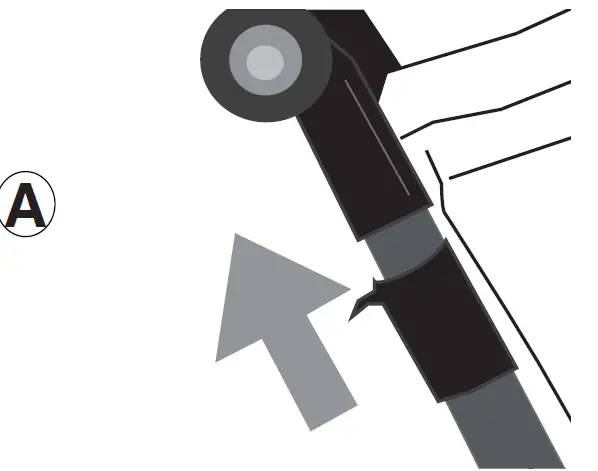

Folding: Slide up the handles and push forward (fig. A, B y C).

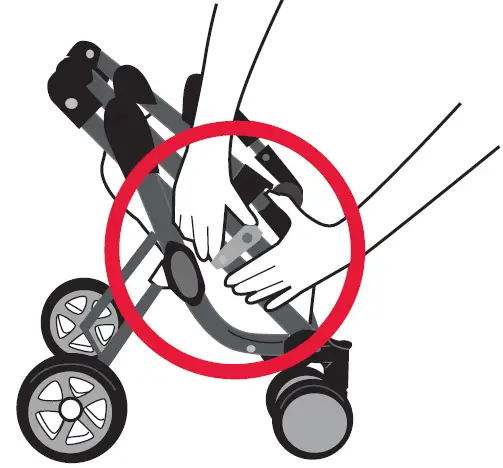

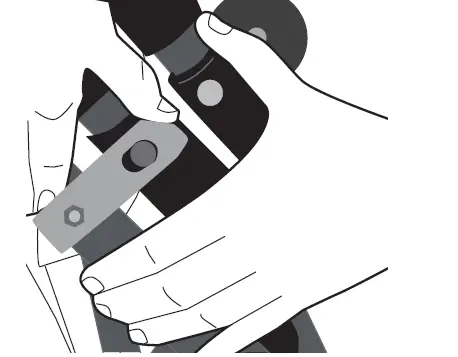

Safety lock: Helped with one hand, press the GO UP frame and lock with the other hand.

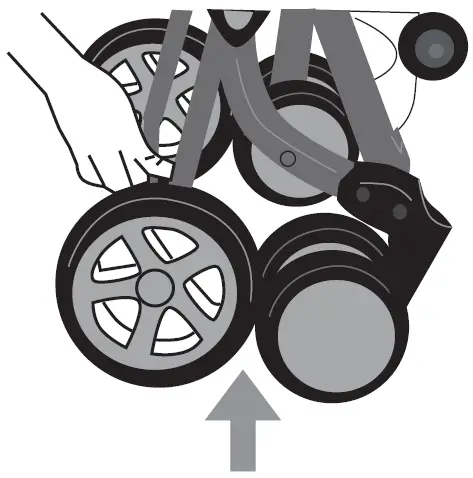

When folding, be sure the back wheels fit properly between the front swivel wheels.

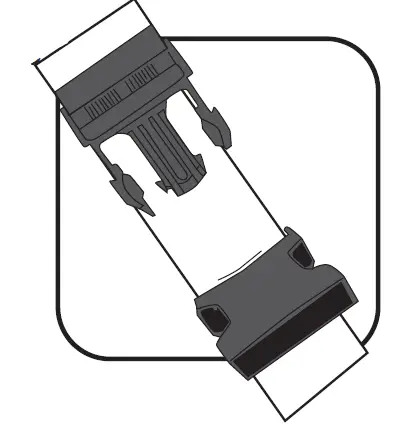

Adjustable lid lock, adapting to cart contents.
Front thermal bag.

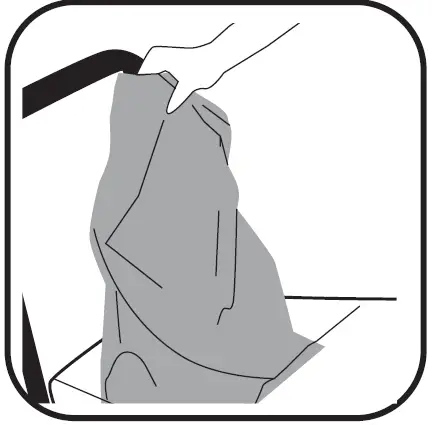

Removable inner bag.

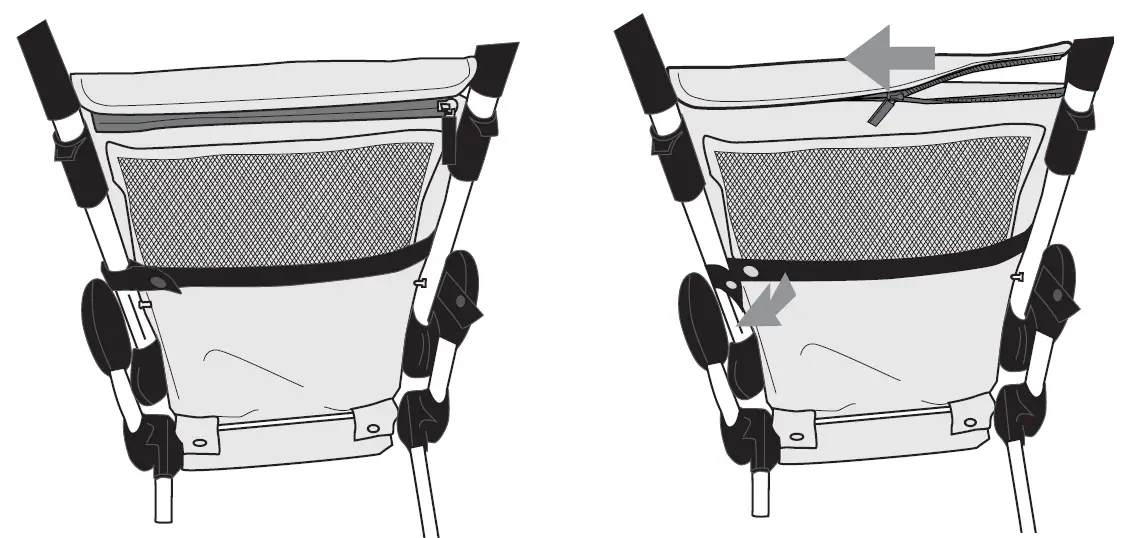

Removable external bag.
WARNINGS AND RECOMMENDATIONS
- Only designed to carry everyday shopping and domestic articles.
- Do not let children climb in this shopping trolley.
- Must not be used as a stroller.
- Must not be used as a baby carrier.
- Do not put pets in the trolley.
- Always place the heaviest articles in the bottom of the bag.
- Whenever possible use the disabled access ramps.
- When the trolley is full take care when going down kerns, ramps and over uneven ground to prevent the trolley from tipping over.
- Pull the trolley to go up or down steps or kerns with the rear axle folded.
- Try not to use escalators. Use the lift whenever possible.
- Clean the chassis with a damp cloth. Never use abrasive products or solvents.
- Follow the washing instructions for the bag that are shown on the label inside the bag.
Measurements: 40 x 48 x 110 cm (app.)
Volume: 40 L (app.)
Weight when empty: 5 kg (app.)
Maximum load: 30 kg
Thermos: 10 L
Keep up your receipt in order to exercise your right as a consumer.
