Newborn 930-gtd Caulk Gun Hex Rod Instructions

Newborn 930-GTD Caulk Gun Hex Rod

Instructions

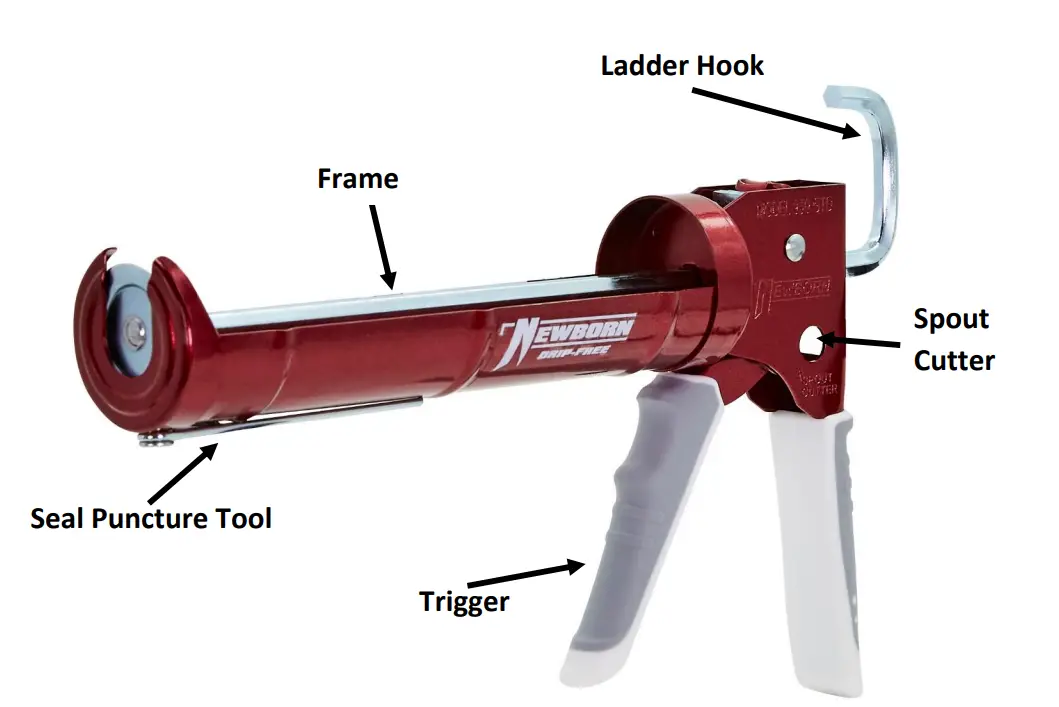

1.  To retract the rod, grip the back trigger and pull the ladder hook backward. Be sure not so squeeze the trigger as the rod will lock in place. It may be helpful to point the gun straight down while retracting.
2.  Place the cartridge tip into the spout cutter and squeeze the trigger to open the cartridge.
3.  Using the seal puncture tool, pierce the foil seal inside the cartridge nozzle.
4.  Insert the cartridge into the 930-GTD frame.
5.  Squeeze the trigger to advance the rod and begin extruding material.
6.  The drip-free feature will automatically engage when the trigger is released.
