HC-1913FS Bayside Single Light 5 Inch Tall LED Outdoor Wall Sconce
Instruction Manual
HC-1913FS Bayside Single Light 5 Inch Tall LED Outdoor Wall Sconce
To register your fixture, please visit our website: SeaGullLighting.com
Helpful Tools
Please record for future reference:
Item Number. ……………….
Date Purchased. ……………
NEED HELP?
¿NECESITA AYUDA?
AVEZ-VOUS BESOIN D’AIDE?
Please do not return this product to the store.
If you need installation assistance, replacement parts, or have questions regarding our warranty, please call our customer care center:
1-800-347-5483
Care and Cleaning
To clean, wipe fixture with a soft cloth. Clean glass with a mild soap. Do not use abrasive materials such as scouring pads or powders,steel wool or abrasive paper.
Warranty
Sea Gull Lighting fixtures and components, when properly installed and under normal conditions of use, are warranted to be free from defects in materials and workmanship for one year from date of sale. ENERGY STAR® labeled products are warranted for three years. Sea Gull Lighting at its sole option will repair or replace, F.O.B. Factory, freight prepaid, any Sea Gull Lighting product defective in materials or workmanship. Such replacement is the exclusive remedy against Sea Gull Lighting should any of the products delivered prove defective. Invoices for labor charges and/or charge backs for labor will be denied unless prior written approval is given.
Any modification to a Sea Gull Lighting product not made at the factory will void the UL or ETL listing as well as the Sea Gull Lighting warranty policy.
To register your fixture, please visit our website: SeaGullLighting.com
INSTALLATION INSTRUCTIONS
READ IMPORTANT SAFETY TIPS BEFORE PROCEEDING WITH INSTALLATION
SAFETY TIPS
Turn fixture off! (Place wall switch in off position, if fixture has built-in switch or chain pull, switch or pull chain so fixture is off.)

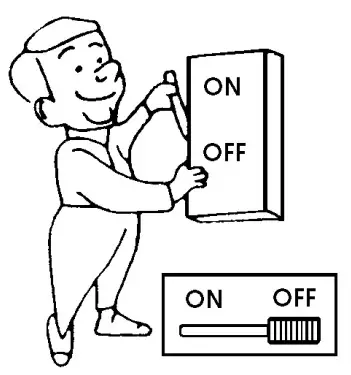

Next – go to the main fuse box. If your fuse box has an ON/OFF switch, simply place main power switch in OFF position.

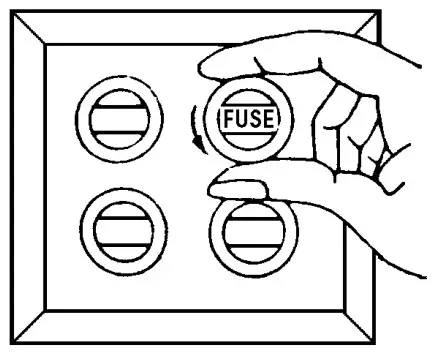

Screw-in type fuses – unscrew the fuse or fuses that control the power to the fixture or room you are working in.

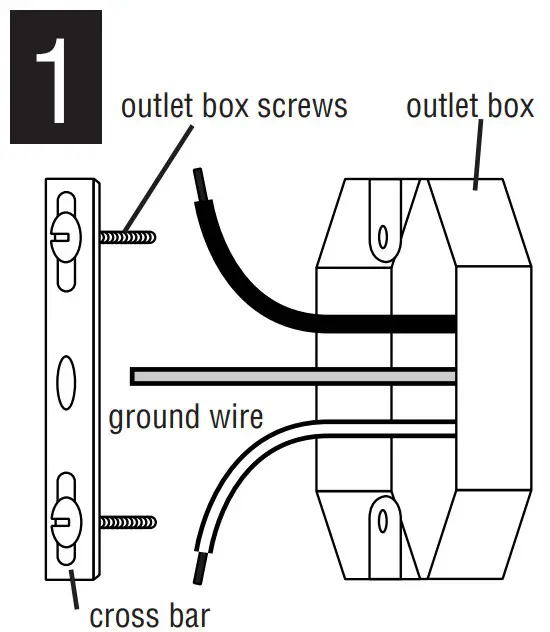

ATTACH cross bar to outlet box with outlet box screws (8-32 x 1/2, 2 slotted screws provided).

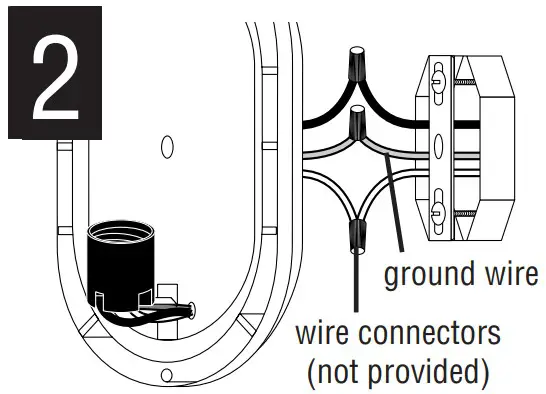

CONNECT THE WIRES. NOTE: Attach black fixture wire to black supply wire, white fixture wire to white supply wire. Do not mix them up. Use approved electrical tape or wire connectors (not provided). Connect bare fixture ground wire to ground wire from outlet box. NEVER CONNECT GROUND WIRE TO BLACK OR WHITE POWER SUPPLY WIRES.

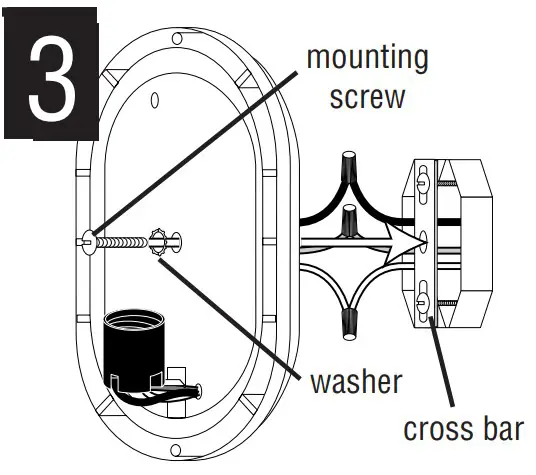

POSITION THE FIXTURE over the outlet box and secure in place with the mounting screw (1/4-20 x 1,1 provided). Insert compact type lamp into socket. Be sure to use compact type lamp with wattage no greater than specified for this fixture.

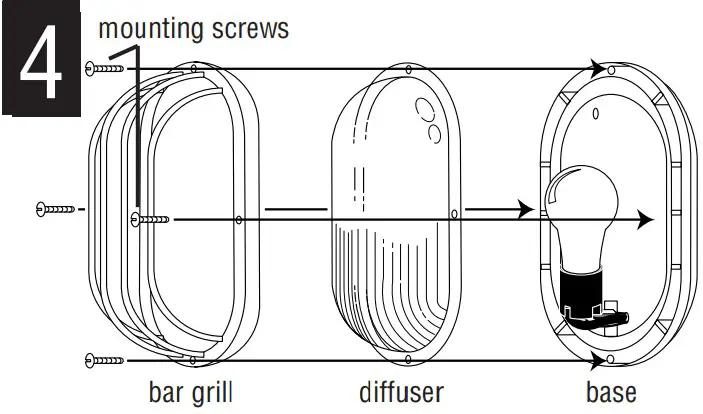

Place diffuser on fixture base. Then place bar grill or frame (depending on fixture model) over diffuser and attach to base with mounting screws (8-32×1/2, 4 combination head screw provided).
NOTE: On models with hood, attach diffuser to base with one combination head mounting screw at center top of base only. Place hood over diffuser and secure to base with remaining three mounting screws. NOTE: Outdoor wall fixture MUST be caulked with an acrylic caulk where base of fixture meets mounting surface. This provides a water tight seal when fixture is installed.

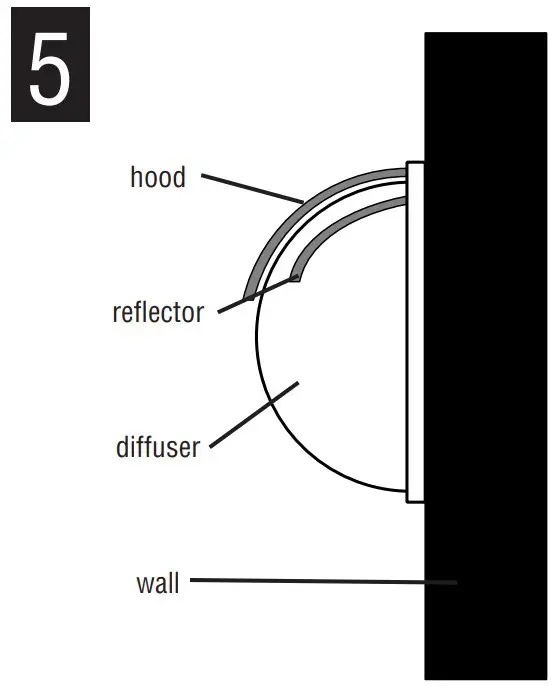

ON MODELS WITH HOOD, attach to wall with reflector up. Hood is to be placed above reflector as shown.
FOR FLUORESCENT FIXTURES ONLY! COLD WEATHER STARTING INFORMATION: For temperatures below 25°F, leave PL9 lamp(s) on continuously – starting with warm lamps. NOTE: If lamp starting becomes a problem in any cold weather applications; remove lamp(s) from fixture – bring lamp(s) indoors so that they become warm – then re-install lamp(s) into fixture and leave fixture on continuously. Do not place lamp(s) in an oven, microwave or similar heat producing device.
CLEAN ONLY WITH MILD SOAP AND WATER. AVOID SPRAYING WITH CLEANSERS, INSECTICIDES, AND PESTICIDES THAT ARE PETROLEUM BASED HYDROCARBON PRODUCTS. THESE WILL DEGRADE LUMINAIRE.
generation brands
HC-1913FS 022312
