IEEE 802.11b/g/n Bluetooth Module
IPC COMM User Manual
IEEE 802.11b/g/n Bluetooth Module
Features：
➢ Supported Technology
IEEE Std. 802.11b
IEEE Std. 802.11g
IEEE Std. 802.11n
Bluetooth Low
Energy
➢ Chip Solution
AP6745
➢ Size
120mm*70mm*2mm
- Brief description:
IPC COMM module designed based on AP6745 chip solution, The SOC module is a highly
intelligent platform for the Internet of Everything that contains low-power Wi-Fi connectivity and Bluetooth solution on one package. It includes a number of TCP/IP-based connectivity protocols along with SSL, enabling a low-cost, low-complexity system to obtain full-featured internet connectivity and reliable information exchange.

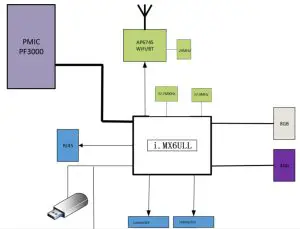

1.1 Block Diagram
1.2 Specification Reference
This specification is based on additional references listed below.
IEEE Std 802.11 b/g/n
Bluetooth Low Energy
1.3 System Feature
| No. | Feature | Description |
| ti | Main Chip | AP6745 |
| 2 3 | Frequency Band Modulation | 2412MHz-2462MHz |
| WIFI:11b: DBPSK, DQPSK, CCK 11g: BPSK, QPSK, 16QAM, 64QAM 11n: BPSK, QPSK, 16QAM, 64QAM | ||
| 4 | Data rates | 11b: 1, 2, 5.5 and 11Mbps 11a/g: 6, 9, 12, 18, 24, 36, 48 and 54 Mbps 11n: 6.5, 13, 19.5, 26, 39, 52, 58.5, 65 Mbps |
| 5 | Antenna Type | Dipole antenna |
| 6 | Operation Voltage | 5V +/-10% |
No. | Feature | Description |
| 1 | Main Chip | AP6745 |
| 2 | Frequency Band | 2402MHz-2480MHz |
| 3 | Modulation | GFSK |
| 4 | Data rates | 1 Mbps |
| 5 | Antenna Type | Dipole antenna |
| 6 | Operation Voltage | 5V +/-10% |

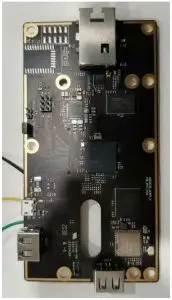

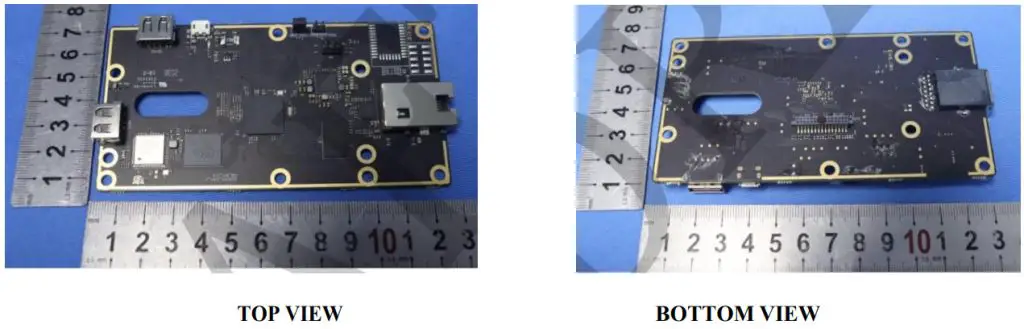

1.4 Product Pictures
