Phonak Roger Multimedia Hub User Guide

Roger™ Multimedia Hub
Quick setup guide

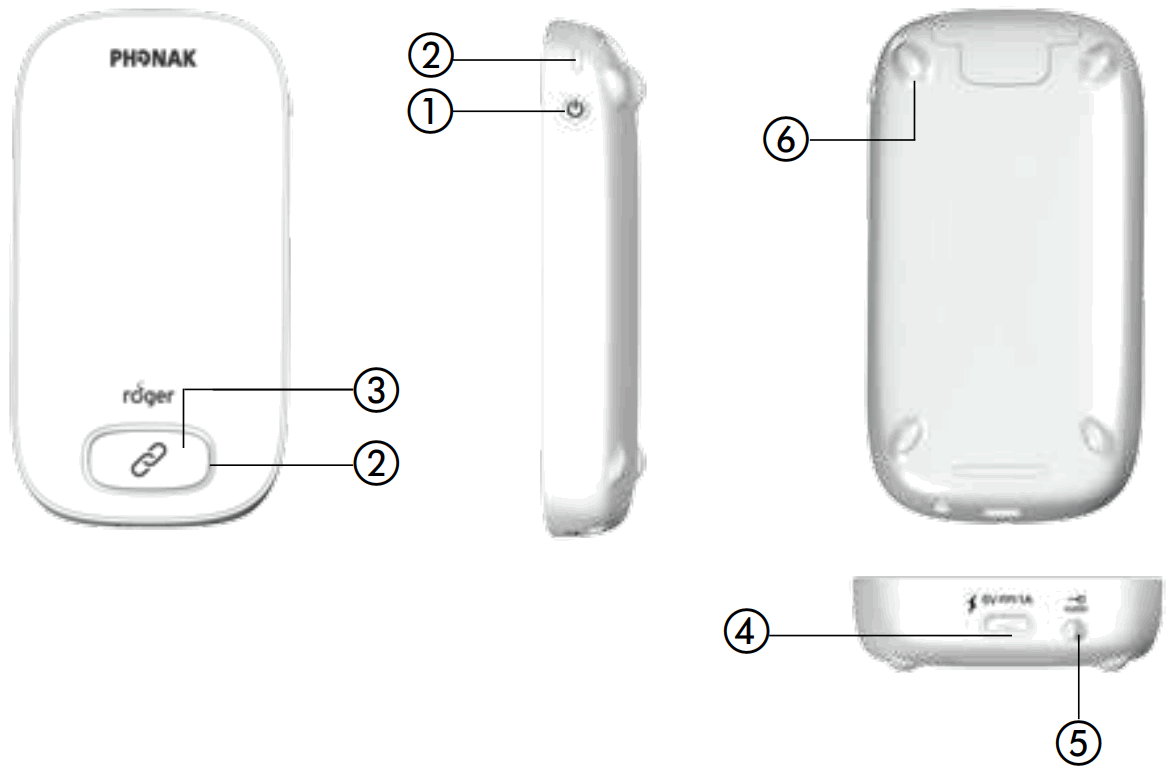

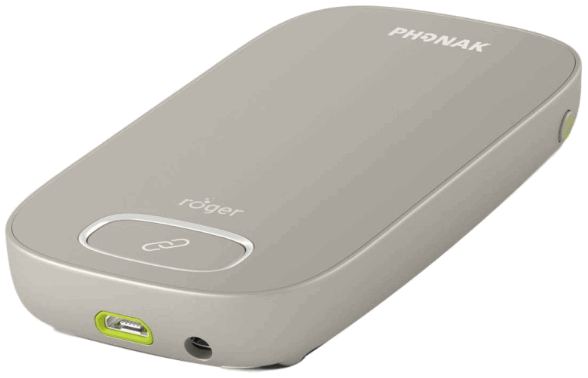

Device description

1. On/Off
2. Indicator light
3. Connect Button
4. micro-USB
5. Jack 3.5 mm / 1/8“
6. Feet

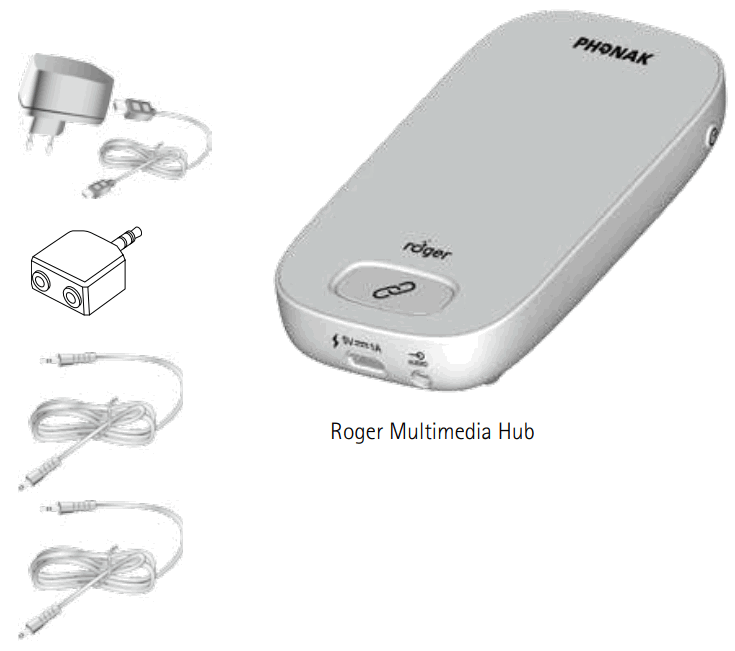

Components

Package contents may vary slightly depending on country.

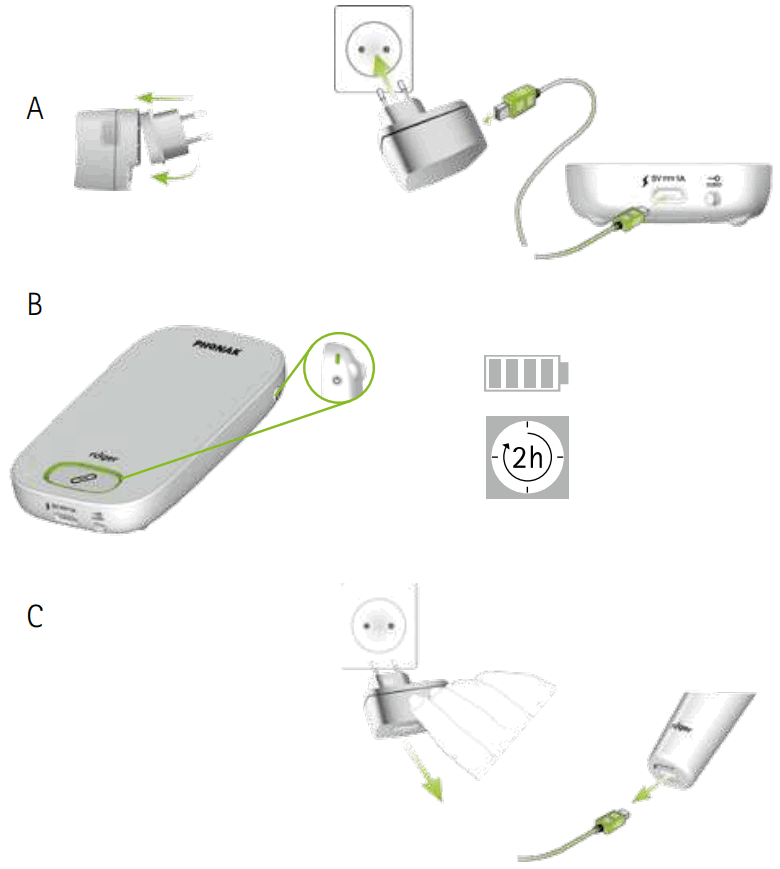

Charging

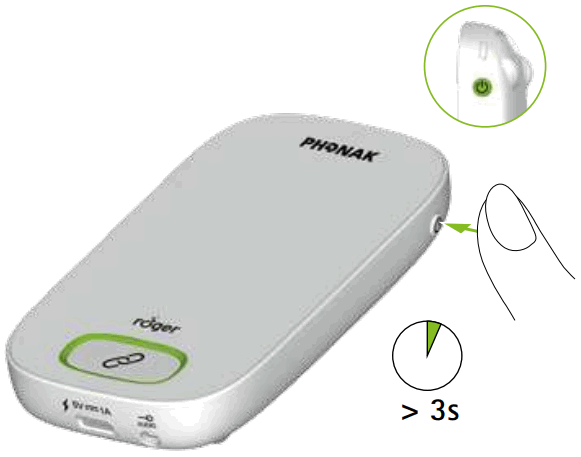

Switching On/Off

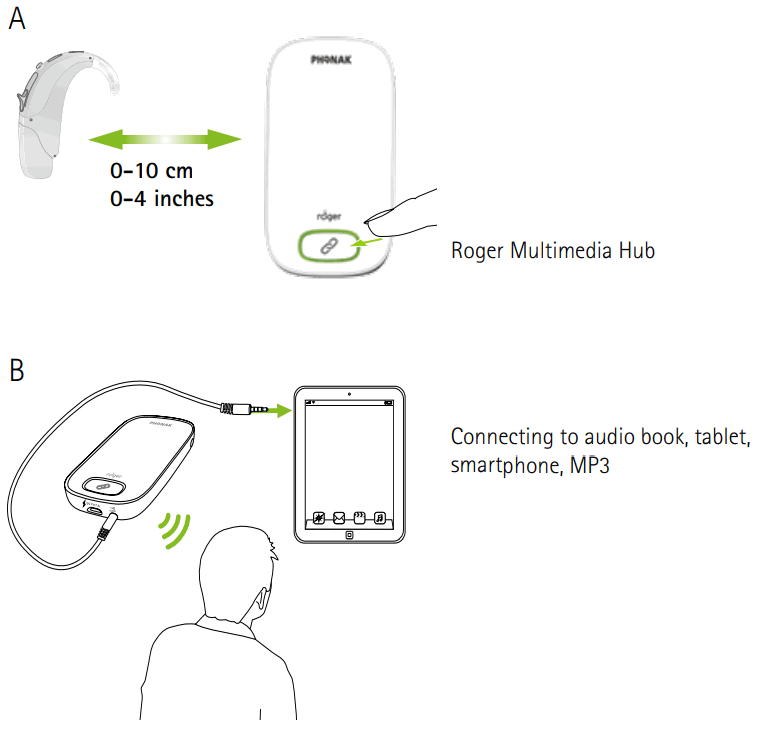

Stand-alone use

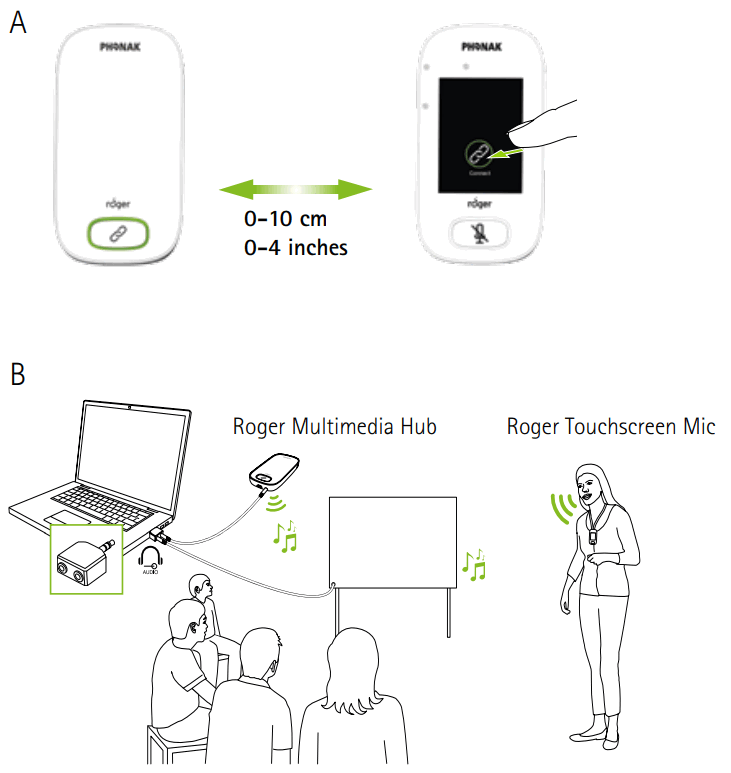

Connecting to whiteboard

Indicator light

	On/Off
	Charging
	Fully charged
	Audio broadcast
	Connecting
	Connection successful
	Connection failed

Roger Multimedia Hub = Secondary

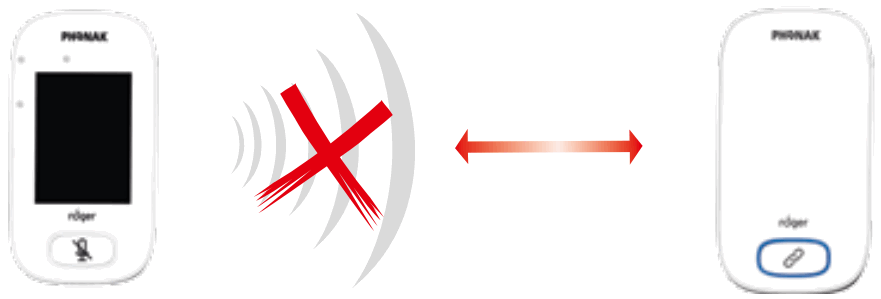

Primary not available

 Indicator light

	On/Off
	Charging
	Fully charged
	Switched on
	Recharge device

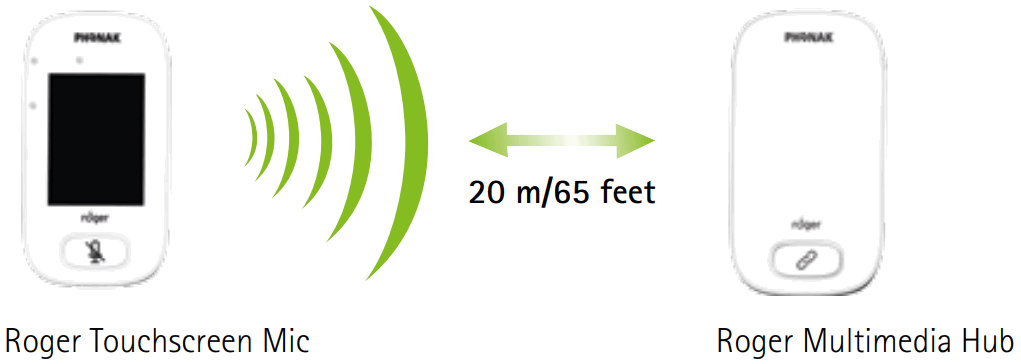

peration range

Out of range! If distance greater than 20 meters/65 feet

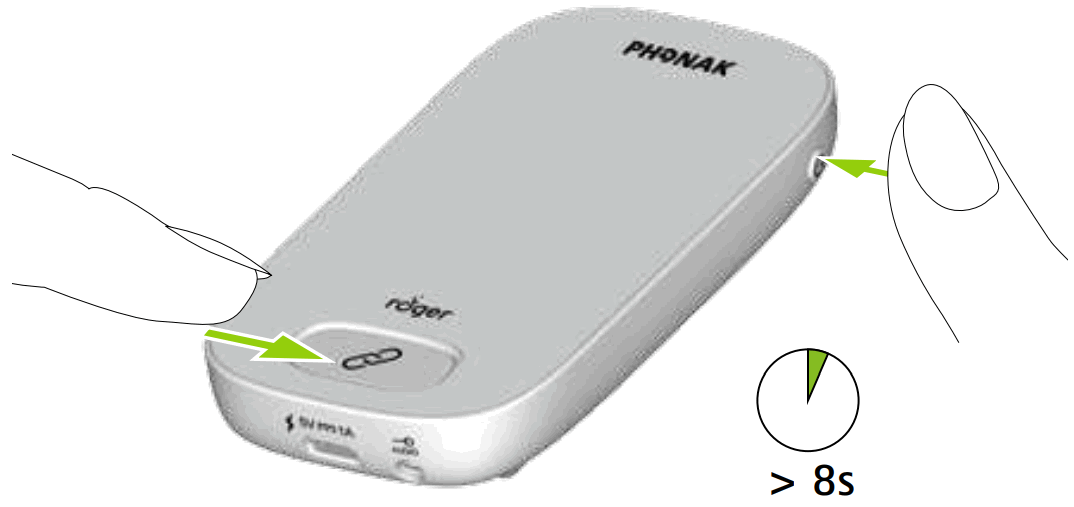

Reset

Only Roger transmitters running on software version 4.x are compatible with Roger Multimedia Hub.
Operating conditions:
0° to +45° Celsius
32° to +113° Fahrenheit
<95%
Relative humidity >8 h
Waste Electrical and Electronic Equipment Directive
CE marking
Class II
Indoor use
Important to read
ACMA – AUS/NZ

Phonak Communications AG
Laenggasse 17
CH-3280 Murten
Switzerland
www.phonak.com/phonak-roger
029-3215/V1.01/2016-04/na ® Phonak Communications AG
All rights reserved
