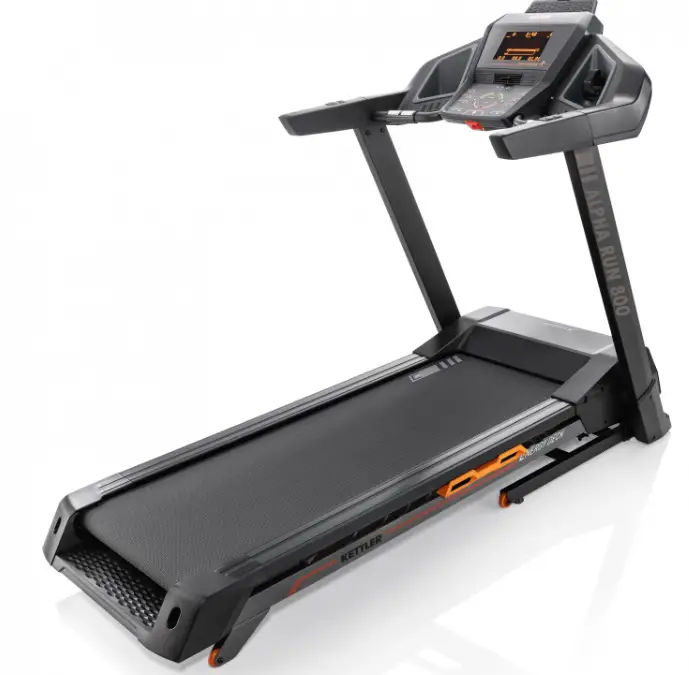

KETTLER TM1039-100 Alpha Run 800 Treadmill

Overview

IMPORTANT INFORMATION

Important! Please read these instructions carefully before installation and first use. You will receive important information for your safety as well as for the use and maintenance of the appliance. Keep these instructions somewhere safe for information purposes or for maintenance work or ordering replacement parts. Pass these instructions on with the appliance if the owner of the appliance changes. This symbol ⚠ indicates an important warning. These instructions can also be downloaded at www.kettlersport.com

USER INFORMATION

Caution! Please ensure you observe the instructions in the booklets “Safety Instructions and Instructions for Initial Operation and Maintenance“ and „Computer/training instructions, handling, biomechanics“

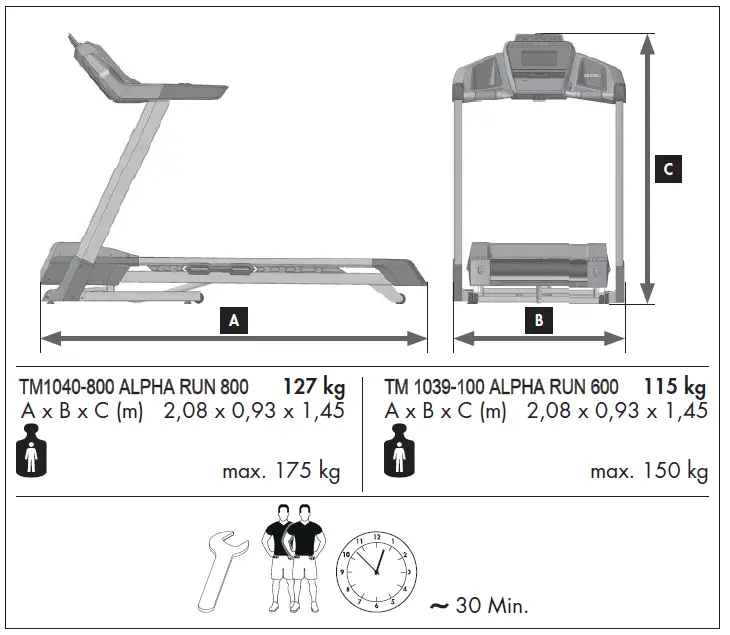

TM1039-100 ALPHA RUN 600
DIN EN ISO 20957-6:2017, Accuracy HB
TM1040-100 ALPHA RUN 800
DIN EN ISO 20957-6:2017, Accuracy SA

ELECTRICAL SAFETY

WARNING! Danger due to electric current!

Electric power is always a potential source of danger. Always use the appliance with the necessary caution.
Do not expose the appliance to moisture! Protect it from contact with liquids
The properly installed electrical socket to connect the appliance must be easily accessible.
Before connecting the plug of the mains adapter/device with the socket, the mains adapter/appliance voltage must be compared to the local voltage. If the values do not match, please contact our service team.
After switching the appliance off, remove the plug from the power supply again.
Be very careful in ensuring that the cable does not become trapped or a “tripping hazard”.
Connect the cable with a grounded safety socket. Do not connect via multiple socket strips! When using an extension cable, this must comply with the VDE guidelines.
Do not use damaged cables again and exchange them immediately. Do not use damaged cables again and exchange them immediately. If the mains line is damaged, this must be replaced by the manufacturer, a member of the service team or another qualified specialist to avoid danger.
This symbol indicates that the appliance is protection class I.
This symbol indicates that the appliance is protection class II.
This symbol indicates that the appliance is protection class III.
The appliance may only be used with the mains adapter provided.

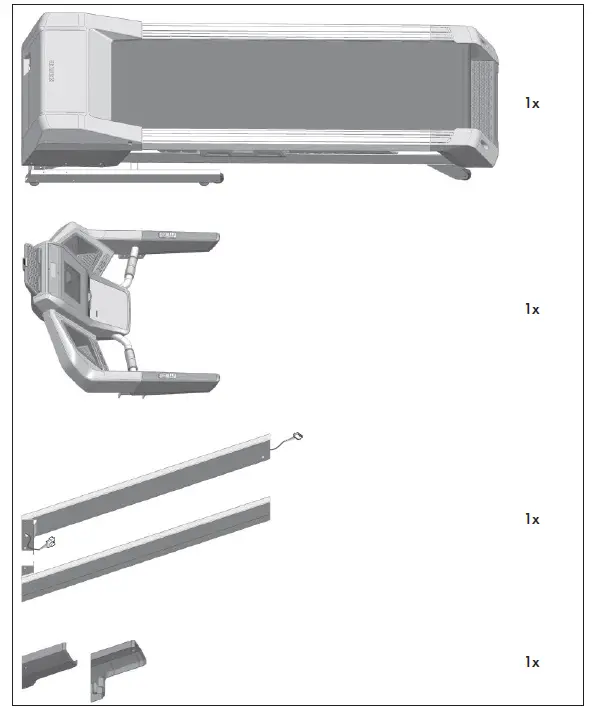

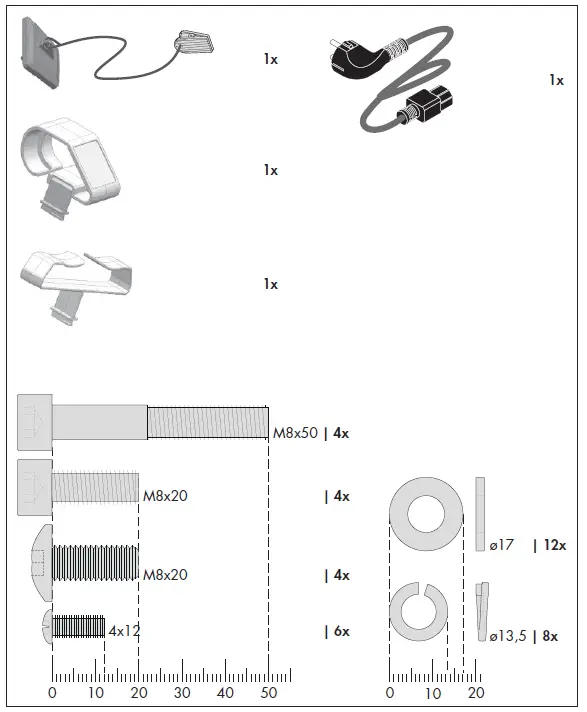

SCOPE OF DELIVERY

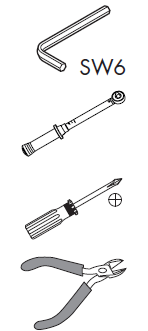

Tools required – Not included

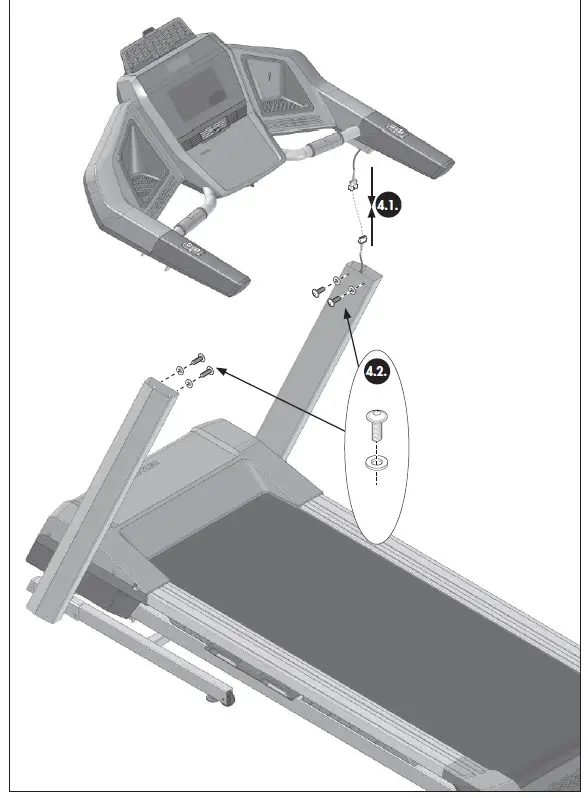

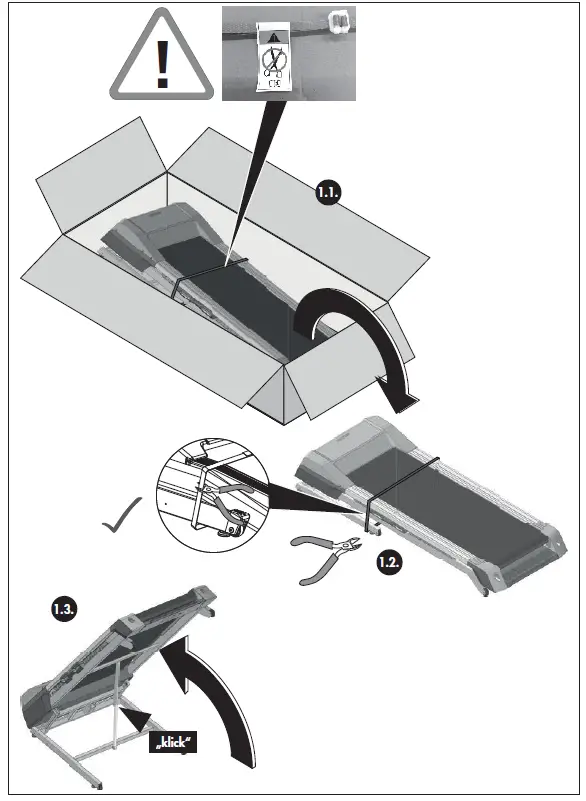

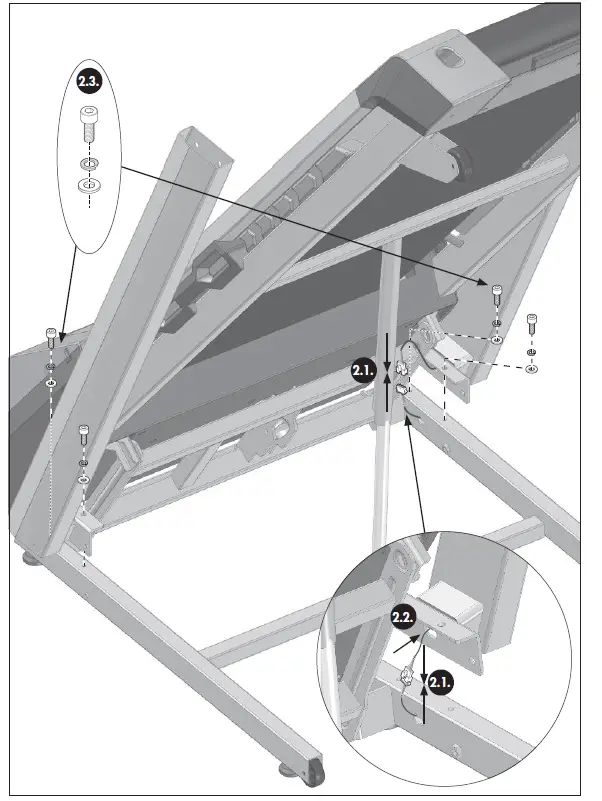

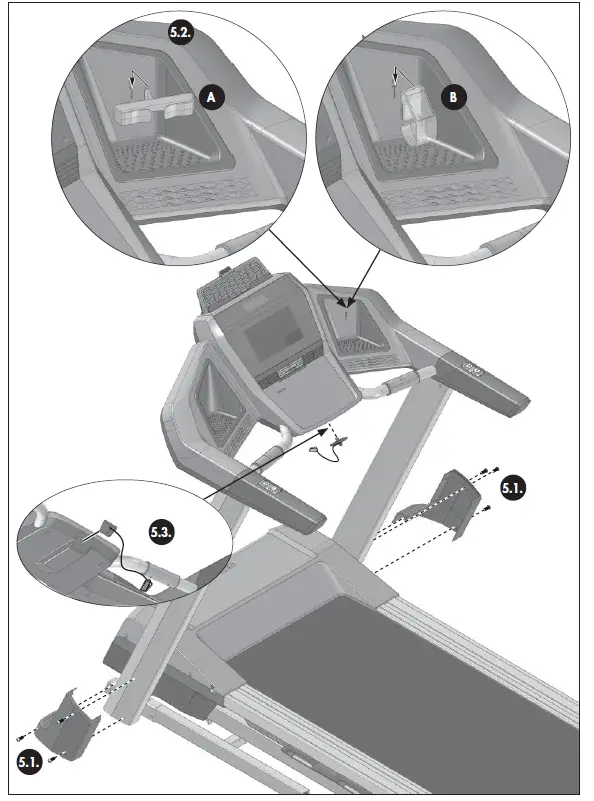

Setting Instructions

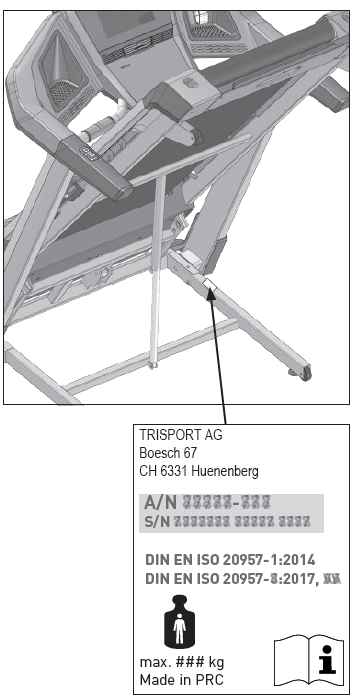

Example Type label – Serial number

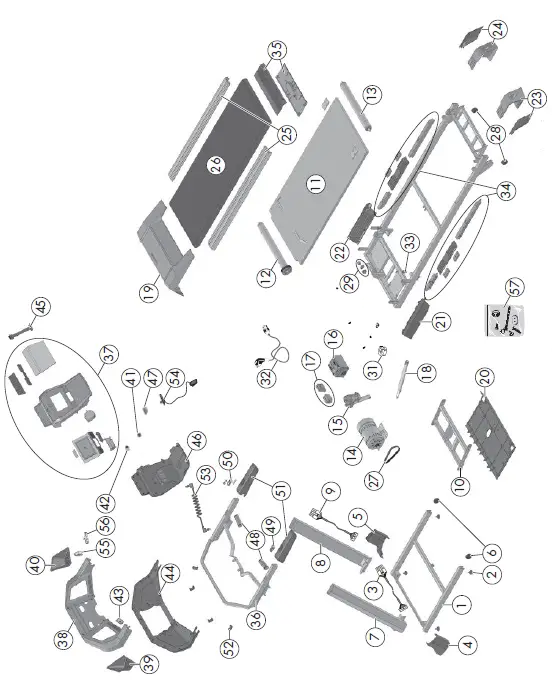

TM 1039-100 ALPHA RUN 600

		TM 1039-100				TM 1039-100
		ALPHA RUN 600				ALPHA RUN 600
1	1x	68008890		29	1x	68008918	X
2	1x	68008891		30	1x	68008919	X
3	1x	68008892		31	1x	68008920	X
4	1x	68008893		32	1x	68001786
5	1x	68008894		33	1x	68008921	X
6	1x	68008895	X	34	1x	68008922
7	1x	68008896		35	1x	68008923
8	1x	68008897		36	1x	68008924
9	1x	68008898	X	37	1x	68008925	X
10	1x	68008899		38	1x	68008926
11	1x	68008900		39	1x	68008927
12	1x	68008901		40	1x	68008928
13	1x	68008902		41	1x	68008929
14	1x	68008903	X	42	1x	68008930	X
15	1x	68008904		43	1x	68008931
16	1x	68008905		44	1x	68008932
17	1x	68008906	X	45	1x	68008933
18	1x	68008907	X	46	1x	68008934
19	1x	68008908		47	1x	68008935
20	1x	68008909		48	1x	68001724
21	1x	68008910		49	1x	68008936
22	1x	68008911		50	1x	68008937	X
23	1x	68008912		51	1x	68008938
24	1x	68008913		52	1x	68008939
25	1x	68008914		53	1x	68001737
26	1x	68008915		54	1x	68001723
27	1x	68008916		55	1x	68008940
28	1x	68008917		56	1x	68008941
				57	1x	68008942

TM 1040-100 ALPHA RUN 800

		TM 1040-100				TM 1040-100
		ALPHA RUN 800				ALPHA RUN 800
1	1x	68008890		29	1x	68008950	X
2	1x	68008891
3	1x	68008892		31	1x	68008920	X
4	1x	68008893		32	1x	68008951	X
5	1x	68008894		33	1x	68008921	X
6	1x	68008895	X	34	1x	68008922
7	1x	68008896		35	1x	68008923
8	1x	68008897		36	1x	68008924
9	1x	68008898	X	37	1x	68008952	X
10	1x	68008899		38	1x	68008926
11	1x	68008900		39	1x	68008927
12	1x	68008901		40	1x	68008928
13	1x	68008902		41	1x	68008929
14	1x	68008945		42	1x	68008930
15	1x	68008904	X	43	1x	68008931
16	1x	68008946		44	1x	68008932
17	1x	68008947		45	1x	68008933
18	1x	68008948	X	46	1x	68008934
19	1x	68008908		47	1x	68008935
20	1x	68008909		48	1x	68001724
21	1x	68008910		49	1x	68008936
22	1x	68008911		50	1x	68008937
23	1x	68008912		51	1x	68008938
24	1x	68008913		52	1x	68008939
25	1x	68008914		53	1x	68001737
26	1x	68008915		54	1x	68001723
27	1x	68008949	X	55	1x	68008940
28	1x	68008917		56	1x	68008941
				57	1x	68008942
