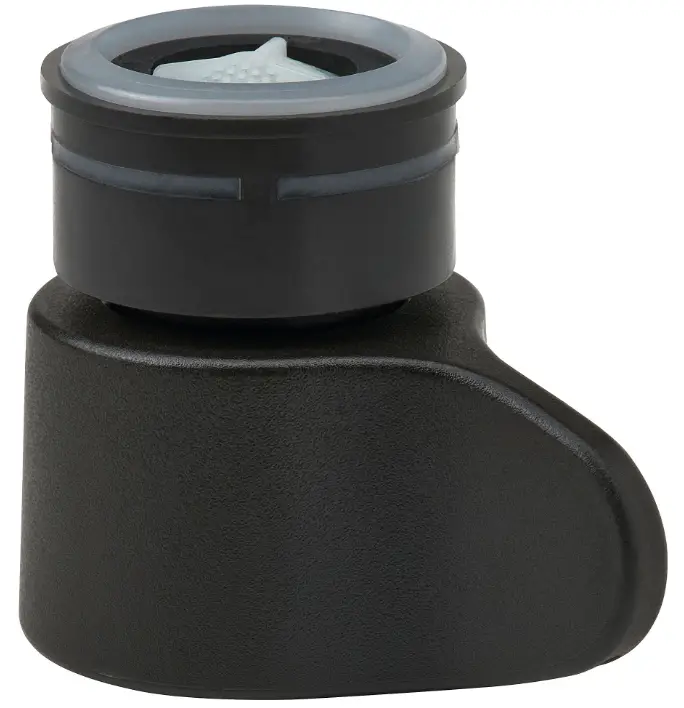

IKEA ABACKEN Water Nozzle
Product Information
| Measurement | Value |
|---|---|
| Length | 18.6 mm |
| Pressure Range | 1 – 5 bar / 0.1 – 0.5 MPa / 14.5 – 72.5 psi |
| Pressure Range (Extended) | 0.5 – 10 bar / 0.05 – 1.0 MPa / 7.2 – 145 psi |
For more information, visit www.IKEA.com
Product Usage Instructions
- Assemble the product by following the numbered steps in the user manual.
- Ensure that all components (B-1, B-2, B-3, B-4) are included in the package.
- Connect component B-1 to component B-2 using the provided connectors.
- Connect component B-3 to component B-4 using the provided connectors.
- Attach component B-1 to the main unit using screws or other fastening methods.
- Attach component B-2 to the main unit using screws or other fastening methods.
- Attach component B-3 to the main unit using screws or other fastening methods.
- Attach component B-4 to the main unit using screws or other fastening methods.
- Connect the product to a pressure source using the recommended pressure range (1 – 5 bar / 0.1 – 0.5 MPa / 14.5 – 72.5 psi).
- Adjust the pressure using the provided controls until the desired pressure is achieved.
- Monitor the pressure gauge (component A) for accurate readings.
- If necessary, make adjustments to maintain the desired pressure level.
- Follow the maintenance instructions provided in the user manual for proper care and cleaning of the product.
For any further assistance or troubleshooting, please refer to the user manual or contact customer support.

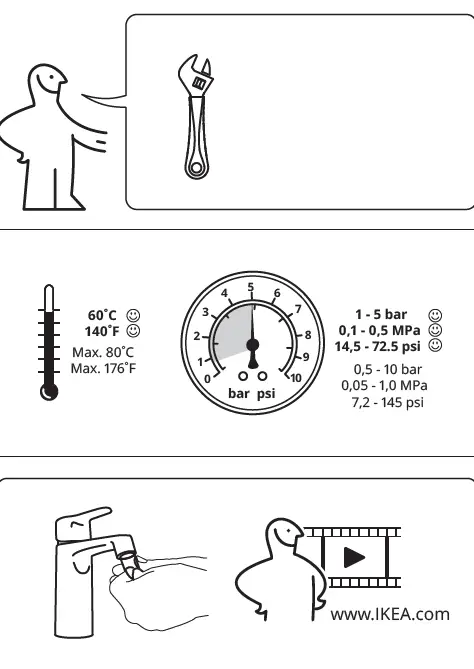

TOOLS REQUIRED

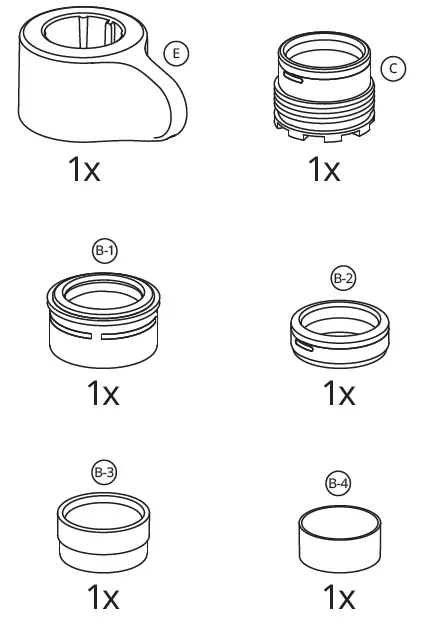

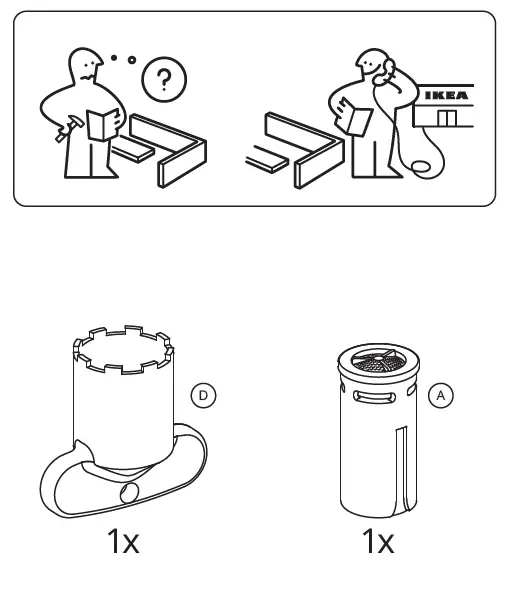

WHAT IS IN THE BOX
WARNING

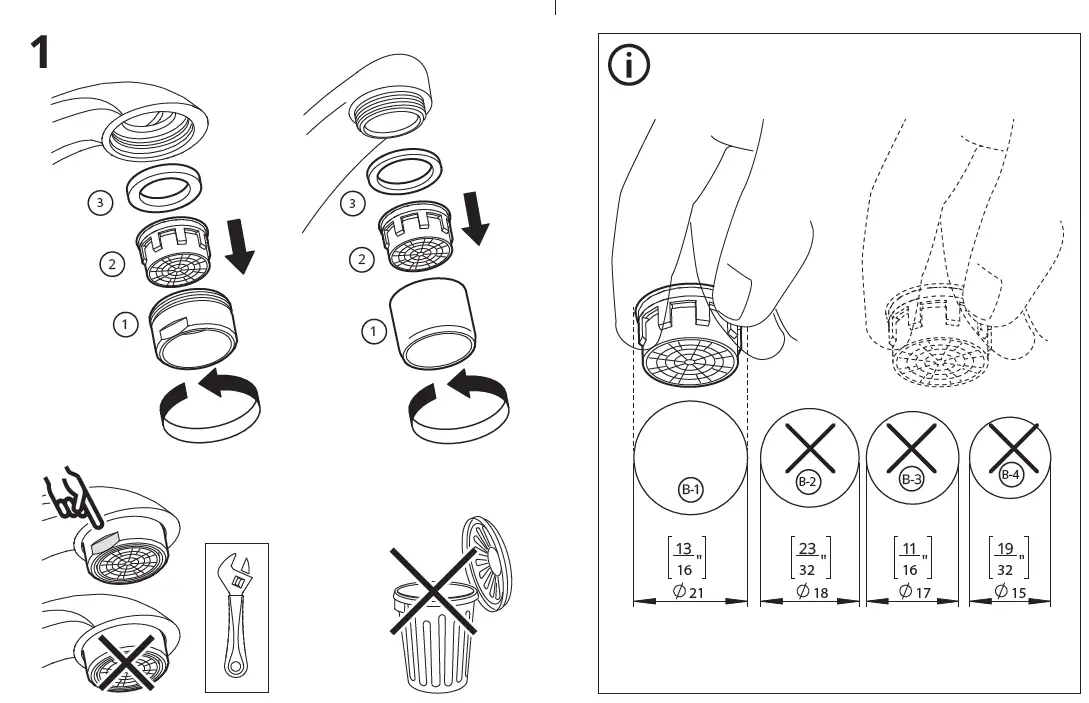

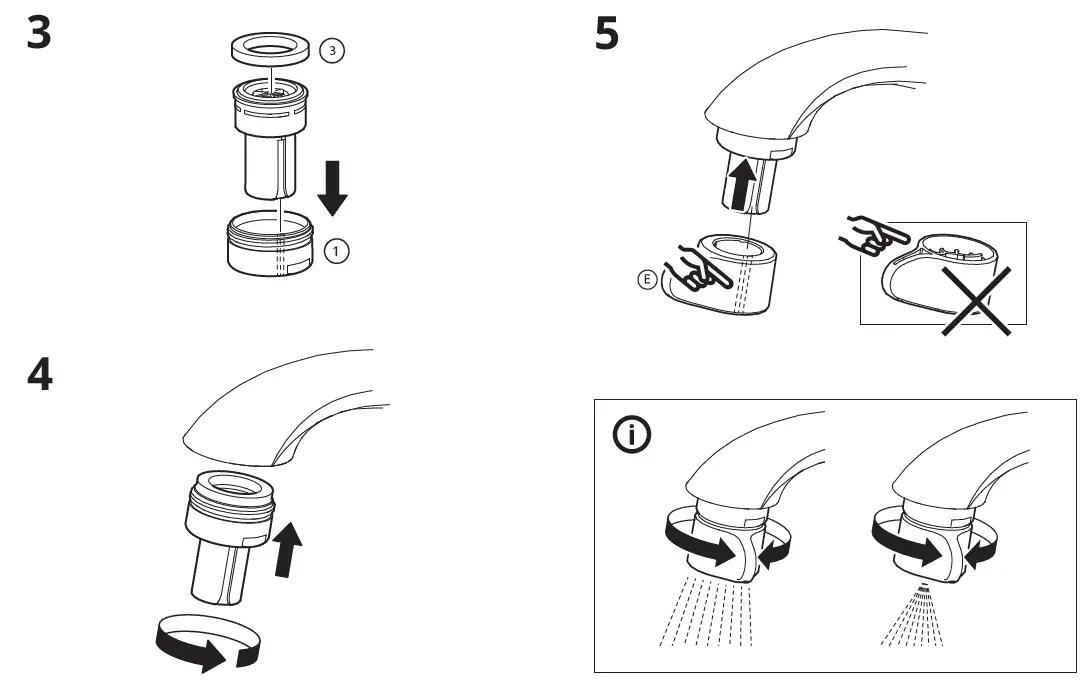

INSTALLATION METHOD 1

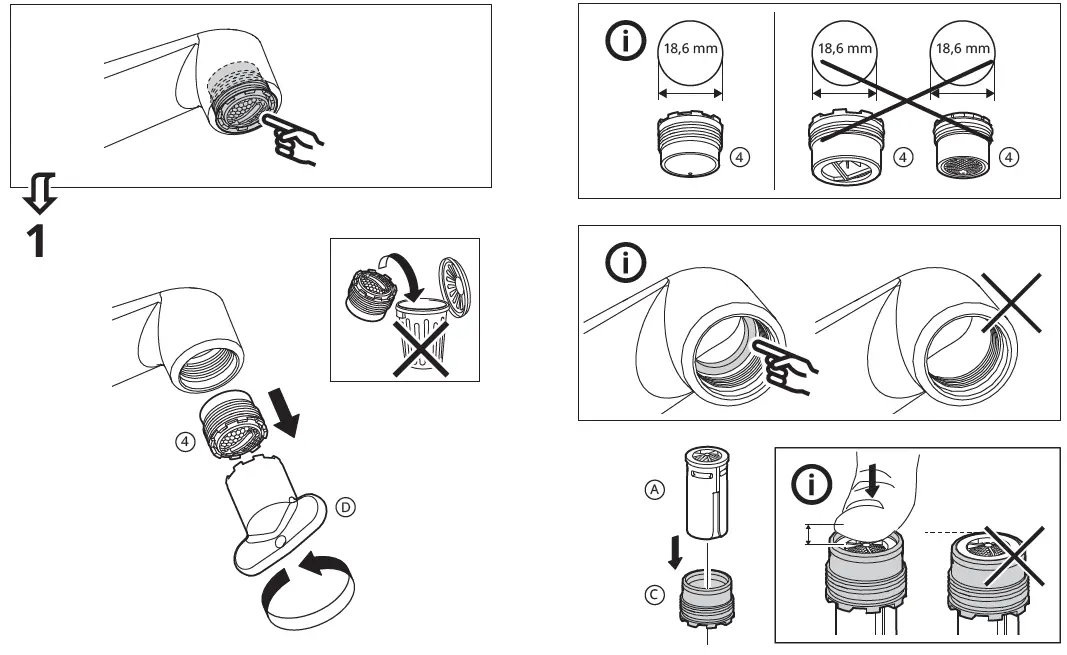

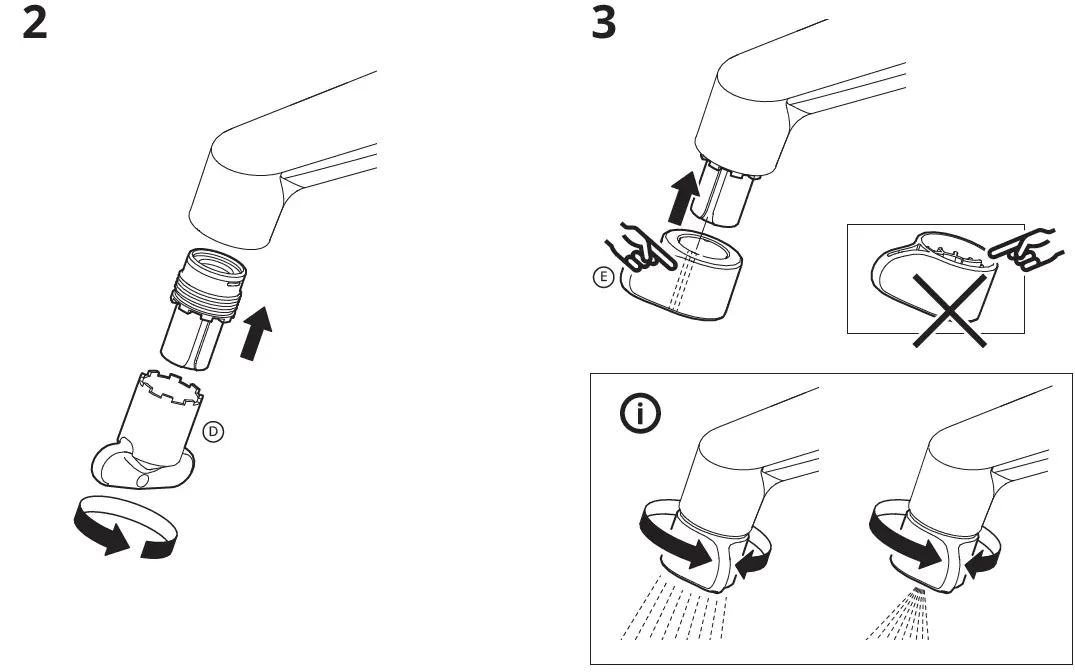

INSTALLATION METHOD 2
© Inter IKEA Systems B.V.
2021 2023-06-05
AA-2410765-1
