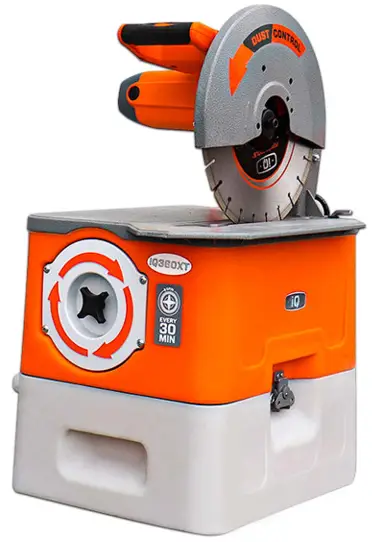

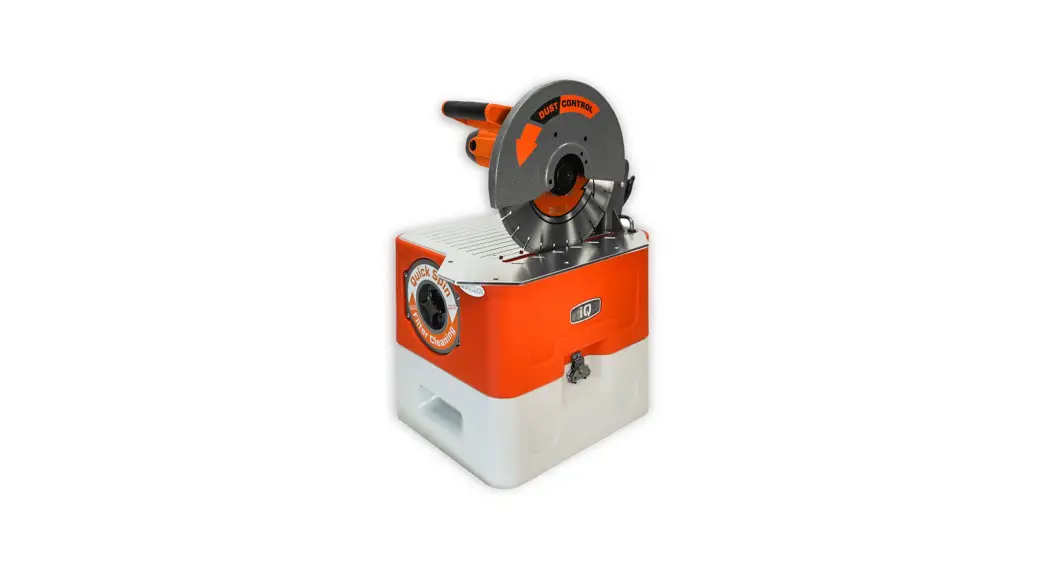

TOOLS iQ360XT 230v 14 Inch
Dust Control Table Saw
User Manual
M-iQ360XT-001-PM08042020

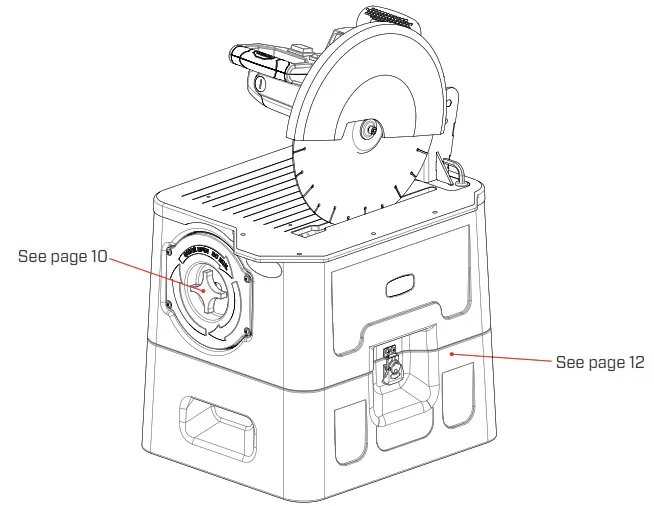

FRONT ANGLED VIEW

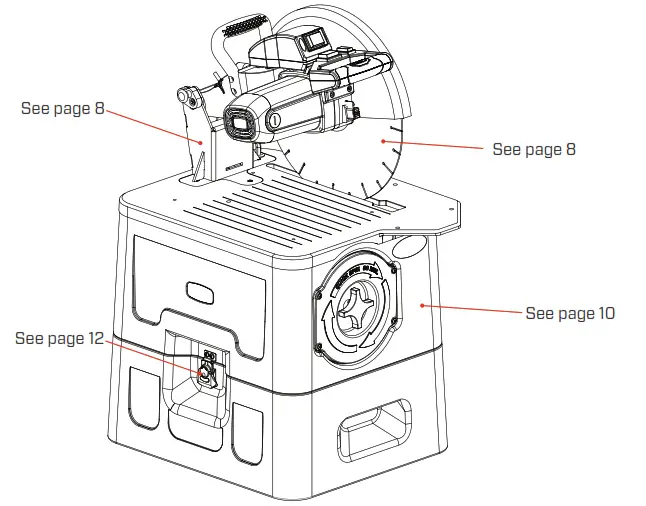

BACK ANGLED VIEW

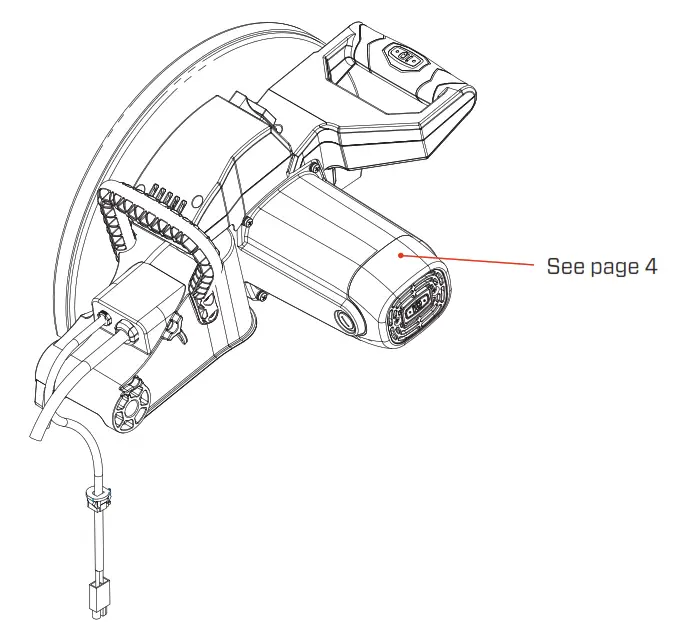

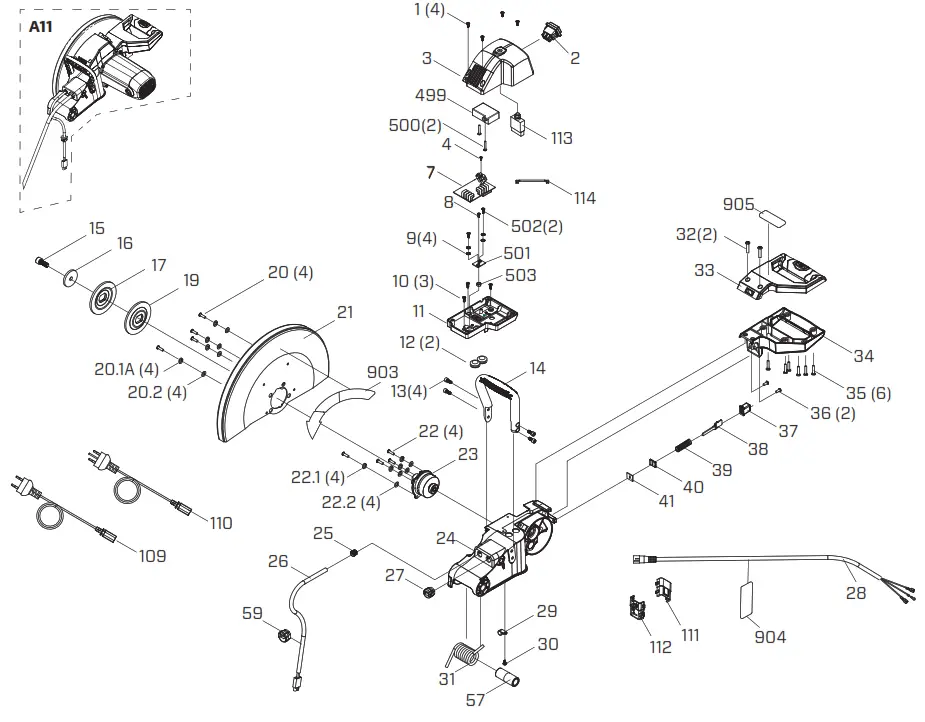

MOTOR GEAR HOUSING
MOTOR GEAR HOUSING
MOTOR GEAR HOUSING
| ASSEMBLY KIT / SET | ITEM NO | QTY | PART NO | DESCRIPTION |
| All | All | 1 | 0360-62003-02 | Q360XT 230v Saw Motor |
| K5 | K5 | 1 | 0360-90006-01 | Hardware Kit |
| 1 | 4 | Tap Screw | ||
| 4 | 1 | Tap Screw | ||
| 8 | 1 | Tap Screw | ||
| 9 | 4 | Washer | ||
| 10 | 3 | Tap Screw | ||
| 2 | 1 | 0244-00669-01 | Main Power Switch 230v | |
| K16 | K16 | 1 | 0360-90026-02 | 230v Control Box Kit (Top & Bottom) |
| 3 | 1 | Control Box Top (v2) | ||
| 11 | 1 | Control Box Bottom (v2) | ||
| 7 | I | 0360-00007-01 | PCB Module 230v | |
| SET | 12 | 1 | 0244-90087-01 | Cord Ring (Set of 2) |
| SET | 13 | 1 | 0360-90024-01 | Screw (Set of 4) |
| 14 | 1 | 0360-62086-01 | Carry Handle | |
| K2 | K2 | 1 | 0360-90003-01 | Outer Flange Hardware Kit |
| 15 | 1 | Hex Screw with Washer | ||
| 16 | 1 | Outer Flange Washer | ||
| 17 | 1 | 0360-62089-01 | Flange, Out (Black oxide) | |
| 19 | I | 0360-62091-01 | Flange, In (Black oxide) | |
| K7 | K7 | I | 0360-90008-01 | Hardware Kit |
| 20 | 4 | Tap Screw | ||
| 20. | 4 | S Washer | ||
| 20. | 4 | Washer | ||
| 21 | 1 | 0360-62095-01 | Blade Guard Cover | |
| K8 | K8 | 1 | 0360-90009-01 | Hardware Kit |
| 22 | 4 | Tap Screw | ||
| 22. | 4 | 5 Washer | ||
| 22. | 4 | Washer | ||
| A5 | A5 | 1 | 0360-62099-01 | Arbor Assembly |
| 24 | 1 | 0360-62109-01 | Gear Housing |
| K9 | K9 | 1 | 0360-90010-01 | Cord Strap Kit |
| 25 | 1 | Strain Relief | ||
| 27 | 1 | Strain Relief | ||
| 29 | 1 | Cable Clamp | ||
| 30 | 1 | Tap Screw | ||
| 26 | 1 | 0360-62111-01 | Vacuum Power Wire with Terminal | |
| 28 | 1 | 0360-00028-01 | Main Power Cord 230v | |
| 31 | 1 | 0360-62116-01 | Axle Spring | |
| K10 | K10 | 1 | 0360-90011-01 | Handle Hardware Kit |
| 32 | 2 | Tap Screw | ||
| 35 | 6 | Tap Screw | ||
| 36 | 2 | Tap Screw | ||
| Kll | Kll | 1 | 0360-90001-01 | Saw Motor Main Handle |
| 33 | 1 | Main Handle Up | ||
| 34 | 1 | Main Handle Down | ||
| K12 | K12 | 1 | 0362-90015-01 | Spindle Lock Hardware Kit |
| 37 | 1 | Spindle Lock Cover | ||
| 38 | 1 | Spindle Lock | ||
| 39 | 1 | Compress Spring | ||
| 40 | 1 | Seal Pad | ||
| 41 | 1 | Felt Seal | ||
| 57 | 1 | 0360-62152-01 | Torsion Spring Sleeve | |
| 59 | 1 | 0360-60002-02 | Cord Grip | |
| 109 | 1 | 0362-00282-01 | Australia Power Cord HO5RR, Type I | |
| 110 | 1 | 0362-00283-02 | EU Power Cord 1407PN, Type F | |
| 111 | 1 | 0362-00280-01 | Plug Seat, Up | |
| 112 | 1 | 0362-00281-01 | Plug the Seat, down | |
| 113 | 1 | 0360-00113-01 | 12A Overload Protector | |
| 114 | 1 | 0244-00181-01 | Overload Protector Wire | |
| K26 | K26 | 1 | 0360-90048-01 | iO360XT 230v PCB Kit |
| 499 | 1 | PCB Shield | ||
| 500 | 2 | Screw | ||
| 501 | 1 | Grounding Plate | ||
| 502 | 2 | Screw | ||
| 503 | 1 | Nut |

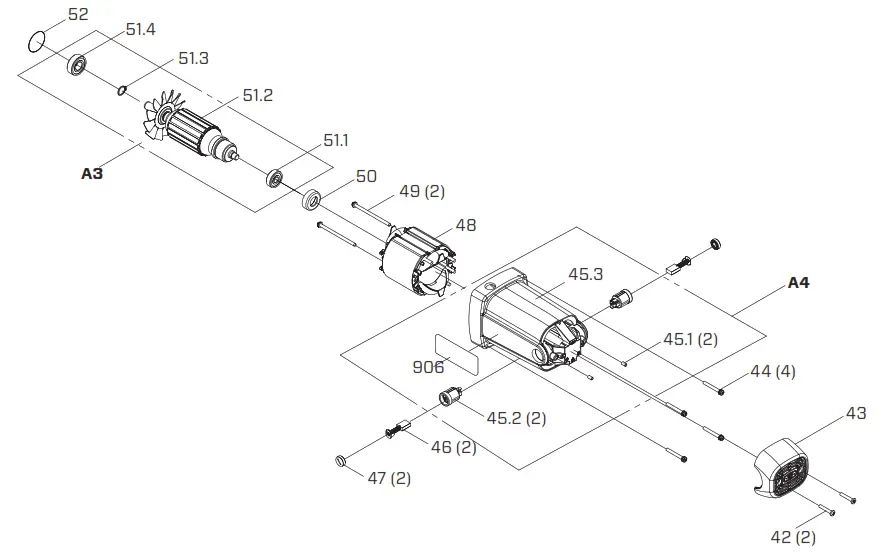

MOTOR ASSEMBLY
MOTOR ASSEMBLY
| ASSEMBLY KIT / SET | ITEM NO | QTY | PART NO | DESCRIPTION |
| SET | 42 | 1 | 0244-90068-01 | Tap Screw (Set of 2) |
| 43 | 1 | 0360-62128-01 | End Cover | |
| SET | 44 | 1 | 0244-90085-01 | Screw (Set of 4) |
| A4 | A4 | 1 | 0360-62130-01 | Motor Housing Assembly |
| SET | 46 | 1 | 0360-90014-01 | Saw Motor Brush (Set of 2) |
| SET | 47 | 1 | 0360-90015-01 | Brush Cover (Set of 2) |
| 48 | 1 | 0360-62153-01 | Stator 230v | |
| SET | 49 | 1 | 0360-90019-01 | Screw w/ Washer (Set of 2) |
| 50 | 1 | 0360-62138-01 | Bearing Bushing | |
| A3 | A3 | 1 | 0360-62154-01 | Armature Assembly 230v |
| 52 | 1 | 0360-62144-01 | 0-ring (Black) |

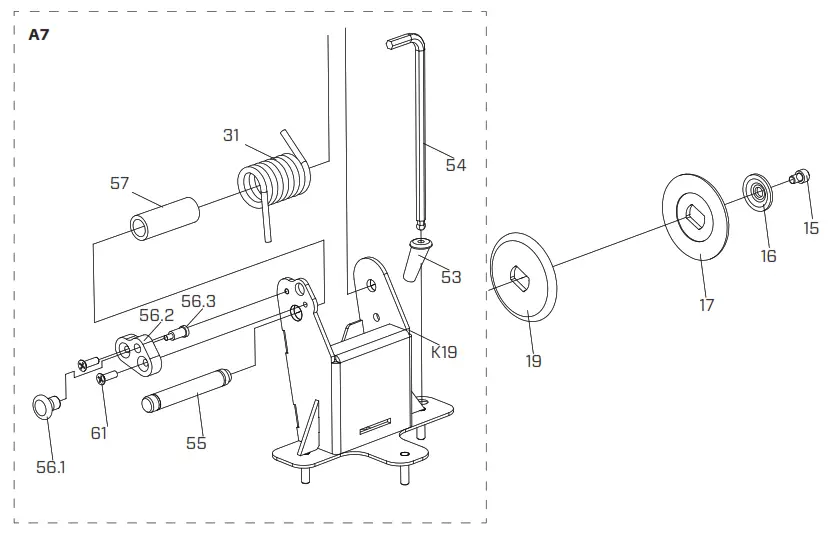

SAW MOUNT
SAW MOUNT
| ASSEMBLY KIT / SET | ITEM NO | QTY | PART NO | DESCRIPTION |
| A7 | A7 | 1 | 0360-00130-01 | Saw Mount Assembly |
| 54 | 1 | 0360-62146-01 | Blade Allen Wrench | |
| 53 | 1 | 0360-62145-01 | Rubber Sleeve | |
| 31 | 1 | 0360-62116-01 | Axle Spring | |
| 57 | 1 | 0360-62152-01 | Torsion Spring Sleeve | |
| 55 | 1 | 0360-62058-01 | Saw Mount Shaft | |
| K1 | K1 | 1 | 0360-62148-01 | Shaft Retainer Plate Assembly |
| 561 | 1 | Lock Pin Knob | ||
| 56. | 1 | Shaft Retainer Plate | ||
| 56. | 1 | Lock Pin | ||
| SET | 61 | 1 | 0360-90030-01 | Flat Head Screw (Set of 2) |
| 19 | 1 | 0360-62091-01 | Flange. inside (Black oxide) | |
| 17 | 1 | 0360-62089-01 | Flange, outside (Black oxide) | |
| K2 | K2 | 1 | 0360-90003-01 | Outer Flange Hardware Kit |
| 16 | 1 | Outer Flange Washer | ||
| 15 | 1 | Hex Screw w/Washer | ||
| K19 | K19 | 1 | 0360-90036-01 | Shaft Stopper Hardware Kit |
| 106 | 1 | Cap Screw | ||
| 107 | 1 | Aluminum Sleeve | ||
| 108 | 1 | Nylon Nut |

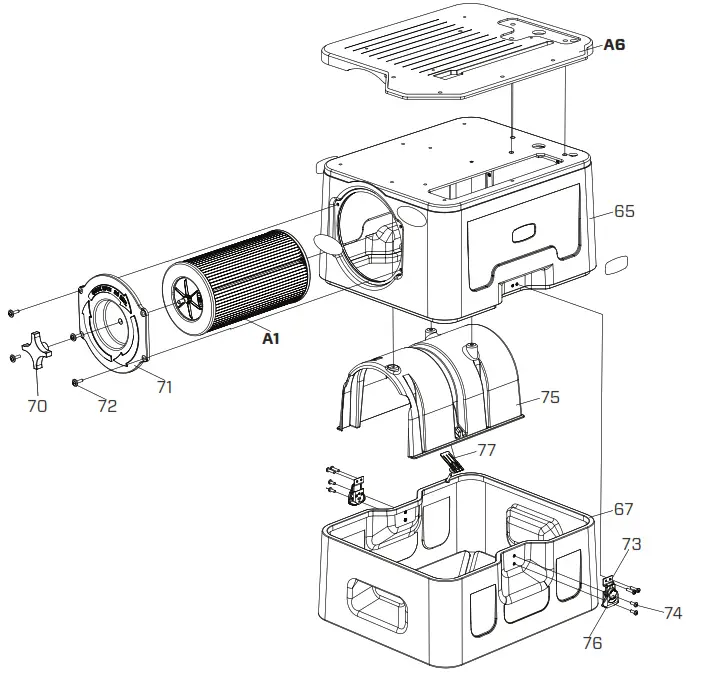

MAIN HOUSING
MAIN HOUSING
| ASSEMBLY KIT / SET | ITEM NO | QTY | PART NO | DESCRIPTION |
| AG | 68 | 1 | 0360-90017-01 | Top Deck Assembly |
| AS | 65 | 1 | 0360-90031-01 | Upper Vacuum Housing Assembly |
| 67 | 1 | 0360-00003-03 | Dust Collection Tub | |
| 75 | 1 | 0360-00145-01 | Filter Shield | |
| Al | Al | 1 | 0360-25001-01 | Replacement Filter Assembly |
| 71 | 1 | 0380-00148-01 | Filter Access Panel | |
| 70 | 1 | 0244-00355-01 | Filter Spin Knob | |
| SET | 72 | 1 | 0380-90032-01 | Screw (Set of 4) |
| 73 | 2 | 0360-08002-01 | Draw Catch | |
| SET | 74 | 1 | 0360-90033-01 | Screw (Set of 4) |
| 76 | 2 | 0360-08001-01 | Rotary Draw Latch | |
| K22 | K22 | 1 | 0360-90040-01 | Rotary Draw Catch/Latch Kit |
| 73 | 1 | Draw Catch | ||
| 74 | 4 | Screw | ||
| 76 | 1 | Rotary Draw Latch | ||
| K14 | K14 | 1 | 0360-90022-01 | Filter Tab Hardware Kit |
| 77 | 1 | Filter Clean Tab | ||
| 97. | 1 | Flat Washer | ||
| 97. | 1 | Washer | ||
| 97. | 1 | Screw |

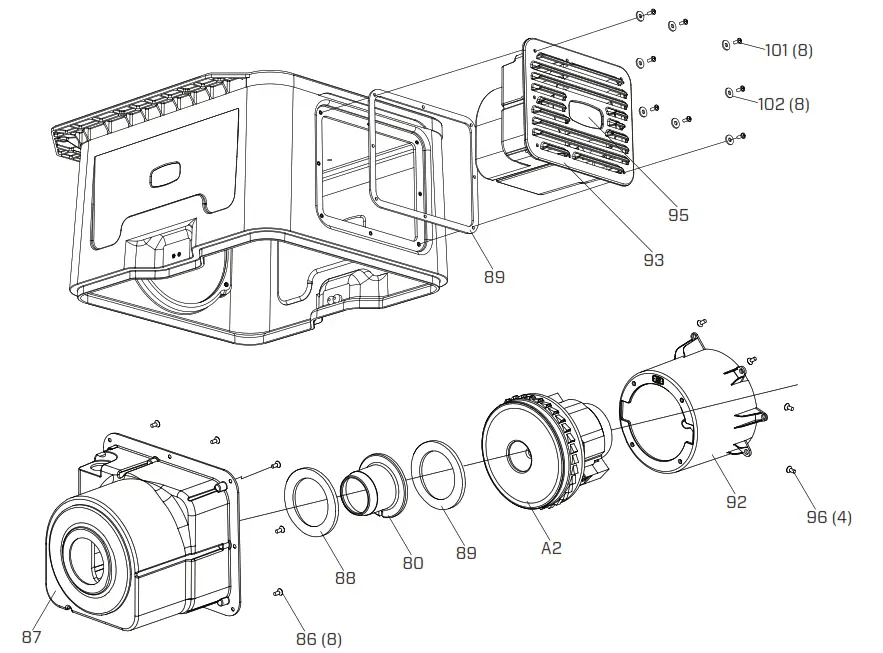

VACUUM MOTOR HOUSING
VACUUM MOTOR HOUSING
| ASSEMBLY KIT / SET | ITEM NO | QTY | PART NO | DESCRIPTION |
| Al2 | Al2 | 1 | 0360-62002-01 | Vacuum Motor Assembly 230V |
| 93 | 1 | 0360-00147-01 | Vacuum Motor Cover | |
| 95 | 1 | 0360-00095-01 | Filter Foam | |
| K24 | K24 | 1 | 0360-90042-01 | Vacuum Motor Mount Kit |
| 92 | 1 | Vacuum Motor Mount | ||
| 96 | 4 | Screw | ||
| K17 | K17 | 1 | 0360-90034-01 | Vacuum Motor Mount Hardware Kit |
| 101 | 8 | Screw | ||
| 102 | 8 | Flat Washer | ||
| K23 | K23 | 1 | 0360-90041-01 | Vacuum Motor Housing Kit |
| 87 | 1 | Vacuum Motor Housing | ||
| 89 | 1 | Vacuum Motor Housing Gasket | ||
| K18 | K18 | 1 | 0360-90035-01 | Hardware Kit |
| 103 | 3 | Round Head Screw | ||
| 104 | 3 | Washer | ||
| 105 | 3 | Flat Washer | ||
| 89 | 1 | 0360-00089-01 | Vacuum Motor Seal Gasket | |
| K13 | K13 | 1 | 0360-90020-01 | 10360XT Filter Spindle Kit |
| 90 | 1 | Filter Spindle | ||
| 88 | 1 | Filter Spindle Seal Gasket | ||
| K15 | K15 | 1 | 0360-90023-01 | Vacuum Motor Hardware Kit |
| 80 | 1 | Crimp Terminal, Connectors | ||
| 81 | 1 | Crimp Terminal, Housing | ||
| 78 | 2 | Cable Seal | ||
| SET | 86 | 1 | 0360-90037-01 | Vacuum Motor Housing Hardware Kit (Set of 8) |
LABELS
LABELS
| ASSEMBLY KIT/ SET | ITEM NO | QTY | PART NO | DESCRIPTION |
| K20 | K20 | 1 | 0360-90038-01 | iQ360XR/XT Saw Motor Label Sheet 1 |
| 903 | 1 | iQ360X Blade Guard Label | ||
| 904 | 1 | iQ360X PPE Saw Motor Label | ||
| 905 | 1 | iQ360XR Off Switch Warning Label | ||
| 906 | 1 | iQ360XR 120v Saw Motor Label | ||
| K21 | K21 | 1 | 0360-90039-01 | iQ360XR/XT Saw Motor Label Sheet 2 |
| 907 | 1 | iQ360X Serial Number Label | ||
| 908 | 1 | iQ360X Filter Access Panel Spin Label | ||
| 909 | 1 | iQ360X Filter Spin Label | ||
| 910 | 1 | iQ360X Warning Label |
WARRANTY
New iQTS244™ Dry Cut Tile Saw, sold by iQ Power Tools or an IQ authorized dealer is warranted to be free from manufacturing defects in normal service for a one-year period from the date of purchase by the original consumer purchaser. The warranty period for rental items is 90 days.
All iQ products must be registered either through our website or by mailing in the Warranty Card in order for the warranty to be active and valid. This Warranty shall not apply to any parts that have been subjected to misuse or improper service, damaged in transit or handling, altered or repaired by unauthorized representatives, or used with a blade that is not recommended by iQ Power Tools.
Any claim arising under this Warranty must be submitted by the original purchaser within the Warranty period specified above and must include proof of purchase. Within the Warranty period, options are either to replace or repair any parts or components that are found to be defective by iQ Power Tools at no charge to the original purchaser. IQ Power Tools shall not be responsible or obligated to pay for freight or other transportation-related costs or expenses in connection with any defective products, replacements, or components that are returned to the IQ Power Tools facility or any authorized repair station.
Parts and labor needed to maintain products, and the replacement of components due to normal wear and tear, are the purchaser’s responsibility and are not covered by this Warranty. All products or components replaced under Warranty become the property of the manufacturer. All replacement parts will be considered to be part of the original
product and any Warranty on such parts will expire concurrently with this original Warranty.
IQ Power Tools will pay for parts and labor in connection with Warranty repairs conducted by iQ Power Tools or its authorized repair center.
Replacement parts installed by anyone else will be provided without a charge but this Warranty will not apply to labor charges in connection therewith.
IN NO EVENT SHALL ANY LIABILITY UNDER THIS WARRANTY EXCEED THE REPLACEMENT COST OF ANY DEFECTIVE PRODUCT OR COMPONENT THEREOF. iQ POWER TOOLS SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES OR FOR ANY OTHER
DAMAGE OR LOSS NOT EXPRESSLY ASSUMED AS SET FORTH HEREIN.
The Warranty on the terms above is the only Warranty. This limited Warranty is expressly in lieu of all other warranties, whether expressed or implied.
