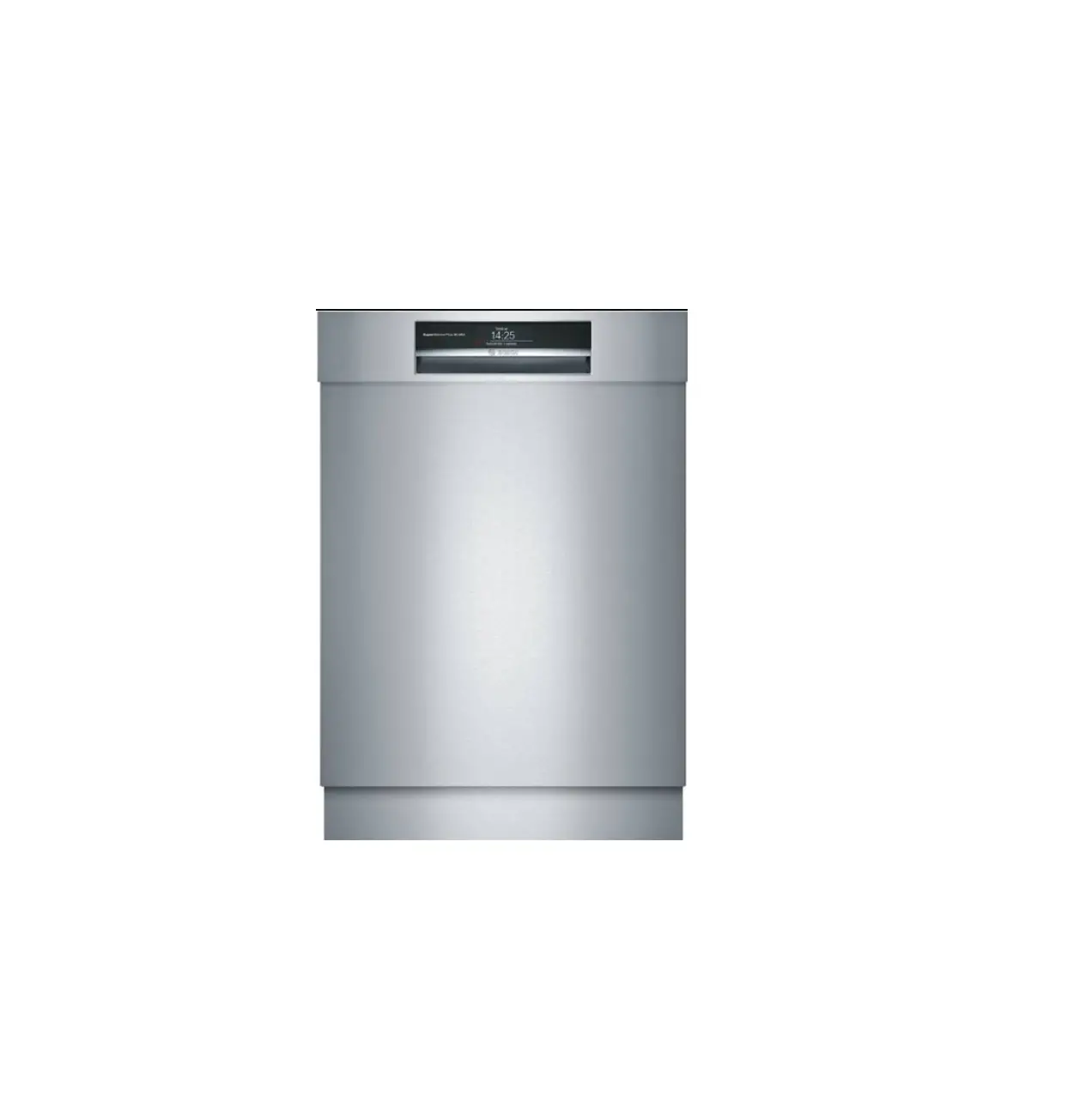

Benchmark SHE7PT5_UC Dishwashers

Bosch designers believe that form must always be balanced with function. Whether it’s a new way to load your silverware and bulky items, or a seamless look with cabinets through our ultra-flush installation, our commitment to purposeful design is clear. Our German-engineered dishwashers incorporate 18 unique sound-reducing technologies, making Bosch the quietest dishwasher brand in the U.S.* with every quiet level certified by an independent lab. With our innovative third rack, your cutlery, whisks, tongs, and other odd utensils have a place all their own, allowing for 30% more loading area.

Based on an average of sound ratings of 24″ Full Size Stainless Steel Tub dishwashers contained in major brands websites. Major brands defined as TraQline Top 5 Market Share December 2014. Compared to a Bosch dishwasher with two racks.

Highest in Customer Satisfaction with Dishwashers

Bosch received the highest numerical score for dishwashers in the proprietary J.D. Power 2015 Kitchen Appliance StudySM. Study based on 19,778 total responses measuring 17 dishwasher brands and measures opinions of consumers about their new appliance purchased in the past 24 months. Proprietary study results are based on experiences and perceptions of consumers surveyed in January–February 2015. Your experiences may vary. Visit jdpower.com.

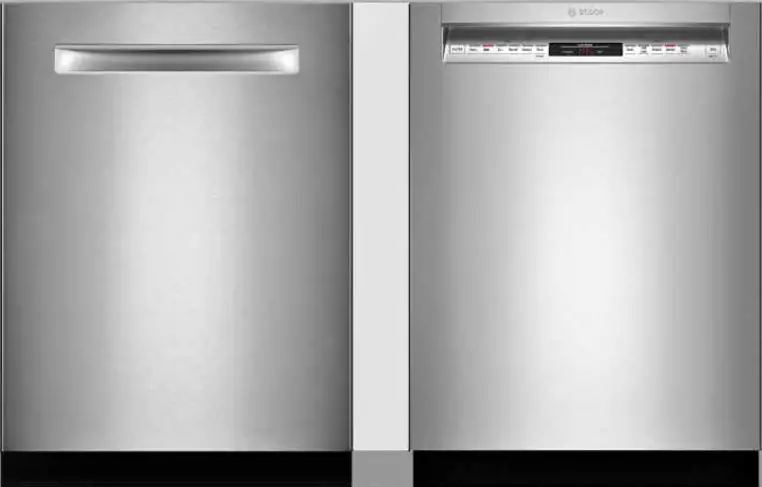

Benchmark® Dishwashers

A place for everything, and everything in its well-designed place.

Quietest Brand

The number one feature homeowners look for in a dishwasher is quietness, and our ingenious German engineering makes Bosch the quietest dishwasher brand in the U.S.* In fact, our dishwashers are so quiet, we’ve added an InfoLight® or TimeLight® to let you know a cycle is running.

Three Racks of Flexible Loading Space

Expandable wings on our flexible third rack provide extra room for ramekins, measuring cups and extra-large utensils. Adjustable tines lower to fit awkward, bulky items while our third rack’s unique v-shape accommodates the loading of extra tall stemware in the middle rack.

Flush and Easy Installation

Our full size tub can be installed perfectly flush to cabinetry. And, new Bosch dishwashers come with a pre-connected heavy-duty braided water inlet hose, as well as a power cord with attached junction box for easy installation.

Most Awarded Dishwasher Brand Worldwide

Bosch dishwashers have won more awards than any other dishwasher brand.

Benchmark®

• SHE7PT5_UC
• SHP7PT55UC
• SHX7PT55UC
• SHV7PT53UC
  • 42 dBA
  • Flexible Third Rack
  • Water Softener
  • TimeLight®

Benchmark®

• SHE8PT55UC
• SHX8PT55UC
• SHV8PT53UC
  • + 40 dBA
  • + Interior Light
  • + SteelTouch™ Control

+ Indicates a step-up feature

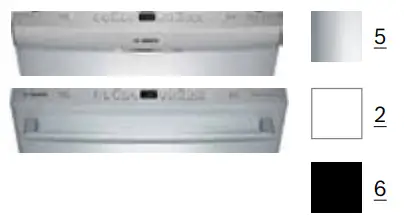

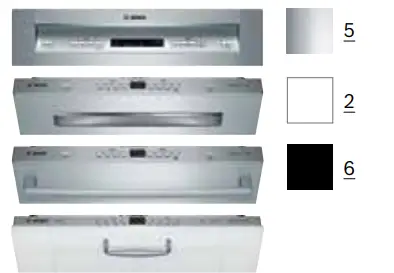

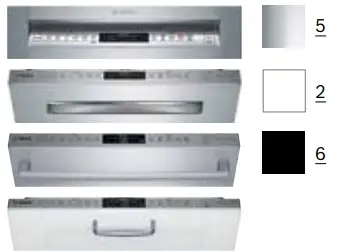

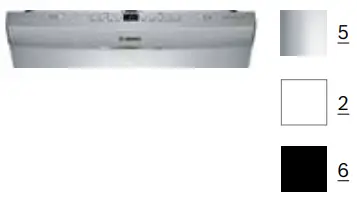

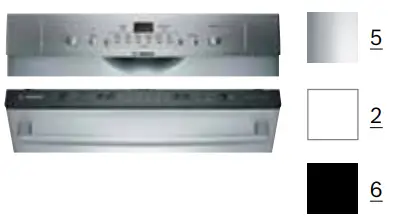

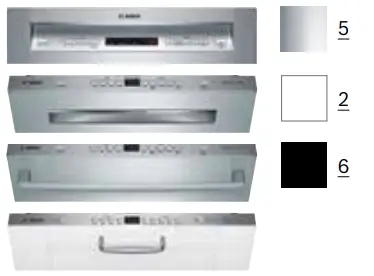

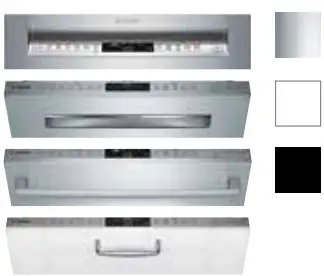

Multiple colors are available. See color chips to fill in the missing digit.

• Recessed Handle: SHE7PT5_UC
• Pocket Handle: SHP7PT55UC
• Bar Handle: SHX7PT55UC
• Custom Panel: SHV7PT53UC
• Recessed Handle: SHE8PT55UC
• Bar Handle: SHX8PT55UC
• Custom Panel: SHV8PT53UC

General Properties

Efficiency and Capacity

Technical Data

Dimensions & Weight

Optional Accessories

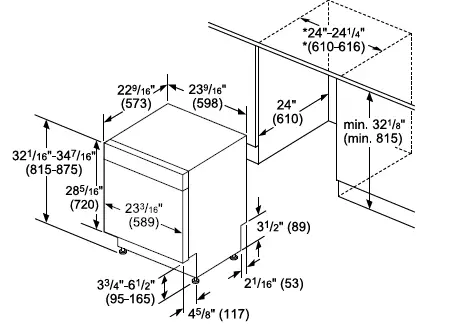

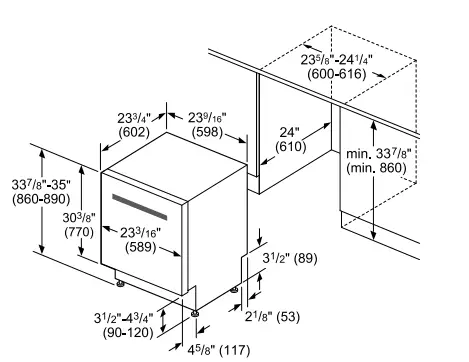

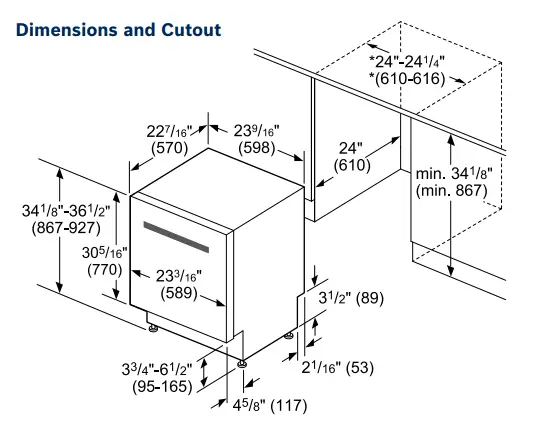

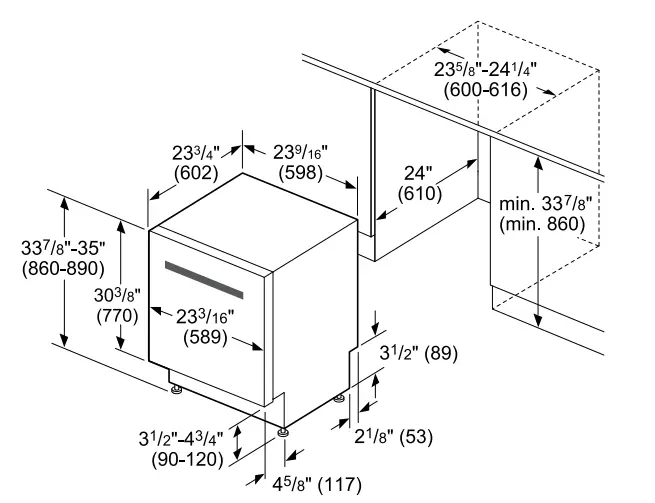

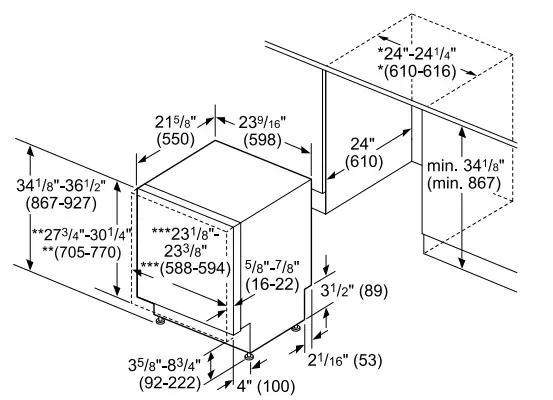

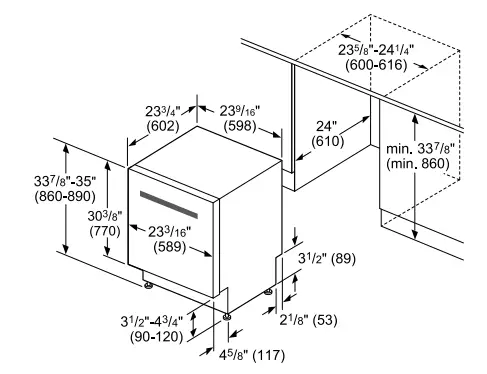

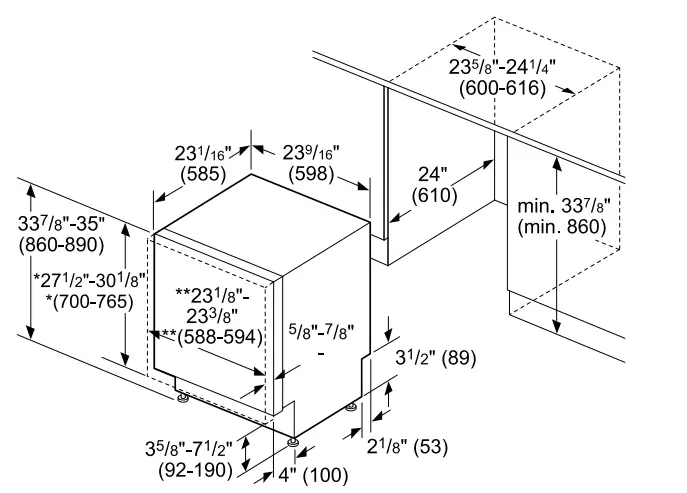

Dimensions and Cutout

• measurements in inches (mm)

Custom Panel – Dimensions and Cutout

• measured from the bottom edge of the countertop panel thickness recommended 3/4” (20 mm). This dishwasher can accept custom door panel weights ranging from 7 to 24 lbs; however, the dishwasher comes from the factory ready for custom panel door weights from 11 to 18 lbs.
• If you plan on using a door panel that is not 11 to 18 lbs. please contact customer service at (800) 944-2904.
• 24″ (610 mm) wide panel may be used depending on cabinet design

Note: Refer to the installation template for mounting hardware locations measurements in inches (mm)

Plumbing

Note: Plumbing installations will vary refer to local codes. The drain hose included is 79 (201 cm) and can be extended to a maximum of 155 3/4″ (396 cm).

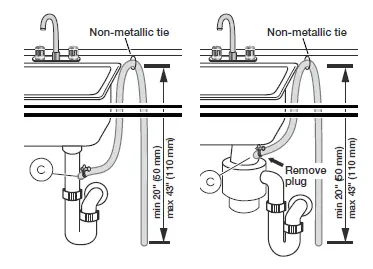

Always use the approved drain hose extension kit (SGZ1010U).

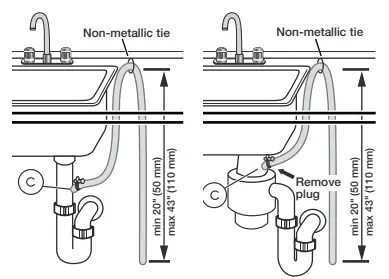

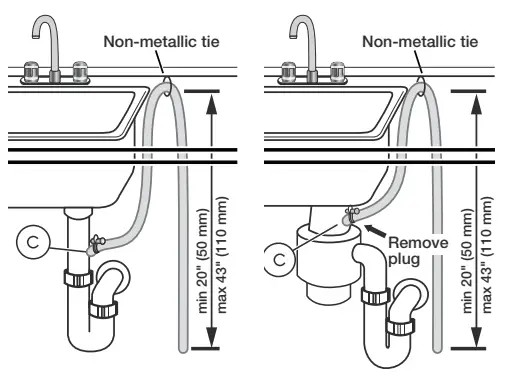

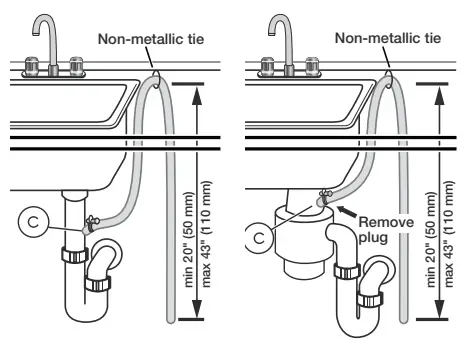

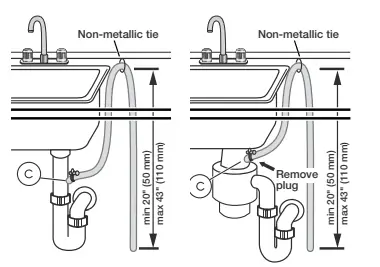

Ensure a portion of the drain hose is raised between min. 20″ (50 cm) and max. 43″ (110 cm) above the cabinet floor.

Example of Hardwire Installation

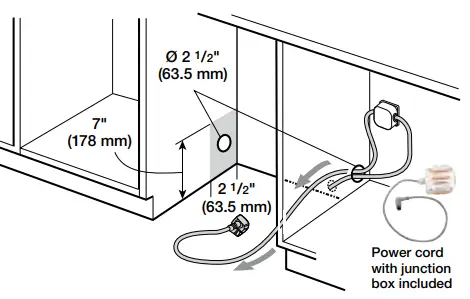

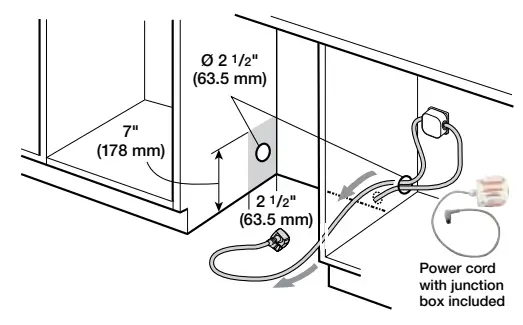

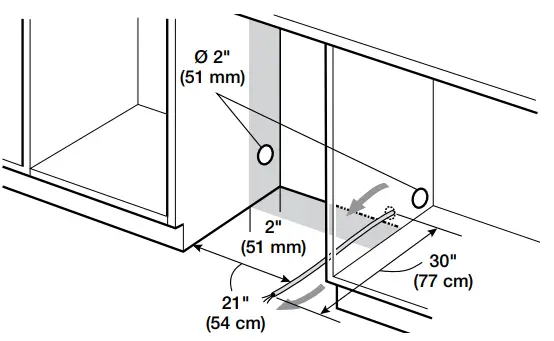

Note: Cutout required on left or right cabinet wall, depending on location of water inlet, drain\ and electrical connection

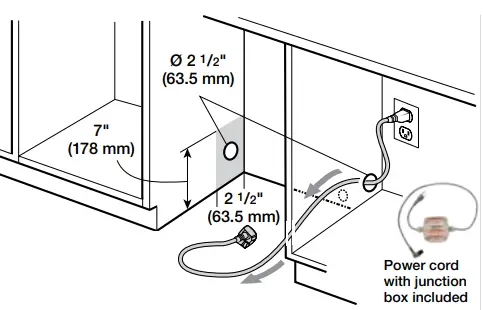

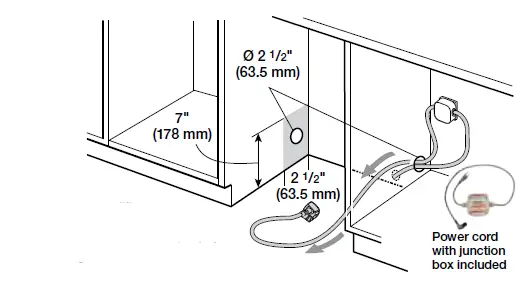

Example of Electrical Receptacle Installation

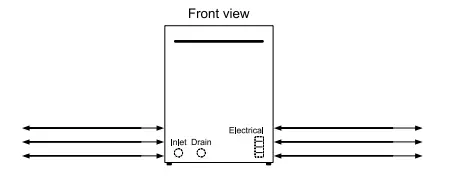

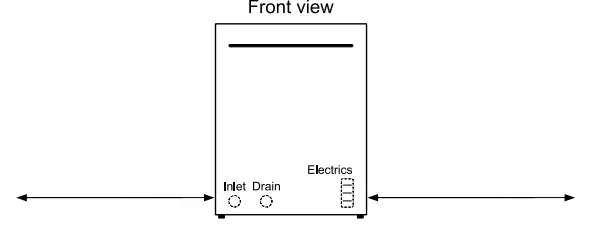

Water and Electrical Locations

• Drain hose: 67″ (175 cm)
• Water inlet hose: 53″ (135 cm)
• Electrical junction box: 25/2″ (65 cm)
• Drain hose: 63″ (160 cm)
• Water inlet hose: 391/2″ (100 cm)
• Electrical junction box: 431/2″ (110 cm)

All connections are at the rear of the appliance. Extension for drain hose available as an accessory. Power cord for connection to an electrical outlet (3-prong plug) available as an accessory.

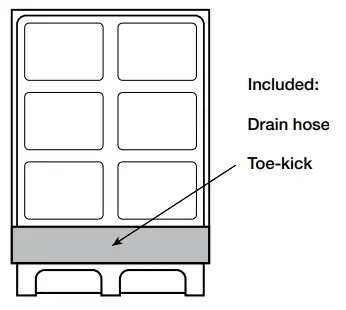

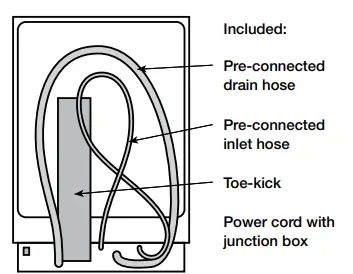

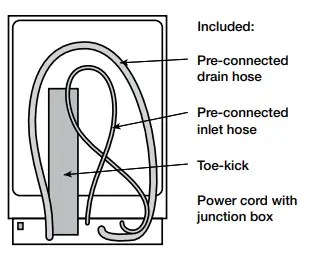

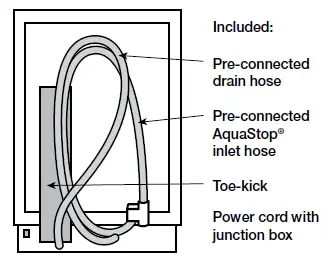

Included Parts & Accessories

Benchmark®

• SHE9PT55UC
• SHX9PT55UC
• SHV9PT53UC
  • + 39 dBA
  • + 239 kWh / Year
  • + Alternating Tines
  • + 24/7 AquaStop® Plus
  • Pairs well with European-size cabinetry

Benchmark®

• SHX9PT75UC
  • 38 dBA
  • Pairs well with European size cabinetry

Optional Accessories

• SGZ9091UC
  • Softener Salt (4.4 lbs)
• SGZ1010UC
  • Supply and Drainage
  • Hose Extension 76 3/4″
• SMZ5000
  • Accessory Kit
• SMZ5002UC
  • Anti-Tarnish
  • Silverware Cassette

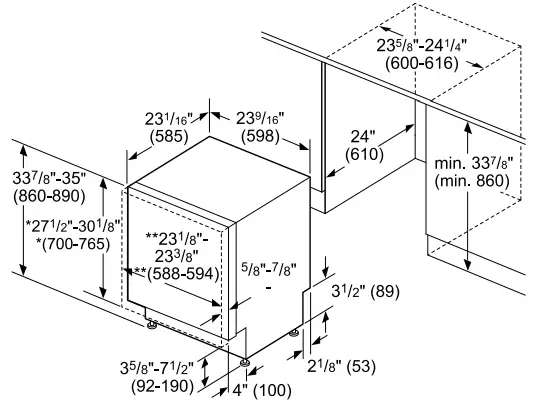

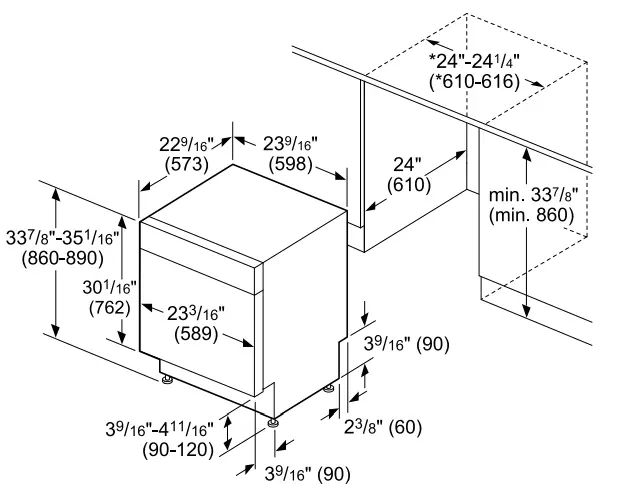

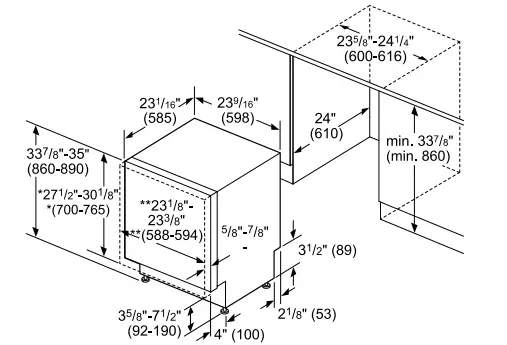

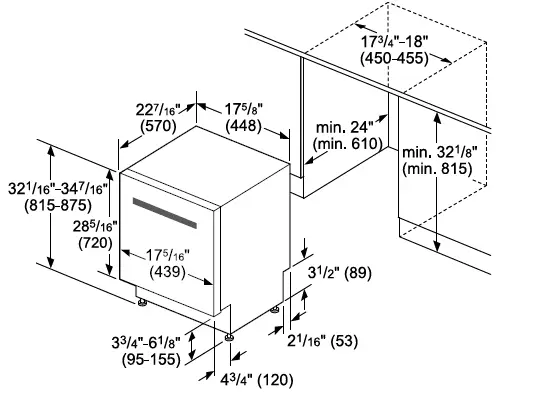

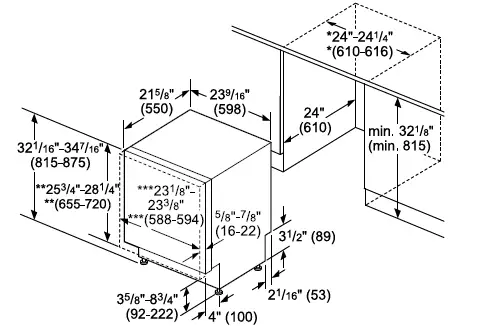

Dimensions and Cutout

• 235 5/8″ (600) without decor strips
• measurements in inches (mm)

Custom Panel – Dimensions and Cutout

• 23/e” (600 mm) without decor strips
• measured from the bottom edge of the countertop panel thickness recommended 3/4″ (20 mm). This dishwasher can accept custom door panel weights ranging from 7 to 24 lbs; however, the dishwasher comes from the factory ready for custom panel door weights from 11 to 18 lbs. If you plan on using a door panel that is not 11 to 18 Ibs. please contact customer service at (800) 944-2904.
• 24″ (610 mm) wide panel may be used depending on cabinet design

Note: Refer to the installation template for mounting hardware locations measurements in inches (mm)

Plumbing

Example of Hardwire Installation

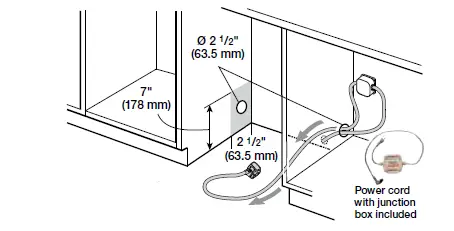

Note: Cutout required on left or right cabinet wall, depending on the location of water inlet, drain and electrical connection

Example of Electrical Receptacle Installation

Note: Cutout required on left or right cabinet wall, depending on location of water inlet, drain and electrical connection

Water and Electrical Locations

• Drain hose: 63″ (160 cm)
• Water inlet hose: 55″ (140 cm)
• Electrical junction box: 113/4″ (30 cm)
• Drain hose: 59″ (150 cm)
• Water inlet hose: 47″ (120 cm)
• Electrical junction box: 291/2″ (75 cm)

All connections are at the rear of the appliance. Extension for drain hose available as an accessory. Power cord for connection to electrical outlet (3-prong plug) available as accessory.

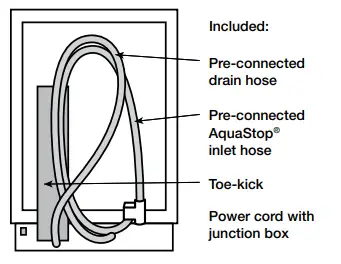

Included Parts & Accessories

Ascenta® Dishwashers

Ascenta®

• SHE3AR7_UC
• SHX3AR7_UC
  • 50 dBA
  • 6 Cycles / 2 Options
  • Racks with Manual Height Adjustment

Ascenta®

• SHS5AV5_UC
• SHX5AV5_UC
  • 46 dBA
  • RackMatic® Height Adjustable System
  • InfoLight®

Ascenta® DLX

• SHS5AVL_UC
• SHX5AVL5UC
  • Cycles / 5 Options
  • ExtraScrub option

Optional Accessories

• SGZ1010UC
  • Supply and Drainage
  • Hose Extension 76 3/4″
• SGZPC001UC
  • 3-Prong Power Cord
  • 55 1/4″
• SGZ1052UC
  • Accessory Kit
• SMZ4000UC
  • DoubleFlex Silverware Basket
• SMZ5002UC
  • Anti-Tarnish Silverware Cassette

Dimensions and Cutout

• 23/8″ (600) without decor strips

Water and Electrical Locations

• Drain hose: 871/2″ (222 cm)
• Drain hose: 751/2″ (191 cm)

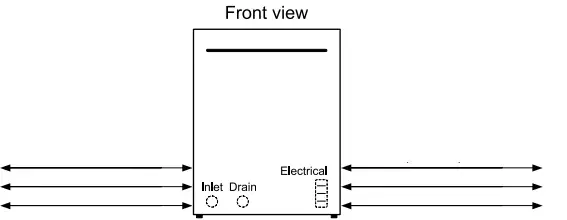

The electrical junction box and water inlet are at the front of the appliance, the drain at the rear.

Plumbing

Note: Plumbing installations will vary – refer to local codes. The drain hose included is 91 3/4″ (233 cm) and can be extended to a maximum of 168 1/2″ (428 cm).

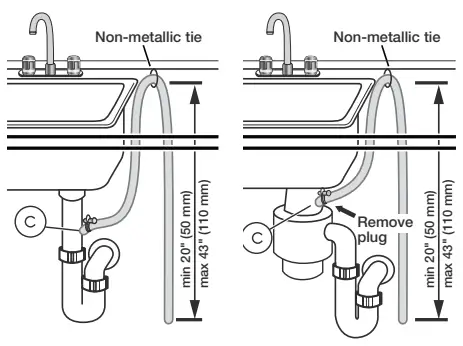

Always use the approved drain hose extension kit (SGZ1010UC).

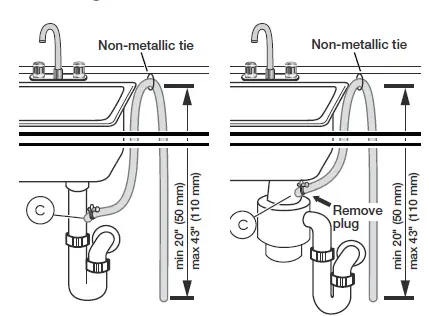

Ensure a portion of the drain hose is raised between min. 20″ (50 cm) and max. 43″ (110 cm) above the cabinet floor.

Example of Hardwire Installation

Note: Cutout required on left or right cabinet wall, depending on location of water inlet, drain and electrical connection

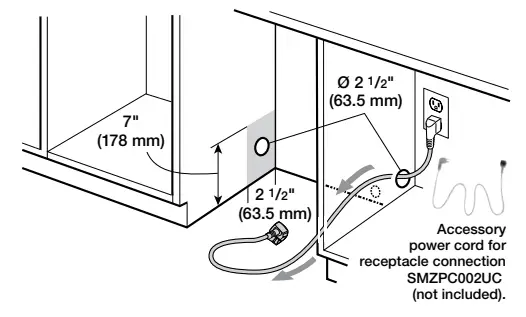

Example of Electrical Receptacle Installation

Note: Cutout required on left or right cabinet wall, depending on location of water inlet, drain and electrical connection.

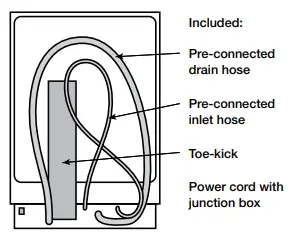

Included Parts & Accessories

300 Series Dishwashers

300 Series

• SHE53T5_UC
• SHP53T55UC
• SHX53T55UC
• SHV53T53UC
  • 4 Cycles / 4 Options
  • 46 dBA
  • 24/7 AquaStop®

300 Series DLX

• SHE53TL_UC
• SHP53TL5UC
• SHX53TL5UC
• SHV53TL3UC
  • RackMatic® Height
  • Adjustable System
  • SpeedPerfect®
  • 4 Cycles / 5 Options

300 Series DLX

• SHS63VL_UC
• 44 dBA
• 24h Delay Start Timer

Optional Accessories

• SGZ1010UC
  • Supply and Drainage
  • Hose Extension 76 3/4″
• SMZPC002UC
  • 3-Prong Power Cord
  • 66 7/8″
• SMZ5000
  • Accessory Kit
• SMZ4000UC
  • DoubleFlex Silverware Basket
• SMZ5002UC
  • Anti-Tarnish Silverware Cassette

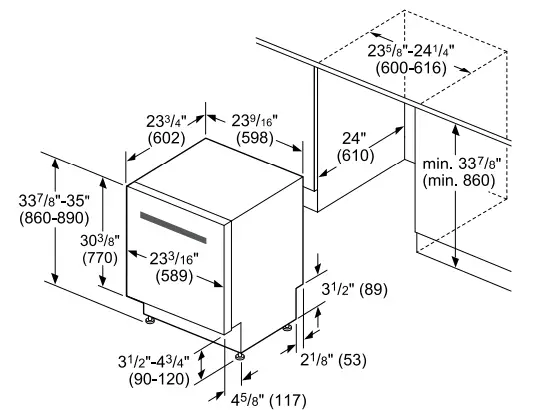

Dimensions and Cutout

Custom Panel – Dimensions and Cutout

• measured from the bottom edge of the countertop panel thickness recommended 3/4″ (20 mm).
• This dishwasher can accept custom door panel weights ranging from 7 to 24 Ibs; however, the dishwasher comes from the factory ready for custom panel door weights from 11 to 18 lbs. If you plan on using a door panel that is not 11 to 18 lbs. please contact customer service at (800) 944-2904.
• 24″ (610 mm) wide panel may be used depending on cabinet design

Note: Refer to the installation template for mounting hardware locations measurements in inches (mm)

Plumbing

Note: Plumbing installations will vary – refer to local codes.

The drain hose included is 79 (201 cm) and can be extended to a maximum of 155 3/4″ (396 cm).
Always use the approved drain hose extension kit (SGZ1010UC).

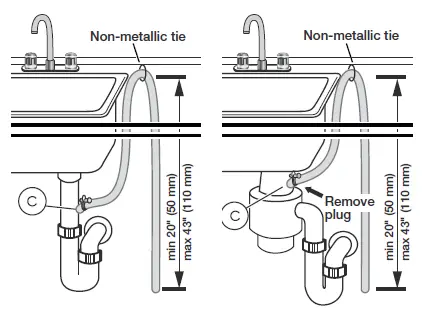

Ensure a portion of the drain hose is raised between min. 20″ (50 cm) and max. 43″ (110 cm) above the cabinet floor.

Example of Hardwire Installation

Note: Cutout required on left or right cabinet wall, depending on location of water inlet, drain and electrical connection

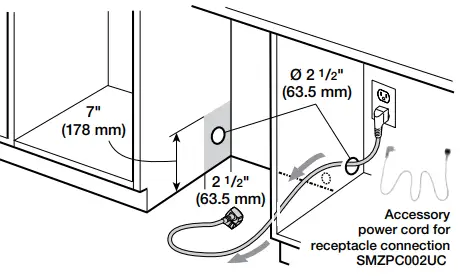

Example of Electrical Receptacle Installation

Note: Cutout required on left or right cabinet wall, depending on location of water inlet, drain and electrical connection

Water and Electrical Locations

• Drain hose: 67″ (175 cm)
• Water inlet hose: 53″ (135 cm)
• Electrical junction box: 25/2″ (65 cm)
• Drain hose: 63″ (160 cm)
• Water inlet hose: 391/2″ (100 cm)
• Electrical junction box: 431/2″ (110 cm)

All connections are at the rear of the appliance. Extension for drain hose available as accessory. Power cord for connection to electrical outlet (3-prong plug) available as an accessory.

Included Parts & Accessories

500 Series Dishwashers

500 Series

• SHE65T5_UC
• SHP65T5_UC
• SHX65T55UC
  • 44 dBA
  • 5 Cycles / 5 Options
  • RackMatic® Height Adjustable System
  • Third Rack 16 Place Settings

500 Series DLX

• SHP65TL_UC
  • DoubleFlex Silverware Basket
  • SpeedPerfect®

+ Indicates a step-up feature

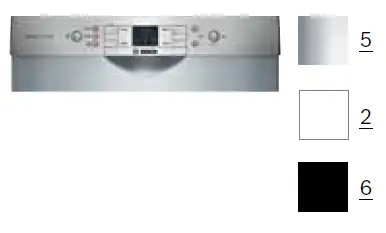

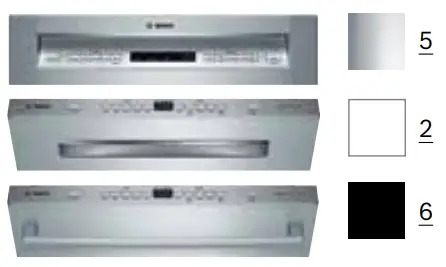

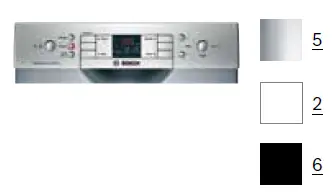

Multiple colors available. See color chips to fill in missing digit.

500 Series

• Recessed Handle: SHE65T5_UC
• Pocket Handle: SHP65T5_UC
• Bar Handle: SHX65T55UC

500 Series DLX

• Pocket Handle SHP65TL_UC

General Properties

Efficiency and Capacity

Technical Data

Dimensions & Weight

Optional Accessories

• SGZ1010UC
  • Supply and Drainage
  • Hose Extension 76 3/4″
• SMZPC002UC
  • 3-Prong Power Cord
  • 66 7/8″
• SMZ5000
  • Accessory Kit
• SMZ4000UC
  • DoubleFlex Silverware Basket
• SMZ5002UC
  • Anti-Tarnish Silverware Cassette

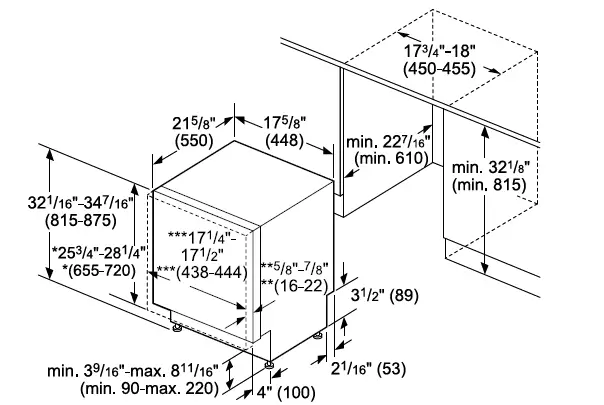

Dimensions and Cutout

• measurements in inches (mm)

Plumbing

Note: Plumbing installations will vary – refer to local codes.

The drain hose included is 79 (201 cm) and can be extended to a maximum of 155 3/4″ (396 cm).
Always use the approved drain hose extension kit (SGZ1010UC).
Ensure a portion of the drain hose is raised between min. 20″ (50 cm) and max. 43″ (110 cm) above the cabinet floor.

Included Parts & Accessories

Example of Hardwire Installation

Note: Cutout required on left or right cabinet wall, depending on location of water inlet, drain and electrical connection

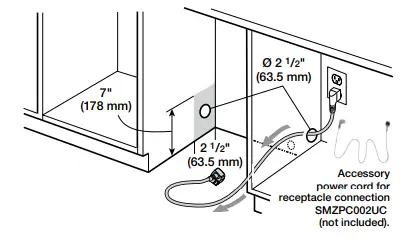

Example of Electrical Receptacle Installation

Note: Cutout required on left or right cabinet wall, depending on location of water inlet, drain and electrical connection

Water and Electrical Locations

• Drain hose: 67″ (175 cm)
• Water inlet hose: 53″ (135 cm)
• Electrical junction box: 251/2″ (65 cm)
• Drain hose: 63″ (160 Cm)
• Water inlet hose: 392″ (100 cm)
• Electrical junction box: 431/2″ (110 cm)

All connections are at the rear of the appliance. Extension for drain hose available as accessory. Power cord for connection to electrical outlet (3-prong plug) available as accessory.

800 Series Dishwashers

800 Series

• SHE68T5_UC
• SHP68T55UC
• SHX68T5_UC
•  SHV68T53UC
  • 6 Cycles / 5 Options
  • Capacitive Touch Control
  • Eco Cycle
  • Third Rack – 16 Place Settings

800 Series

• SHXN8U55UC
• 40 dBA
• RackMatic® Height
• Adjustable System
• Flexible Third Rack with Folding Tines

800 Series DLX

• SHE68TL5UC
• SHP68TL5UC
• SHX68TL5UC
• SHV68TL3UC
  • DoubleFlex Silverware Basket
  • SpeedPerfect®
  • 6 Cycles / 6 Options

Dimensions and Cutout

• measurements in inches (mm)

Custom Panel – Dimensions and Cutout

• measured from the bottom edge of the countertop panel thickness recommended 3/4″ (20 mm).
• This dishwasher can accept custom door panel weights rangingfrom 7 to 24 lbs; however, the dishwasher comes from the factory ready for custom panel door weights from 11 to 18 Ibs. If you plan on using a door panel that is not 11 to 18 lbs. please contact customer service at (800) 944-2904.
• 24″ (610 mm) wide panel may be used depending on cabinet design

Note: Refer to the installation template for mounting hardware locations measurements in inches (mm)

Plumbing

Note: Plumbing installations will vary – refer to local codes.

Drain hose included is 79 (201 cm) and can be extended to a maximum of 155 3/4″ (396 cm).
Always use the approved drain hose extension kit (SGZ1010UC).
Ensure a portion of the drain hose is raised between min. 20″ (50 cm) and max. 43″ (110 cm) above the cabinet floor

Example of Hardwire Installation

Note: Cutout required on left or right cabinet wall, depending on location of water inlet, drain and electrical connection

Example of Electrical Receptacle Installation

Note: Cutout required on left or right cabinet wall, depending on location of water inlet, drain and electrical connection

Water and Electrical Locations

• Drain hose: 67″ (175 cm)
• Water inlet hose: 53″ (135 cm)
• Electrical junction box: 251/2″ (65 cm)
• Drain hose: 63″ (160 cm)
• Water inlet hose: 39/2″ (100 cm)
• Electrical junction box: 431/2″ (110 cm)

All connections are at the rear of the appliance. Extension for drain hose available as accessory. Power cord for connection to electrical outlet (3-prong plug) available as an accessory.

Included Parts & Accessories

18-Inch ADA Special Application Dishwashers

18-Inch ADA

• 300 Series
• SPE53U5_UC
  • 46 dBA
  • 4 Cycles / 4 Options
  • Water Softener
  • 24/7 AquaStop® Plus
  • Delay Start Timer

18-Inch ADA

• 800 Series
• SPE68U55UC
• SPX68U55UC
• SPV68U53UC
  • 44 dBA
  • 6 Cycles / 5 Options
  • Third Rack – 10 Place Settings
  • Eco Cycle

+ Indicates a step-up feature

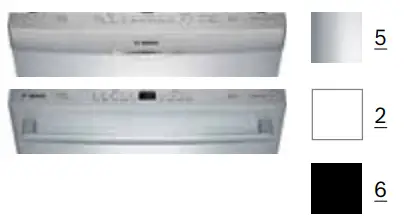

Multiple colors available. See color chips to fill in missing digit.

18-Inch ADA 300 Series

• Recessed Handle: SPE53U5_UC

18-Inch ADA 800 Series

• Recessed Handle: SPE68U55UC
• Bar Handle: SPX68U55UC
• Custom Panel: SPV68U53UC

General Properties

Efficiency and Capacity

Technical Data

Dimensions & Weight

Optional Accessories

• SGZ9091UC
  • Softener Salt (4.4 lbs)
• SGZ1010UC
  • Supply and Drainage Hose Extension 76 3/4″
• SMZ5000
  • Accessory Kit
• SMZ5003
  • Hinge for 4″ Toekick Height Installation

Dimensions and Cutout

• measurements in inches (mm)

Custom Panel – Dimensions and Cutout

• measured from the bottom edge of the countertop panel
• panel weight 6-16 lb (2.5-7.5 kg)
• 18″ (450 mm) wide panel may be used depending on cabinet design

Note: Refer to the installation template for mounting hardware locations measurements in inches (mm)

Plumbing

Note: Plumbing installations will vary refer to local codes.

Drain hose included is 88 5/8″ (225 cm) and can be extended to a maximum of 165 3/8″ (420 cm).
Always use the approved drain hose extension kit (SGZ1010UC).
Ensure a portion of the drain hose is raised between min. 20″ (50 cm) and max. 43″ (110 cm) above the cabinet floor.

Example of Hardwire Installation

Note: Cutout required on left or right cabinet wall, depending on location of water inlet, drain and electrical connection

Example of Electrical Receptacle Installation

Note: Cutout required on left or right cabinet wall, depending on the location of water inlet, drain and electrical connection

Water and Electrical Locations

• Drain hose: 701/2″/ 180 cm
  • (1491/2″/ 380 cm)
• Water inlet hose:: 55″ I 140 cm
  • (1411/2″/ 360 cm)
• Electrical junction box: 1711/16″ 45 cm
• Drain hose: 59″/ 150 cm
  • (1371/2″ / 350 cm)
• Water inlet hose: 47″I 120 cm
  • (1331/2″/ 340 cm)
• Electrical junction box: 291/2″/ 75 cm

All connections at the rear of the appliance. () values with extension kit.

Included Parts & Accessories

24-Inch ADA Special Application Dishwashers

24-Inch ADA

• 300 Series
• SGE53U5_UC
• 46 dBA
  • 4 Cycles / 4 Options
  • Water Softener
  • 24/7 AquaStop® Plus
  • Delay Start Timer

24-Inch ADA

• 800 Series
• SGE68U55UC
• SGX68U55UC
• SGV68U53UC
  • 44 dBA
  • 6 Cycles / 5 Options
  • Third Rack – 15 Place Settings
  • Eco Cycle

+ Indicates a step-up feature
Multiple colors available. See color chips to fill in missing digit.

24-Inch ADA 300 Series

• Recessed Handle: SGE53U5_UC

24-Inch ADA 800 Series

• Recessed Handle: SGE68U55UC
• Bar Handle: SGX68U55UC
• Custom Panel: SGV68U53UC

General Properties

Efficiency and Capacity

Technical Data

Dimensions & Weight

Optional Accessories

• SGZ9091UC
  • Softener Salt (4.4 lbs)
• SGZ1010UC
  • Supply and Drainage Hose Extension 76 3/4″
• SMZ5000
  • Accessory Kit
• SMZ5002UC
  • Anti-tarnish Silverware Cassette

Dimensions and Cutout

• measurements in inches (mm)

Custom Panel – Dimensions and Cutout

• 23°/8″ (600 mm) Without decor strips measured from the bottom edge of the countertop panel thickness recommended 14″ (20 mm), panel weight 6-18 lbs (2.5-8.5 kg)
• 24″ (610 mm) wide panel may be used depending on cabinet design
• measurements in inches (mm)

Plumbing

Note: Plumbing installations will vary – refer to local codes.

Drain hose included is 88 5/8″ (225 cm) and can be extended to a maximum of 165 3/8″ (420 cm).
Always use the approved drain hose extension kit (SGZ1010UC).
Ensure a portion of the drain hose is raised between min. 20″ (50 cm) and max. 43″ (110 cm) above the cabinet floor.

Example of Hardwire Installation

Note: Cutout required on left or right cabinet wall, depending on location of water inlet, drain and electrical connection

Example of Electrical Receptacle Installation

Note: Cutoutrequired on left or right cabinet wall, depending on location of water inlet, drain and electrical connection

Water and Electrical Locations

• Drain hose: 63″ (160 cm)
• Water inlet hose: 55″ (140 cm)
• Electrical junction box: 113/4″ (30 cm)
• Drain hose: 59″ (150 cm)
• Water inlet hose: 47″ (120 cm)
• Electrical junction box: 291/2″ (75 cm)

All connections are at the rear of the appliance. Extension for drain hose available as an accessory. Power cord for connection to electrical outlet (3-prong plug) available as an accessory.

Included Parts & Accessories

CONTACTS

• TEL: 1–800–944–2904
• bosch-home.com/us

Benchmark SHE7PT5_UC Dishwashers User Manual
